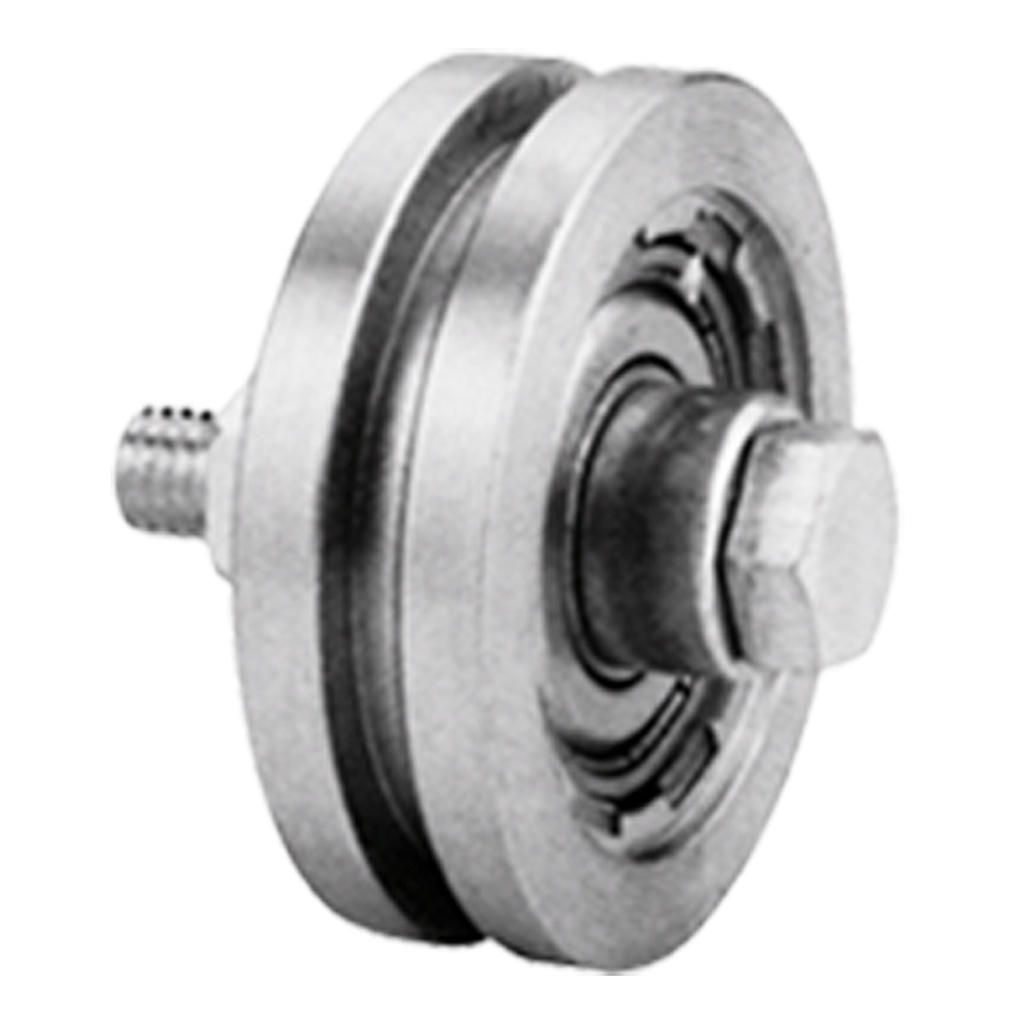

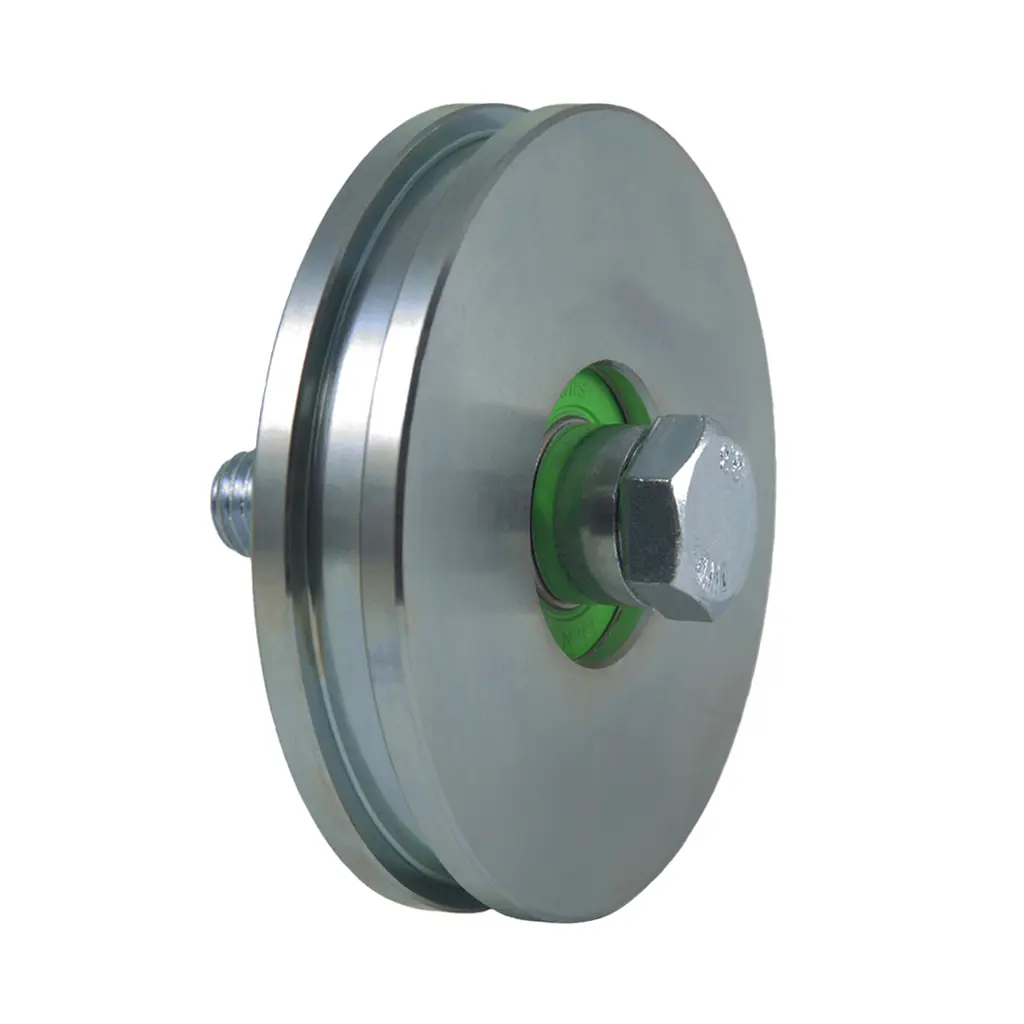

100mm square groove wheel with 1 ball bearing
7 sold in last 24 hours
Part Number: 100-H-1BB
Wheel Size: 98x20mm
Bearing Type: Single Ball Bearing
Load Capacity: 200kg
Wheel Size: 98x20mm
Bearing Type: Single Ball Bearing
Load Capacity: 200kg
100mm square groove wheel with 1 ball bearing
- Wheel for sliding gate.
- 1 Precision ball bearing.
- Square groove zinc plated steel.
- A wheel to run on square shapes.

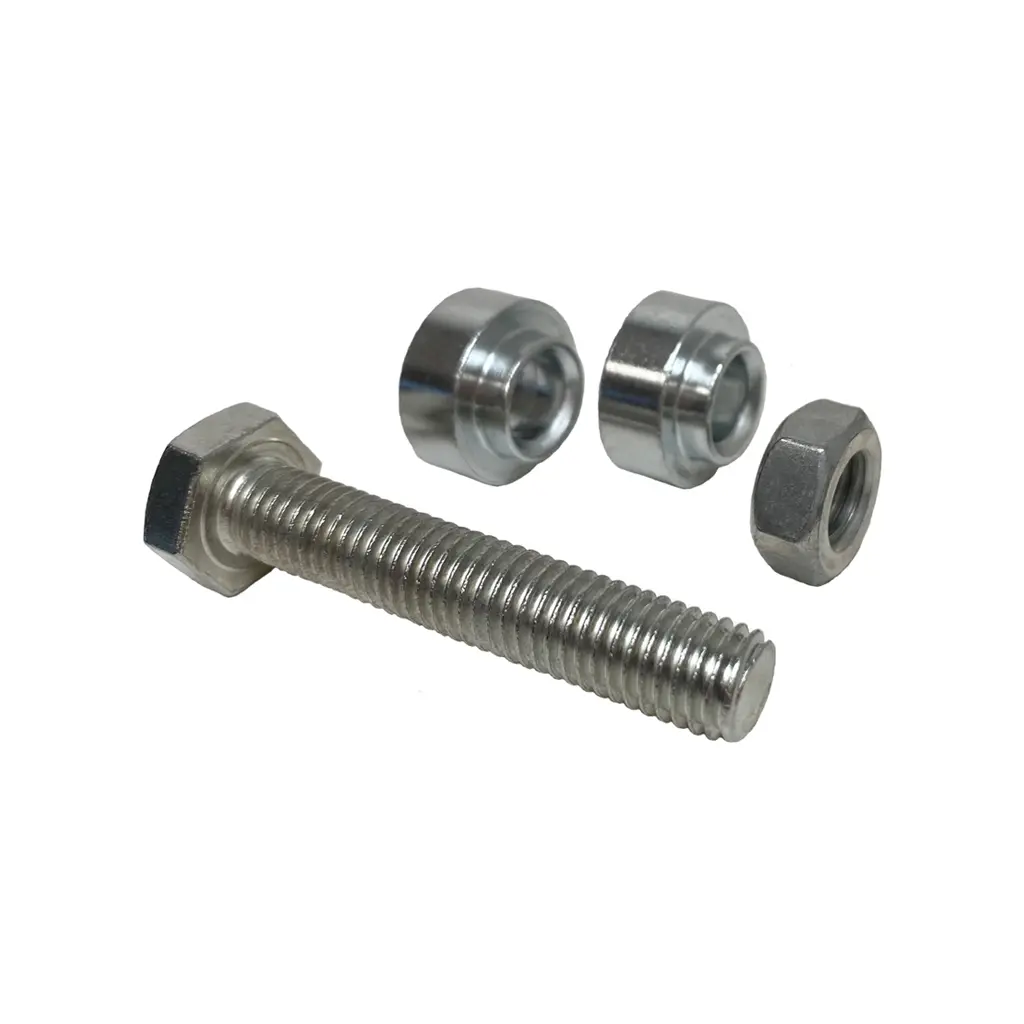

- The wheel is supplied with bolt, nut and 2 T-bushes.

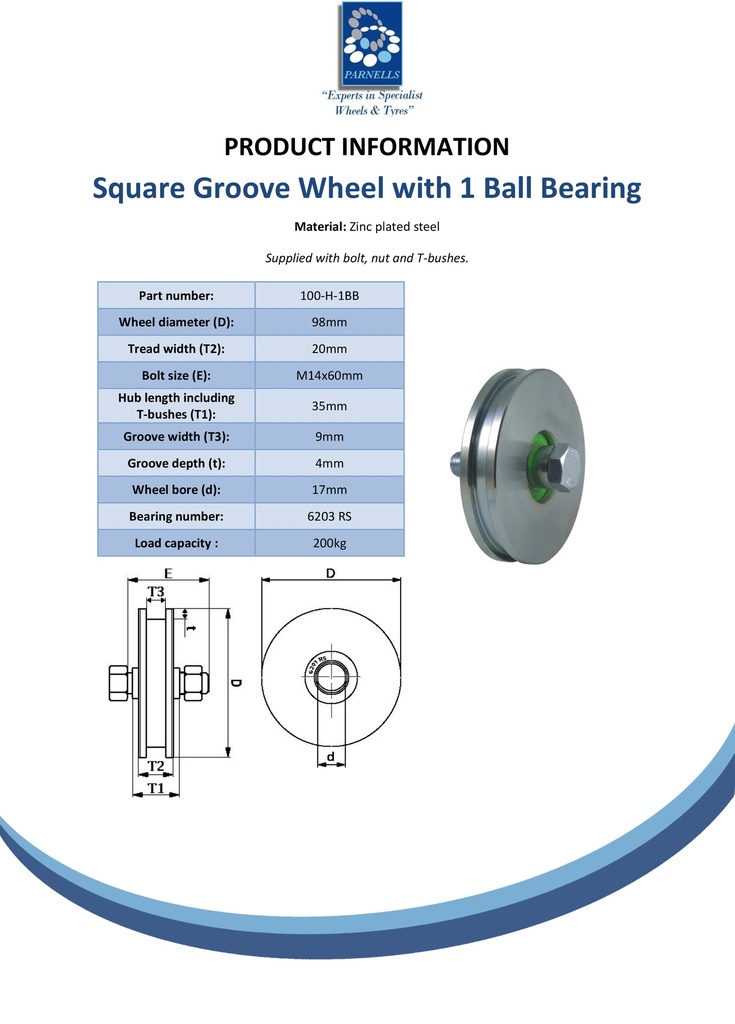

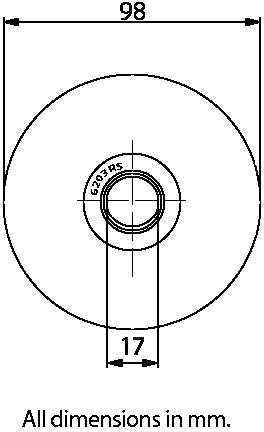

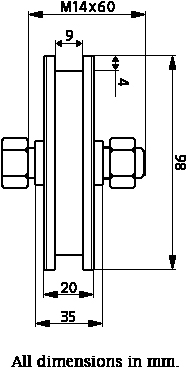

| Part Number | 100-H-1BB |
| Wheel Diameter (mm) | 98 |
| Tread Width (mm) | 20 |
| Bolt Size (mm) | M14x60 |
| Hub Length Including T-Bushes (mm) | 35 |
| Groove Width (mm) | 9 |
| Groove Depth (mm) | 4 |
| Load Capacity (kg) | 200 |
| Brand | IBFM |
