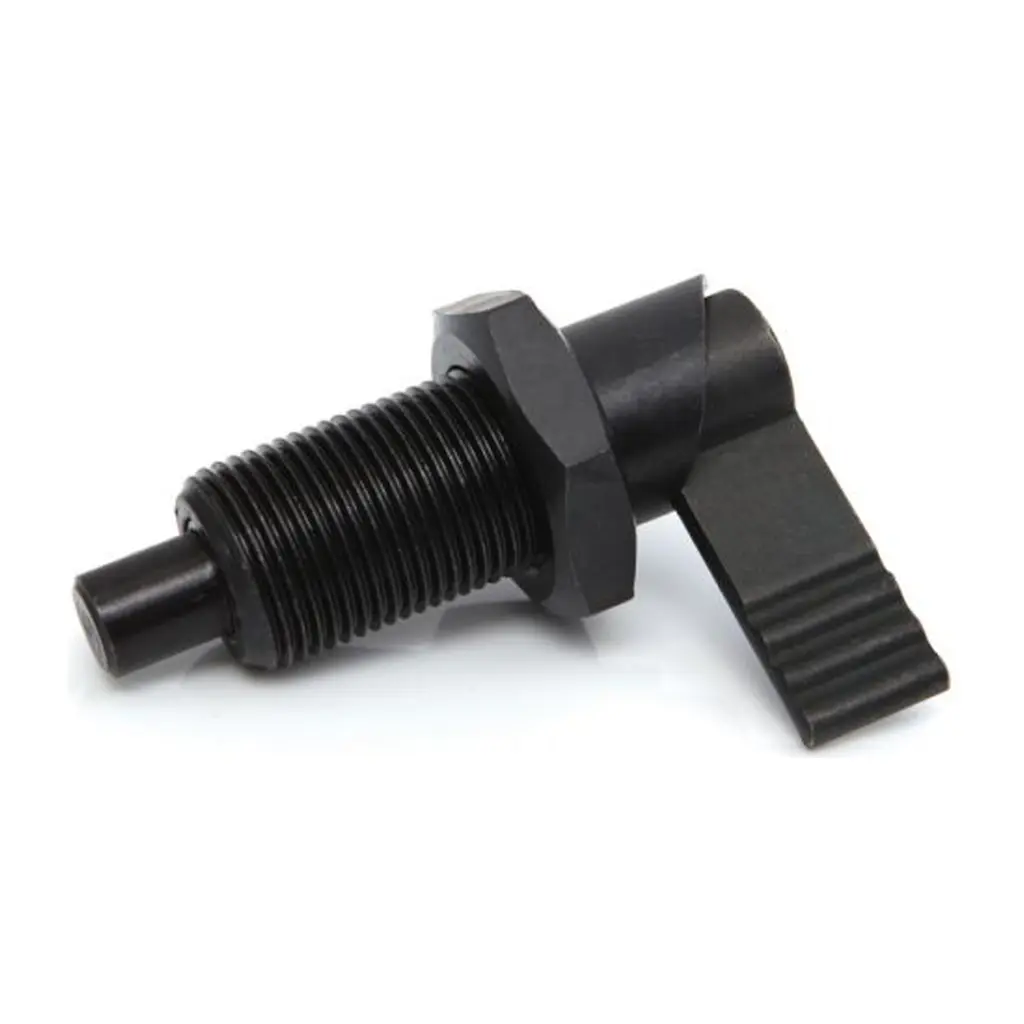

M20 Blackened steel Cam plunger (10mm plunger diameter)
7 sold in last 24 hours
Part Number: 11786R
Thread Size: M20
Plunger Pin Diameter: 10mm
Material: Blackened Steel
Thread Size: M20
Plunger Pin Diameter: 10mm
Material: Blackened Steel
M20 Blackened steel Cam plunger (10mm plunger diameter)
Made of blackened steel.
Comes
as standard with locking nut.
Turn the cam lever by 180° to allow the plunger pin to be fully retracted and locked in place. Twisting the lever again disengages the lock and a spring mechanism automatically returns the pin to the extended position.
| Part Number | 11786R |
| Thread Size | M20 |
| Thread Length (mm) | 36 |
| Total Length (mm) | 69 |
| Length of Lever (mm) | 37 |
| Plunger Pin Length (mm) | 12 |
| Plunger Pin Diameter (mm) | 10 |
| Rest Position | Yes |
| Material | Blackened Steel |
| Brand | Rencol |
