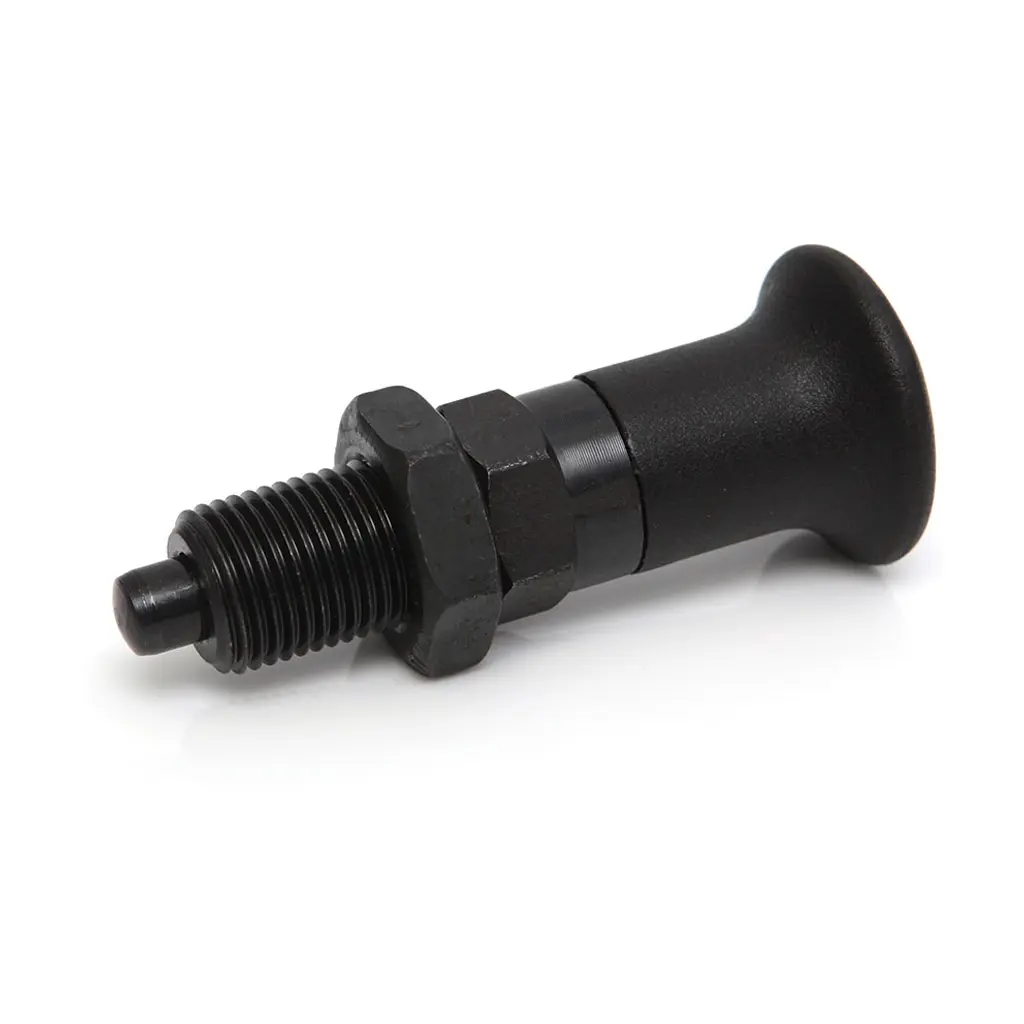

M12 Spring loaded index plunger - with rest position
7 sold in last 24 hours
Part Number: 11832U
Thread Size: M12
Plunger Pin Diameter: 6mm
Material: Blackened steel with knob in matt black high impact resistant thermoplastic.
Thread Size: M12
Plunger Pin Diameter: 6mm
Material: Blackened steel with knob in matt black high impact resistant thermoplastic.
M12 Spring loaded index plunger - with rest position
- Made of blackened steel threaded body, steel spring and blackened fixed nut. Knob in matt black high impact resistant thermoplastic.
- 90° locking rest position.
- Heavy duty and long lasting.
- Supplied with a M12 nut.

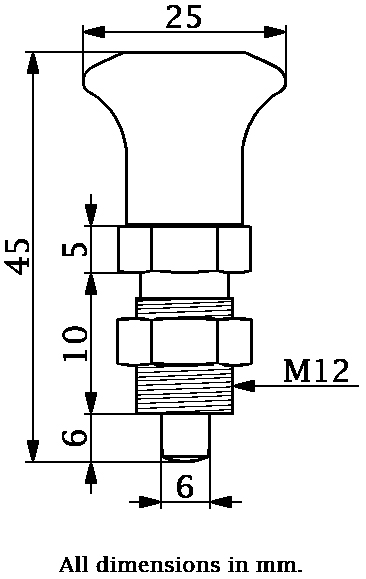

| Part Number | 11832U |
| Thread Size | M12 |
| Thread Length (mm) | 10 |
| Knob Head Diameter (mm) | 25 |
| Total Length (mm) | 45 |
| Fixed Nut Height (mm) | 5 |
| Plunger Pin Diameter (mm) | 6 |
| Plunger Pin Length (mm) | 6 |
| Rest Position | Yes |
| Brand | Rencol |
