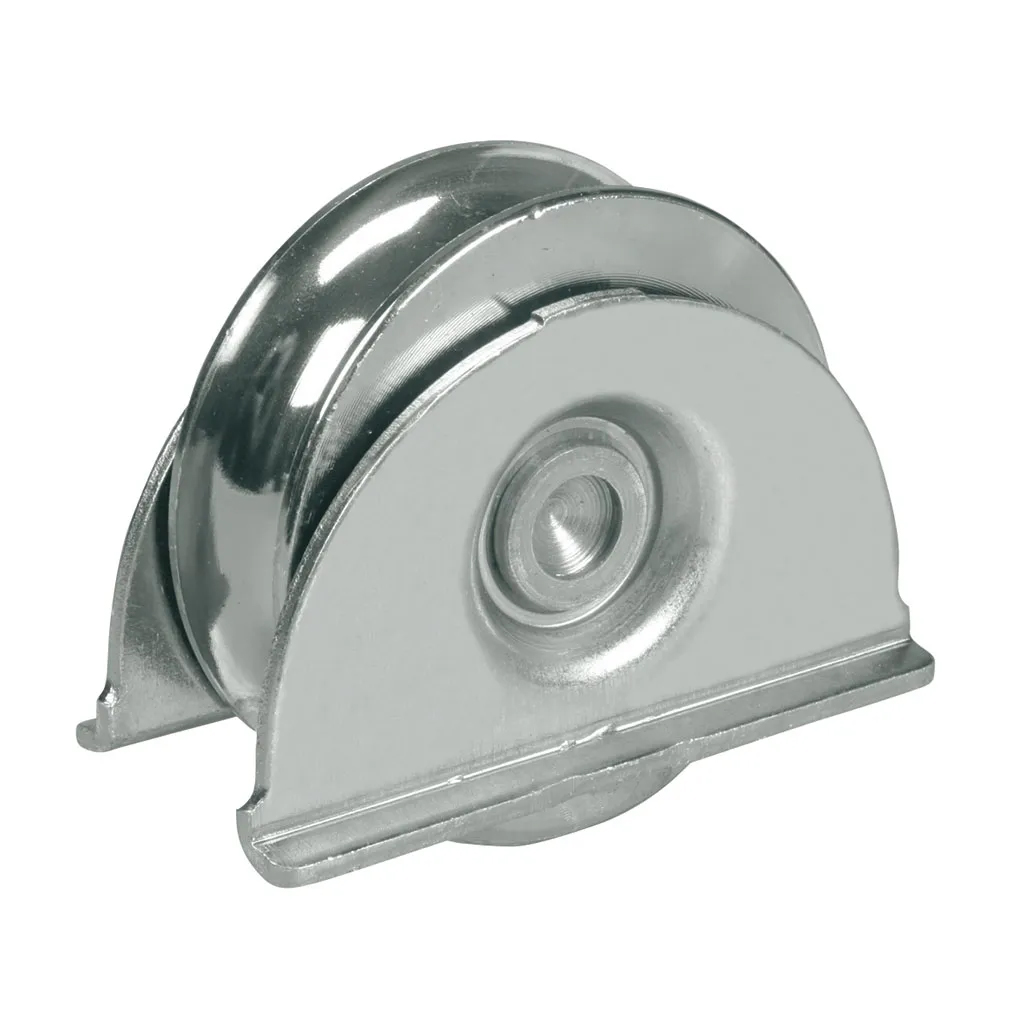

120mm round groove wheel 20.5mm groove in countersunk bracket

120mm round groove wheel 20.5mm groove in countersunk bracket - Dimensions

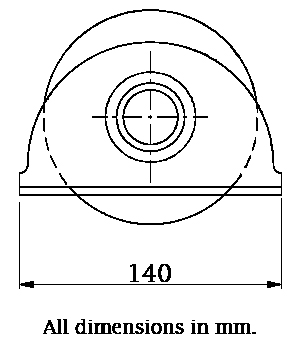

120mm round groove wheel 20.5mm groove in countersunk bracket - Side view dimensions

120mm round groove wheel 20.5mm groove in countersunk bracket - Cad pic.

120mm Round groove wheel 20.5mm groove in countersunk bracket - Spec sheet

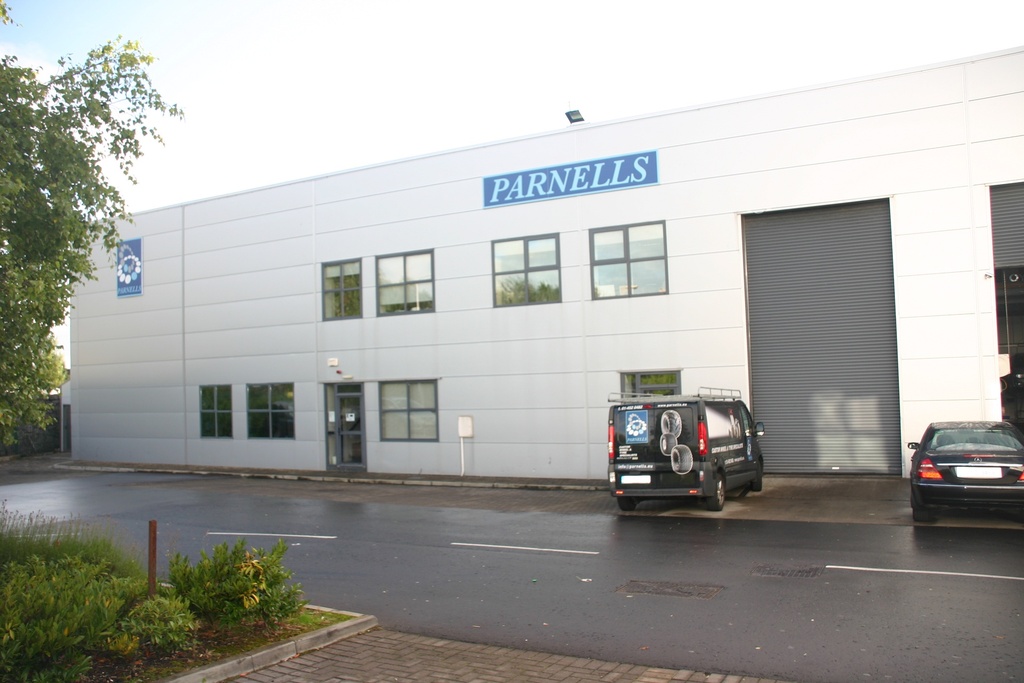

Parnells Premises

120mm round groove wheel 20.5mm groove in countersunk bracket

Part Number: 120-R-FX1
Wheel Diameter: 118mm
Bracket and Wheel Material: Zinc Plated Steel
Load Capacity: 200kg

34.64 € 34.64 EUR 34.64 €

44.99 €

Login for trade prices

Wheel Diameter (mm)
- 118
Brand
Groove Diameter (mm)
- 20.5
Bracket Size (mm)
- 140x36
Height from ground to base of mounting bracket (mm)
- 18
Tread Width (mm)
- 25
Load Capacity (kg)
- 200

This combination does not exist.

Sensible Prices

Fast Delivery

Unlimited Returns

Huge Stock

Click Here To See Terms and Conditions

120mm round groove wheel 20.5mm groove in countersunk bracket

Wheel for sliding gate.
Wheel with 1 Precision ball bearing.
Bracket and wheel made of zinc plated steel.
To run on round shapes.
