SPKVS 100K 100mm flanged steel wheel
14 sold in last 24 hours
Reference: 608315
Wheel Diameter Without Flange: 100mm (4" inches)
Bearing Type: Ball Bearings
Load Capacity: 1200kg
Wheel Diameter Without Flange: 100mm (4" inches)
Bearing Type: Ball Bearings
Load Capacity: 1200kg

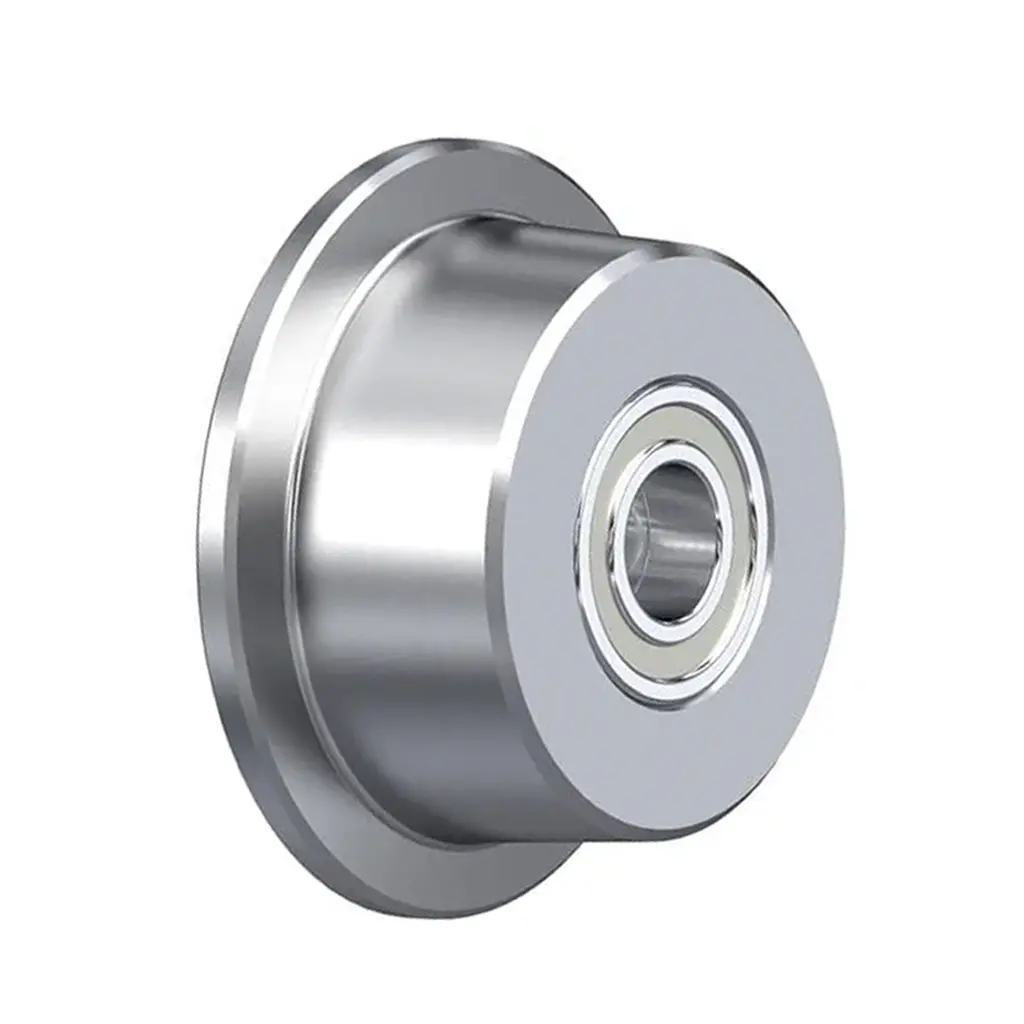

SPKVS 100K 100mm flanged steel wheel
- A wheel made of machined heat-treatable steel, hardness 190-230 HB, with exceptionally low rolling resistance on clean and even surface.
- Extremely high static and dynamic load capacity.
- 3° taper tread to axle.
- Chemical resistance to many aggressive substances.
- The load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):
SPKVS 50K–SPKVS 200K: A45
SPKVS 250K: A55

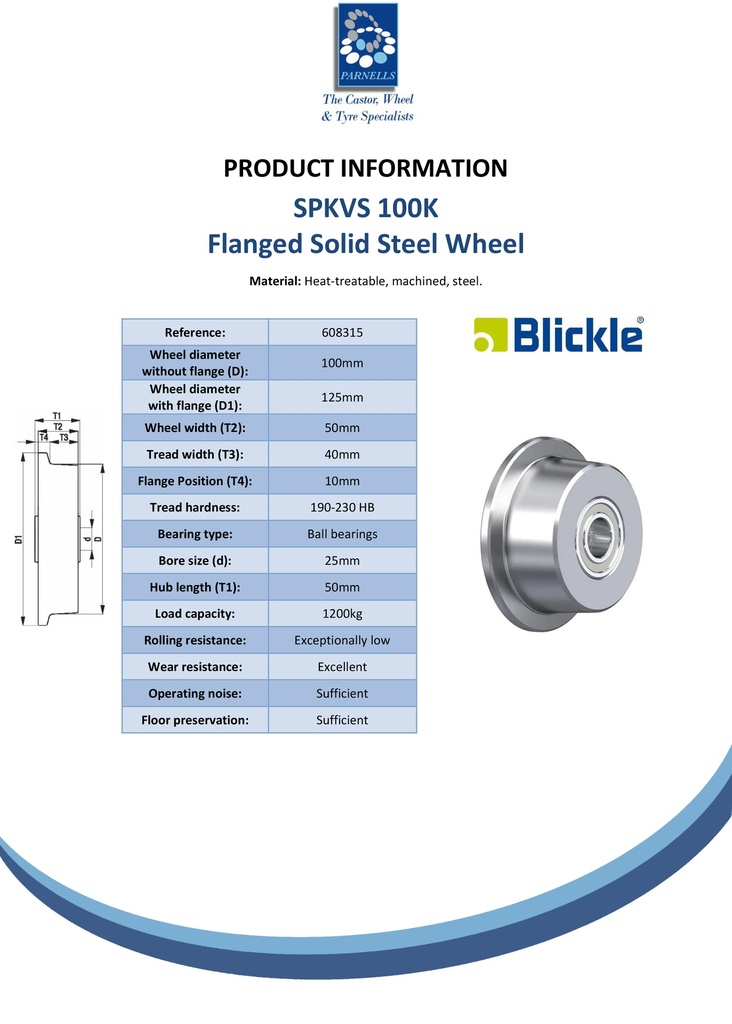

| Part Number | 608315 |
| Wheel Diameter Without Flange (mm) | 100 |
| Wheel Diameter With Flange (mm) | 125 |
| Wheel Width (mm) | 50 |
| Tread Width (mm) | 40 |
| Flange Position (mm) | 10 |
| Bearing Type | Ball Bearings |
| Bore Size (mm) | 25 |
| Hub Length (mm) | 50 |
| Load Capacity (kg) | 1200 |
| Tread Material | Steel |
| Wheel Rim Material | Steel |
| Rolling Resistance | Exceptionally Low |
| Wear Resistance | Excellent |
| Operating Noise | Sufficient |
| Floor Preservation | Sufficient |
| Brand | Blickle |
