20x10.00-8 ATV Twin axle quad trailer kit, Wheels, Axles and Swivel hitch 1800kgs
4 sold in last 24 hours
Part Number: EC1325
Wheel Size: 20x10.00-8
Stub Axles: 40mm square & 200mm long
Load Capacity: 1800kgs
Wheel Size: 20x10.00-8
Stub Axles: 40mm square & 200mm long
Load Capacity: 1800kgs

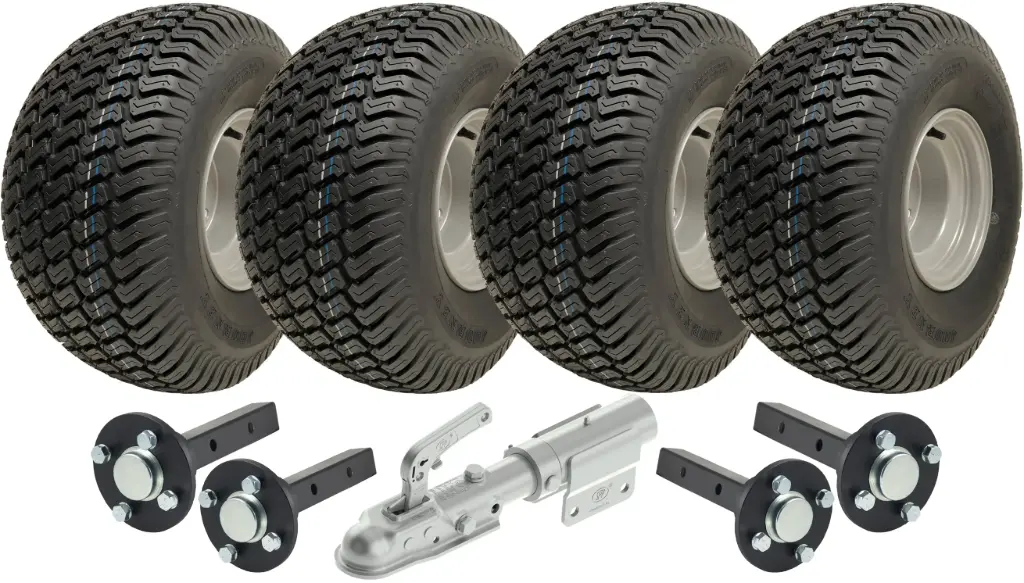

20x10.00-8 twin axle ATV trailer kit.

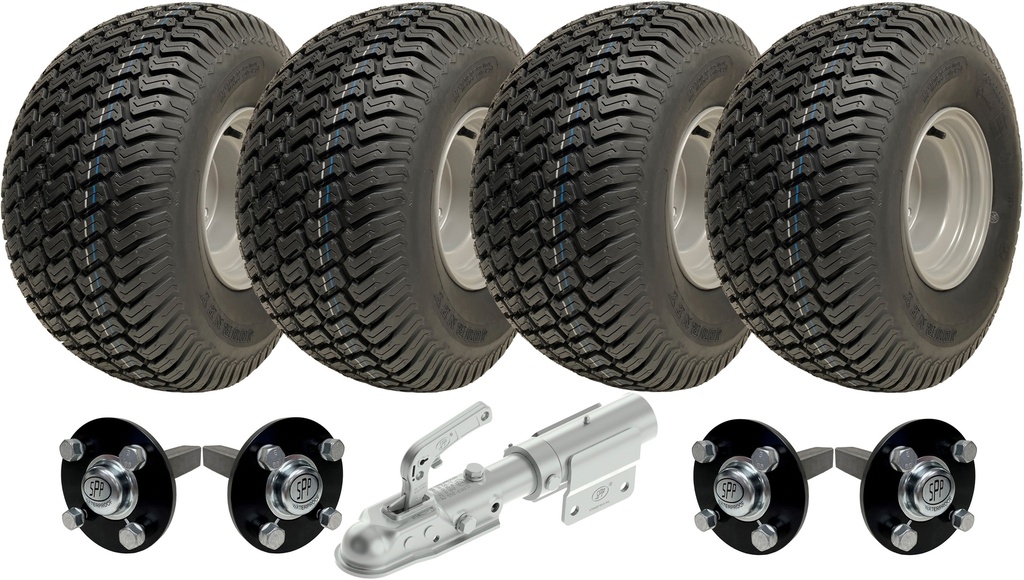

This kit contains:
Four – 20x10.00-8 wheels
&
Four- 40mm x 40mm hub and stub axles.
One - Swivel tow hitch.

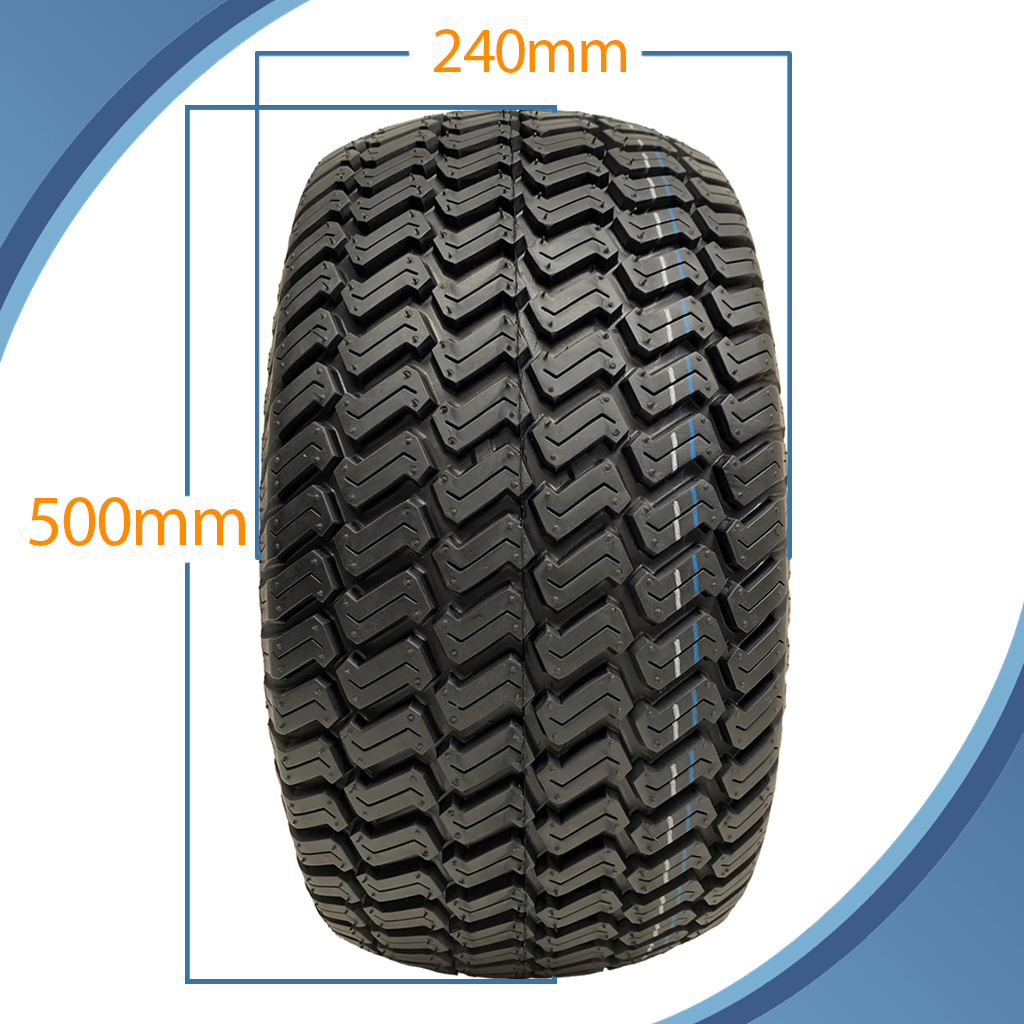

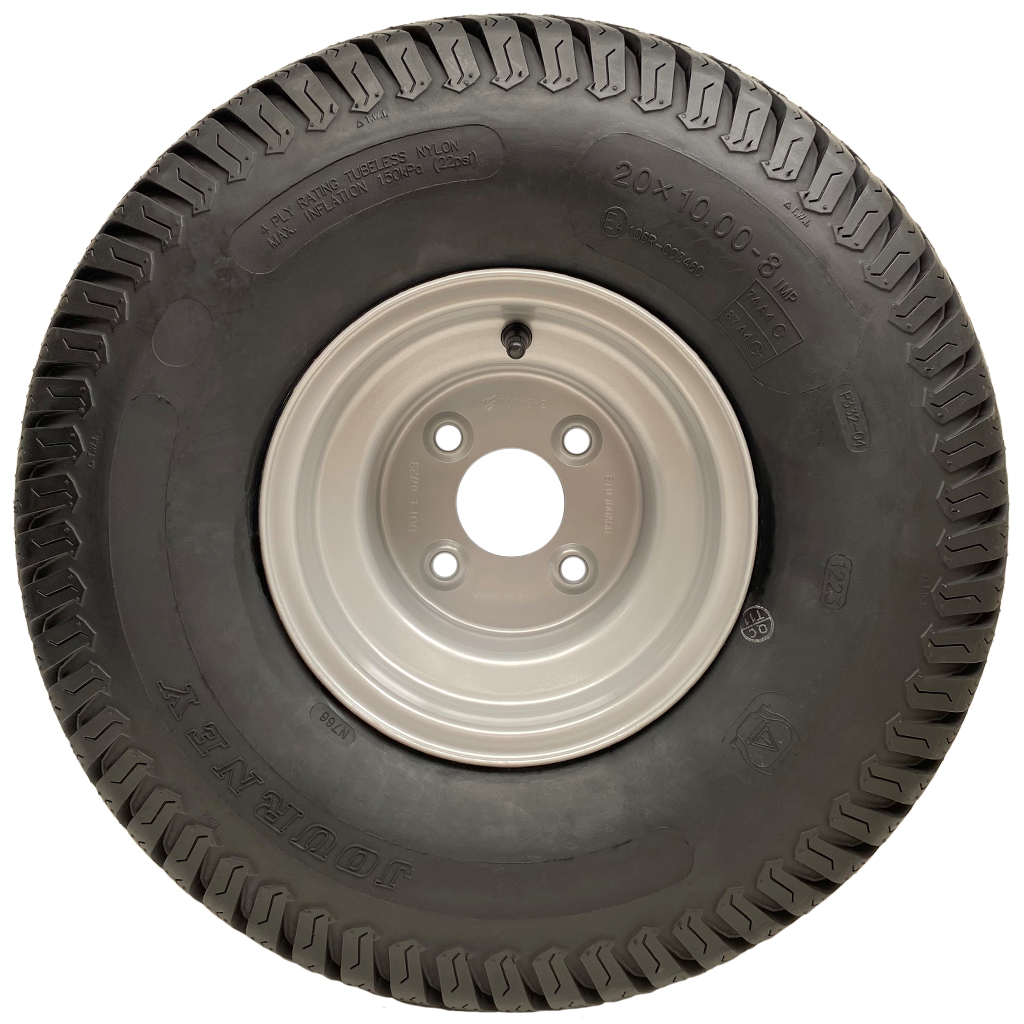

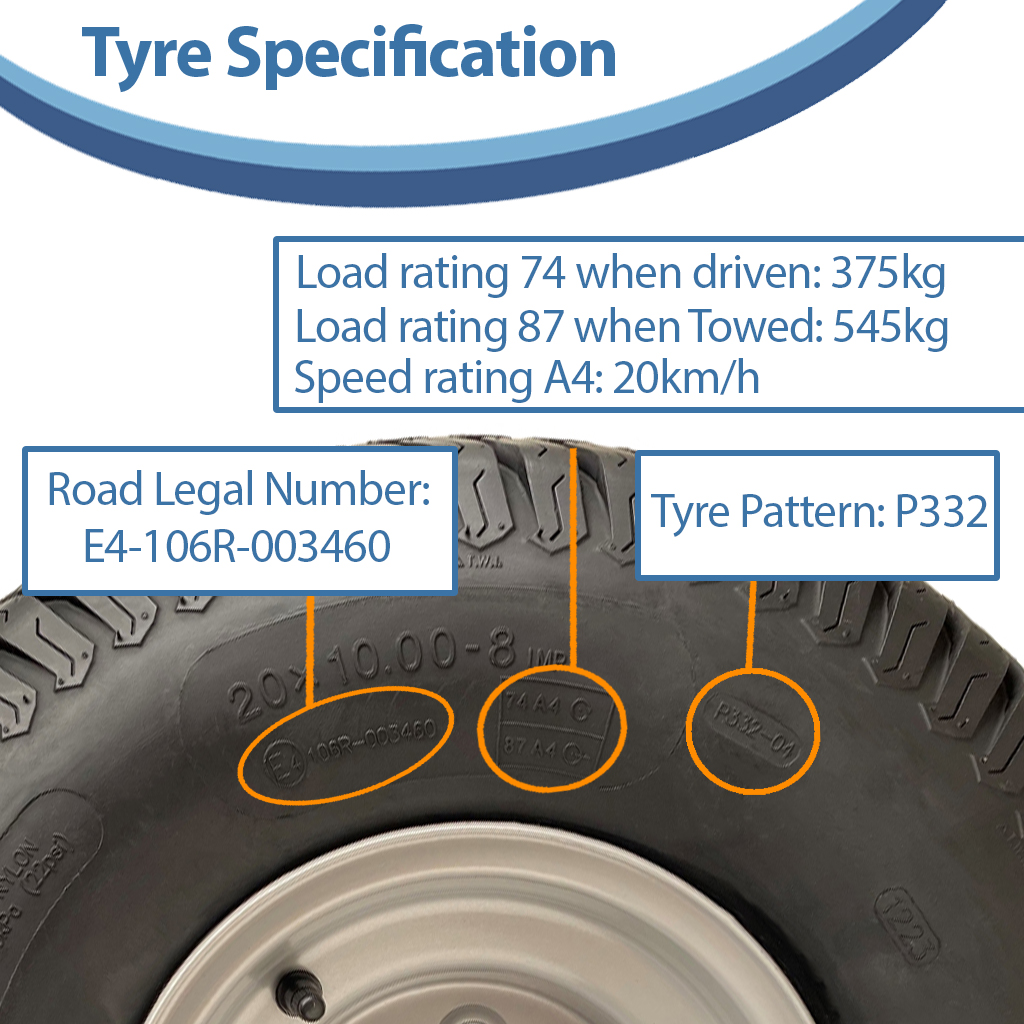

Wheel Specification:
Size: 20x10.00-8,
Brand: Wanda (Journey),
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 545kgs at 22 PSI,
Tyre height: 500mm,
Tyre width: 240mm,
Tread Depth: 7.1mm,
Speed rating A4: 20km/h,
E Marked road legal: E4-106R-003460.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

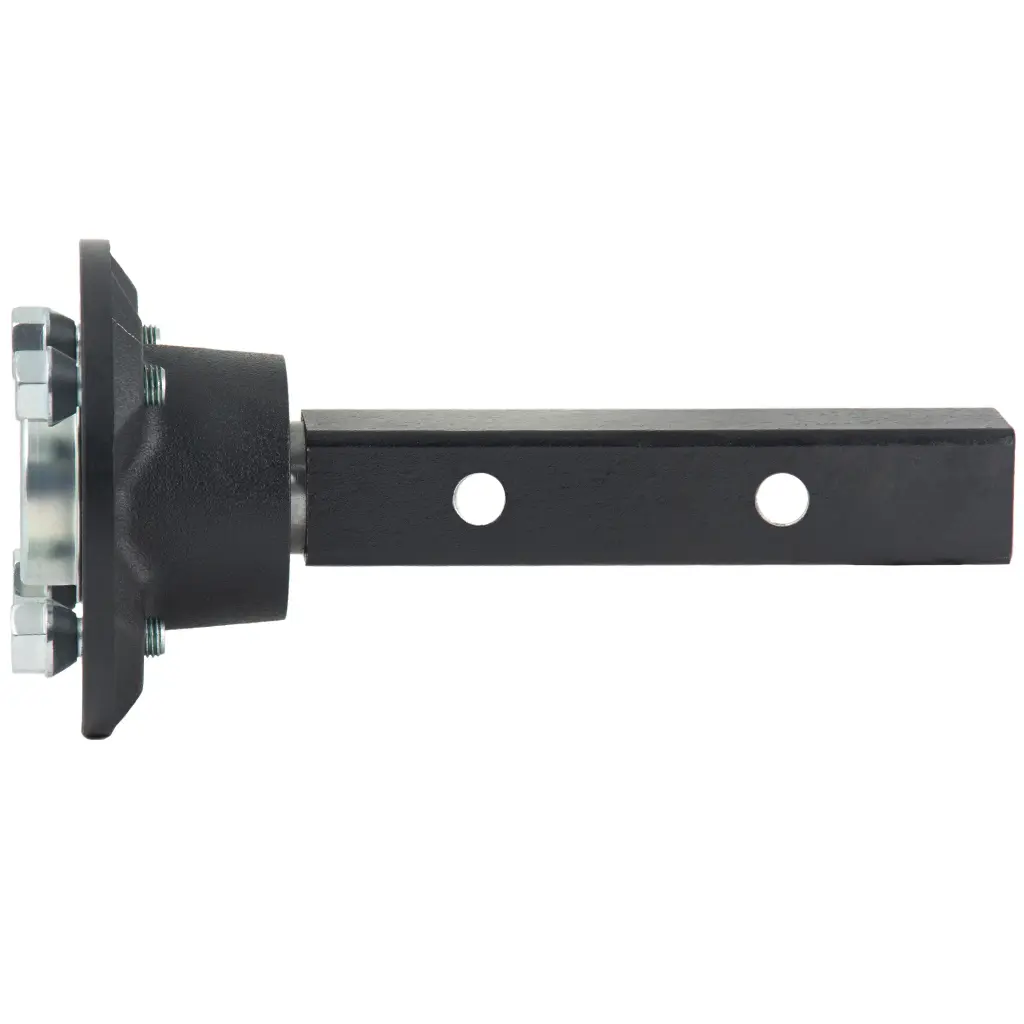

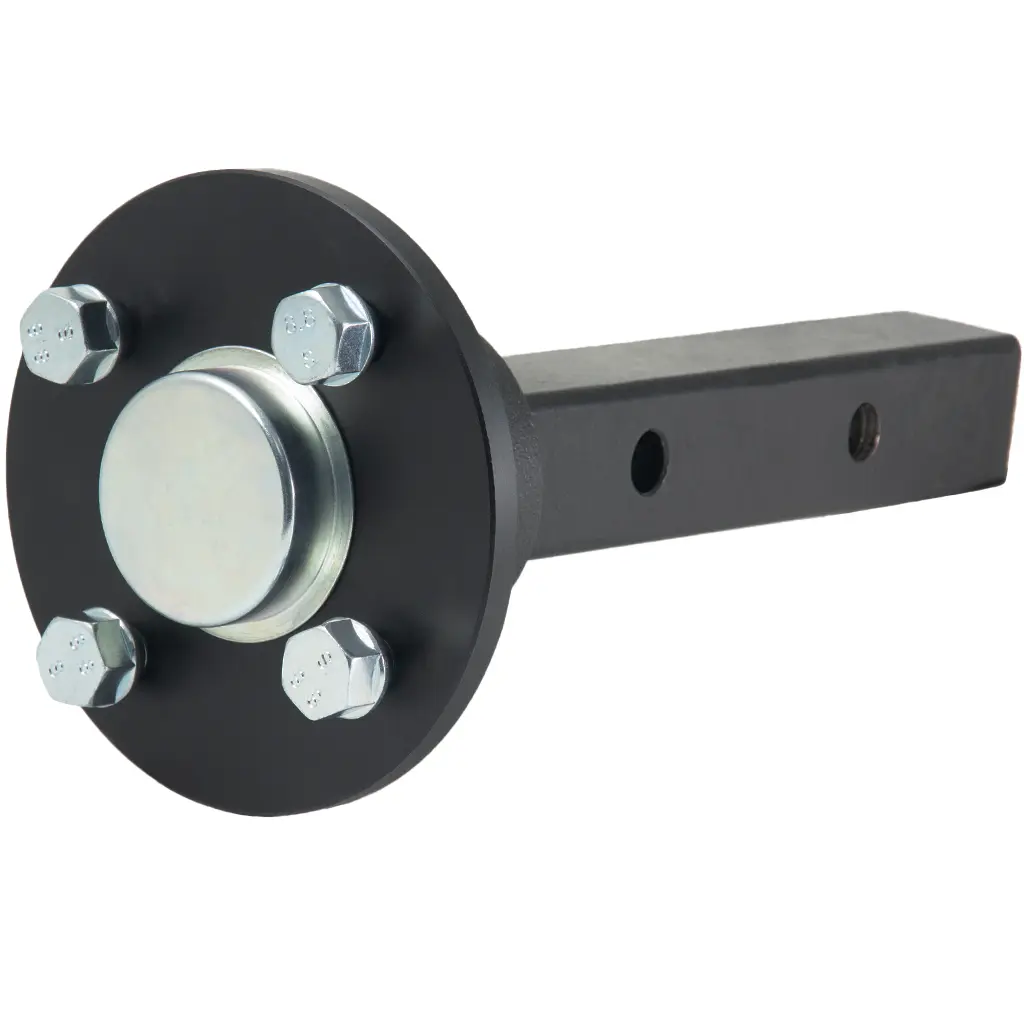

Hub & Stub Specification:
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.

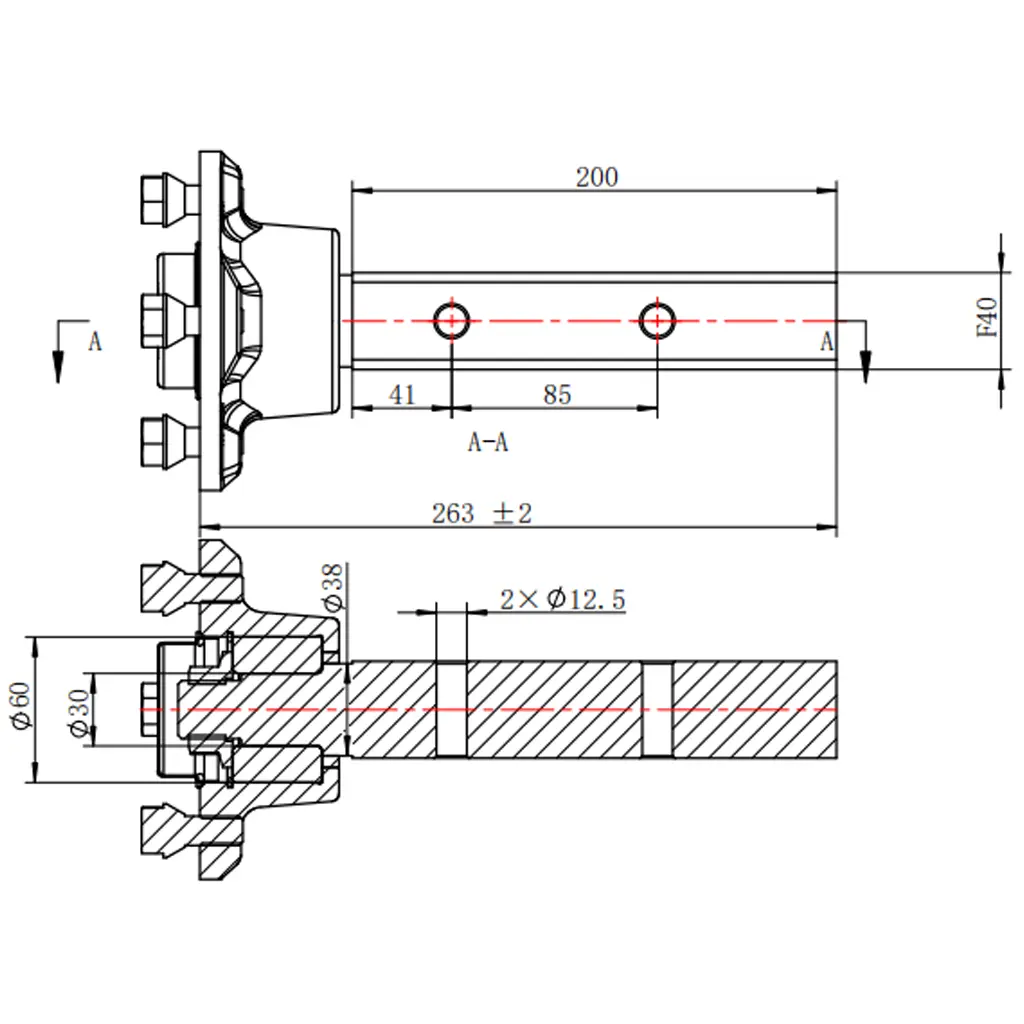

The shaft is 40x40mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
The stub bar has two pre-drilled mounting holes.

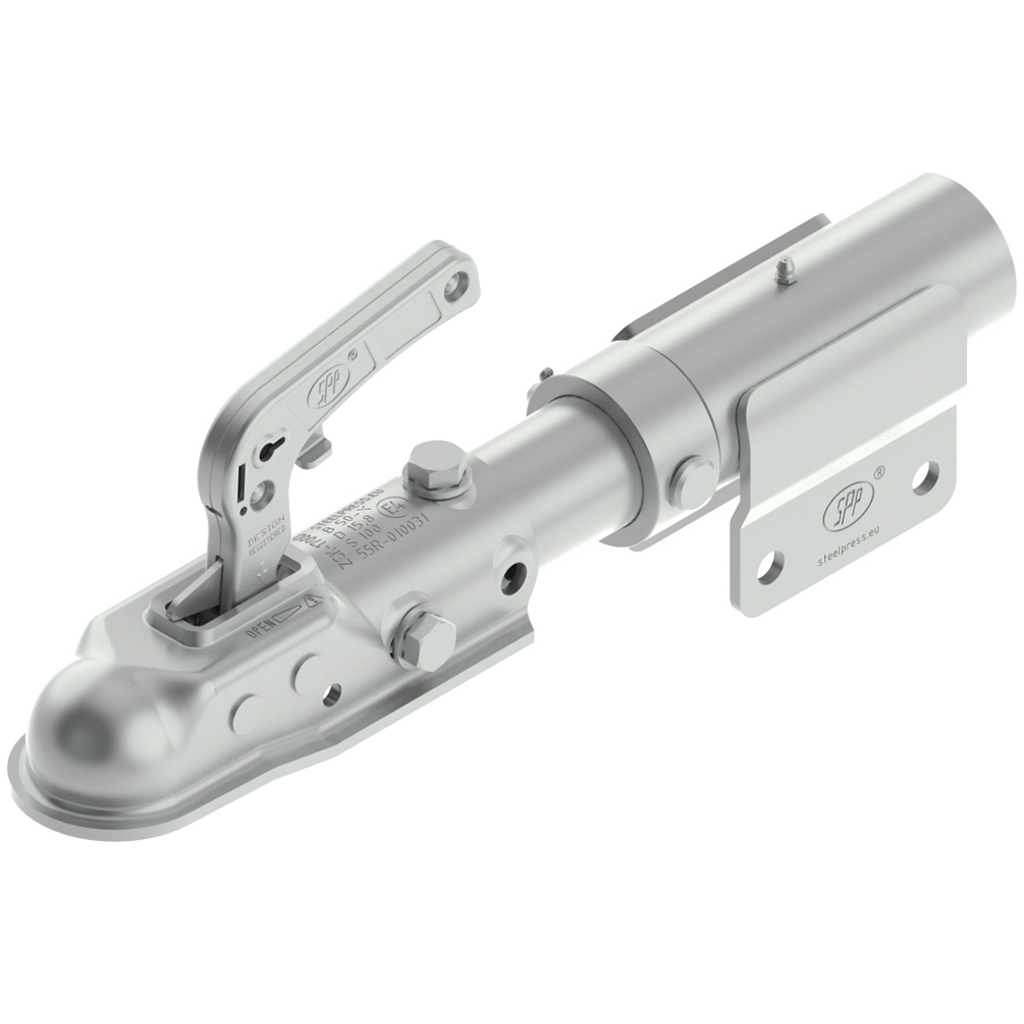

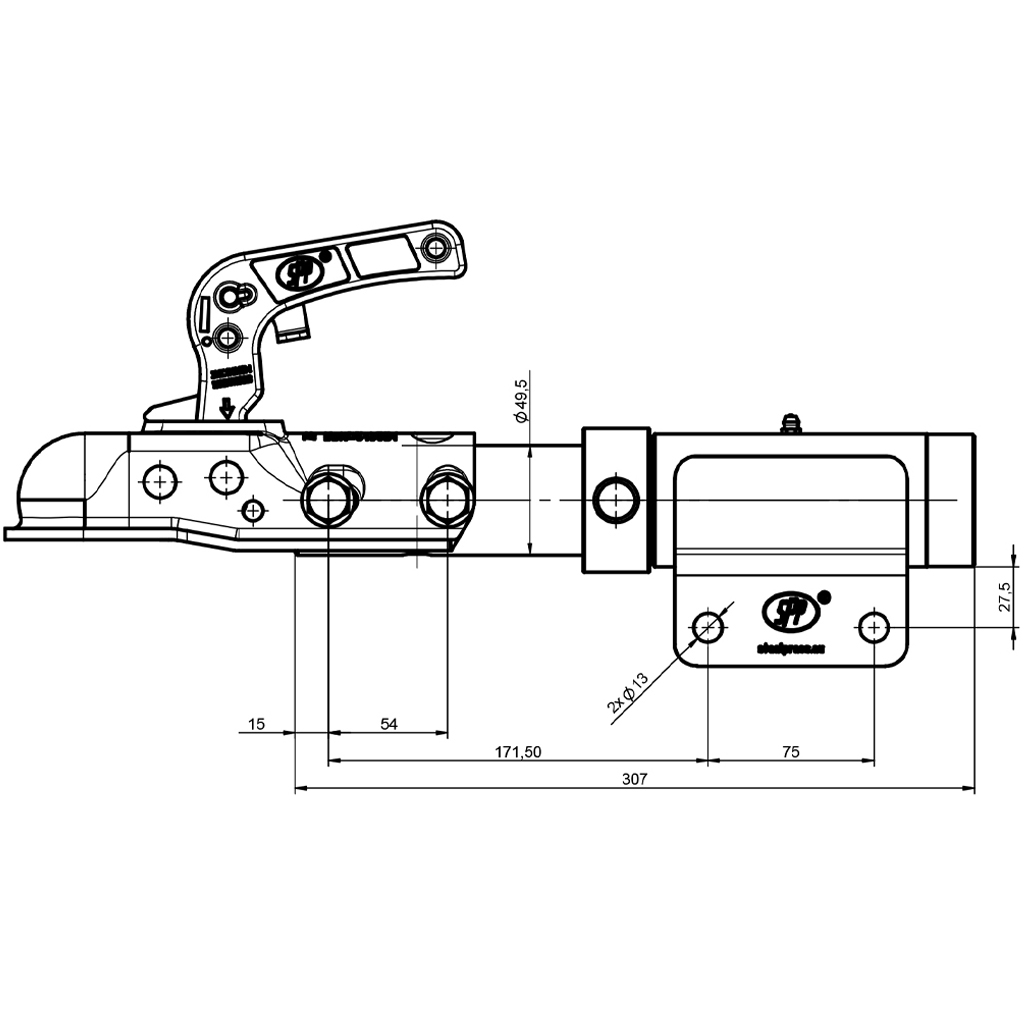

Item specifications: Swivel Hitch.
Heavy duty steel towing hitch with 360 Degree.
This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).
The bolt holes are from an M12 bolt.
Overall length is 440mm.
Max load is 1700kg.
The swivel means this kit is only for off road use, up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 1800kgs for off road use.
(Off road use only)
| Part Number | EC1325 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| Tube Tyre (TT/TL) | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7 |
| Section Width (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| E-Mark | E4-106R-003460 |
| Max Load (Kg) | 545 |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| Hitch (1 piece) | swivel hitch |
