145R10 High speed trailer road legal wheels & hub & stub axles
9 sold in last 24 hours
Wheel Size: 145R10
Stub axles: 35mm square, 200mm long
Load Capacity: 750kg

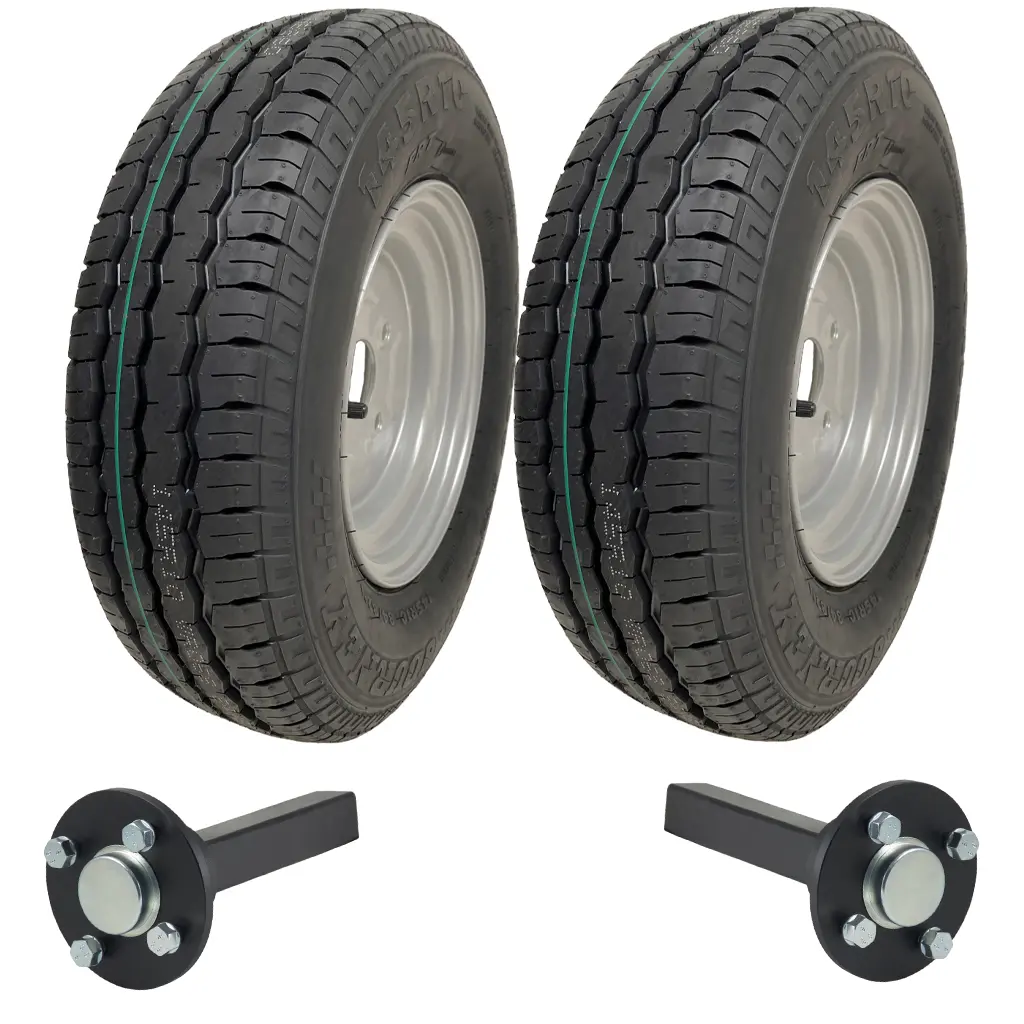

145R10 Trailer Kit.
This Kit contains:
Two: 145R10 Trailer Wheels (Tyres fitted on rims).
&
Two: High Speed Hub & Stub Axles.
Wanda WR068 Trailer Tyre fitted 4 x 100 PCD metric rim.
High speed Radial trailer tyre on heavy duty steel rim.
They are E-Marked for legal use on European roads.

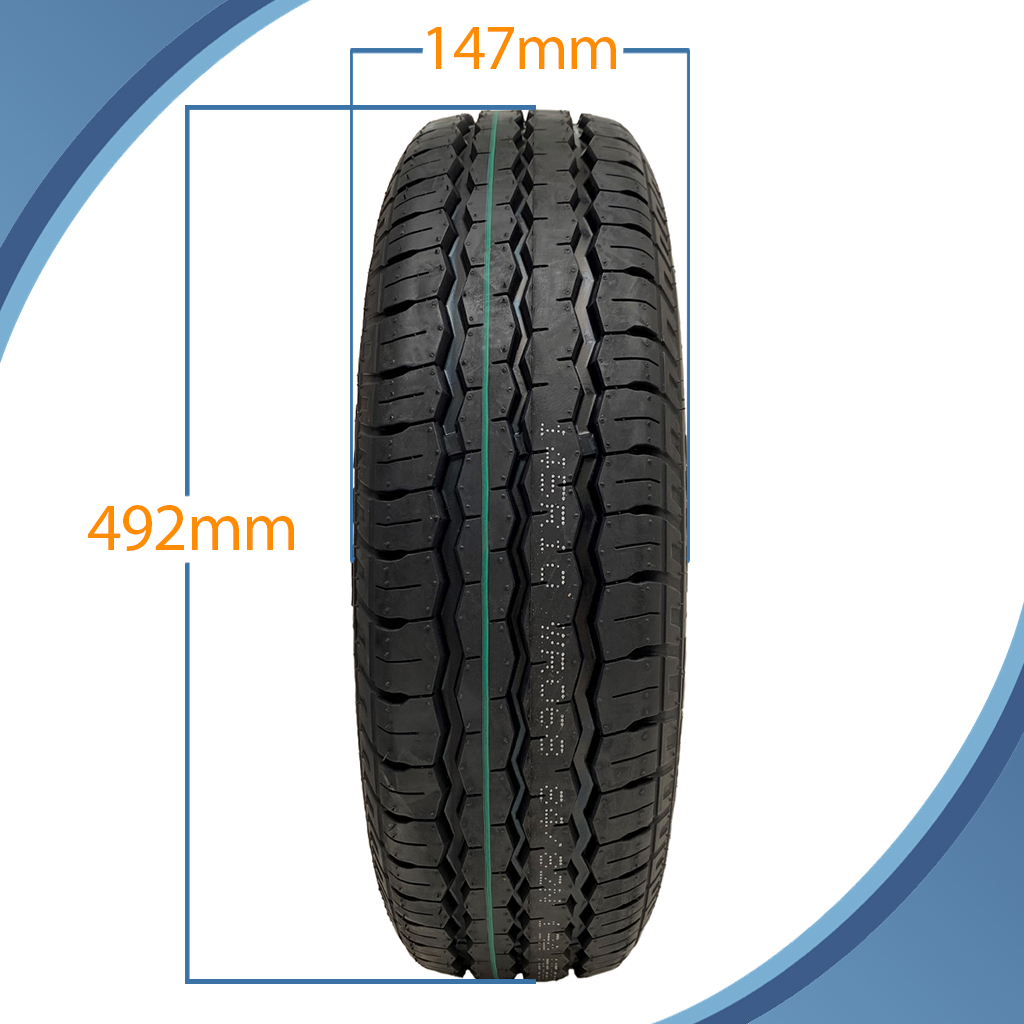

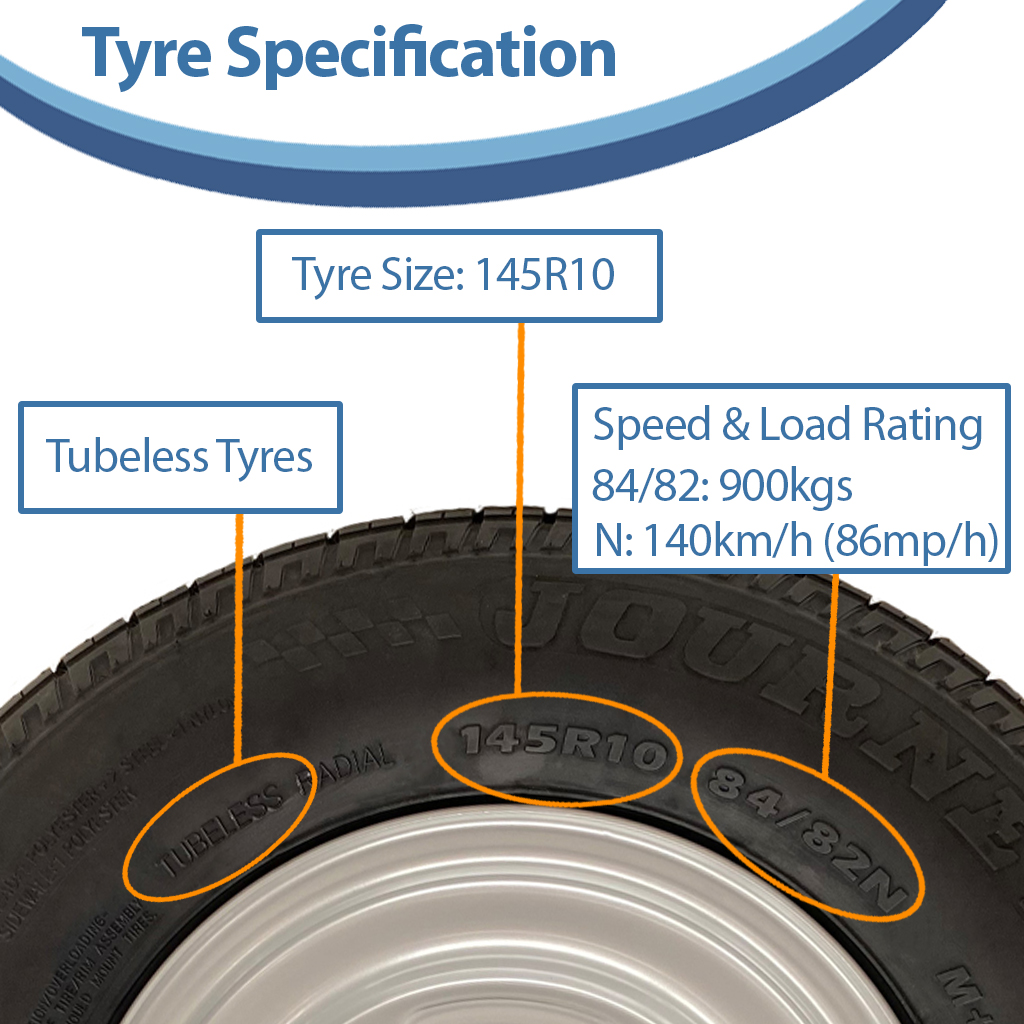

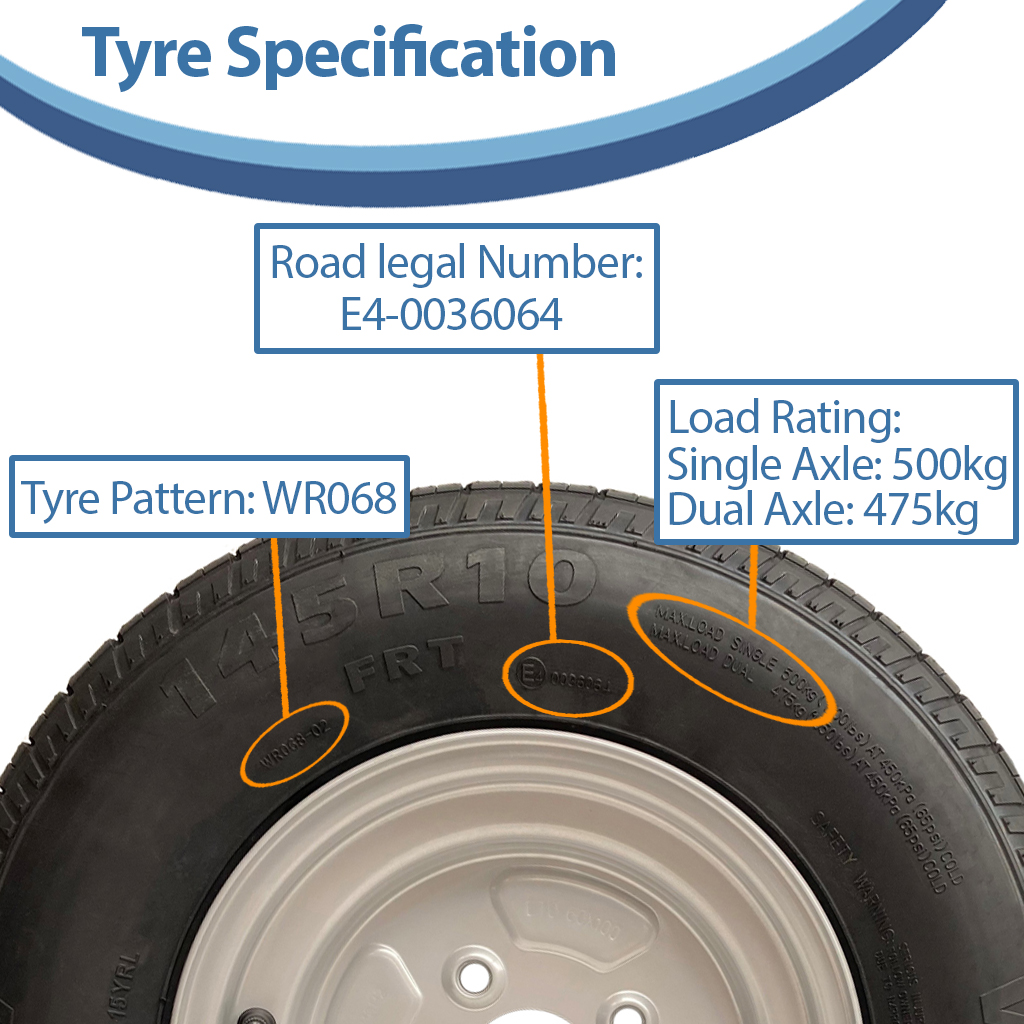

Tyre Specification:
Tyre Diameter: 492mm,
Tyre Width: 147mm,
Tyre Pattern: WR068,
Tyre Brand: Wanda,
Tread Depth: 7mm,
Load rating: 84/82 = 500kgs for single axle & 475kg for dual axle,
Speed Rating: N = 140km/h (86mp/h),
E-Mark Number: E4-0036064.

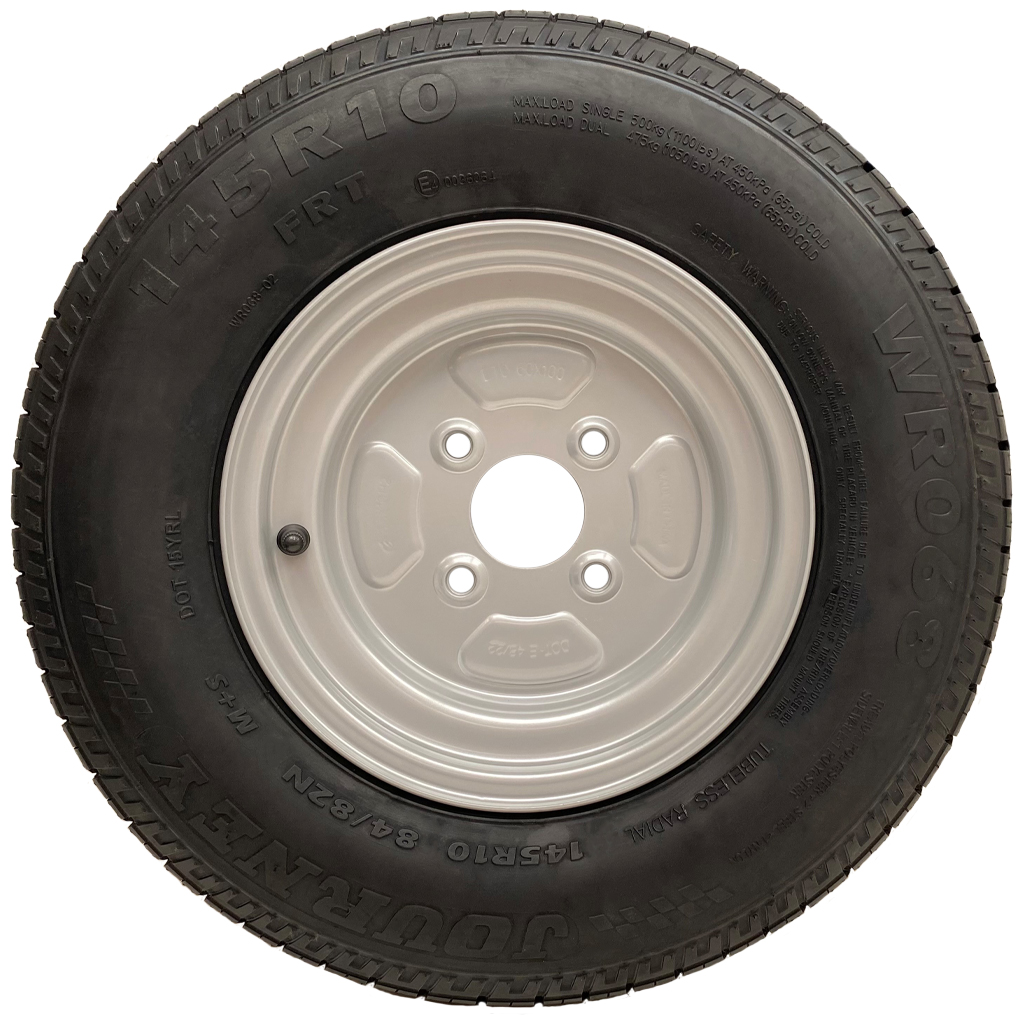

Rim Specification:
Rim Size: 3.50x10,
Rim Finish: Powder coated Steel (Grey),
Pitch Circle Diameter: 100mm PCD (metric),
Centre hole size: 60mm,
Rim Offset: Zero (equal distance front and back).

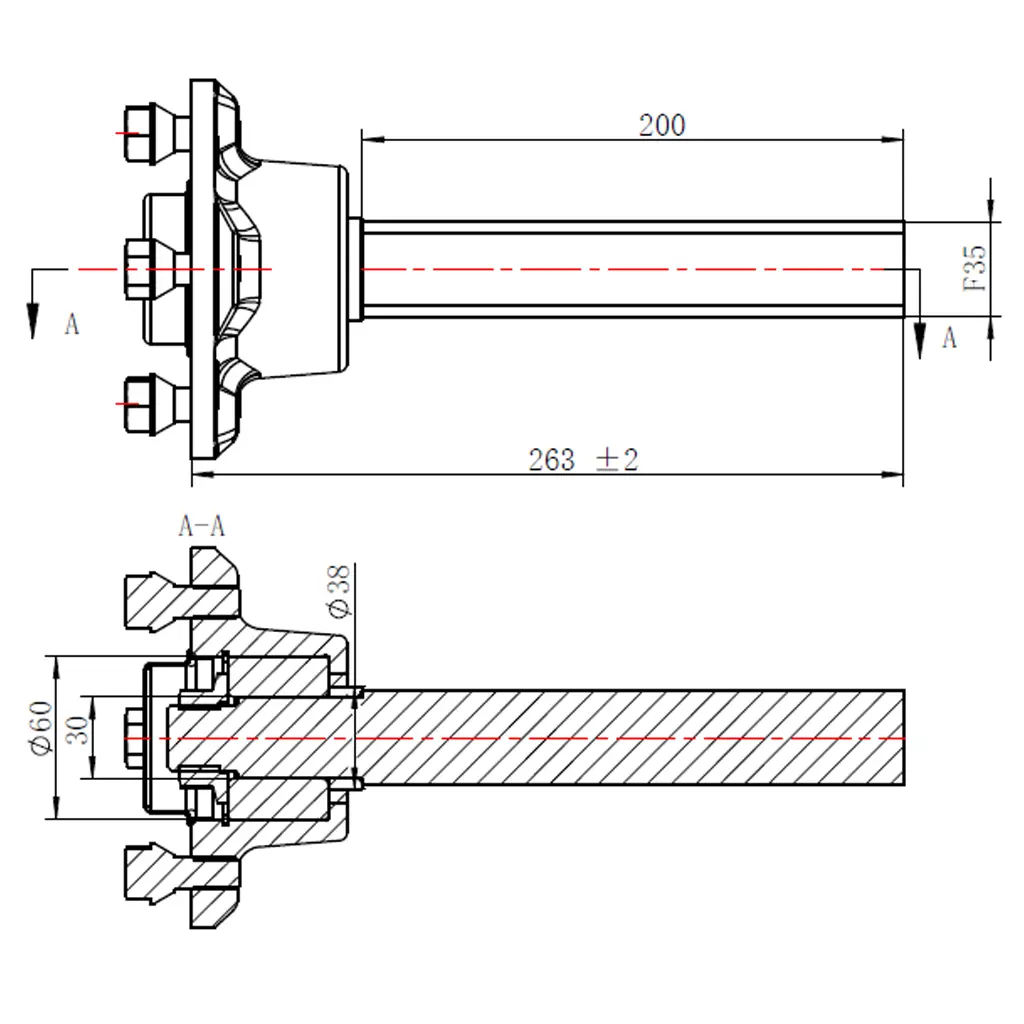

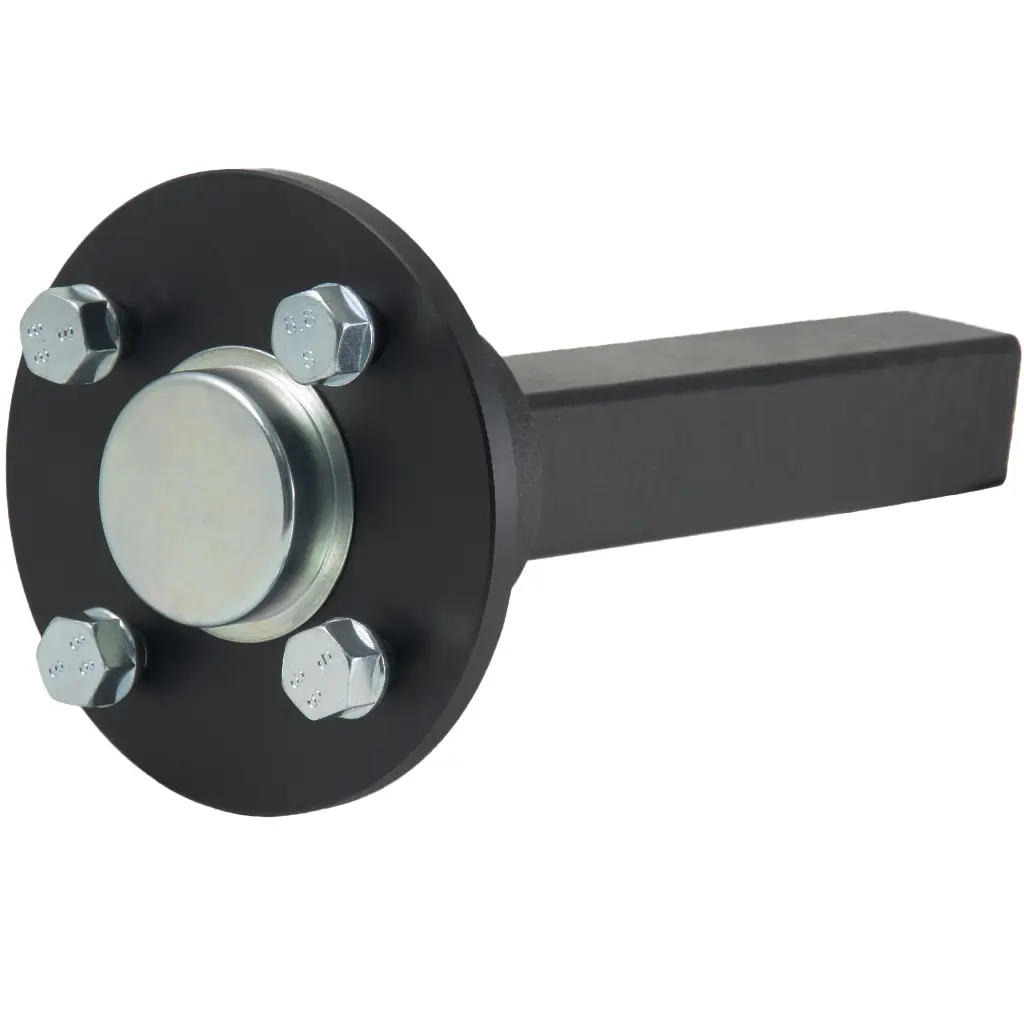

Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.

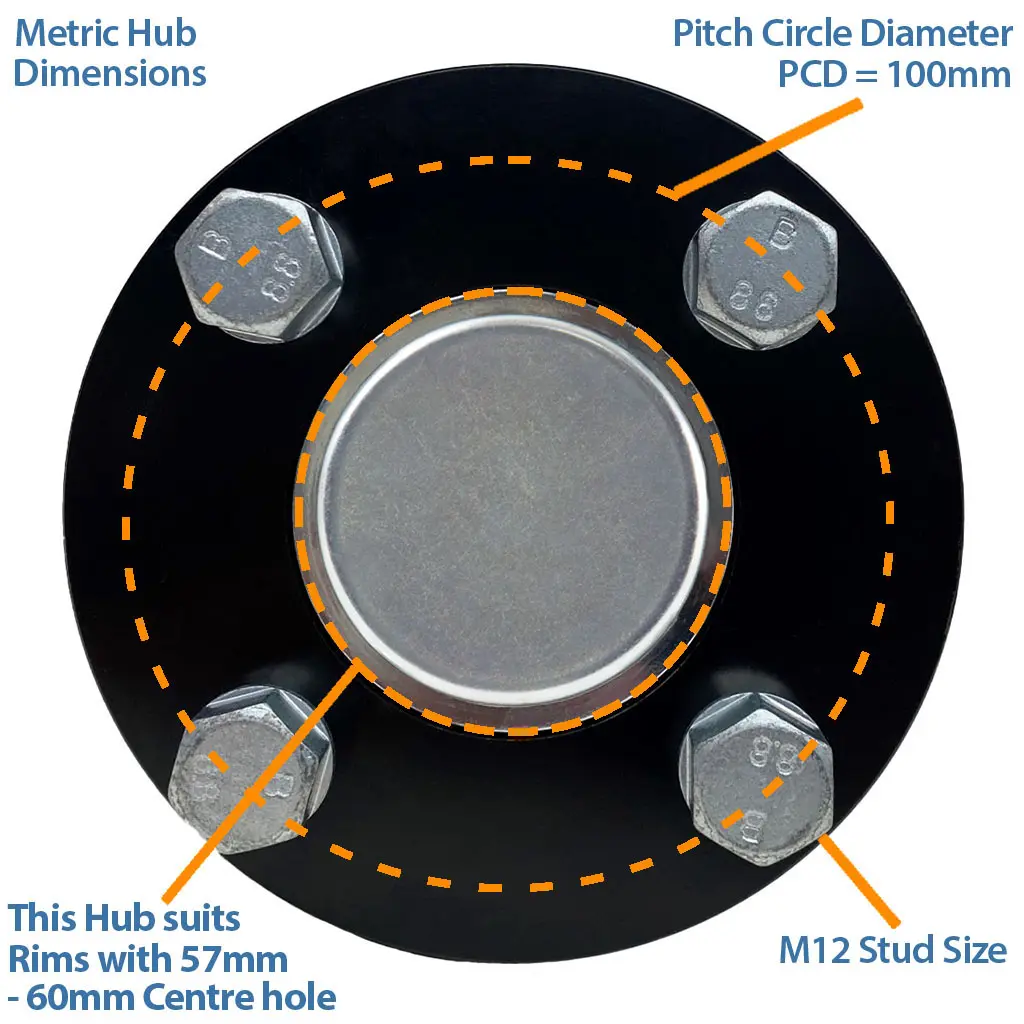

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
The tread is a combined vertical and block pattern giving enhance grip on and off road.
Excellent water dispersion and hydroplaning resistance.
Good heat dissipation and grip with quiet driving performance at high speeds.
| Part Number | EC1511 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 145R10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | WR068 |
| Tread Depth (mm) | 7 |
| SW (mm) | 147 |
| OD (mm) | 492 |
| PSI | 65 |
| Load/Speed Index | 84/82N |
| Stud / PCD | 4x100 |
| E-Mark | E4-0036064 |
| Max Load (Kg) | 500 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
