22x11.00-8 Knobby ATV quad trailer kit 310kg capacity, 25mm Ball bearings

https://www.parnells.eu/web/image/product.template/35542/image_1920?unique=9e4ea87
4 sold in last 24 hours
Part Number: KIT1007
Wheel Size: 22x11.00-8
Bearing size: 25mm (6205)
Load Capacity: 310kgs

258.82 € 258.82 EUR 258.82 €

300.60 €

Login for trade prices

Not Available For Sale

5 people are viewing this right now
  • Tyre Size
  • Ply
  • Tube Tyre (TT/TL)
  • Pattern
  • Section Width (mm)
  • OD (mm)
  • PSI
  • Max Load (Kg)
  • Bearing Type
  • Hitch (1 piece)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-7 Business Days

22x11.00-8 KNOBBY P323 TRAILER KIT 25BB
22x11.00-8 ATV Trailer Kit.

Kit includes:
Two: 22x11.00-8 Knobby wheels with 25mm ball bearings,
&
One: Pressed steel tow hitch.

Tyres fitted on rims.
They rugged ATV tyres.
E-marked road legal tyre in Europe & the UK.
These are tubeless tyres.
They are hard wearing 4ply tyres with a tread depth of 9.5mm.

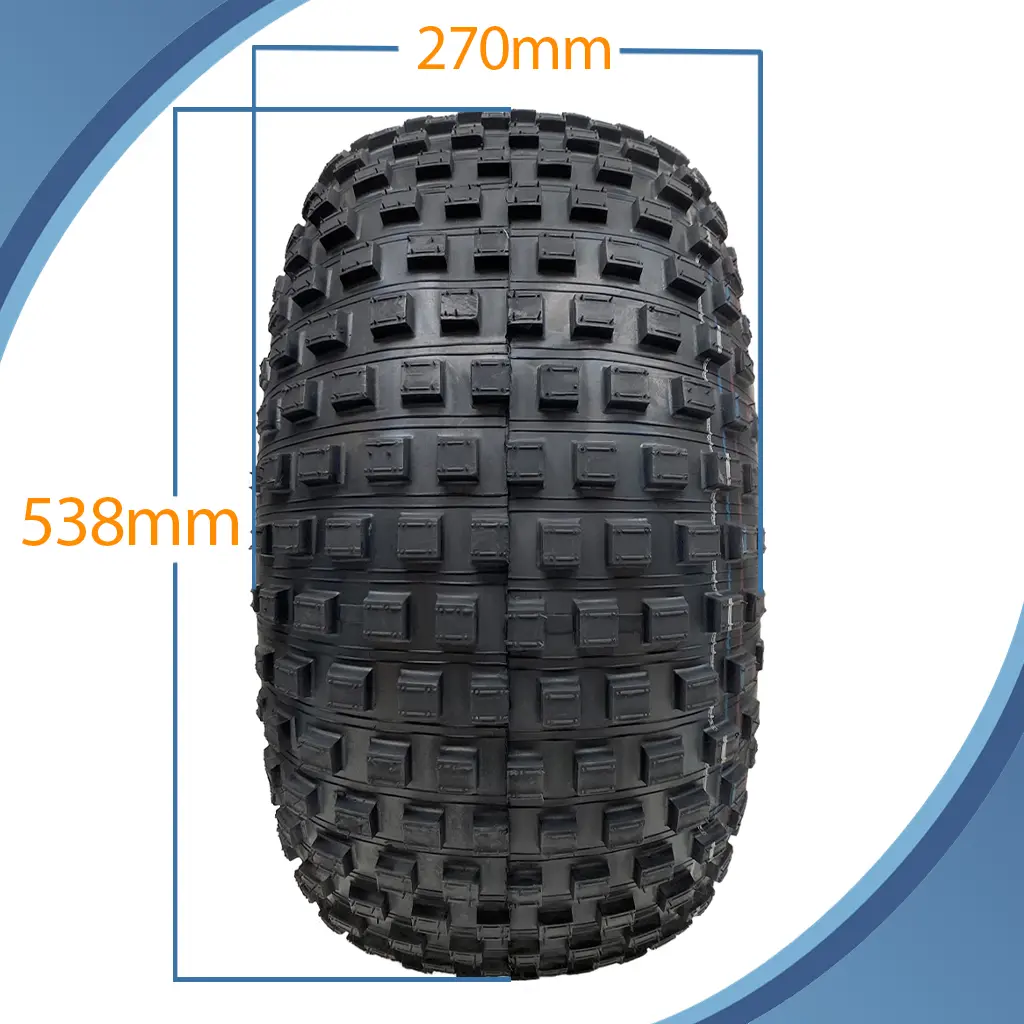

Tyre Specification:
Overall diameter: 538mm,
Max section width: 270mm,
Max load: 342lbs (155kg),
PSI: 5,
Ply Rating: 4ply,
Brand: Wanda,
Tyre Pattern: P323,
Max speed: 100km/h (62mph),
Load & Speed rating: 43J,
E-Marked Road Legal Number: E4-75R-0006182.

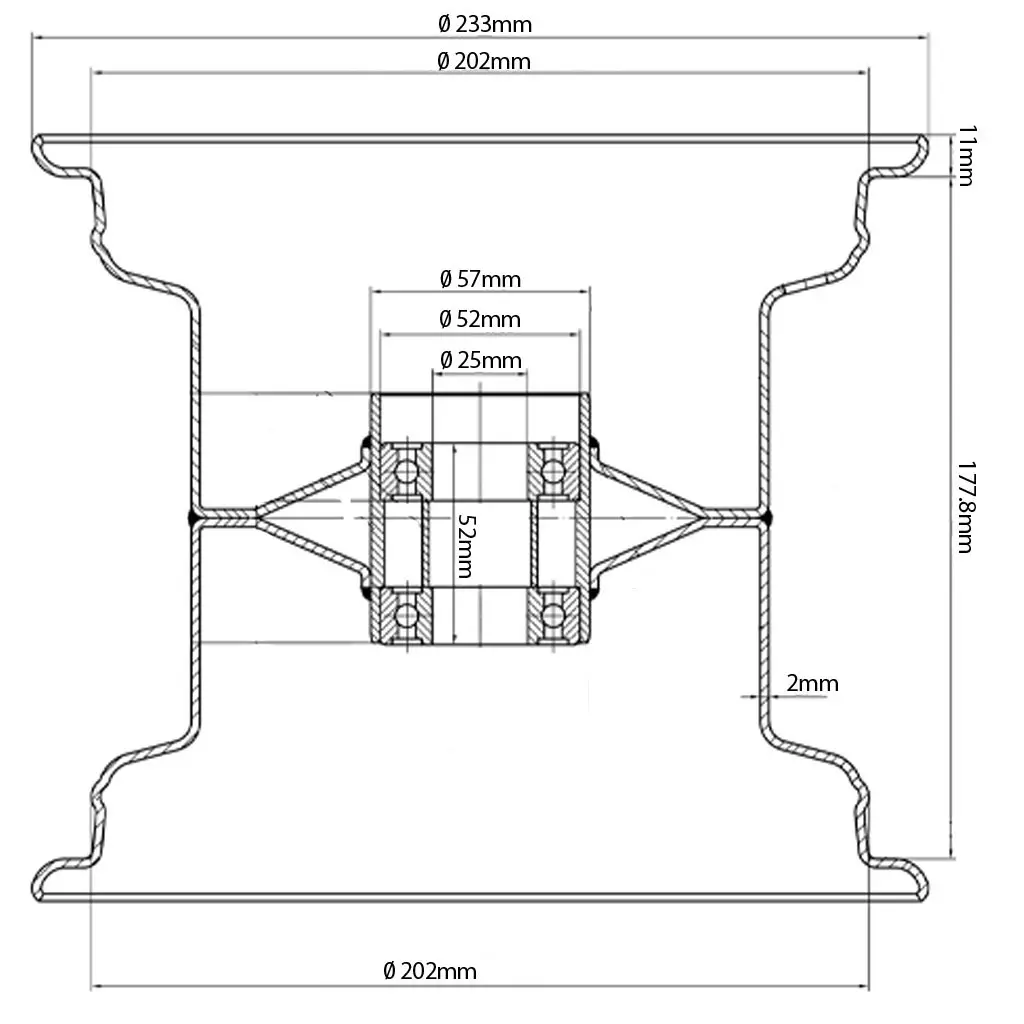

Rim Specification:
Solid steel welded heavy duty rims,
25mm sealed Ball Bearings (6205),
52mm hub length,

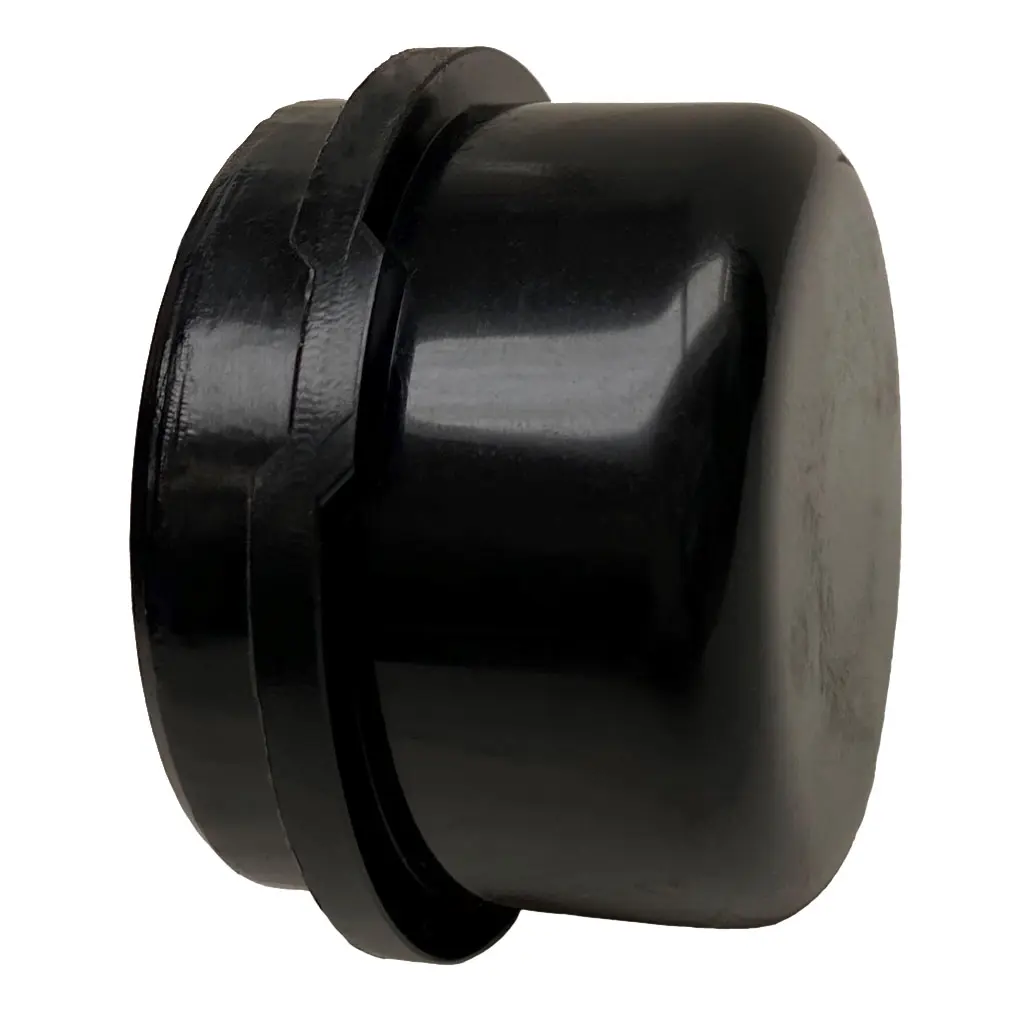

Recessed front bearing, wheel provided with black plastic cap.

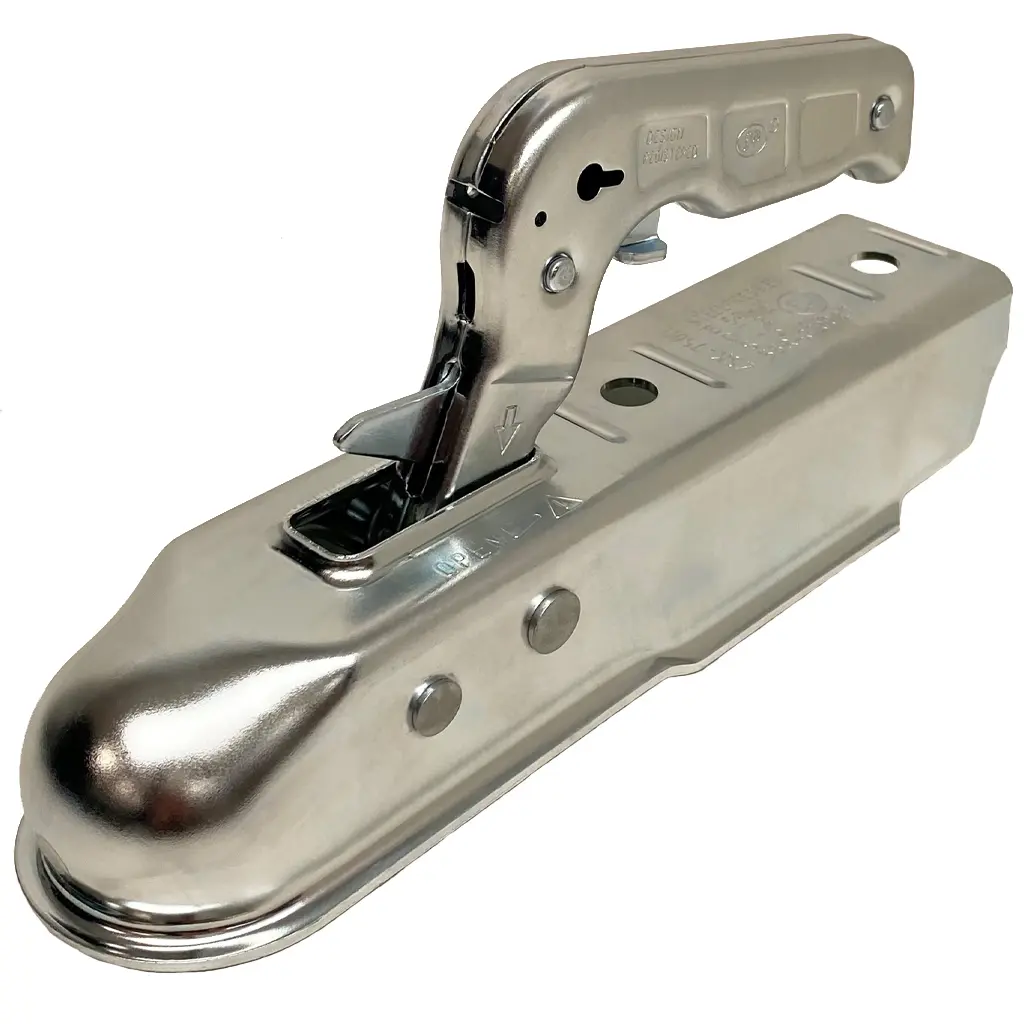

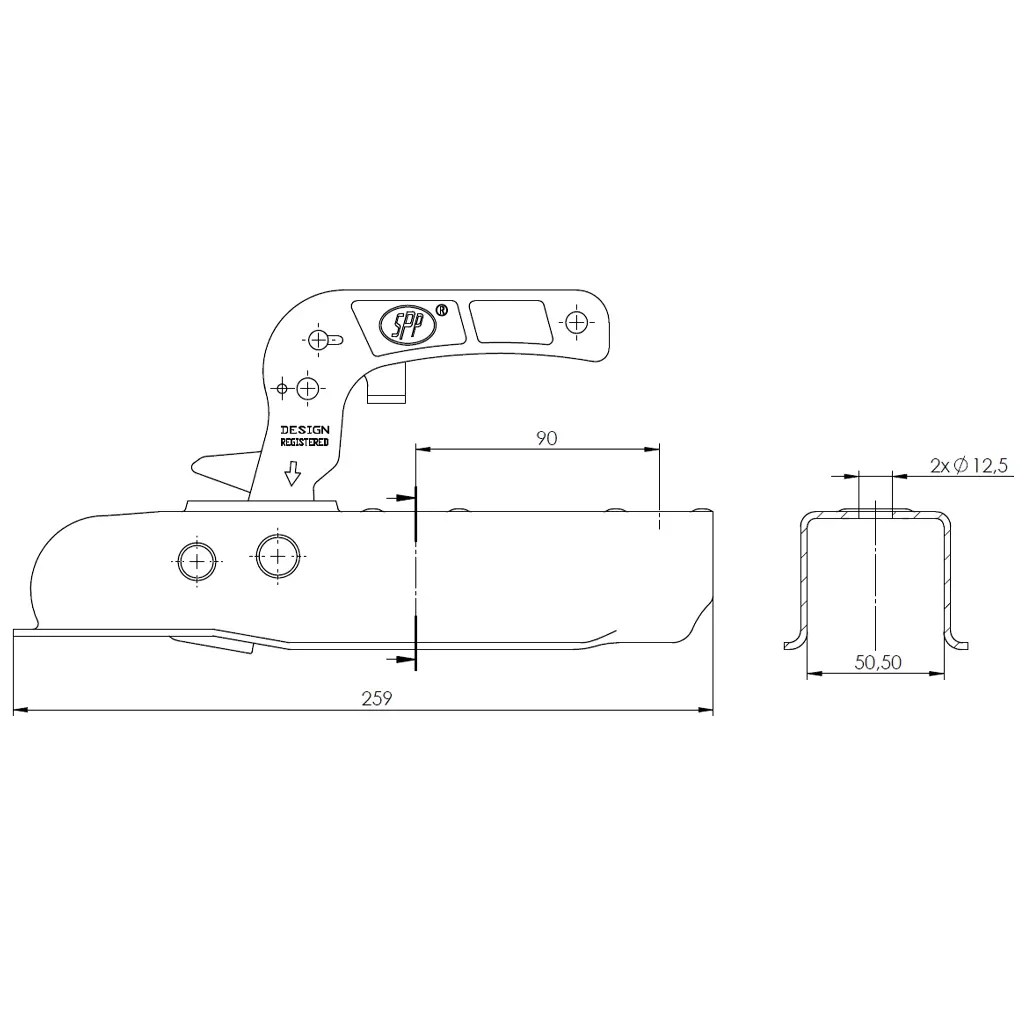

Tow Hitch Specification:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.

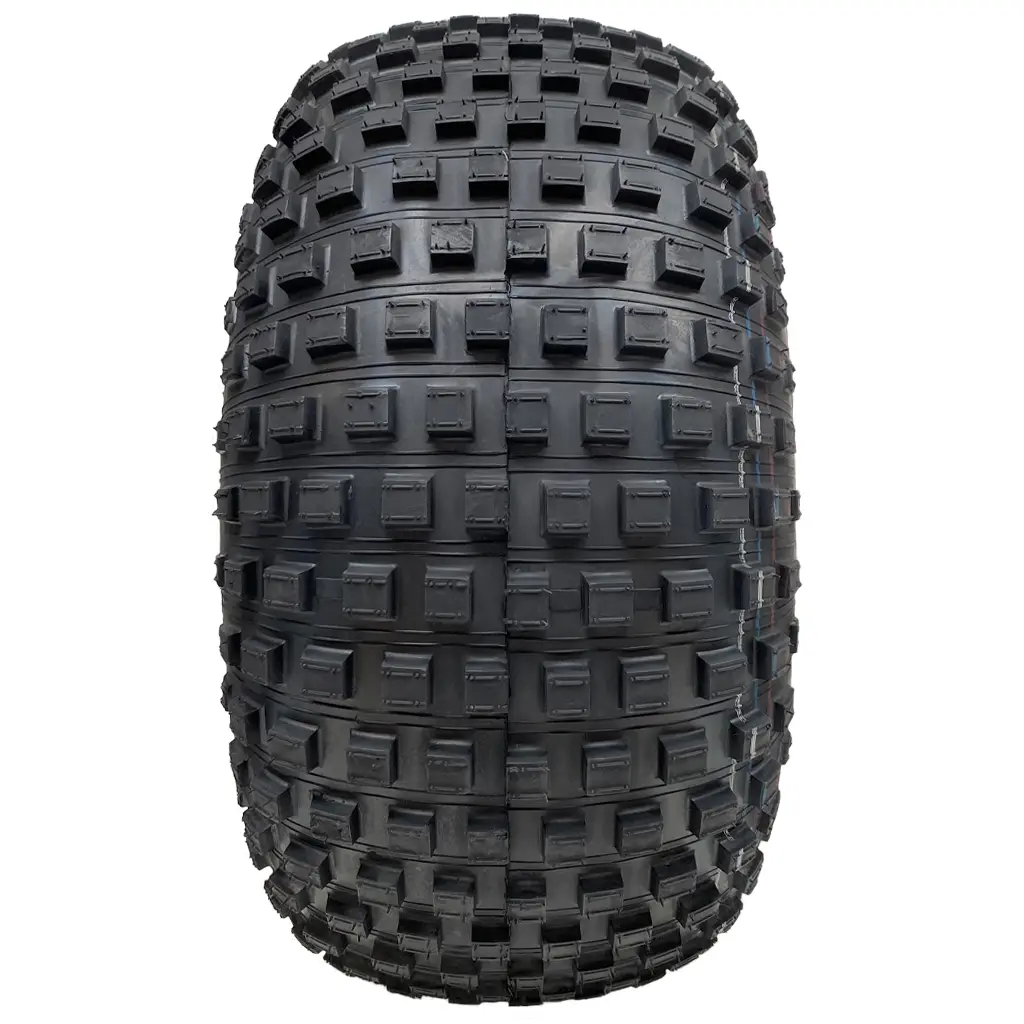

Non Directional Tread.
Great for all types of terrain.
The tread gives good bite and grip on all surfaces.

This type of knobby stud pattern is very versatile, it is a flotation tyre so it causes minimal disturbance to the ground & it leaves very little track pattern on the ground. It also absorbs a lot of the bumps & uneven surface to give a smooth ride.

Part Number KIT1007

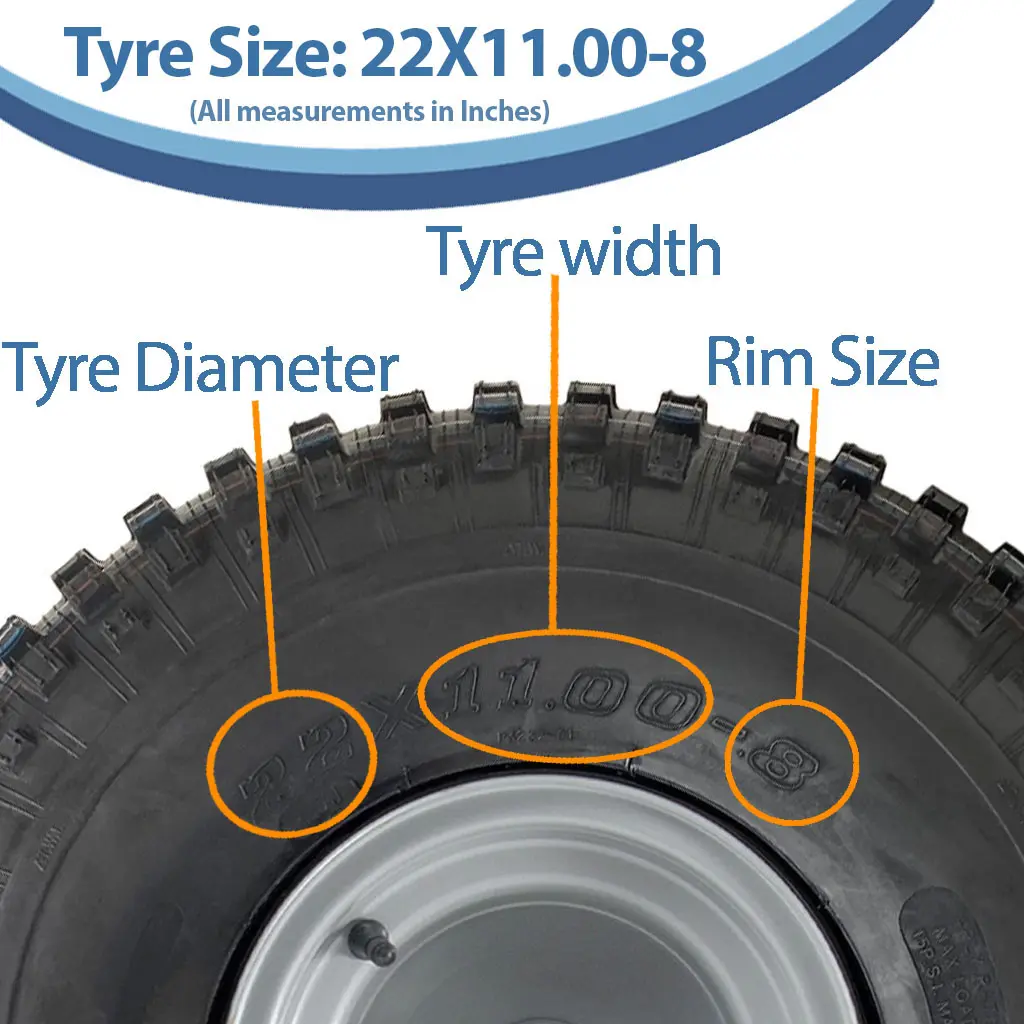

Tyre Size 22x11.00-8
Ply 4
Tube Tyre (TT/TL) TL
Pattern P323
Section Width (mm) 270
OD (mm) 538
PSI 5
Max Load (Kg) 155
Bearing Type 25mm Ball Bearing
Hitch (1 piece) SPP 750kg Pressed Hitch
