25x12.00-9 ATV Quad Trailer Kit, Knobby Wheels, 40x40 stub axles, 390kg capacity
8 sold in last 24 hours
Part Number: KIT1029
Tyre Size: 25x12.00-9
Tyre Pattern: P318
Load Capacity: 390kgs
Tyre Size: 25x12.00-9
Tyre Pattern: P318
Load Capacity: 390kgs

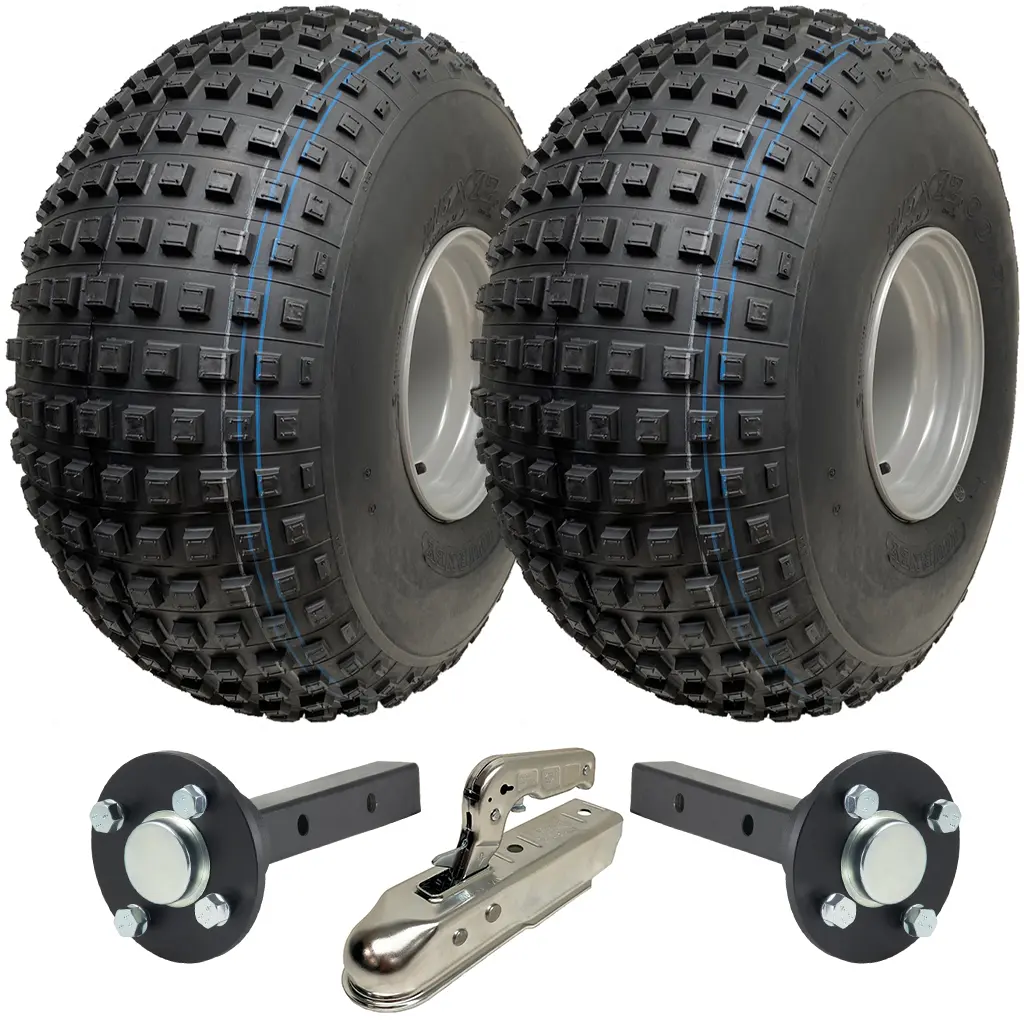

ATV trailer kit.
Contents of this kit include:
2 x Wheels, 25x12.00-9.
2 x Stub axles, 40x40x200mm solid stub.
1x Pressed steel tow hitch.
Wheel Specifications.

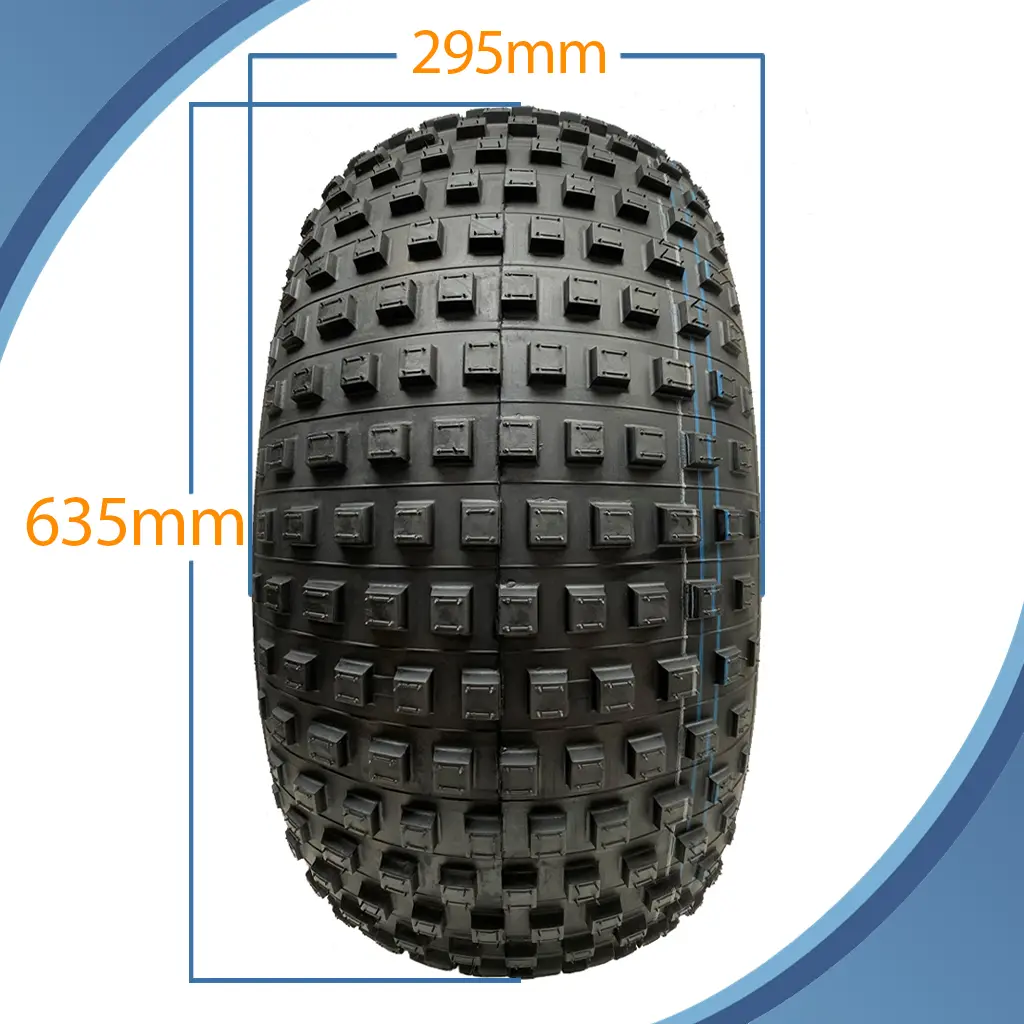

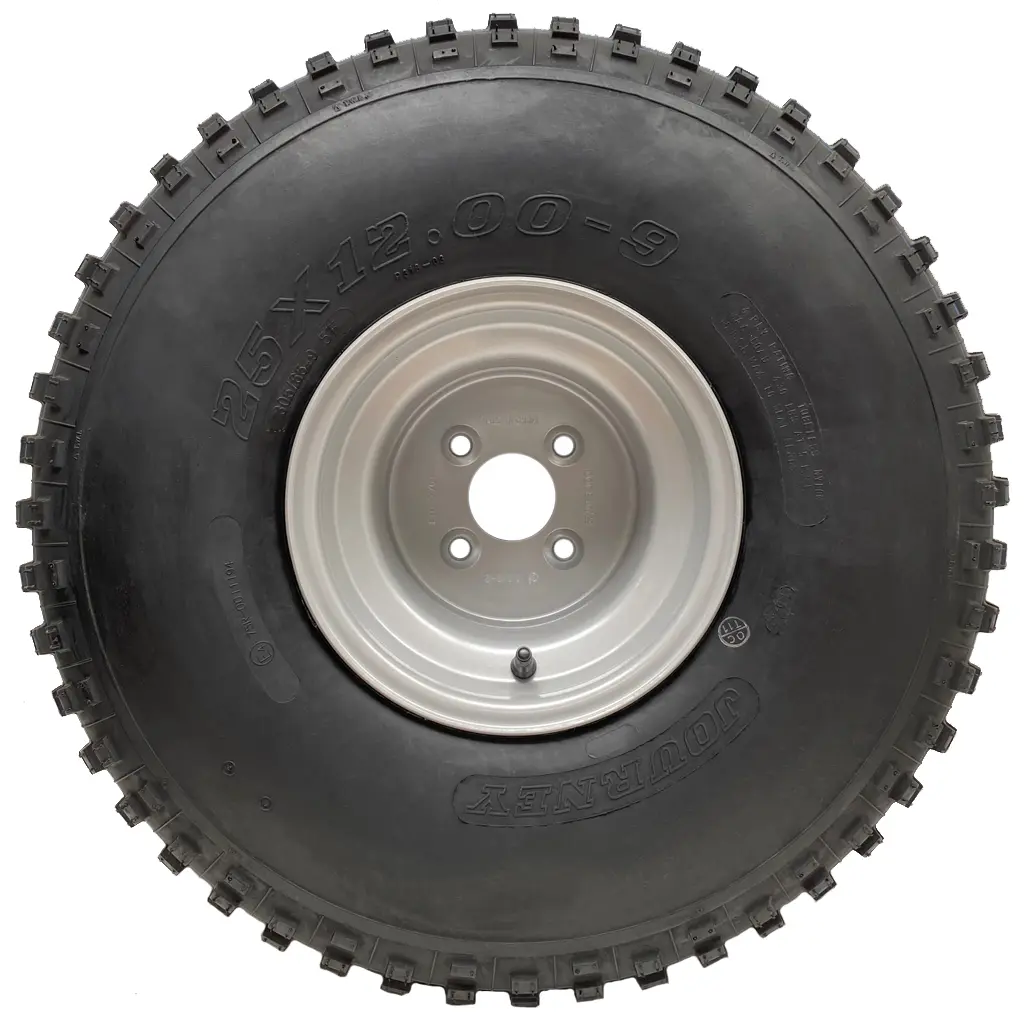

25x12.00-9 4ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,
Overall diameter: 635mm,
Max width of tyre: 295mm,
Tread depth: 10.5mm,
Inflation: 5psi,
Max load per wheel: 195kg @ 80km/h (load/speed index: 51F),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

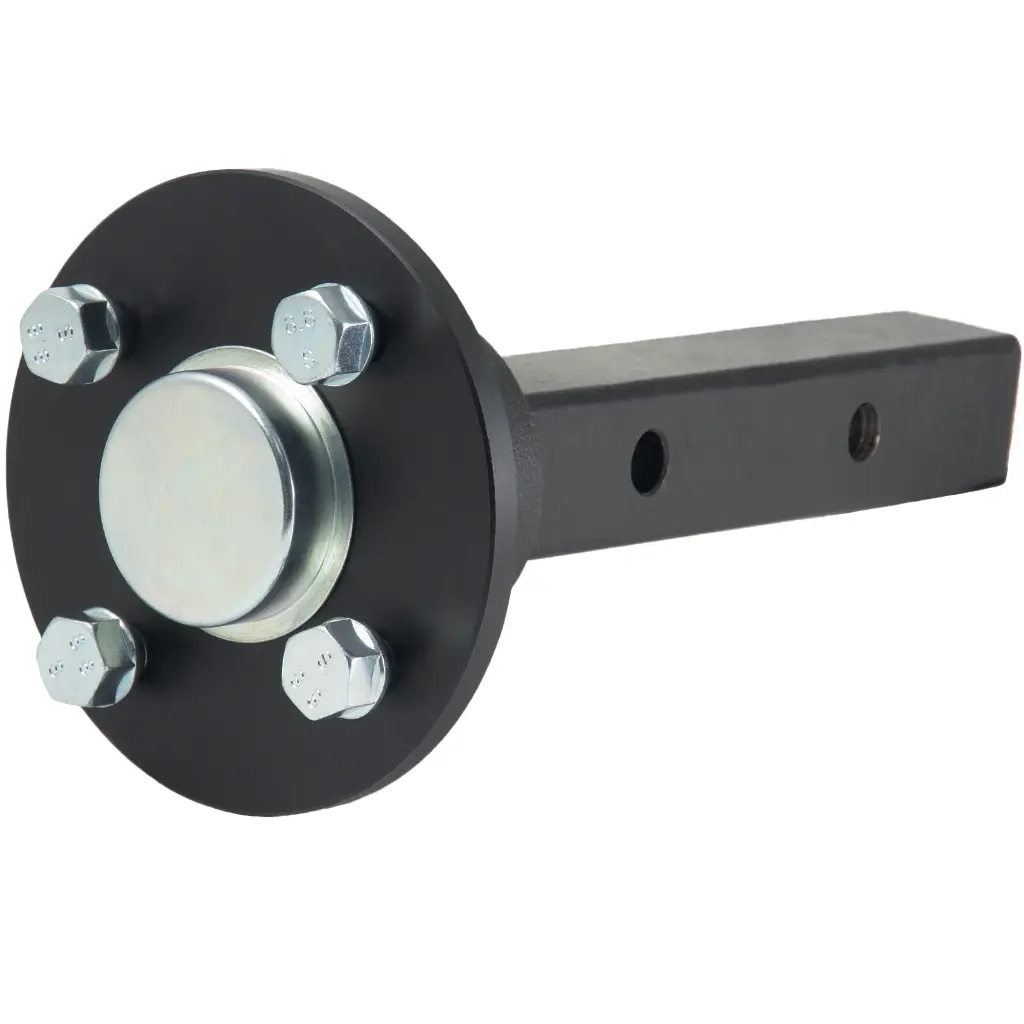

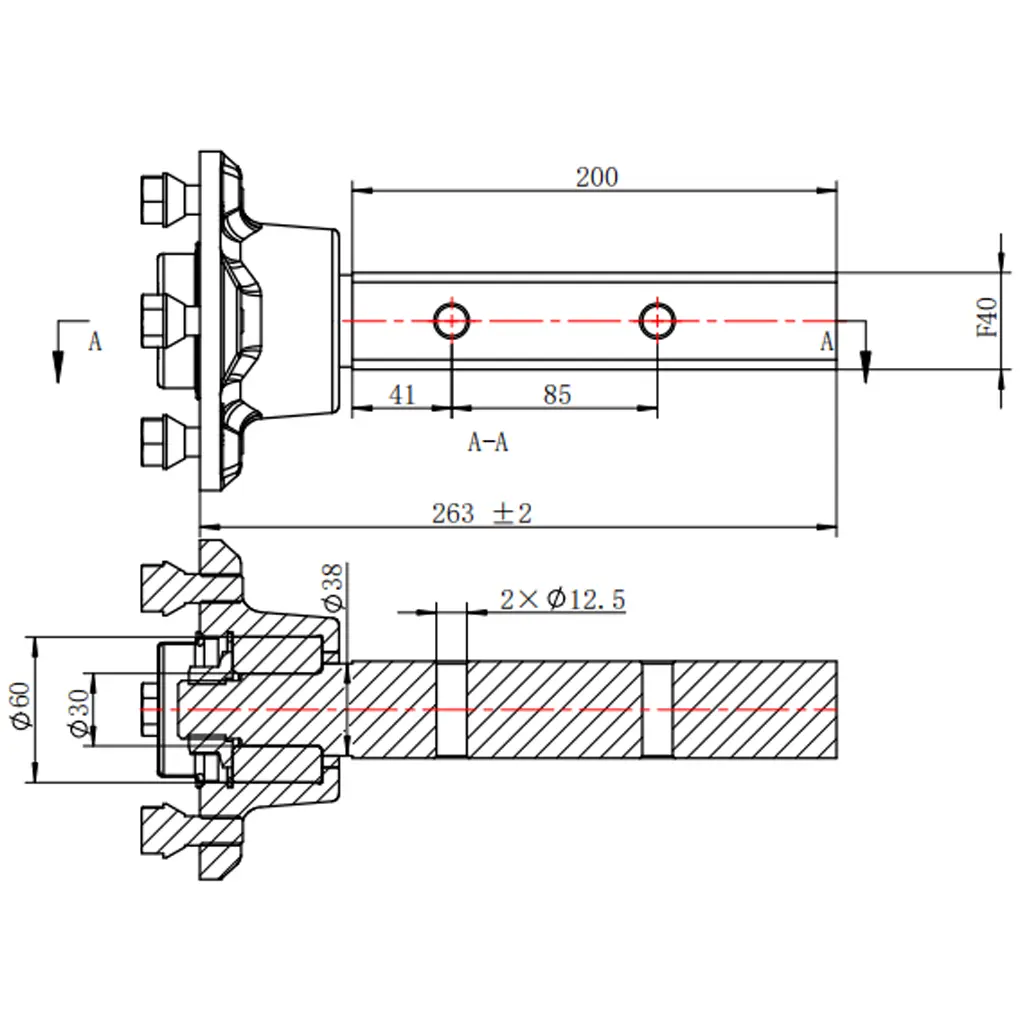

Hub & Stub Axle Specifications.

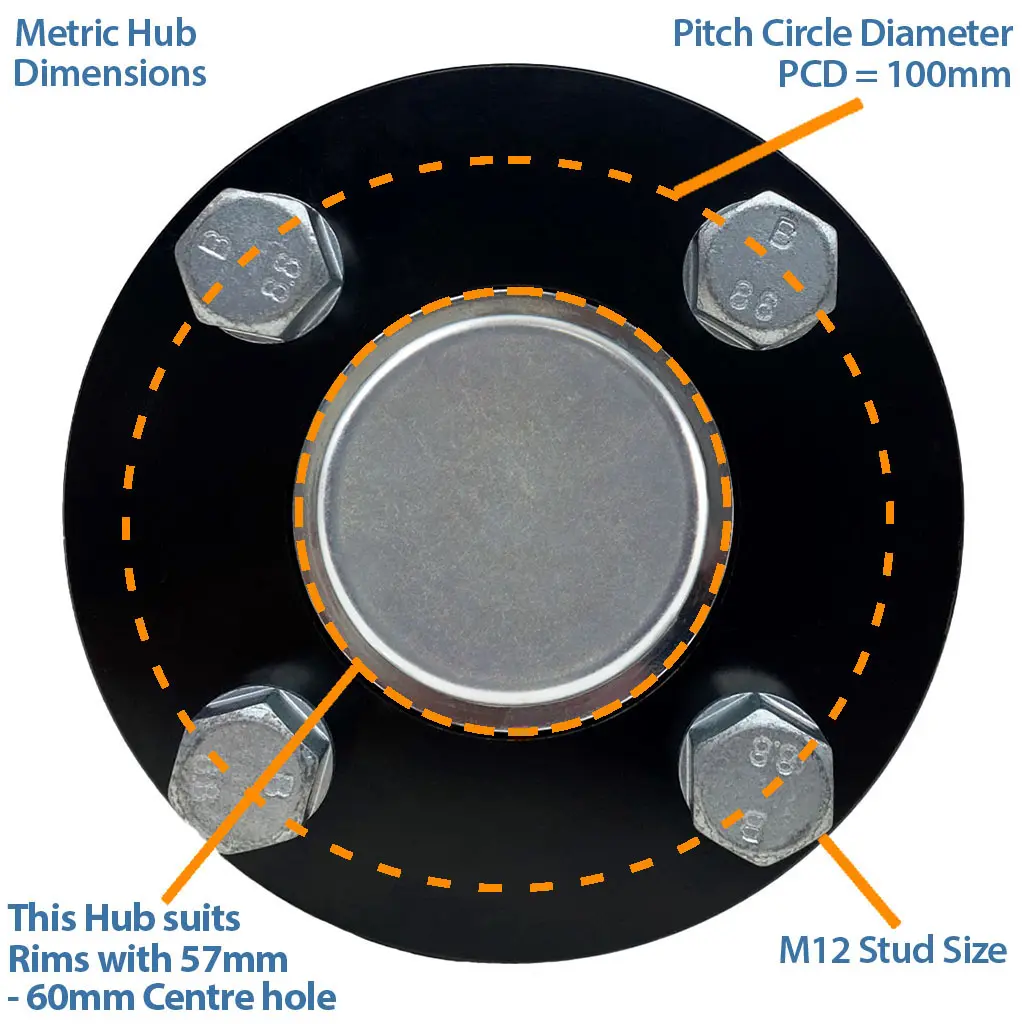

Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,

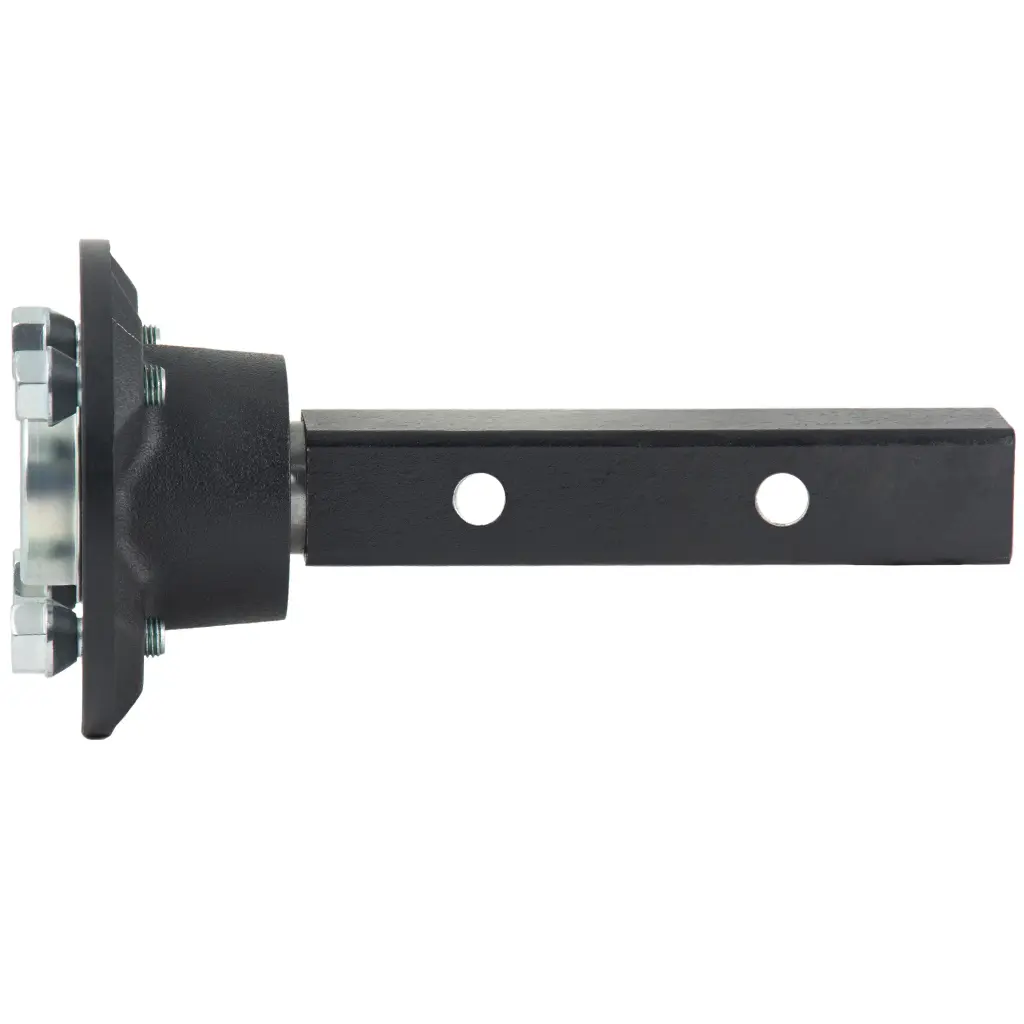

The shaft is 40x40mm x 200mm long, solid steel.
The stub bar has two pre-drilled mounting holes.

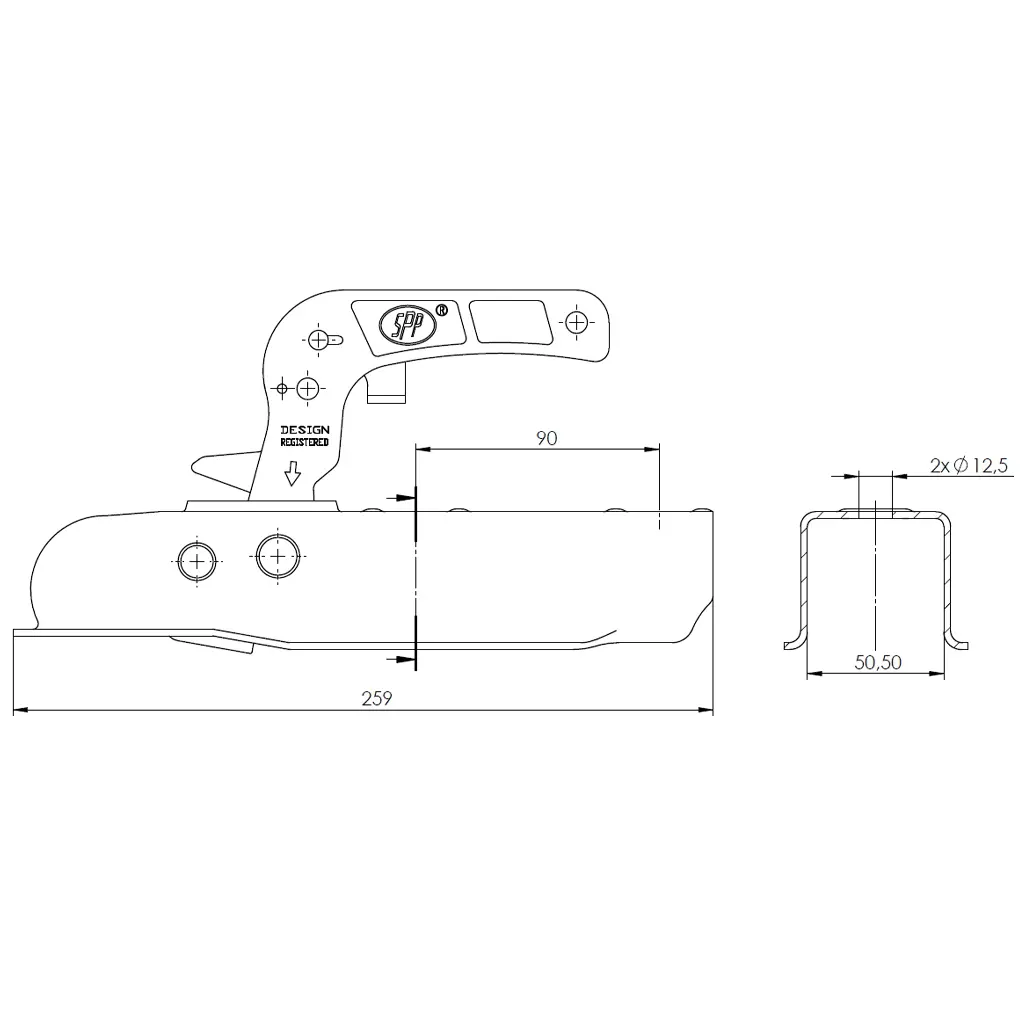

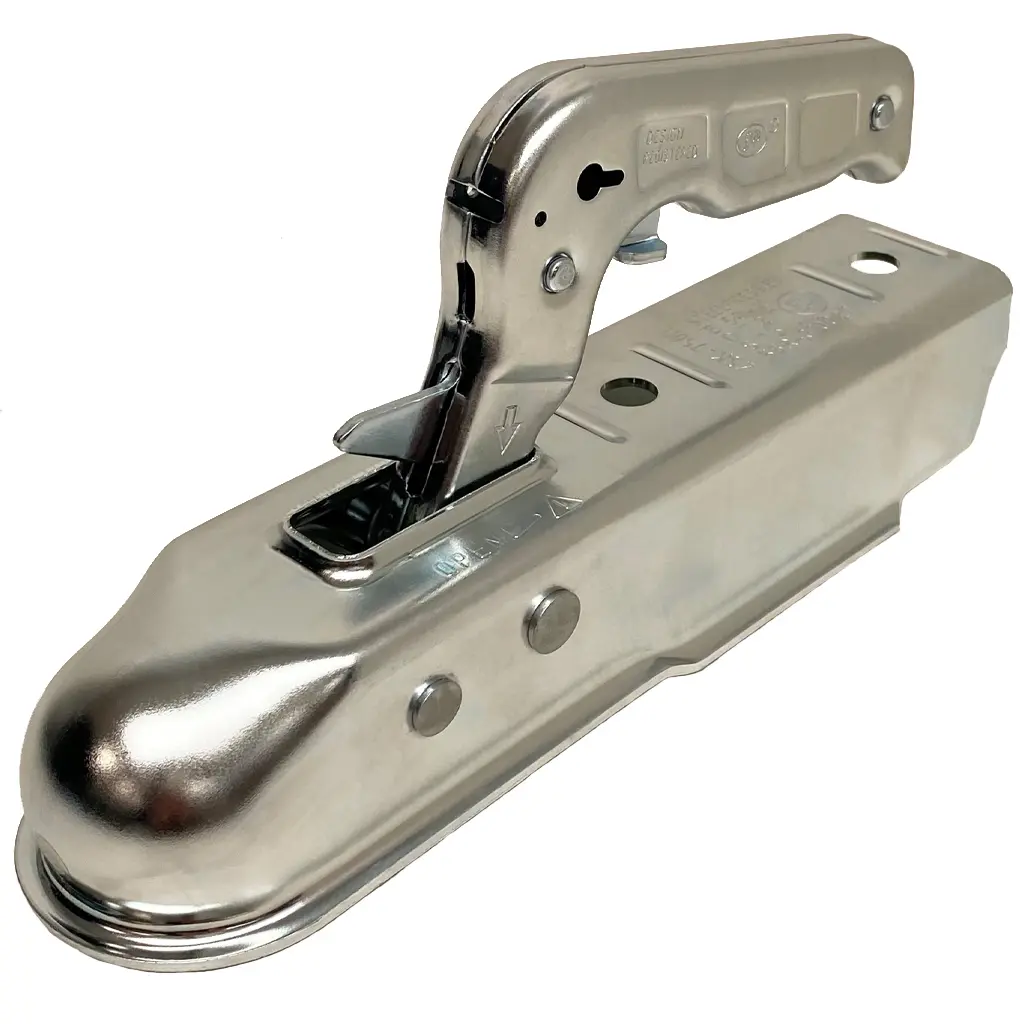

Hitch Specifications:
750kg pressed steel hitch, high quality zinc plated finish.
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts.
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
SteelPress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Maximum Kit Load Capacity 390kgs.
| Part Number | KIT1029 |
| Tyre Size | 25x12.00-9 |
| Ply | 4 |
| Pattern | P318 |
| Rim Width (in) | 10.0 |
| OD (mm) | 635 |
| PSI | 5 |
| Load/Speed Index | 51F |
| Tube Tyre (TT/TL) | TL |
| Tread Depth (mm) | 10.5 |
| Section Width (mm) | 295 |
| Max Load Each (Kg) | 390 |
| E-Mark | E4-75R-0011194 |
| Stud / PCD | 4x100mm |
| Rim Colour | Silver |
| Brand | Parnells |
| Hitch (1 piece) | SPP 750kg Pressed Hitch |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
