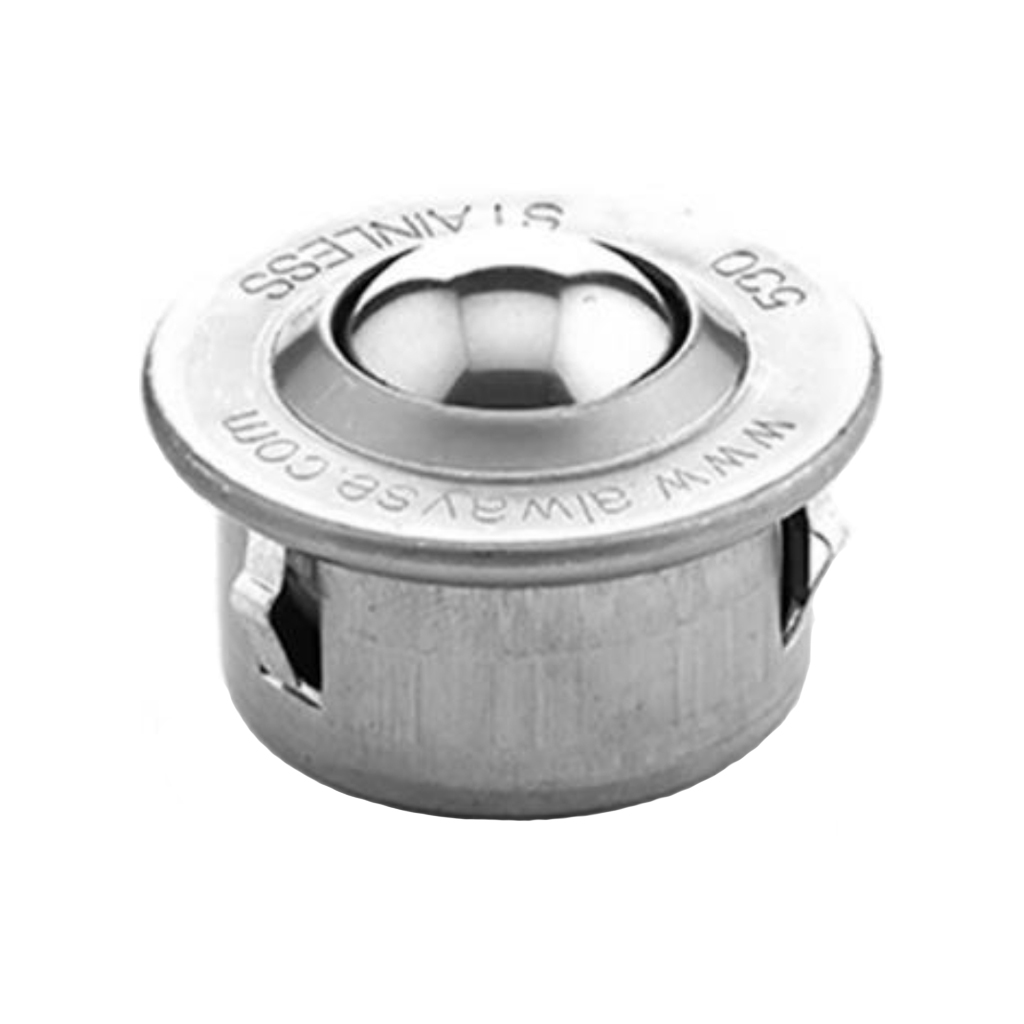

Euro Unit Series - Stainless Steel Load Ball Diameter 15.8mm, Built in Clips
8 sold in last 24 hours
Part Number: 515215
Load Ball Material: Stainless Steel
Body Material: Stainless Steel
Load Ball Diameter: 15.8mm
Load Capacity: 80kg
Load Ball Material: Stainless Steel
Body Material: Stainless Steel
Load Ball Diameter: 15.8mm
Load Capacity: 80kg
Euro Unit Series - Stainless Steel Load Ball Diameter 15.8mm, Built in Clips
- Simple drop-in ball transfer unit.
- Main bearing cup of special toughened steel.
- Dirt exit hole and woollen felt seal.
- Easy fitting with a 3-prong built in clip from top face of ball table.
- Suggested seating hole diameter Ø25mm to Ø25.5mm with a table top material thickness of 2mm.
- Low profile.
- General tolerance unless stated ±0.3mm.

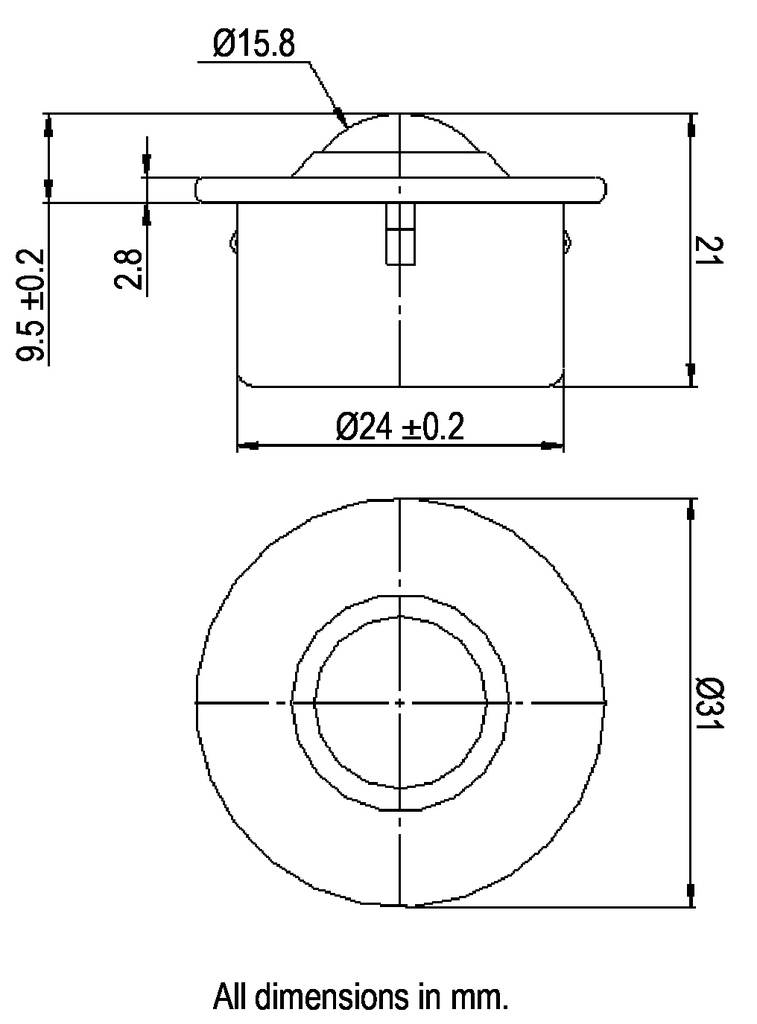

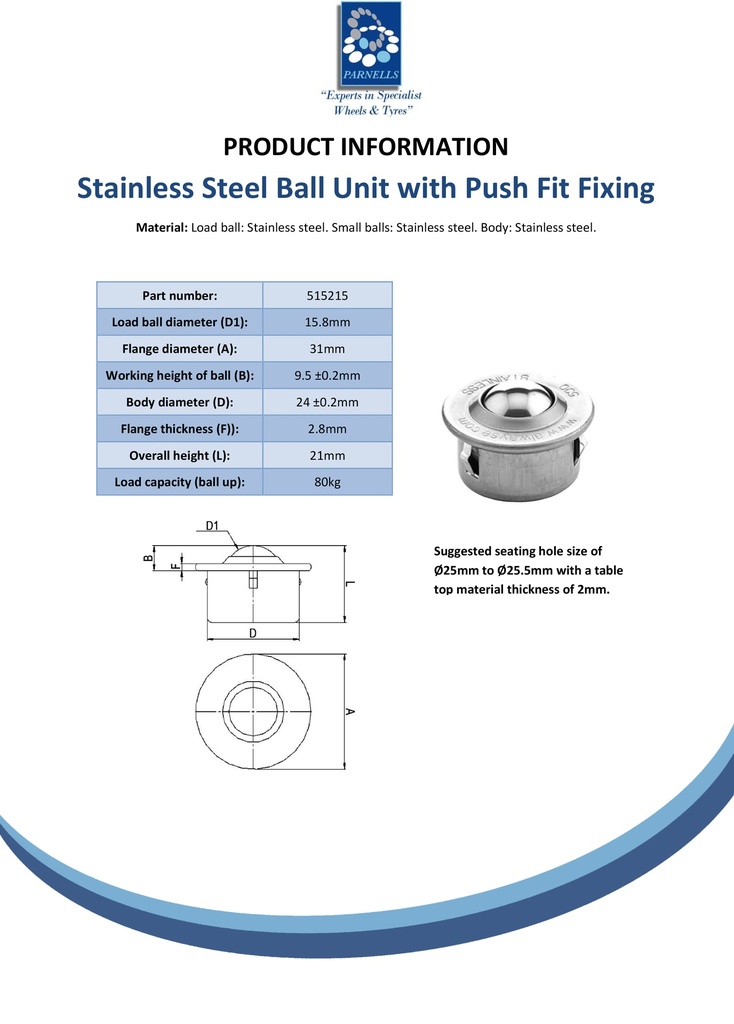

| Part Number | 515215 |
| Brand | ALWAYSE |
| Load Ball Diameter (mm) | 15.8 |
| Load Ball Material | Stainless Steel |
| Body Diameter (mm) | 24 ±0.2 |
| Working Height of Ball (mm) | 9.5 ±0.2 |
| Body Material | Stainless Steel |
| Flange Thickness (mm) | 2.8 |
| Flange Diameter (mm) | 31 |
| Overall Height (mm) | 21 |
| Load Capacity (kg) | 80 |
