Euro Unit Series - Carbon Chrome Load Ball Diameter 22.2mm, Built in Clips
8 sold in last 24 hours
Part Number: 522213
Load Ball Material: Carbon Chrome
Body Material: Carbon Steel with zinc plated finish
Load Ball Diameter: 22.2mm
Load Capacity: 180kg
Load Ball Material: Carbon Chrome
Body Material: Carbon Steel with zinc plated finish
Load Ball Diameter: 22.2mm
Load Capacity: 180kg

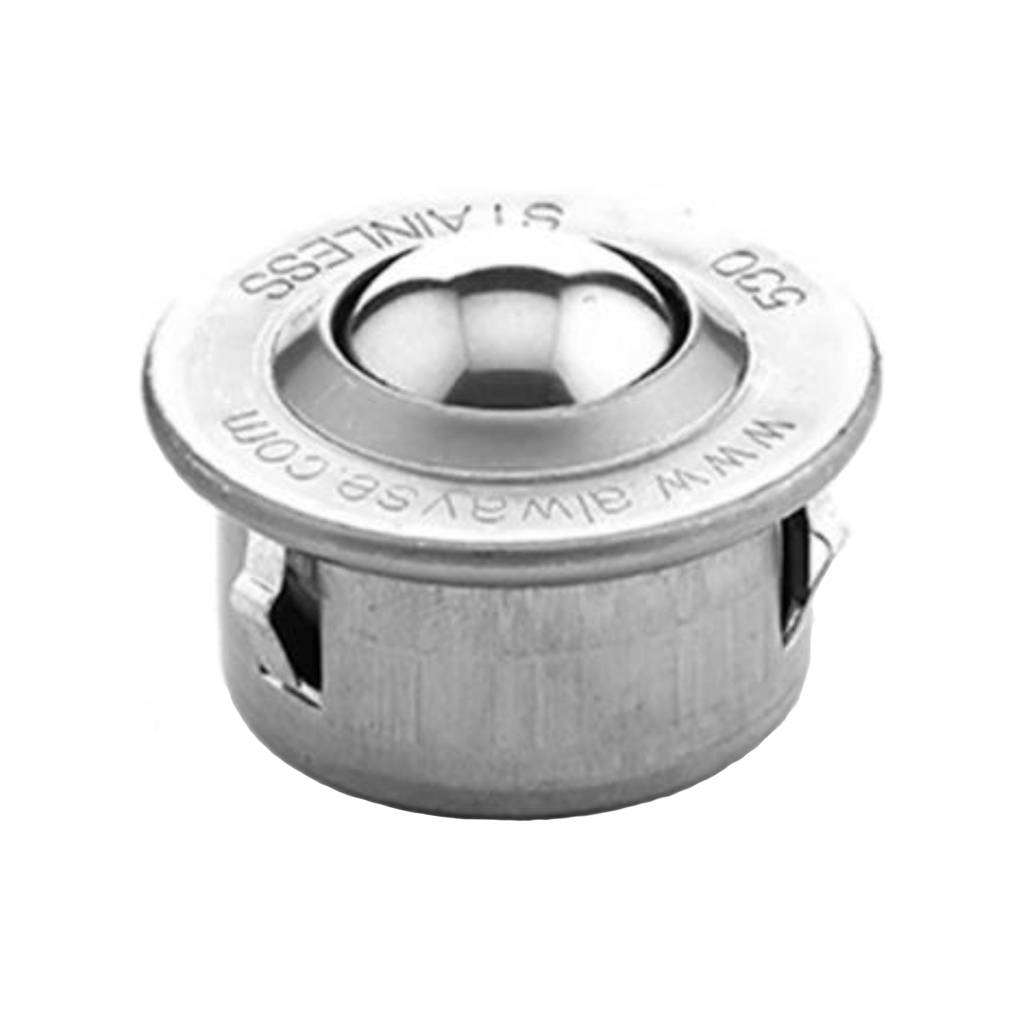

Euro Unit Series - Carbon Chrome Load Ball Diameter 22.2mm, Built in Clips
- Simple drop-in ball transfer unit.
- Main bearing cup of special toughened steel.
- Dirt exit hole and woollen felt seal.
- Easy fitting with a 3-prong built in clip from top face of ball table.
- Suggested seating hole diameter Ø37mm to Ø37.5mm with a table top material thickness of 3mm.
- Low profile.
- General tolerance unless stated ±0.3mm.

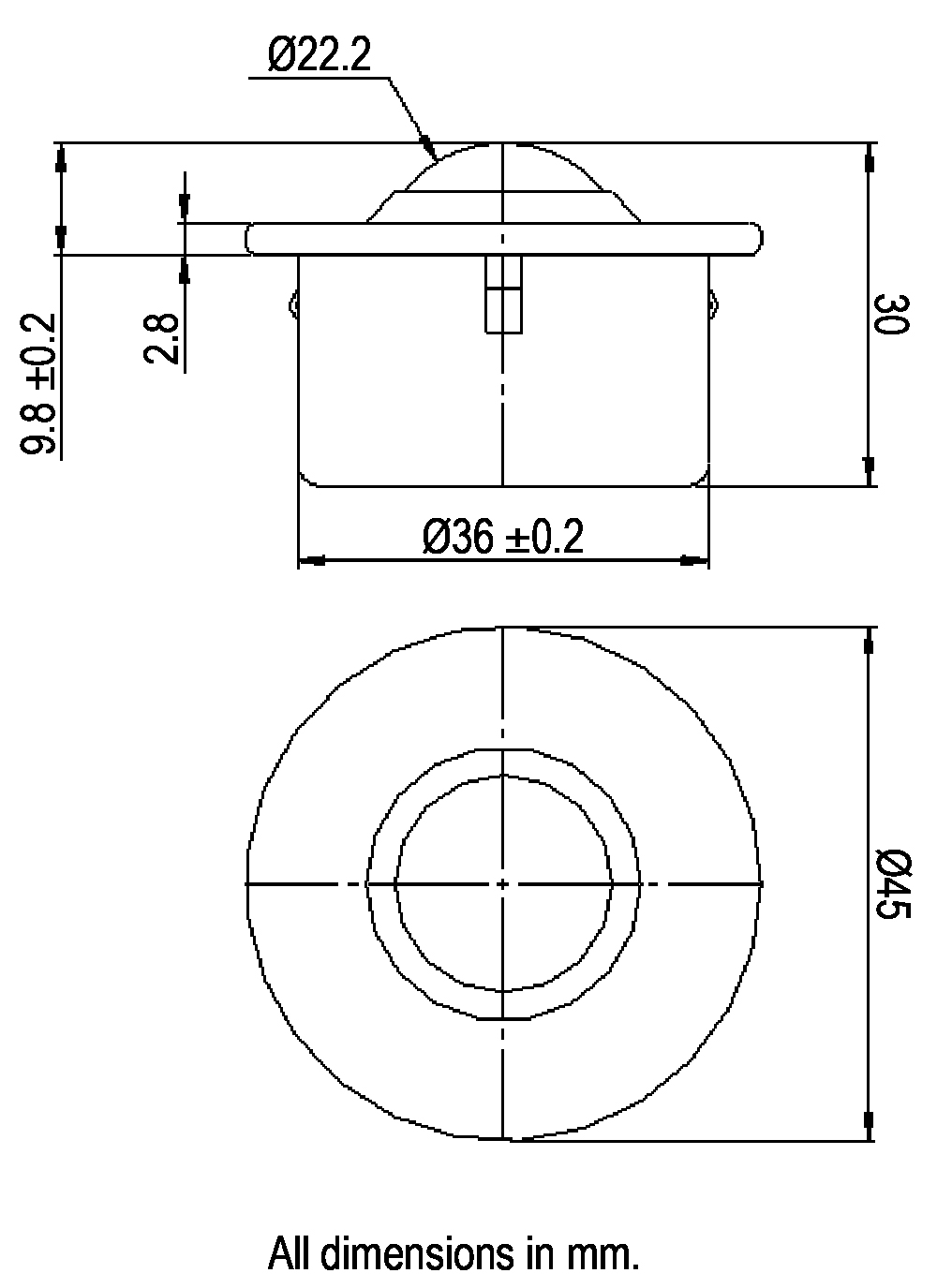

| Part Number | 522213 |
| Brand | ALWAYSE |
| Load Ball Diameter (mm) | 22.2 |
| Load Ball Material | Carbon Chrome |
| Body Diameter (mm) | 36 ±0.2 |
| Working Height of Ball (mm) | 9.8 ±0.2 |
| Body Material | Carbon Steel with Zinc Plated Finish |
| Flange Thickness (mm) | 2.8 |
| Flange Diameter (mm) | 45 |
| Overall Height (mm) | 30 |
| Load Capacity (kg) | 180 |
