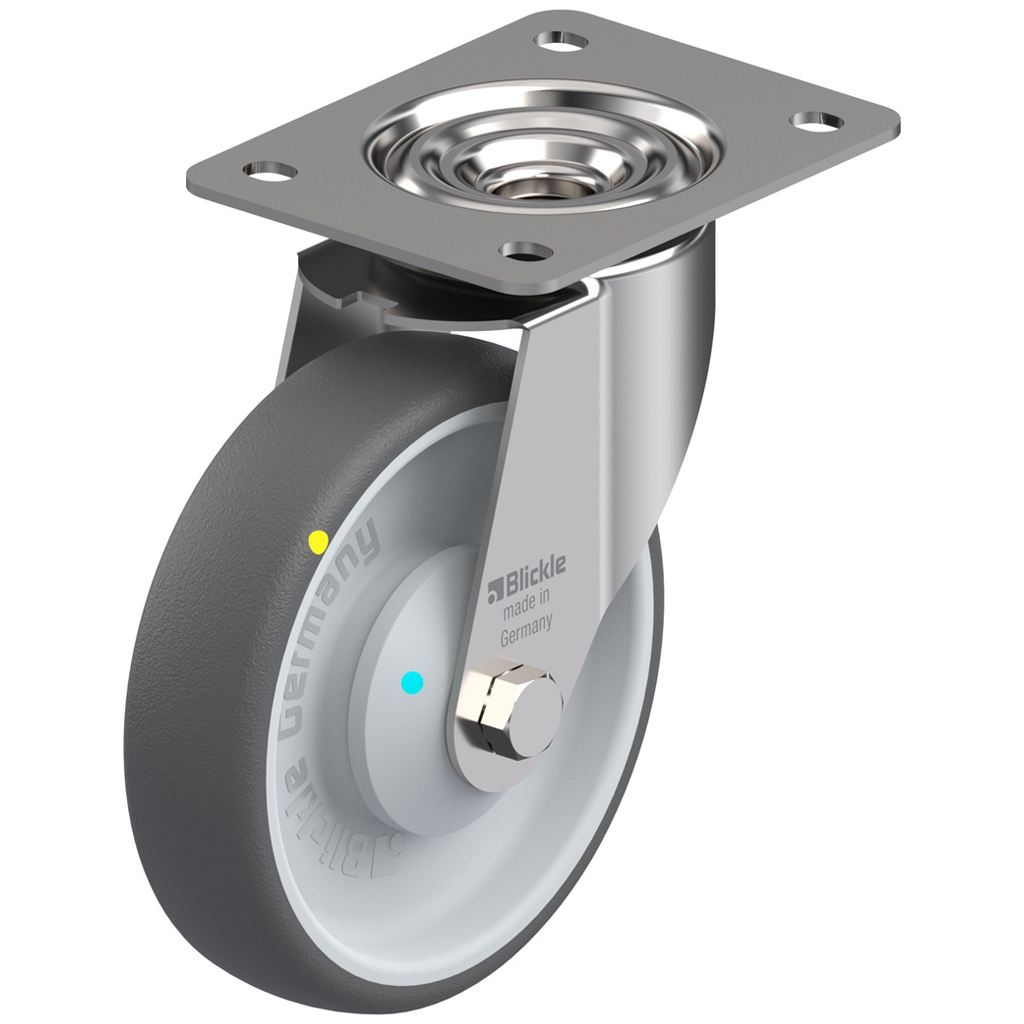

300SS series 160mm stainless steel swivel top plate 140x110mm castor with PATH electrically conductive grey polyurethane on nylon centre additional sealed single ball bearing wheel 260kg

160mm stainless steel swivel castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 260kg

  • Swivel castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 94° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Additional sealed single ball bearing.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking.

  • Very good chemical resistance to many substances.

  • Can be equipped with a separate 1-way directional lock, part no. 568048.

Part Number 530066
Wheel Diameter (mm) 160
Tread Width (mm) 40
Bearing Type Additional sealed single ball bearing
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 195
Load Capacity 3km/h (kg) 260
Blickle Reference LEX-PATH 160KAD-ELS

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 530066.pdf
Download
Image for 530066.jpg
Download

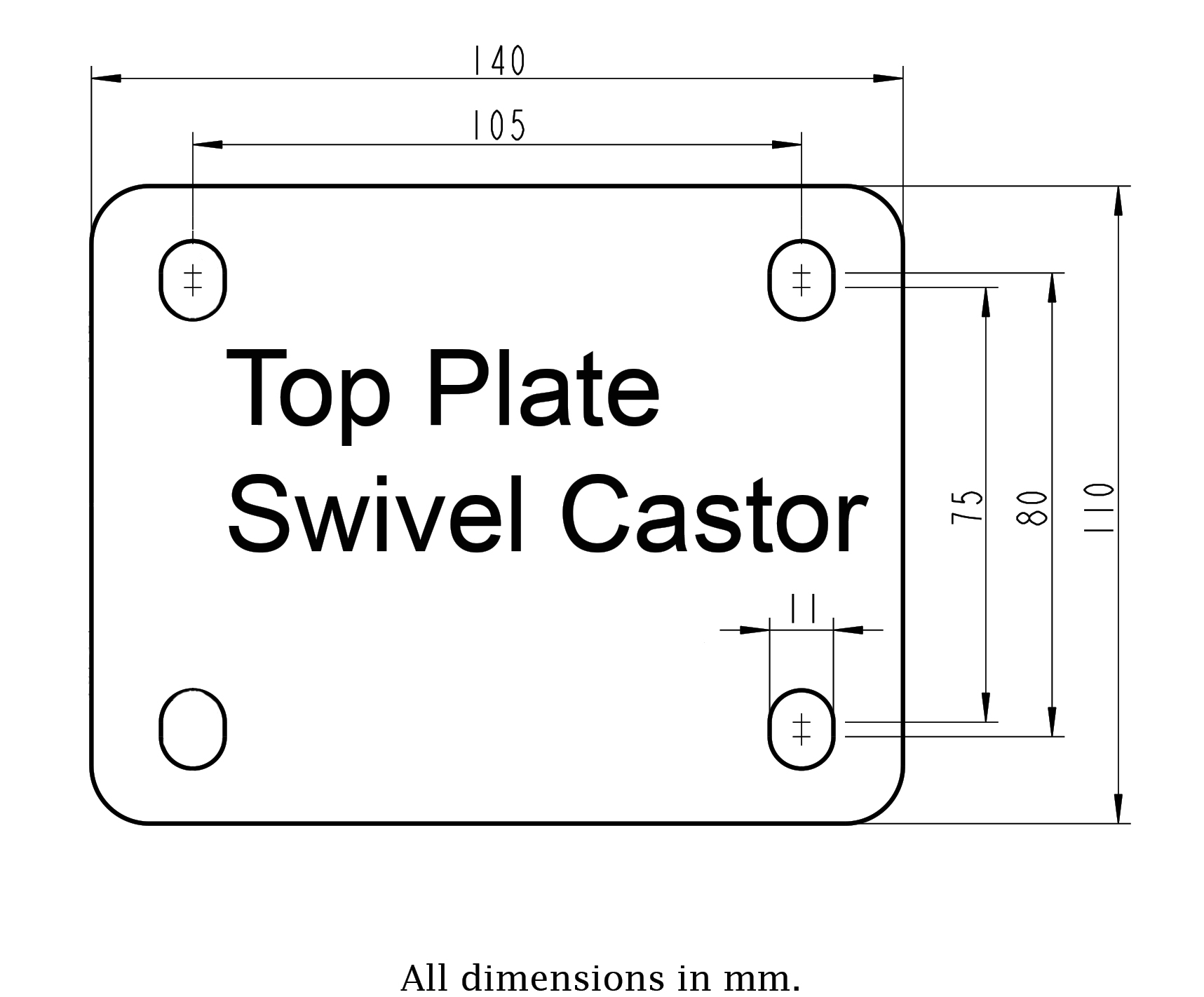

Dimensions for top plate swivel, 150-200mm.jpg
