23x11.00-10 Quad ATV tyre, Wanda P3077, 4ply Utility tire on 4x100 PCD Rim
11 sold in last 24 hours
Part Number: AS8424

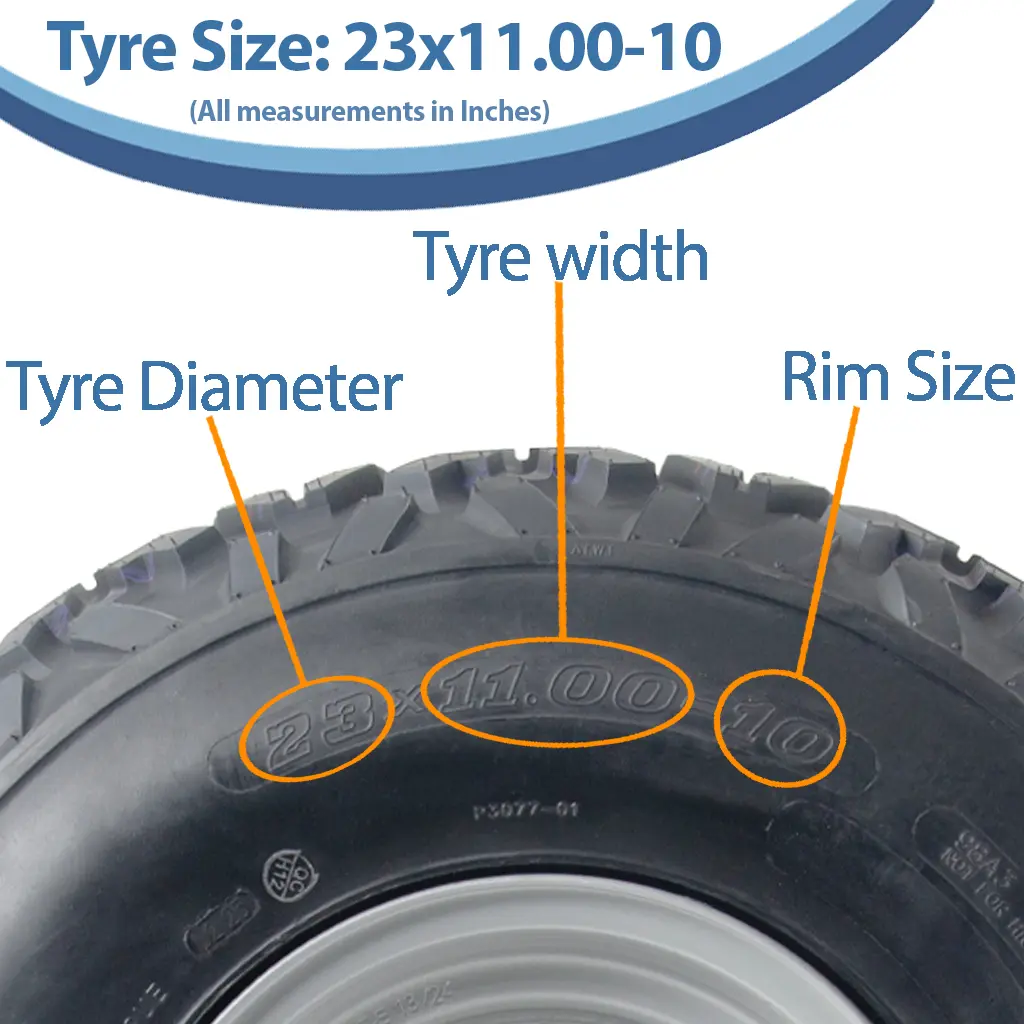

Tyre Size: 23x11.00-10
Tyre Pattern: P3077
Load Capacity: 755kg
Tyre Size: 23x11.00-10
Tyre Pattern: P3077
Load Capacity: 755kg

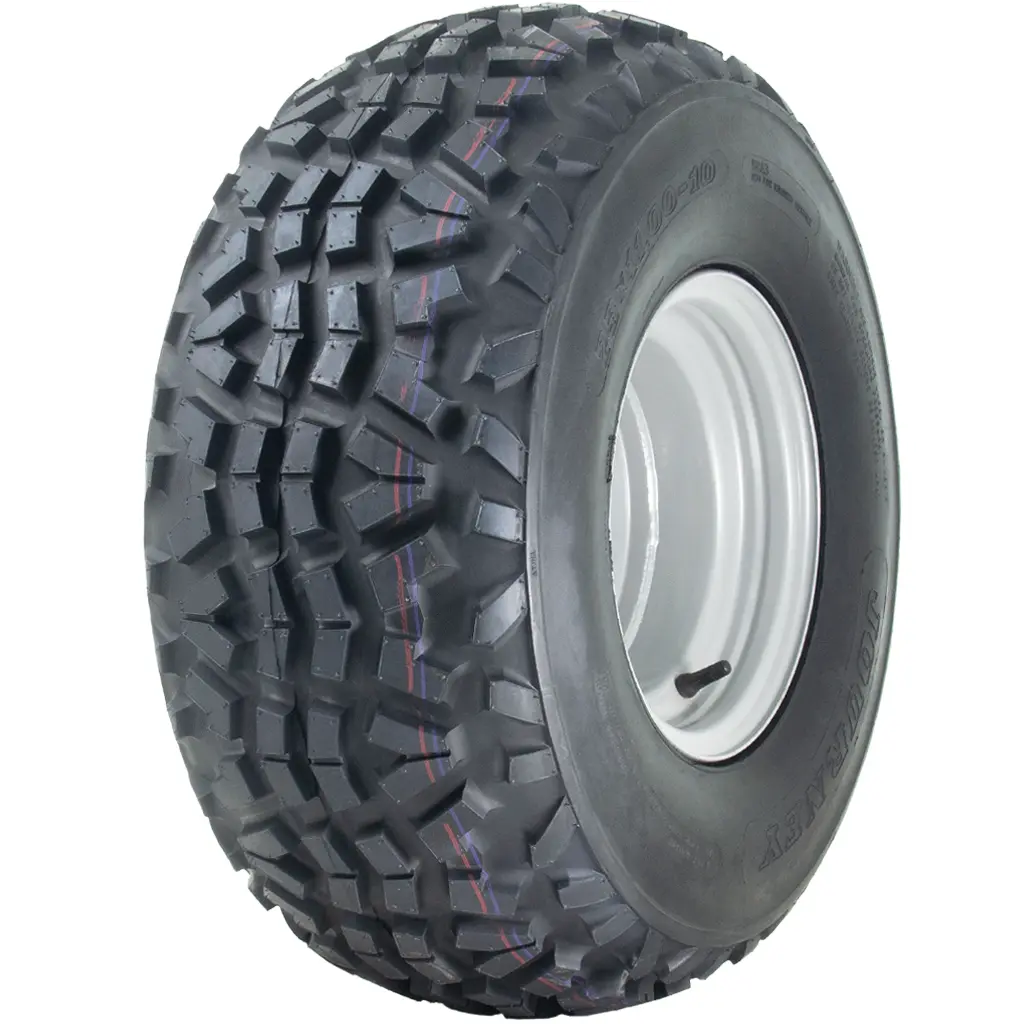

23x11.00-10 Wanda ATV P3077 Wheel.
This is a rugged utility tyre.
These are tubeless tyres.
They are hard wearing 4ply tyres with a tread depth of 14mm.
Tyre dimensions:
Overall diameter: 602mm,
Max section width: 256mm,
Max load: 1660lbs (755kg) @ 25psi,
Max speed: 15kph,
Load and speed rating 98A6.

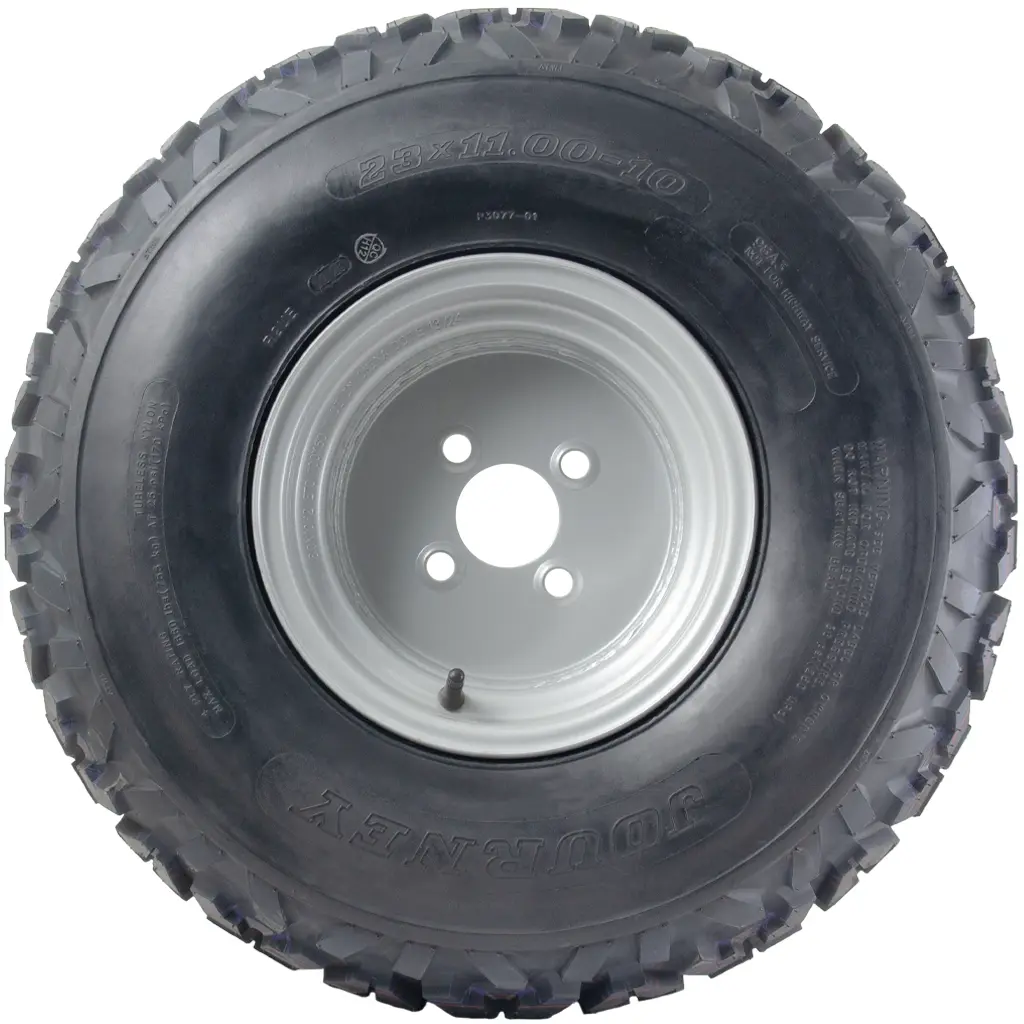

Wheel rims:
Heavy duty welded rims,
Powder coat paint with E-coating anti-corrosion treatment for superior finish,
Pitch Circle Diameter: 100mm,
Centre hole diameter: 60mm.
Rim Specification:
Heavy duty steel rims with 4 stud holes,
Pitch circle diameter: 100mm PCD,
Centre hole size: 60mm,
Stud hole size 13.5mm, suits an M12 stud.
Powder coat paint with E-coating anti-corrosion treatment for superior finish.

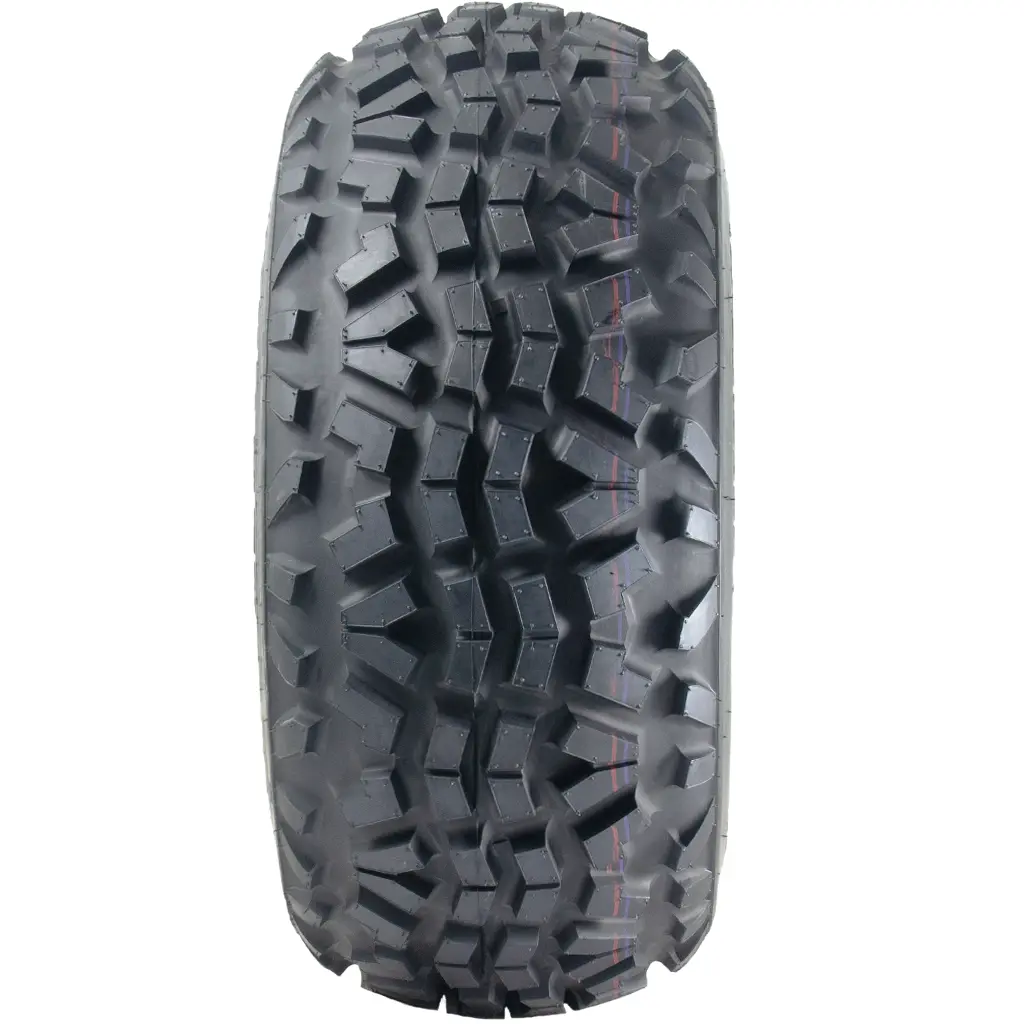

Tyre description: Non-directional tread design. Advanced tread that grabs and reduces skidding on wet surfaces.
| Part Number | AS8424 |
| Brand | Parnells |
| Ply | 4 |
| Rim Width (in) | 8.0 |
| OD (mm) | 602 |
| PSI | 25 |
| Load/Speed Index | 98A3 |
| Tyre Size | 23x11.00-10 |
| TT/TL | TL |
| Tread Depth (mm) | 14 |
| SW (mm) | 256 |
| Max Load Each (Kg) | 755 |
| E-Mark | No |
| Stud / PCD | 4x100mm |
