Trailer Kit - 22x11.00-10 Quad Trailer Wheels and Hub & Stub axles 900kg
13 sold in last 24 hours
Wheel Size: 22x11.00-10
Stub Axle: 40x40mm Square, 100mm PCD
Load Capacity: 900kgs

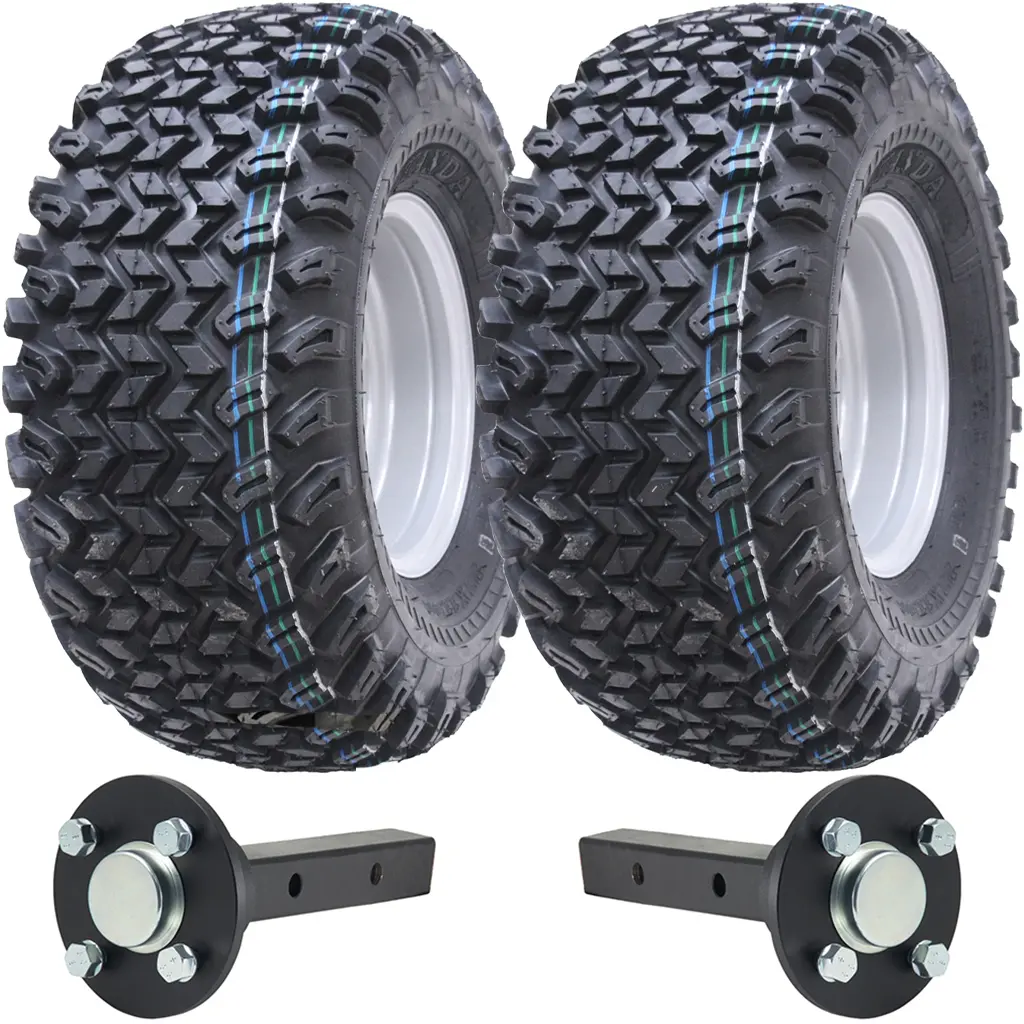

22x11.00-10 ATV Trailer Kit.
Contents of this kit include:
2 x Wheels, 22x11.00-10.
2 x Stub axles, 40x40x200mm solid stub.
Rugged 275/55-10 tubeless utility Wheels.
They are hard wearing 4ply tyres with a tread depth of 15.8mm.
Suitable for both on and off-road use.
Road legal up to 50km/h in Europe and the UK.

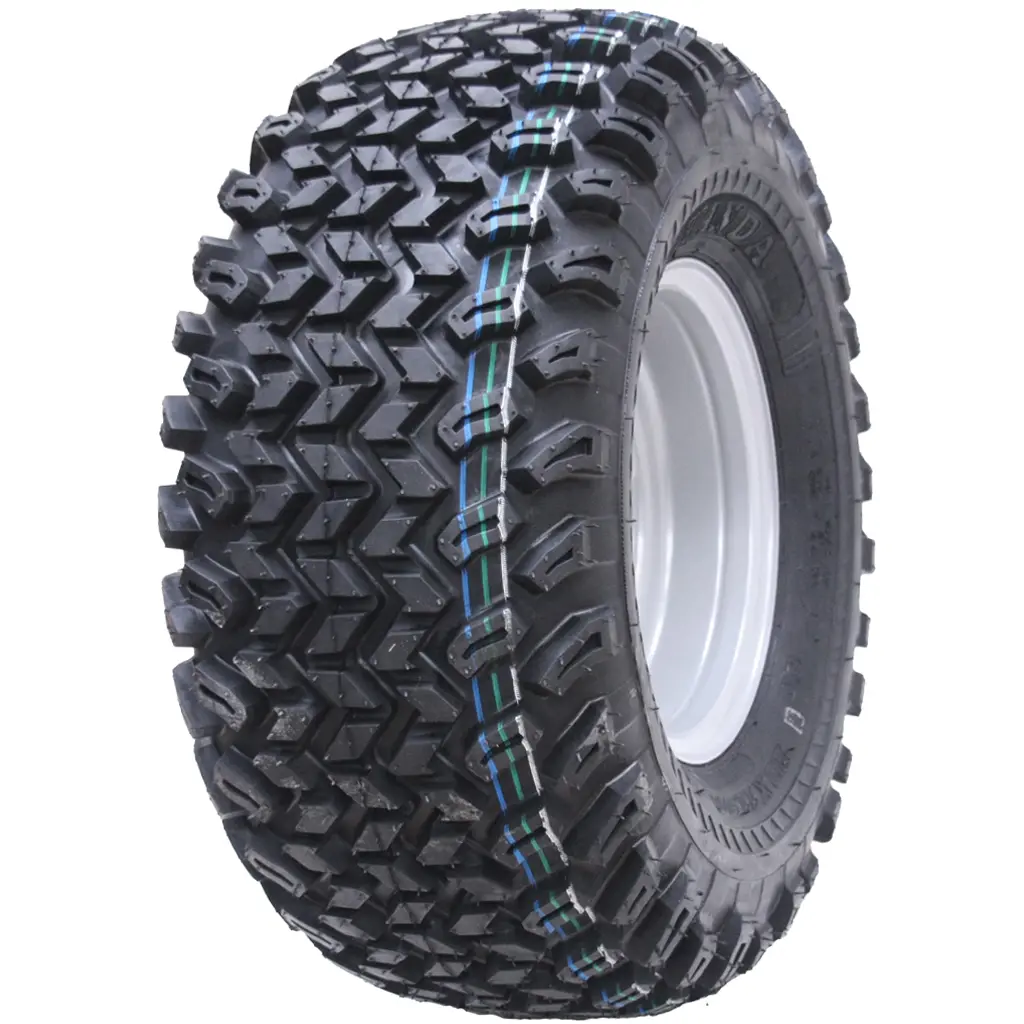

Tyre Specifications:

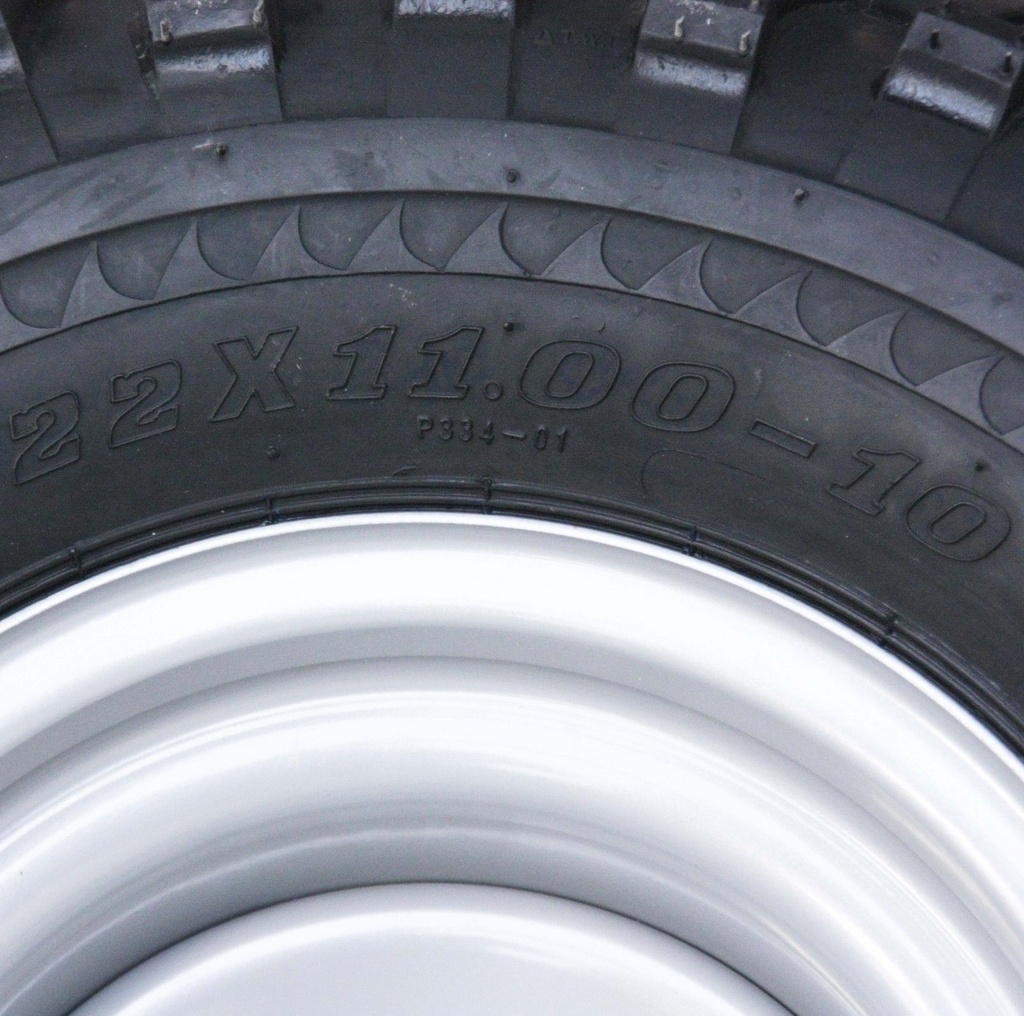

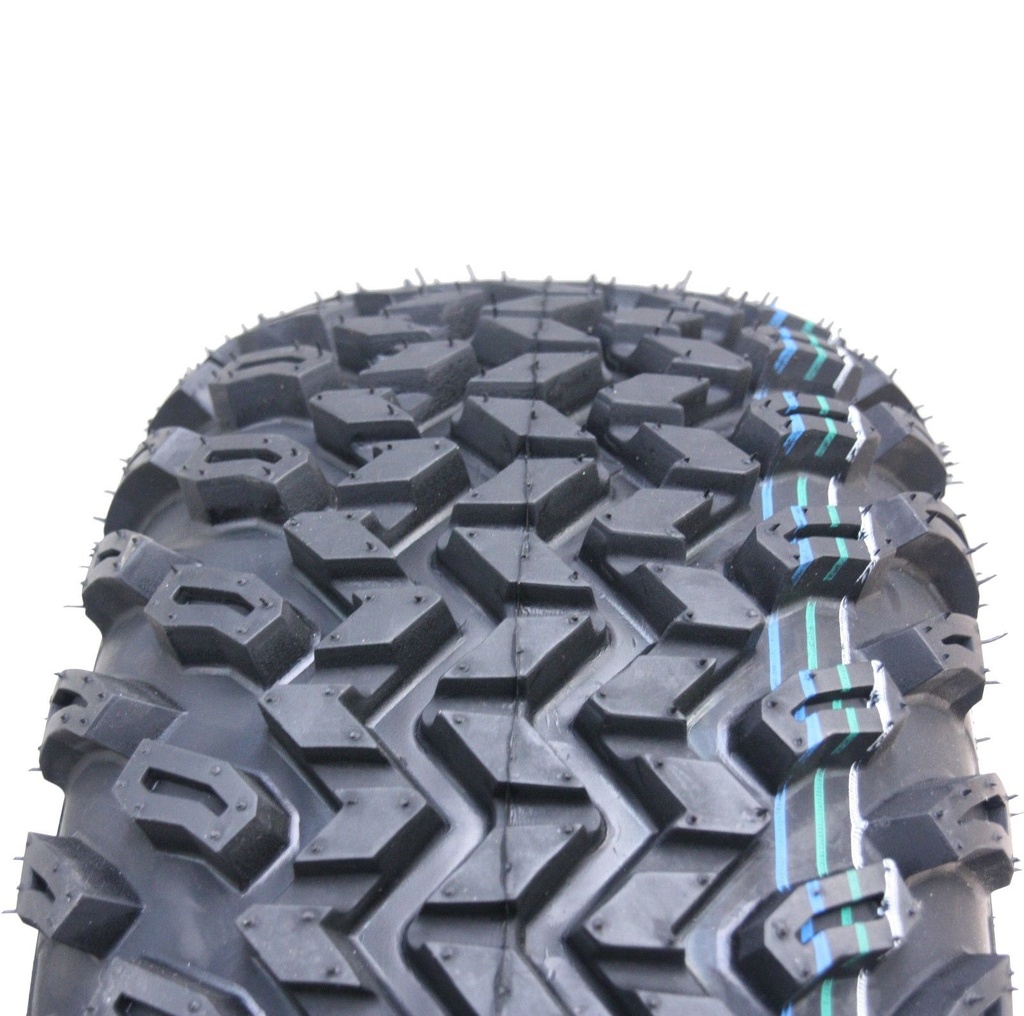

22x11.00-10 4ply Wanda P334 Utility tyres,
Overall diameter: 575mm,
Max width of tyre: 260mm,
Tread depth: 15.80mm,
Inflation PSI: 20psi,
Max load per wheel: 455kg @ 50km/h,
Load/speed index: 80B,
E-marked tyres: E4-75R-0010867,
Wheel rims:
Heavy duty welded rims,
Powder coat paint with E-coating anti-corrosion treatment for superior finish,

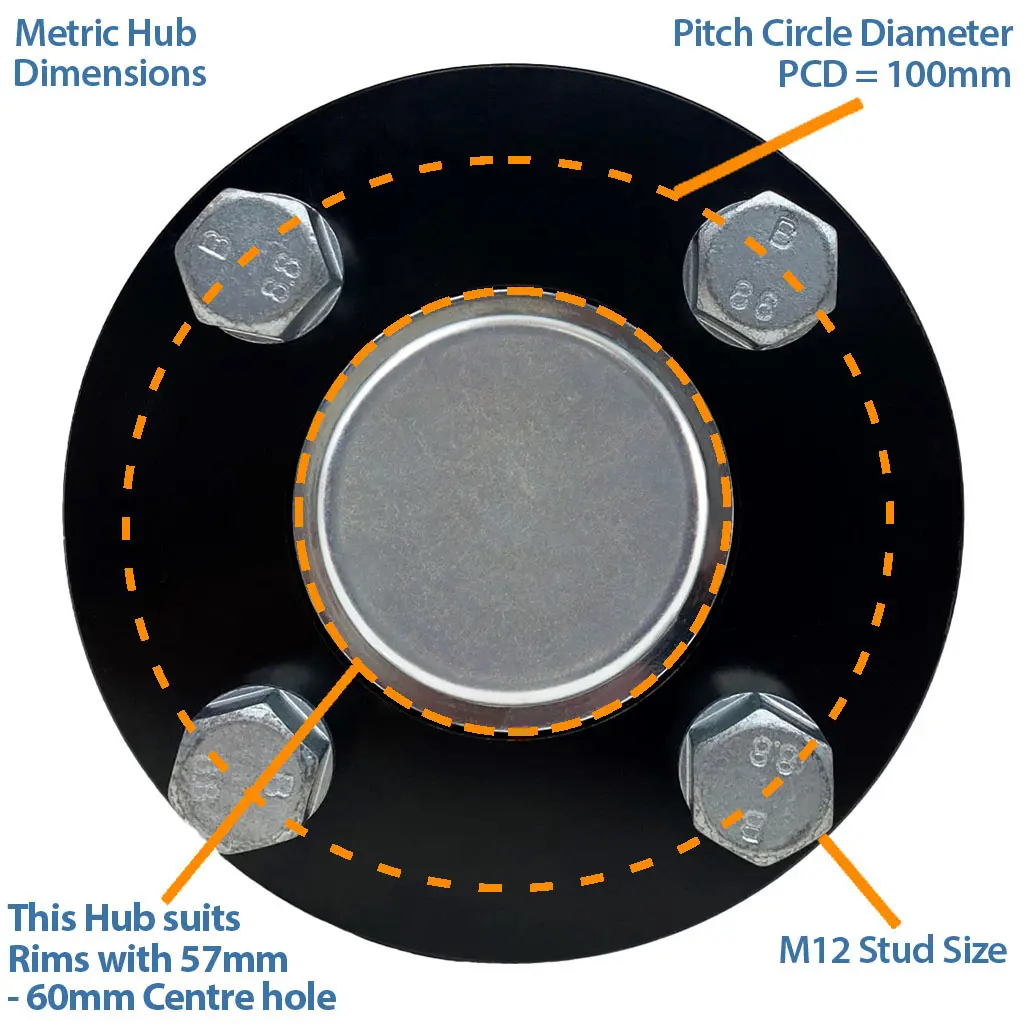

Pitch Circle Diameter: 100mm,
Centre hole diameter: 60mm.

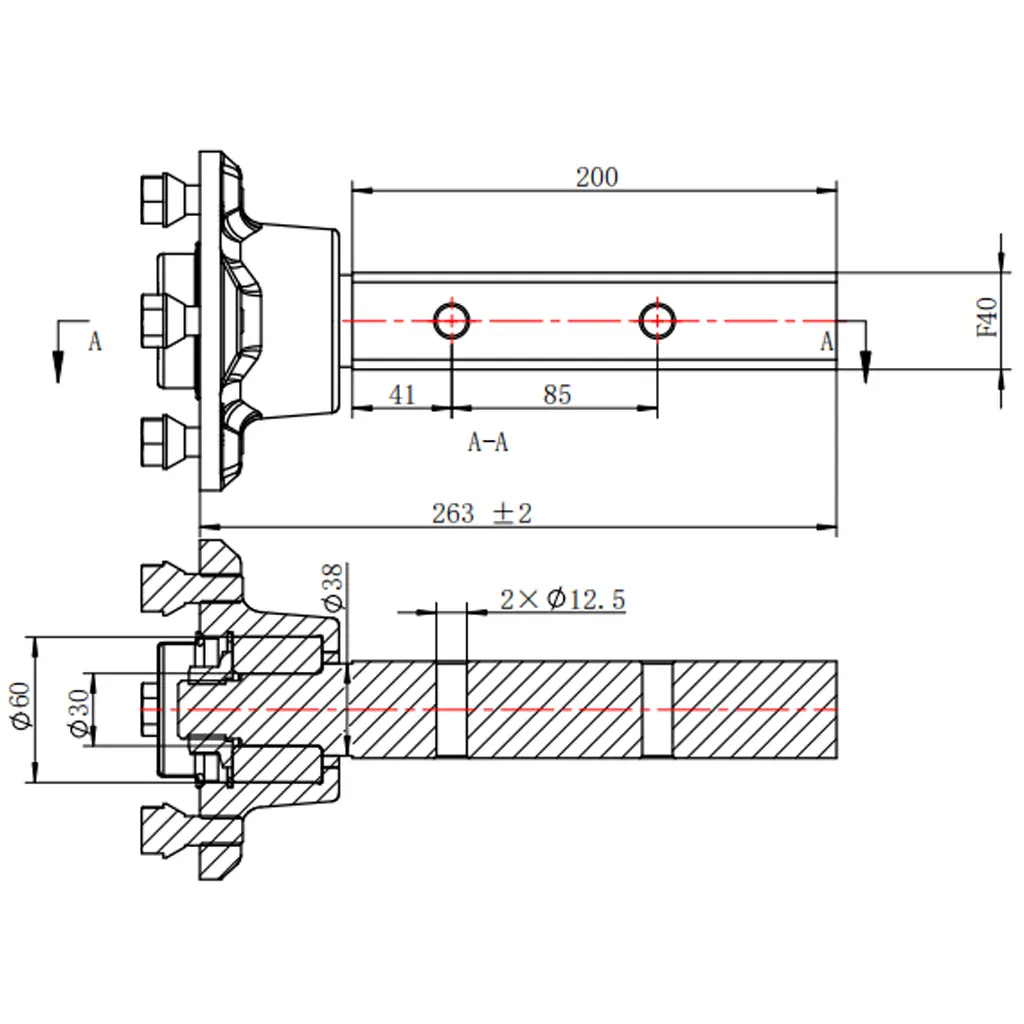

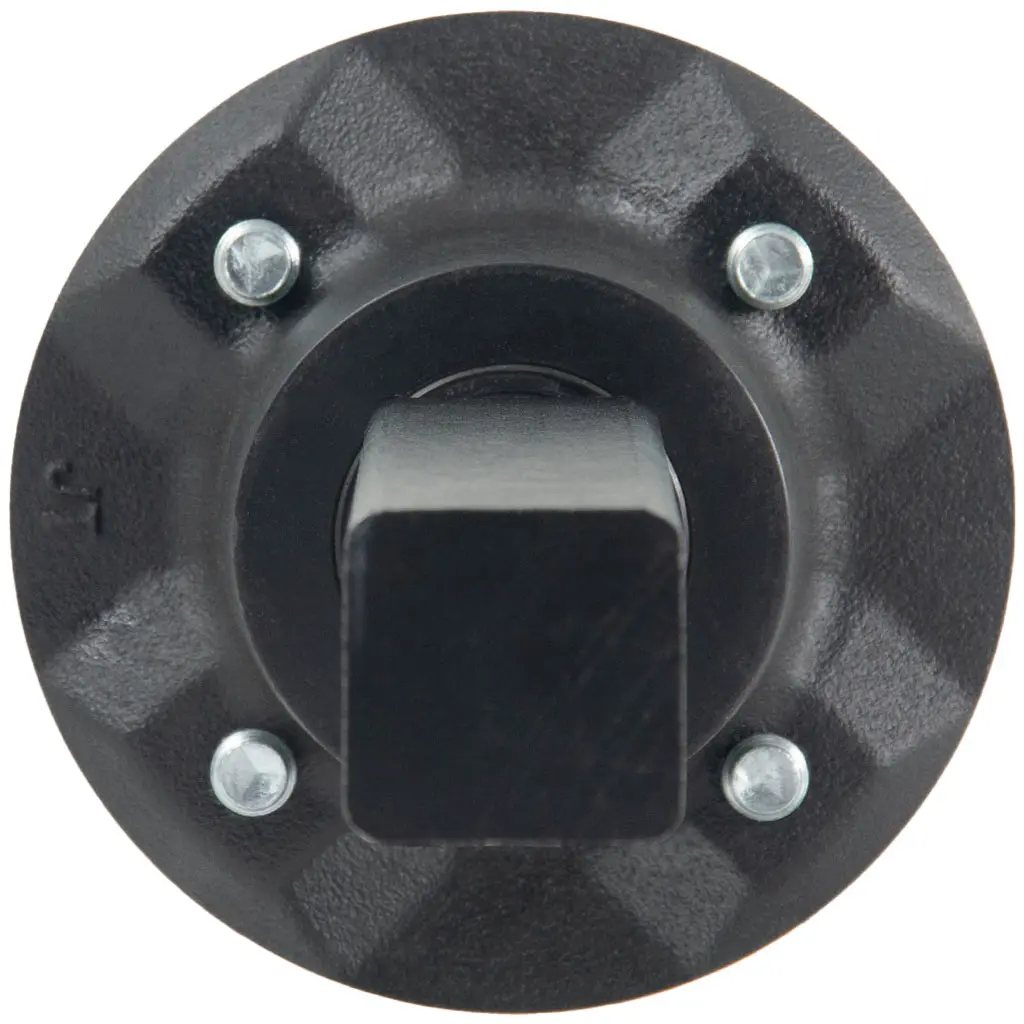

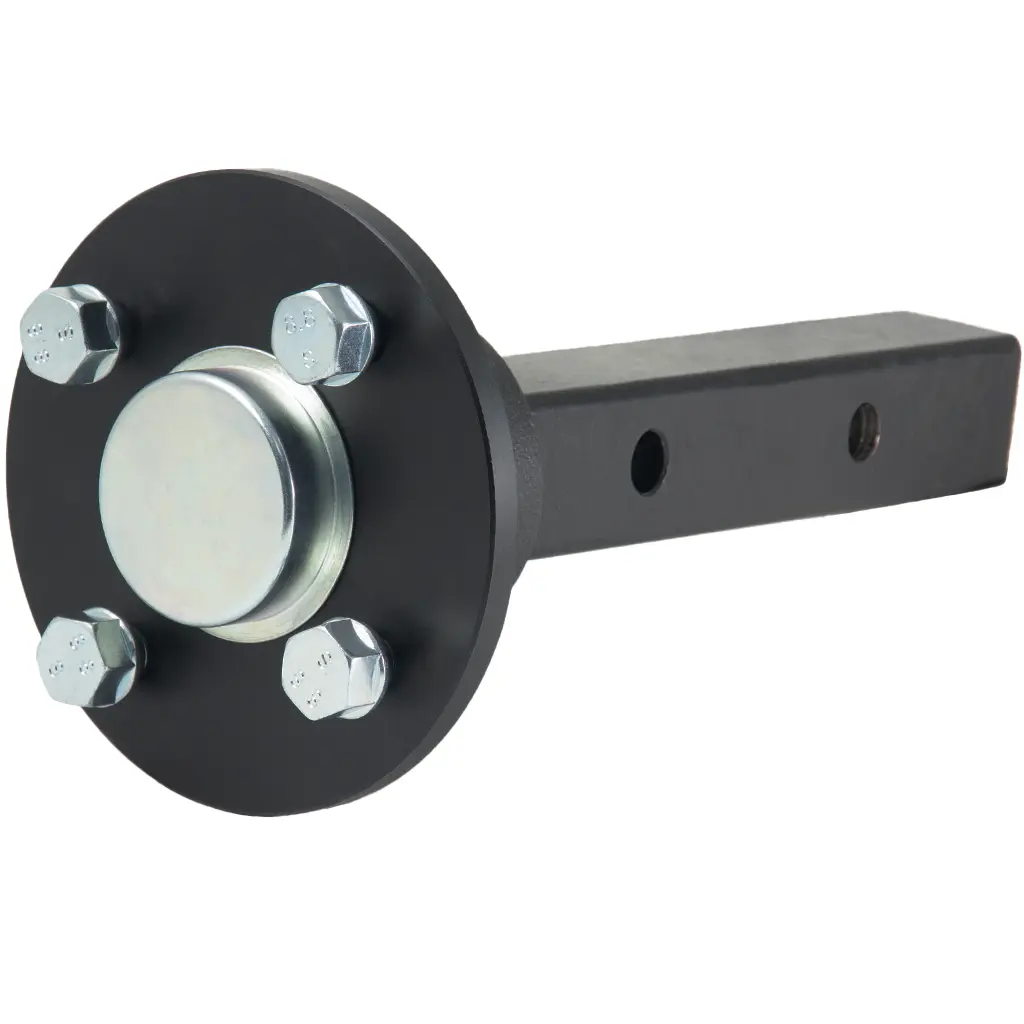

Stub axles Specifications:
Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,

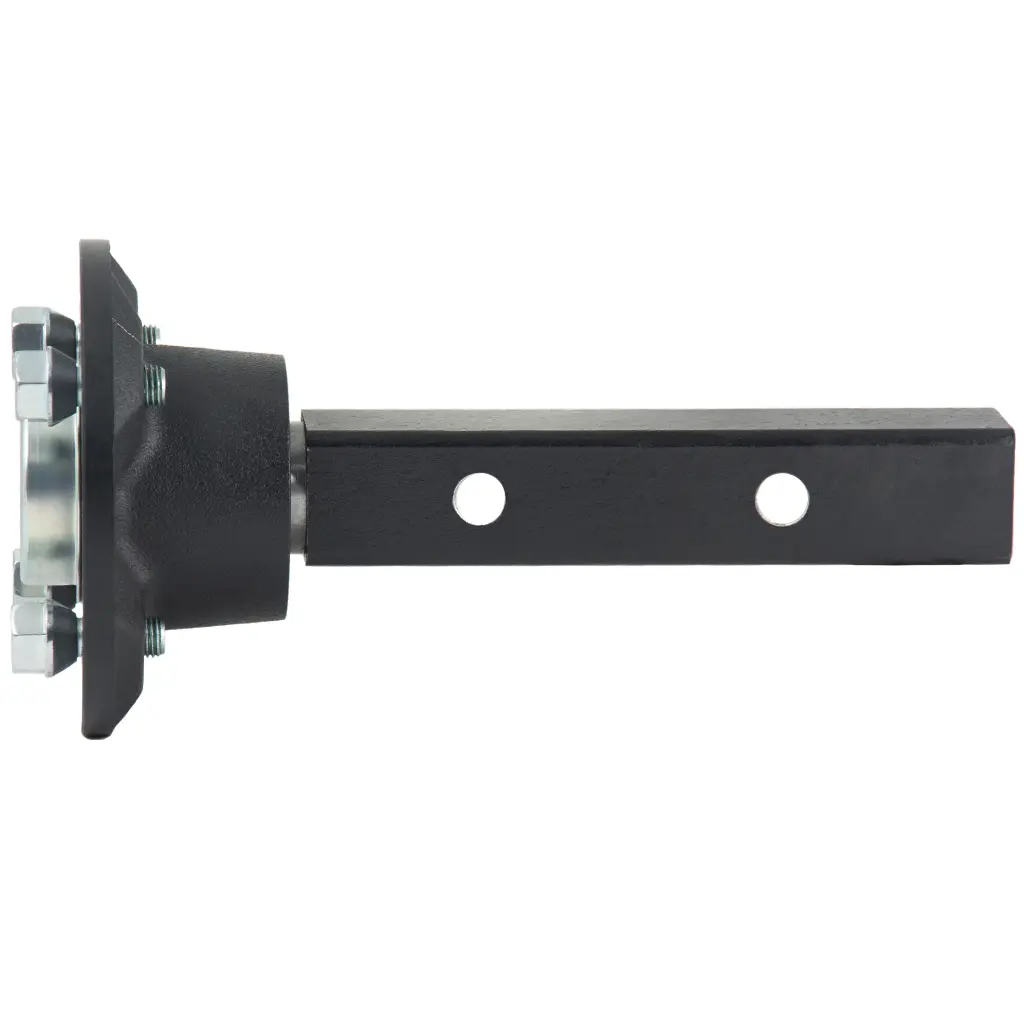

The shaft is 40x40mm x 200mm long, solid steel,
The stub bar has two pre-drilled mounting holes.
Maximum Kit Load Capacity 900kgs.
| Part Number | EC1299 |
| Tyre Size | 22x11.00-10 |
| Ply | 4 |
| Tube Tyre (TT/TL) | TL |
| Pattern | P334 |
| Tread Depth (mm) | 15.8 |
| Section Width (mm) | 260 |
| OD (mm) | 575 |
| PSI | 20 |
| Load/Speed Index | 80B |
| Max Load (Kg) | 455 |
| E-Mark | E4-75R-0010867 |
