145x10 Wanda WR068 Trailer kit, Wheels, Hub & Stub axles & hitch
10 sold in last 24 hours
Part Number: EC1602
Wheel Size: 145x10
Tyre Pattern: WR068
Kit Load Capacity: 750kgs
Wheel Size: 145x10
Tyre Pattern: WR068
Kit Load Capacity: 750kgs
145R10 Trailer kit.

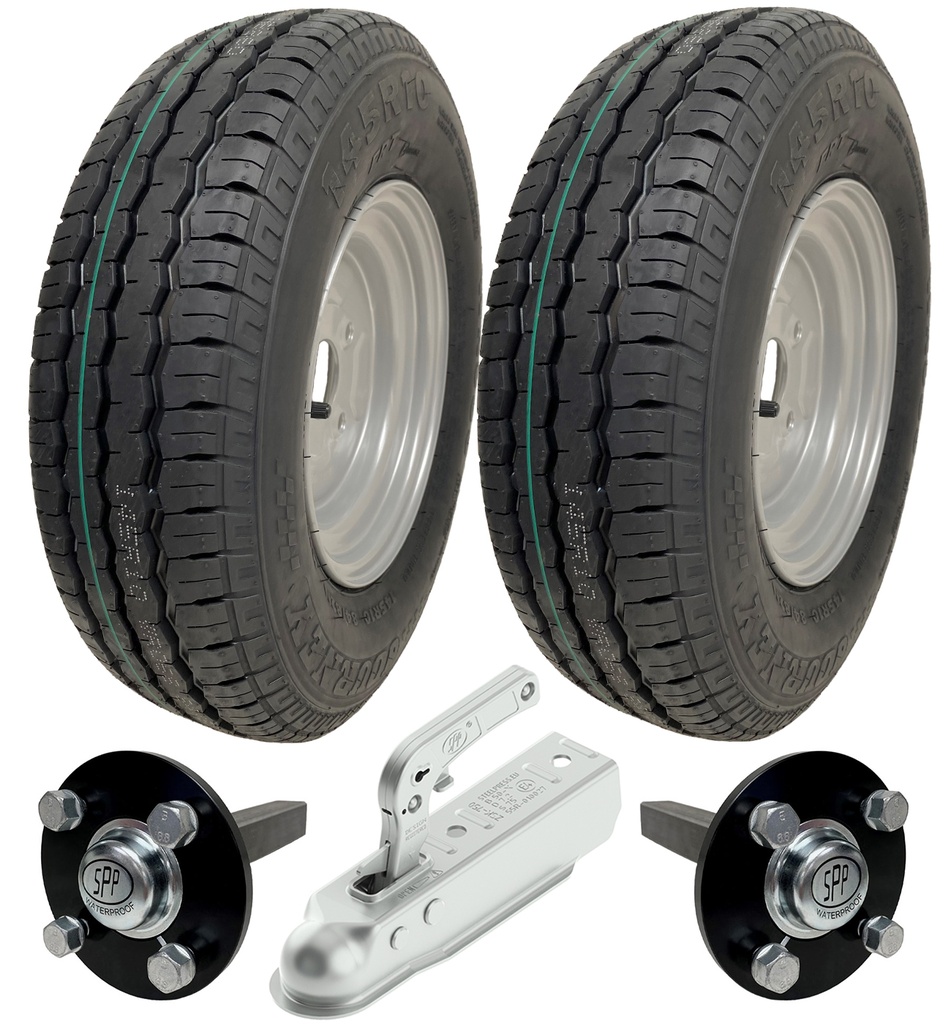

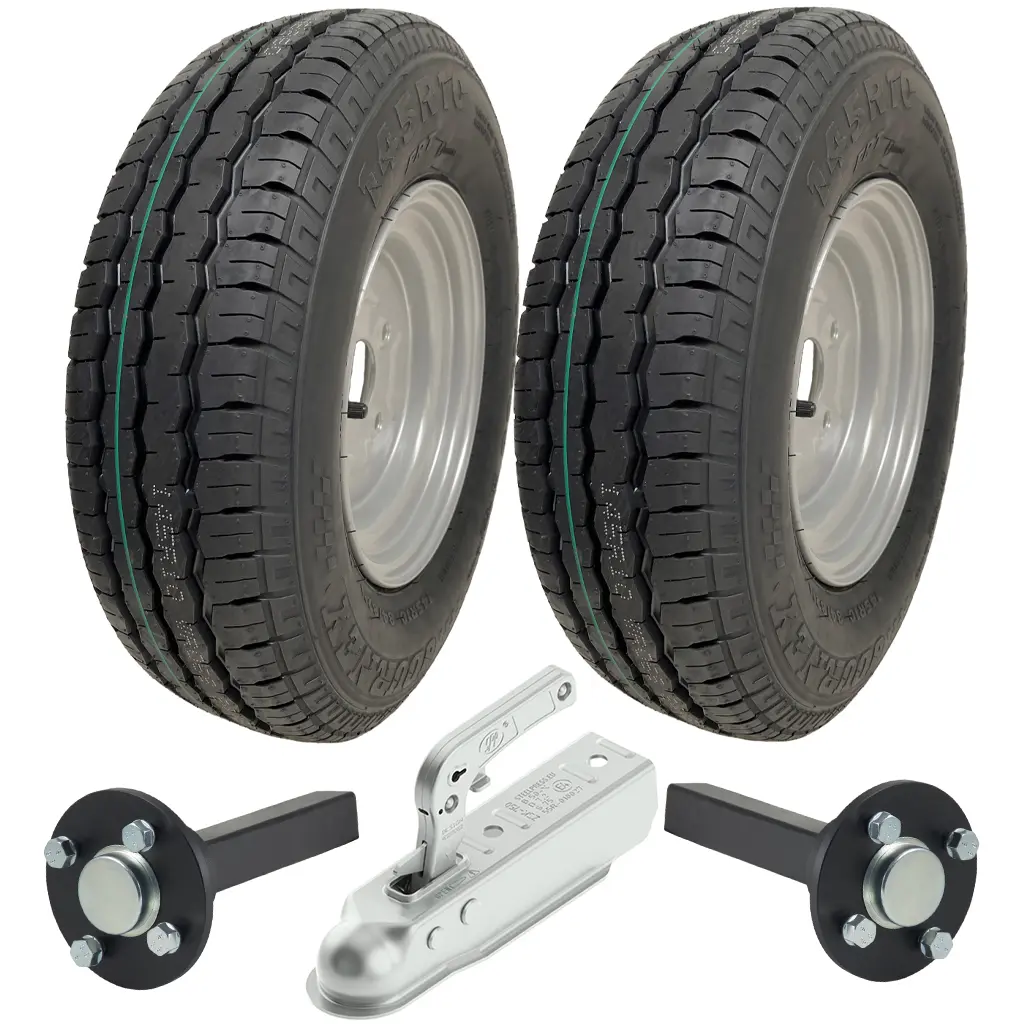

This Kit contains:
Two: 145R10 Trailer Wheels (Tyres fitted on rims).
&
Two: High Speed Hub & Stub Axles.
One: Pressed steel tow hitch.

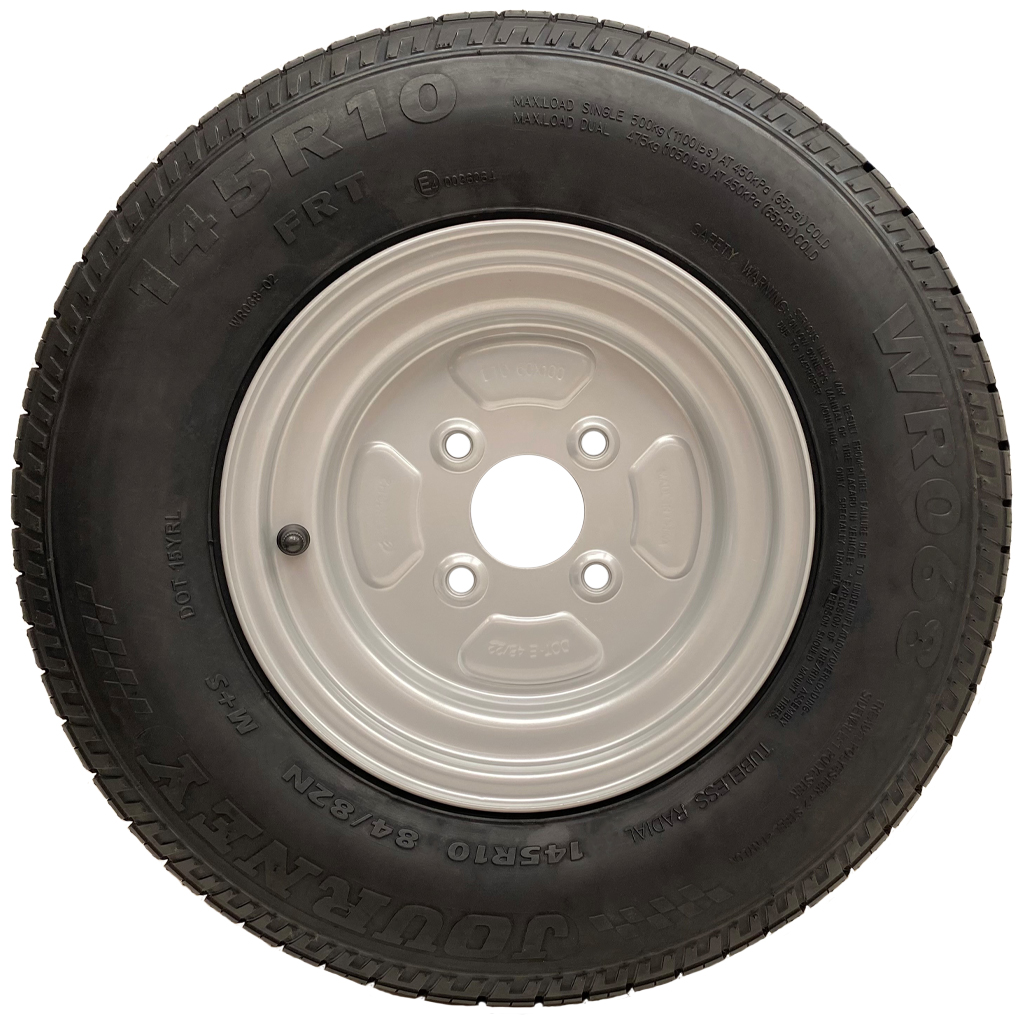

Wanda WR068 Trailer Tyre fitted 4 x 100 PCD metric rim.
High speed Radial trailer tyre on heavy duty steel rim.
They are E-Marked for legal use on European roads.

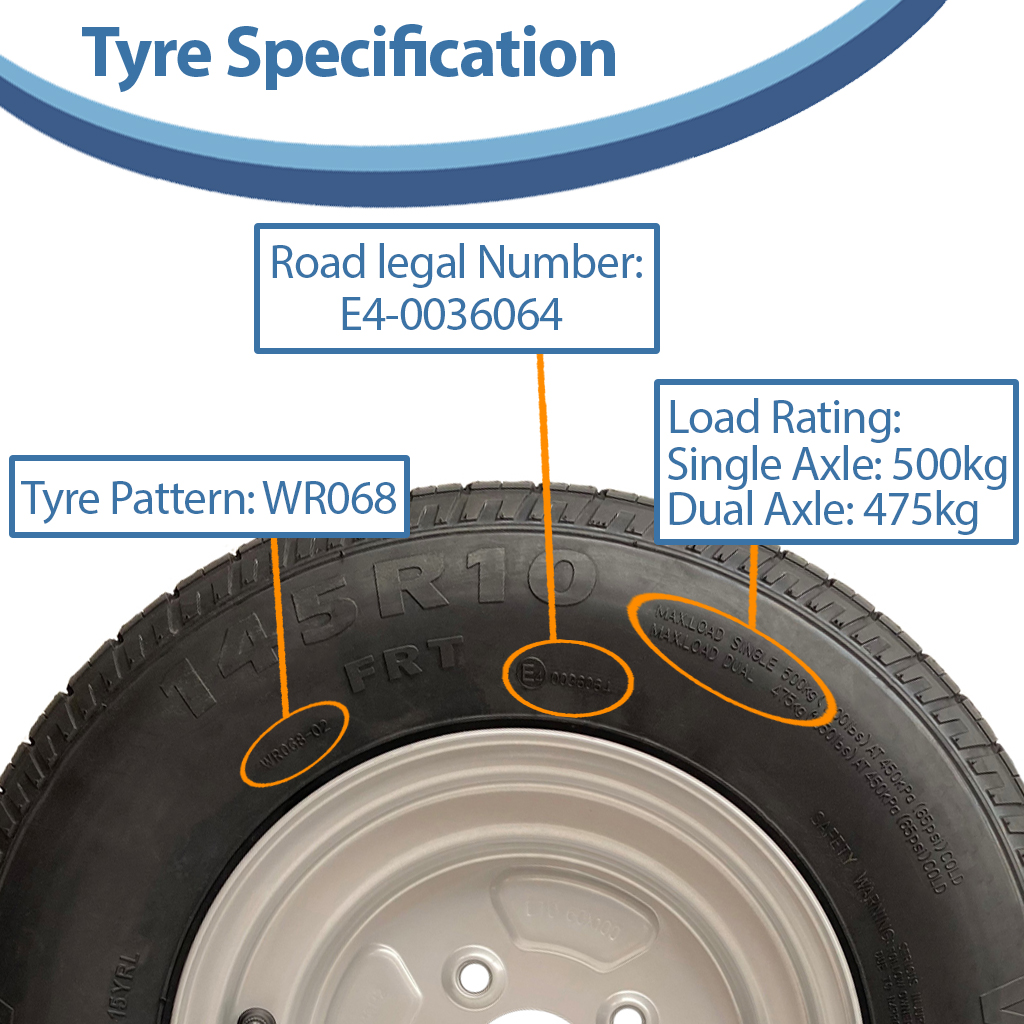

Tyre Specification:

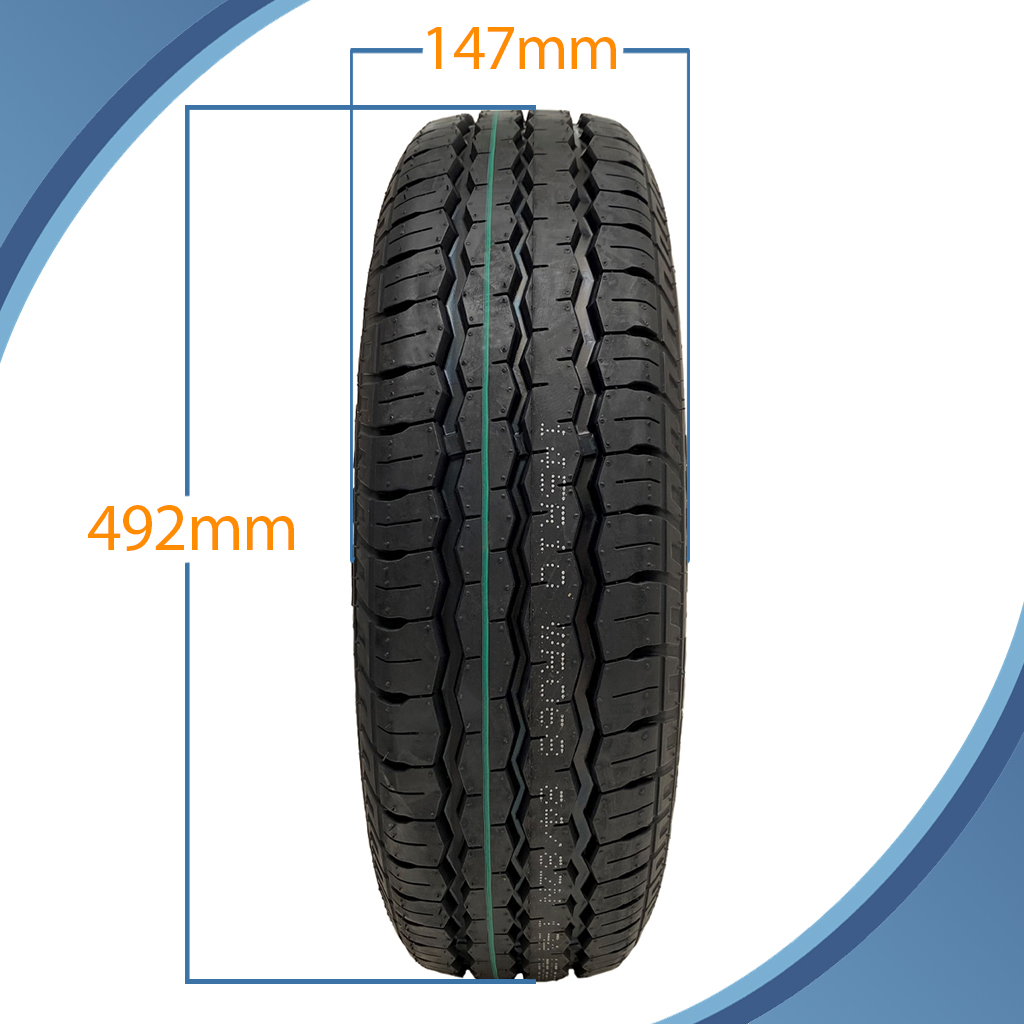

Tyre Diameter: 492mm,
Tyre Width: 147mm,
Tyre Pattern: WR068,
Tyre Brand: Wanda,
Tread Depth: 7mm,
Load rating: 84/82 = 500kgs for single axle & 475kg for dual axle,
Speed Rating: N = 140km/h (86mp/h),
E-Mark Number: E4-0036064.
Rim Specification:
Rim Size: 3.50x10,
Rim Finish: Powder coated Steel (Grey),
Pitch Circle Diameter: 100mm PCD (metric),
Centre hole size: 60mm,
Rim Offset: Zero (equal distance front and back).

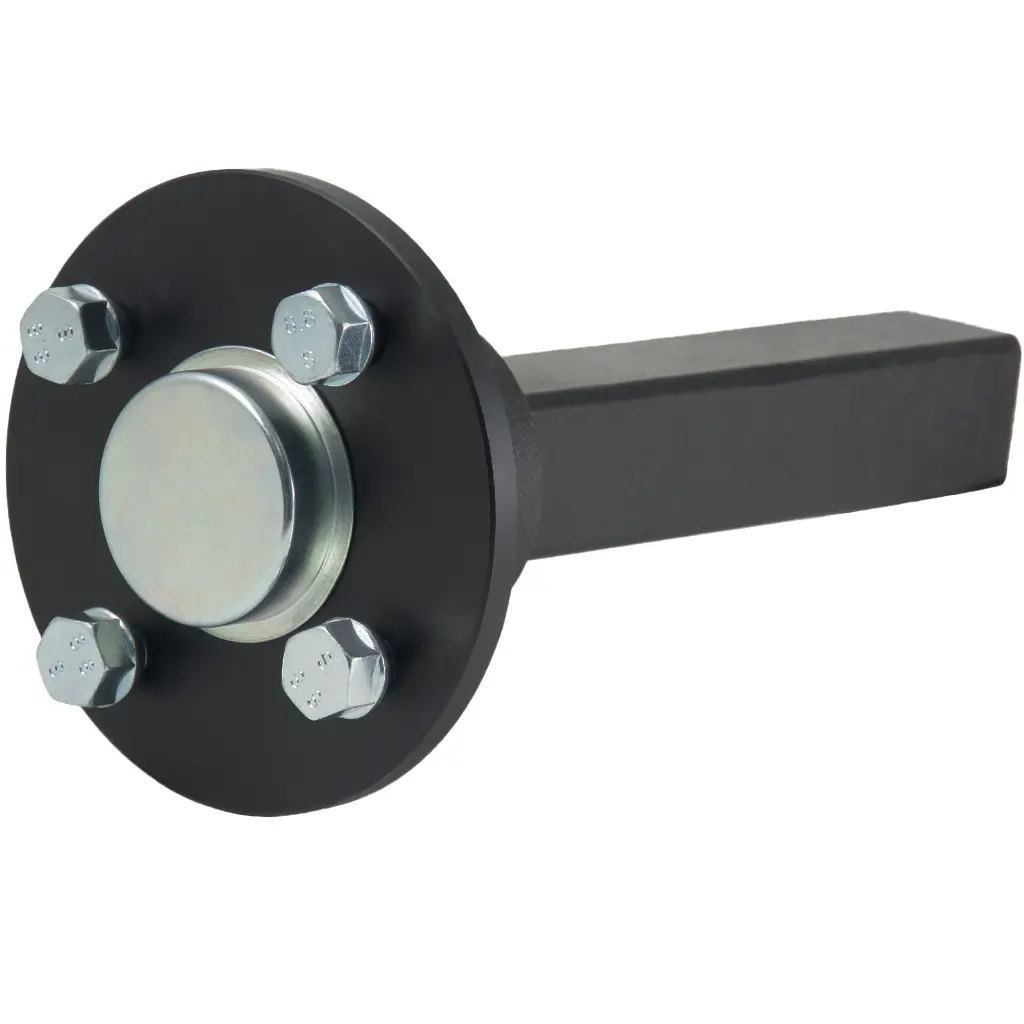

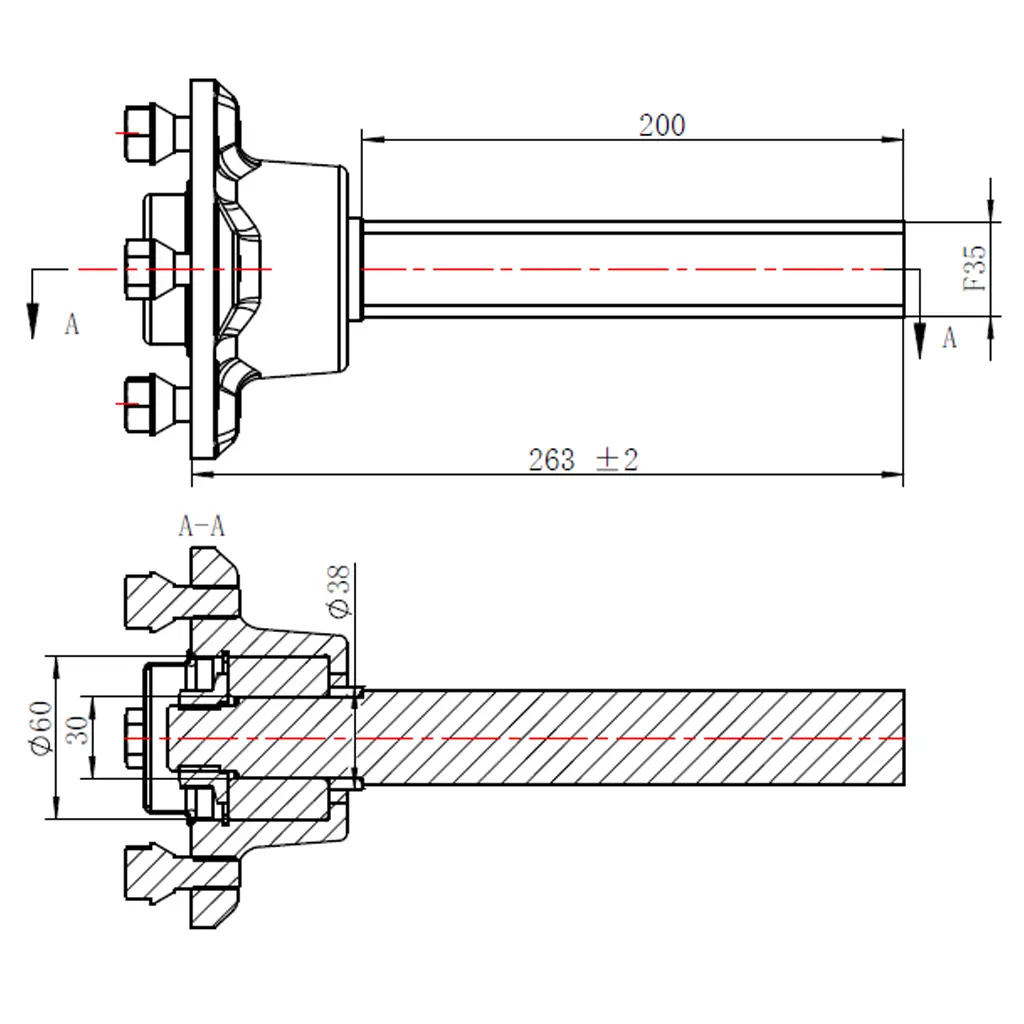

Hub & Stub Specification:
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.

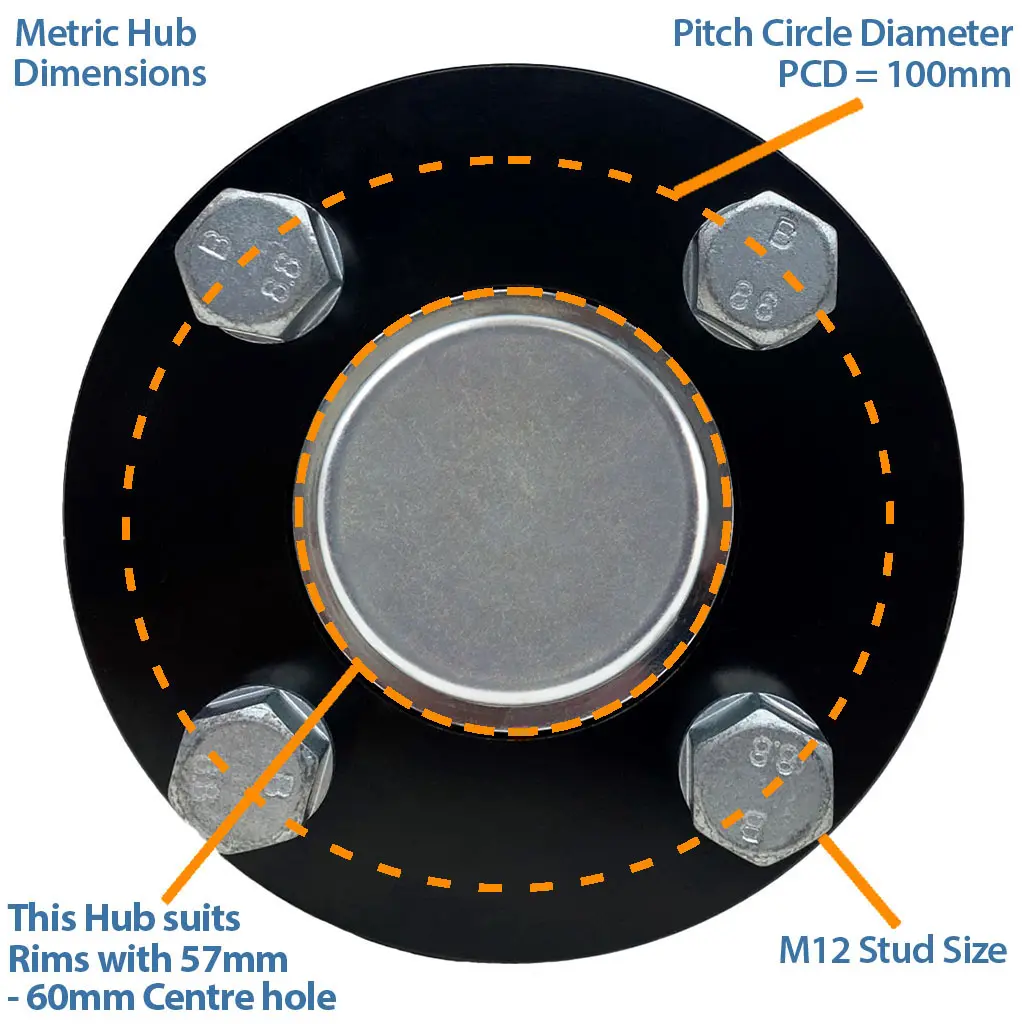

The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.
The tread is a combined vertical and block pattern giving enhance grip on and off road.
Excellent water dispersion and hydroplaning resistance.
Good heat dissipation and grip with quiet driving performance at high speeds.

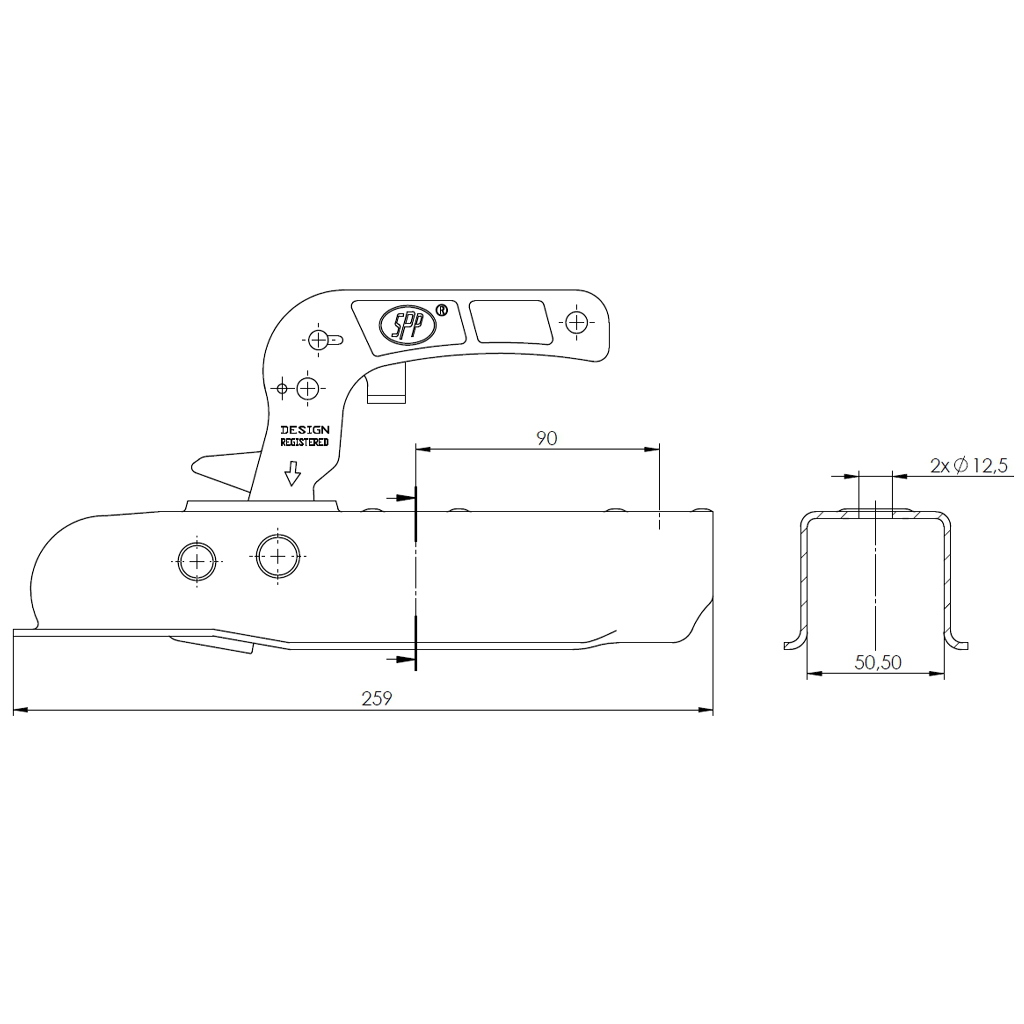

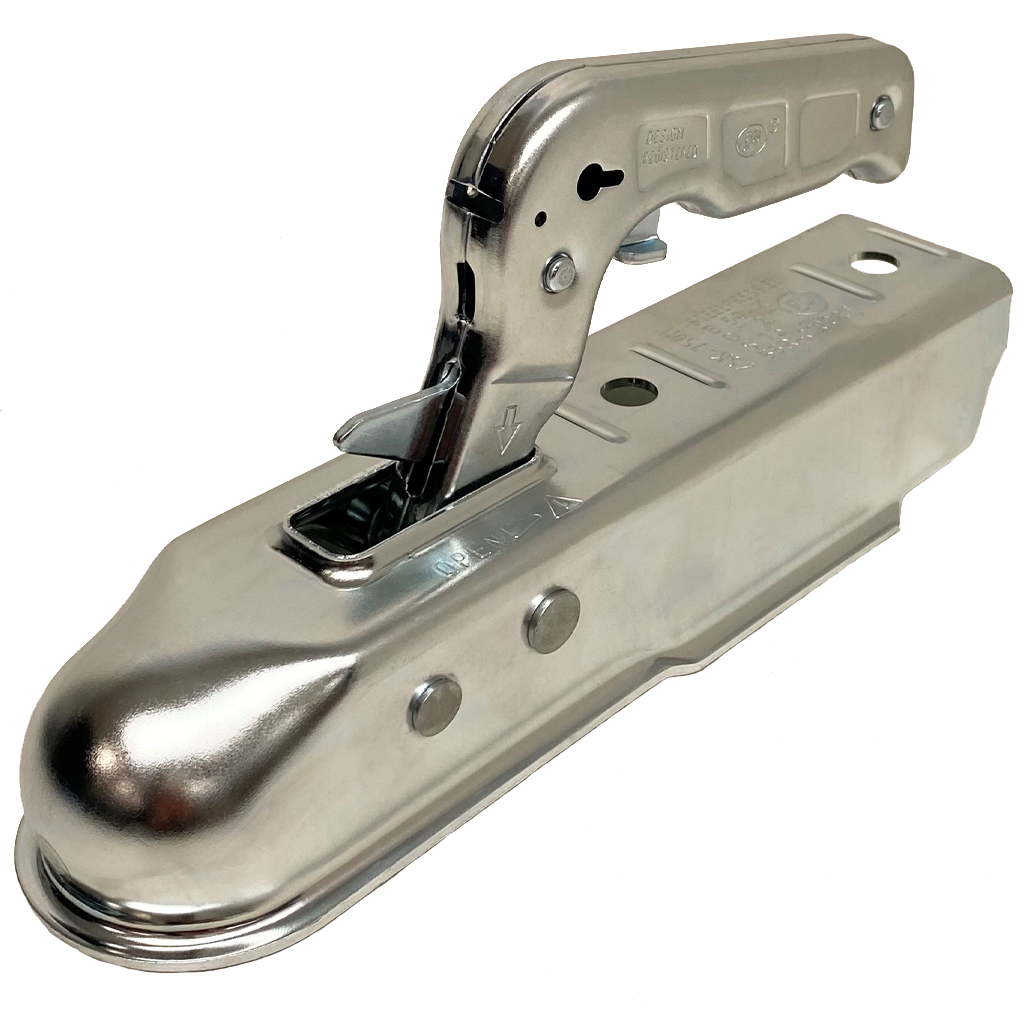

Hitch Specifications:
750kg pressed steel hitch, high quality zinc plated finish,
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50).
The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.
Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Total Kit load capacity 750kgs.
| Part Number | EC1604 |
| Rim Colour | Silver |
| Tyre Size | 145R10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | WR068 |
| Tread Depth (mm) | 7 |
| SW (mm) | 147 |
| OD (mm) | 492 |
| PSI | 65 |
| Load/Speed Index | 84/82N |
| Stud / PCD | 4x100mm |
| E-Mark | E4-0036064 |
| Max Load (Kg) | 500 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | SPP 750kg Pressed Hitch |
