22x11.00-8 Wanda (Journey) P308 ATV trailer kit, ALKO stub axles
8 sold in last 24 hours

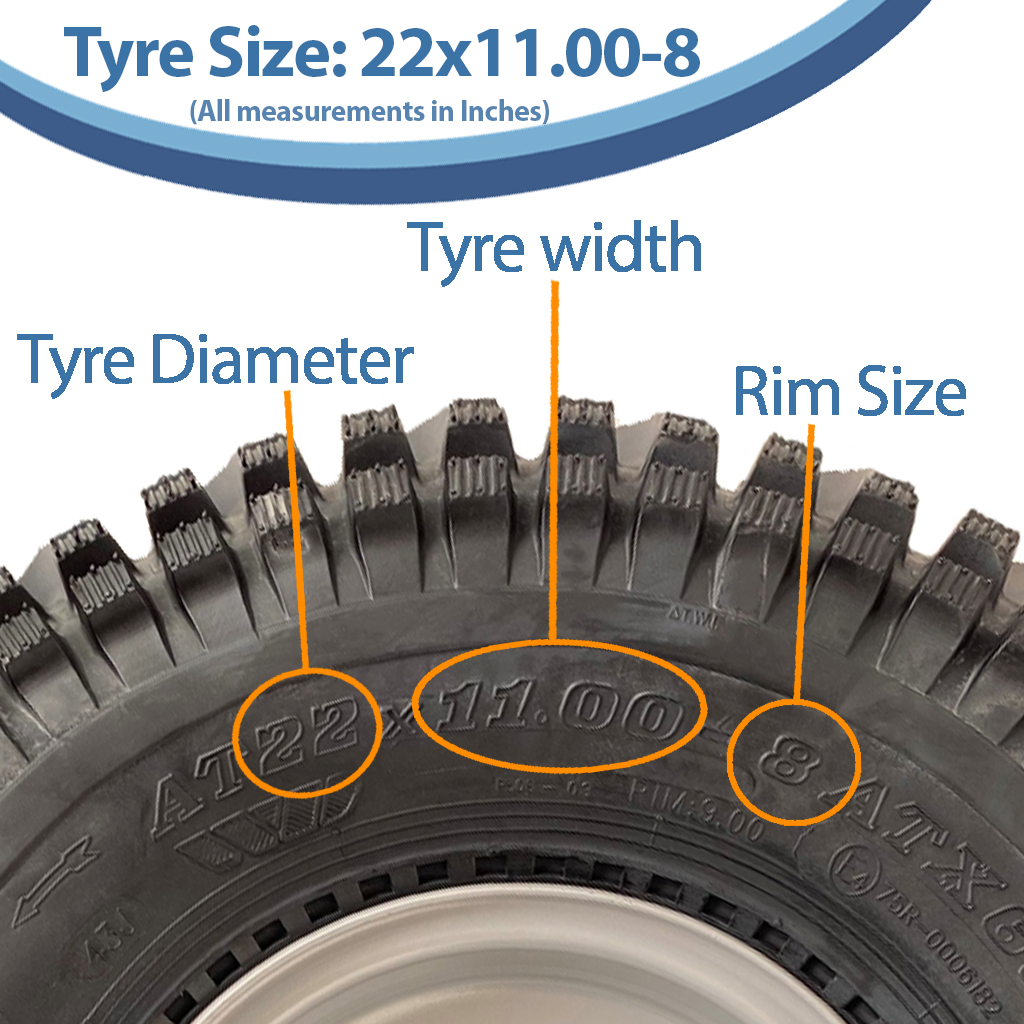

Wheel Size: 22x11.00-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 310kgs
ATV trailer kit.

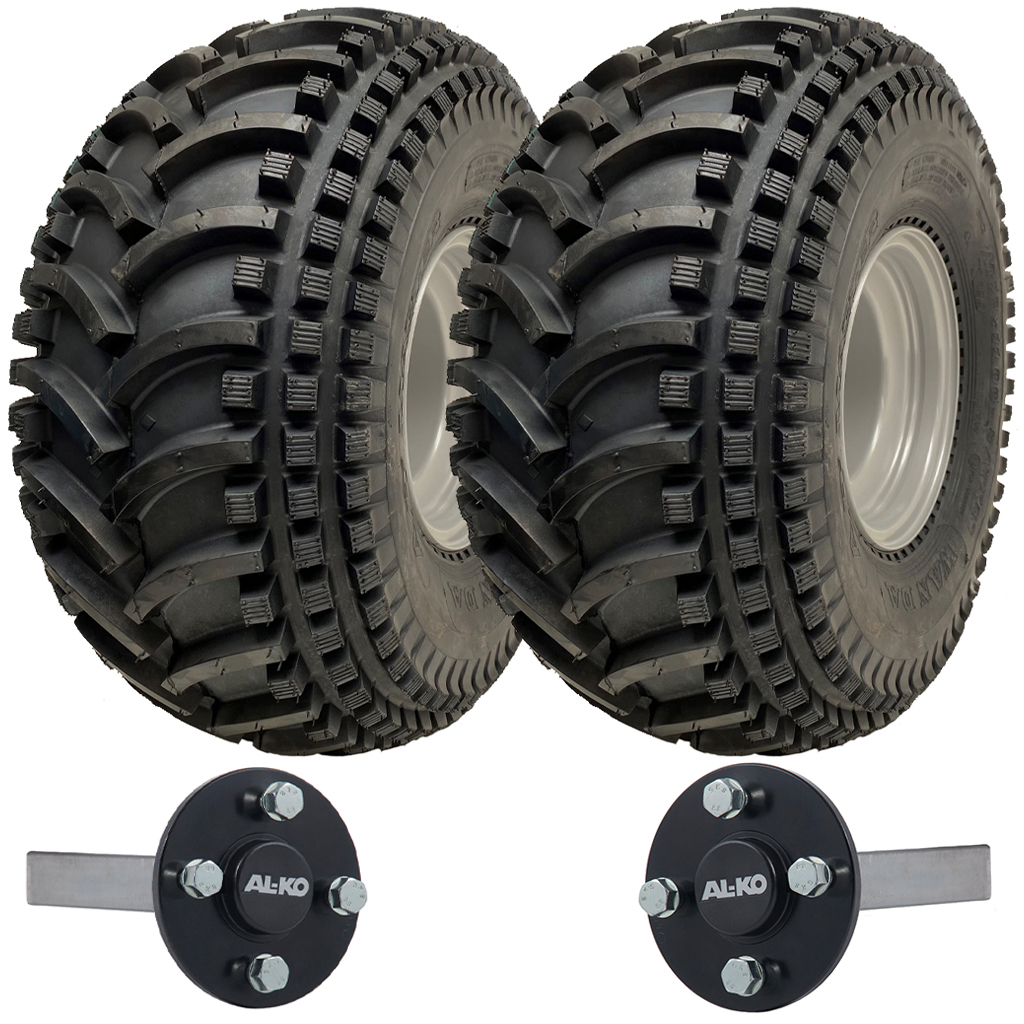

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x ALKO Stub axles, 35x35x200mm solid stub.
Wheel Specifications:

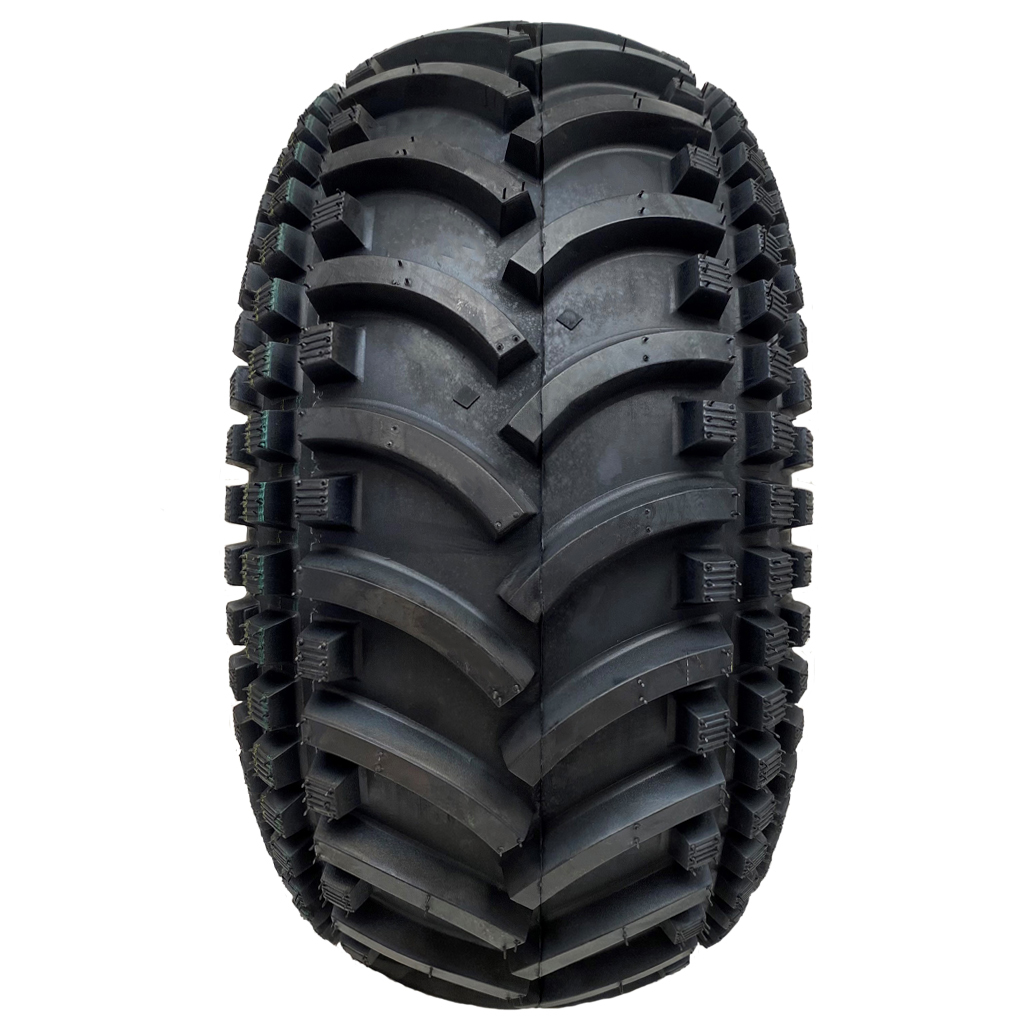

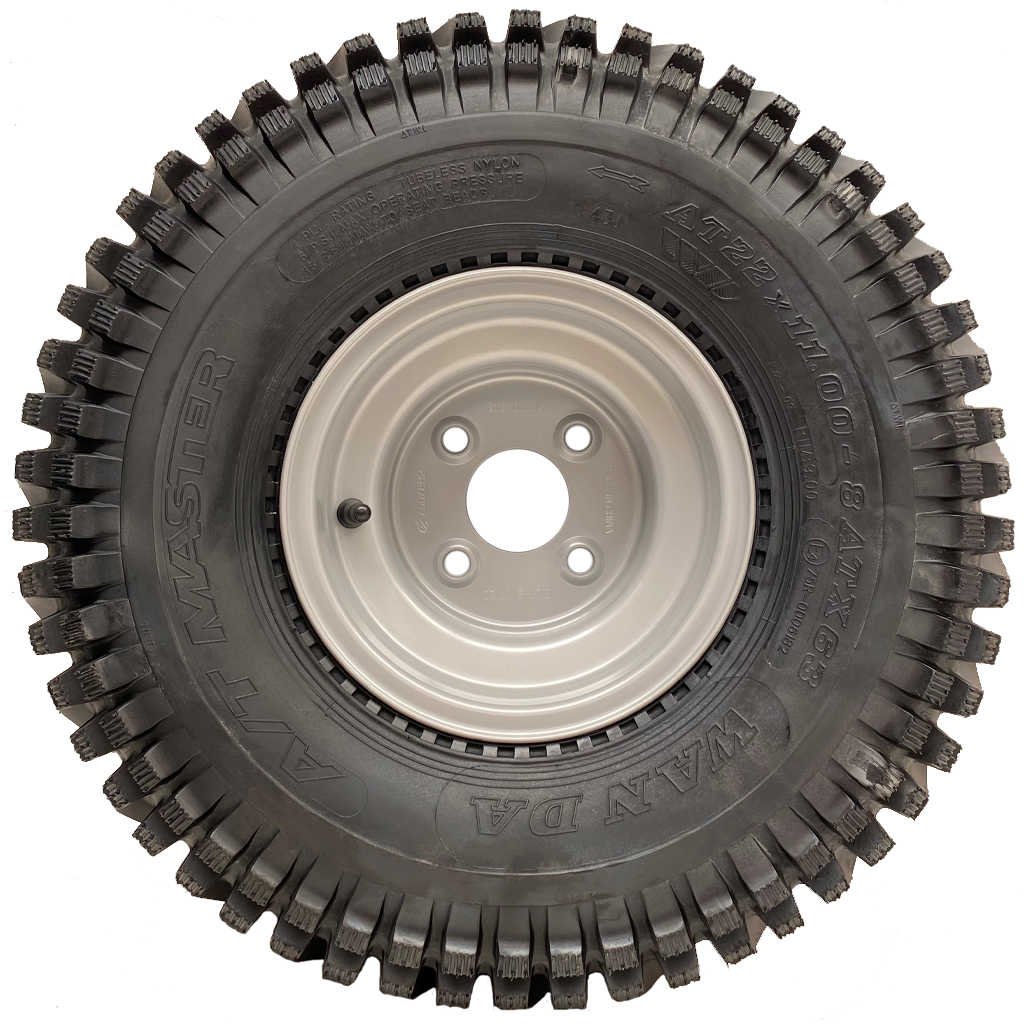

22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,

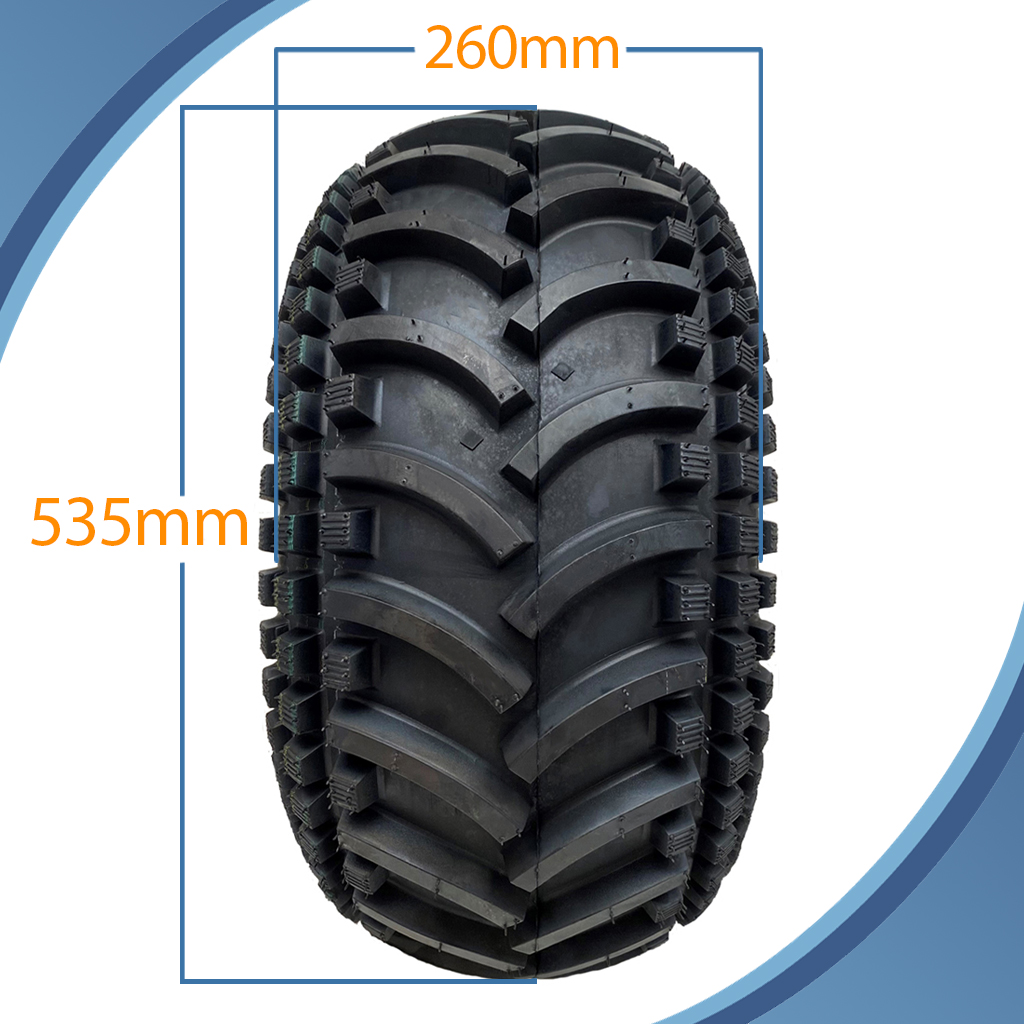

Overall diameter: 535mm,
Max width of tyre: 260mm,
Tread depth: 16mm,
Inflation: 5psi,
Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

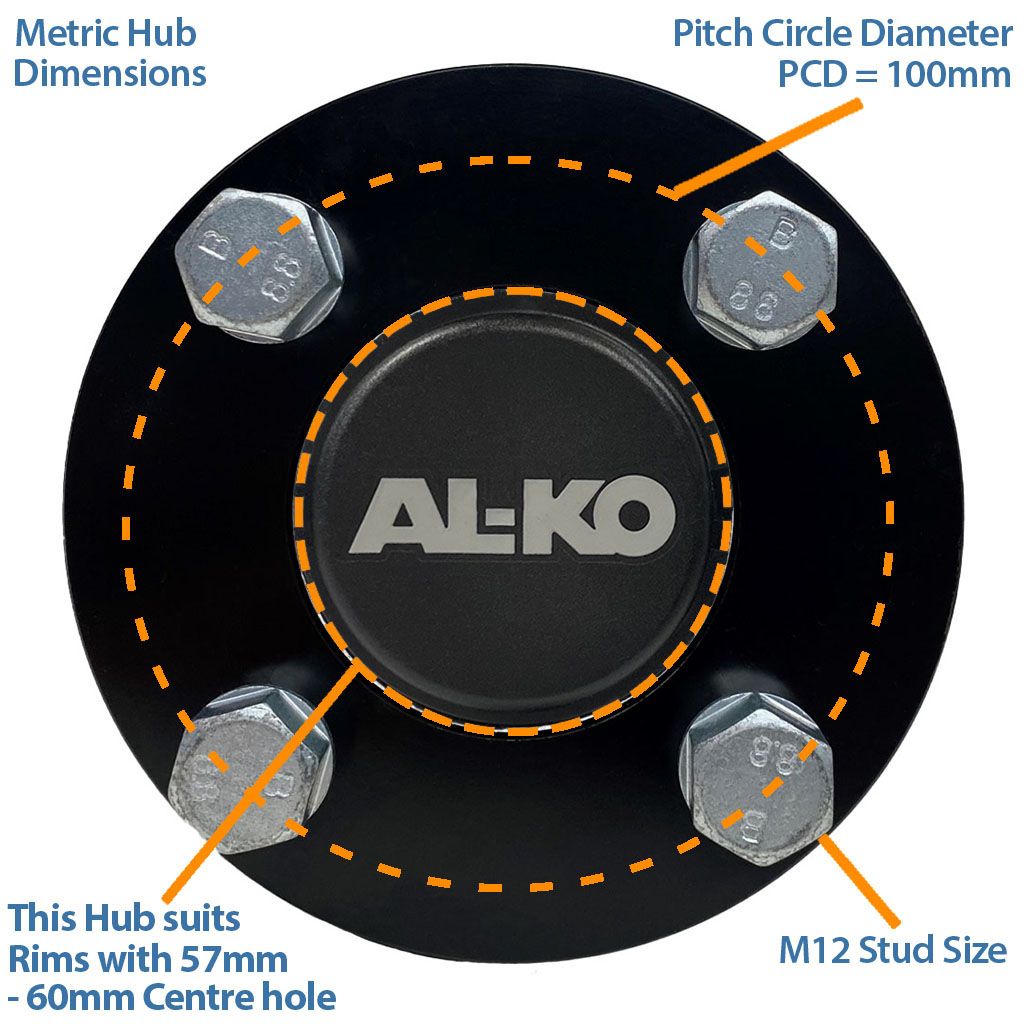

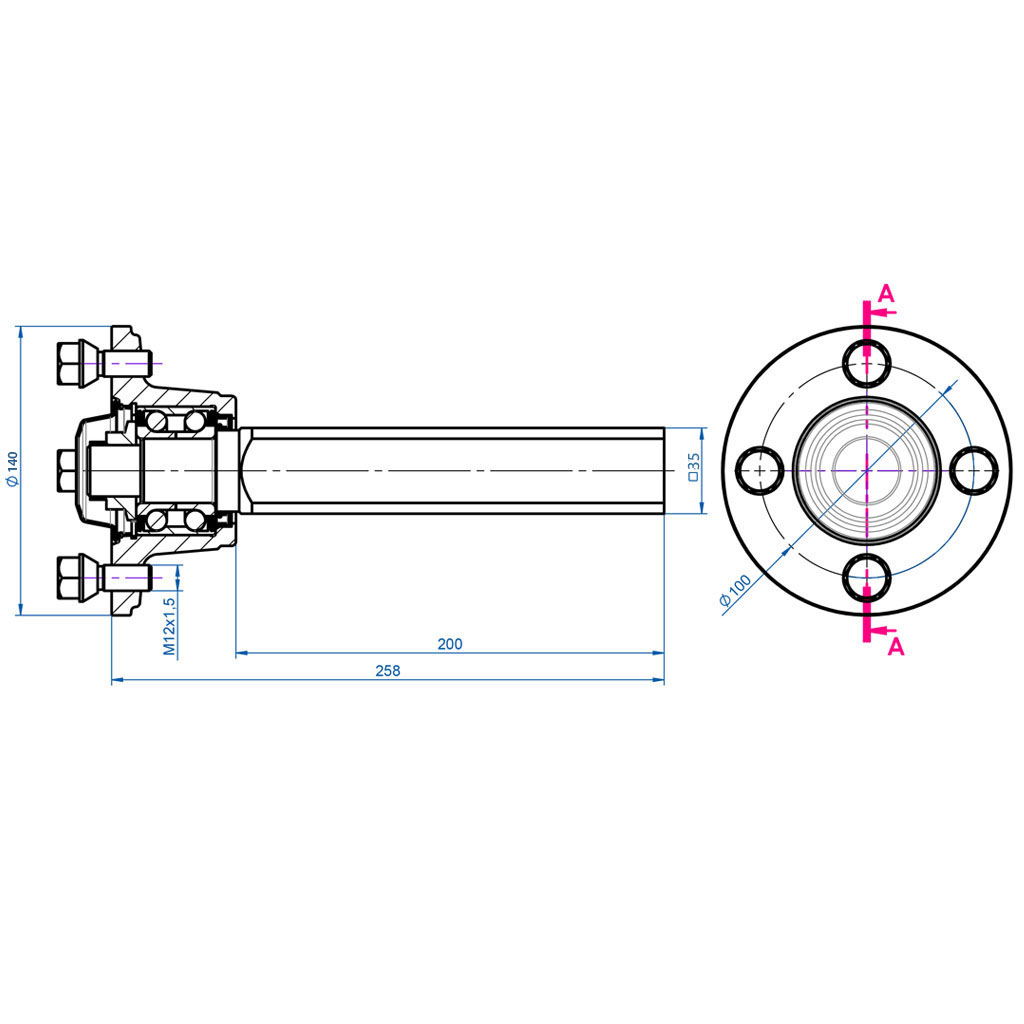

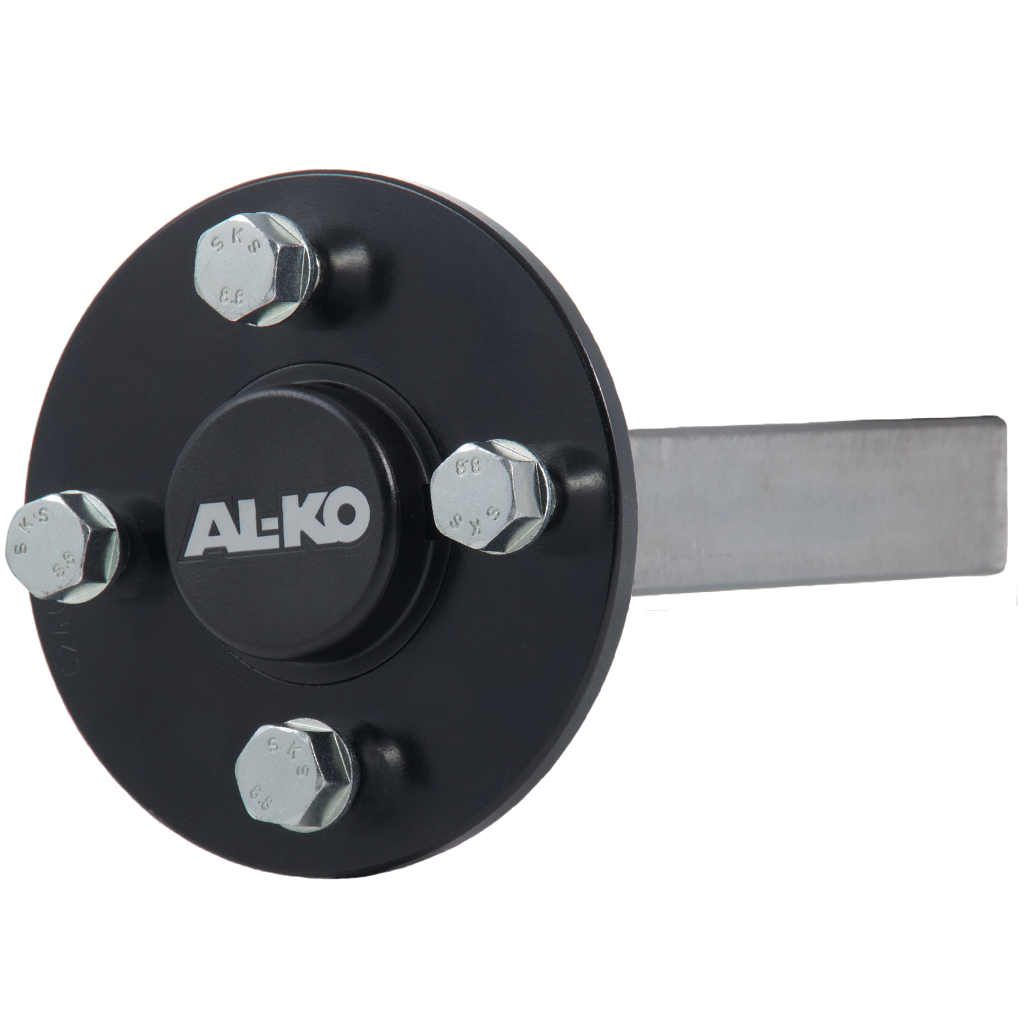

Hub & Stub Axle Specifications:
Hubs are forged steel, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

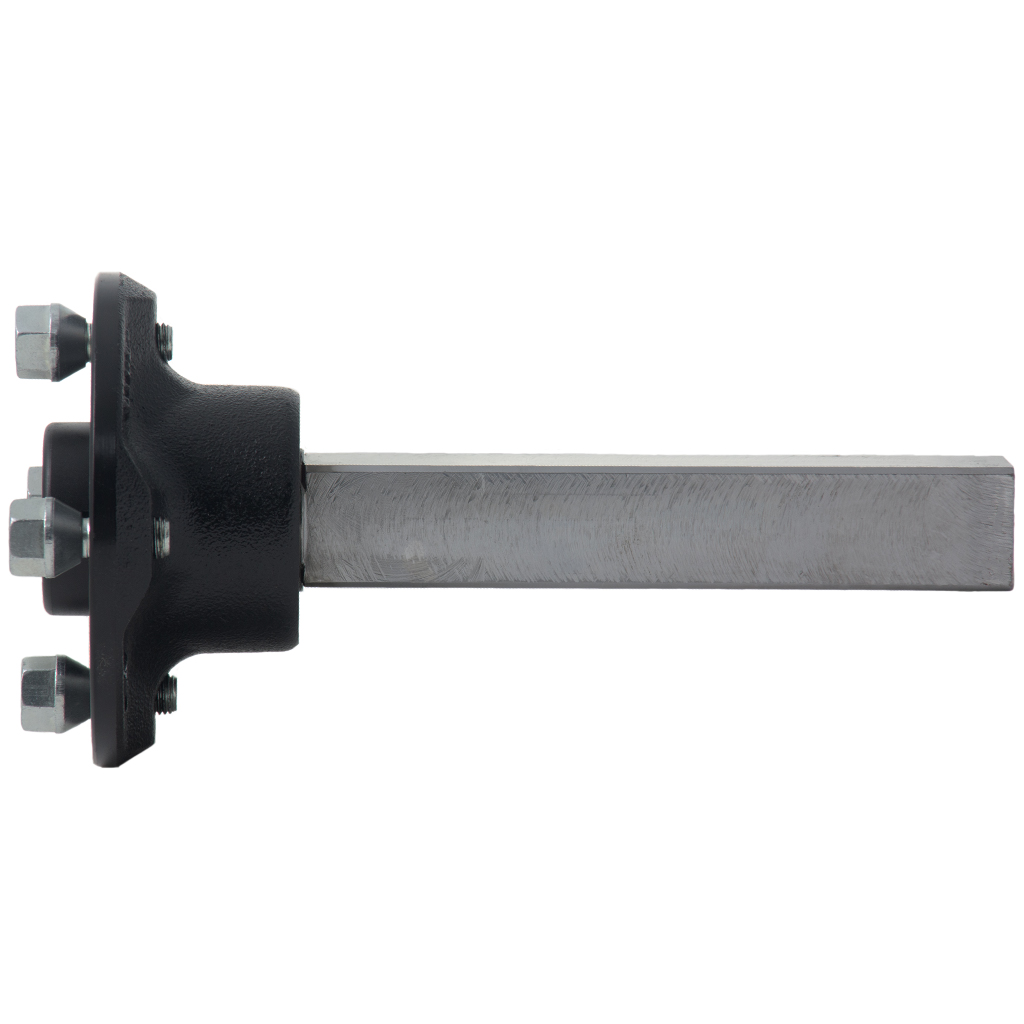

The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by ALKO in Europe.
Maximum Kit load capacity 310kgs.
| Part Number | EC7566 |
| Tyre Size | 22x11.00-8 |
| Brand | Parnells |
| Rim Colour | Silver |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P308 |
| Tread Depth (mm) | 16 |
| SW (mm) | 260 |
| OD (mm) | 535 |
| PSI | 5 |
| Load/Speed Index | 43J |
| Stud / PCD | 4x100mm |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 310 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
