22x11.00-8 ATV Trailer Kit, Knobby Pattern, Load Capacity 310kgs
7 sold in last 24 hours
Part number: KIT1000
Wheel Size: 22x11.00-8
Stub axles: 35mm square, 200mm long
Load Capacity: 310kg
Wheel Size: 22x11.00-8
Stub axles: 35mm square, 200mm long
Load Capacity: 310kg

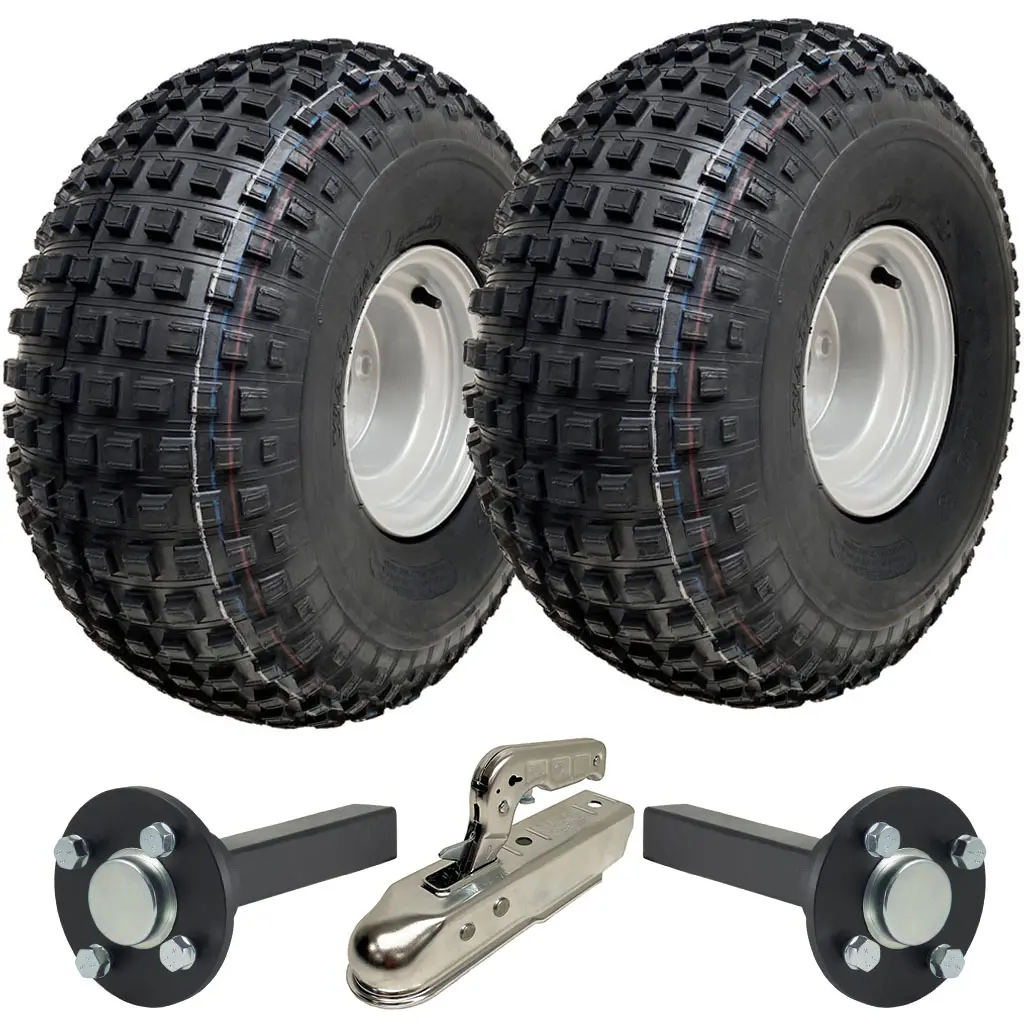

ATV trailer kit.

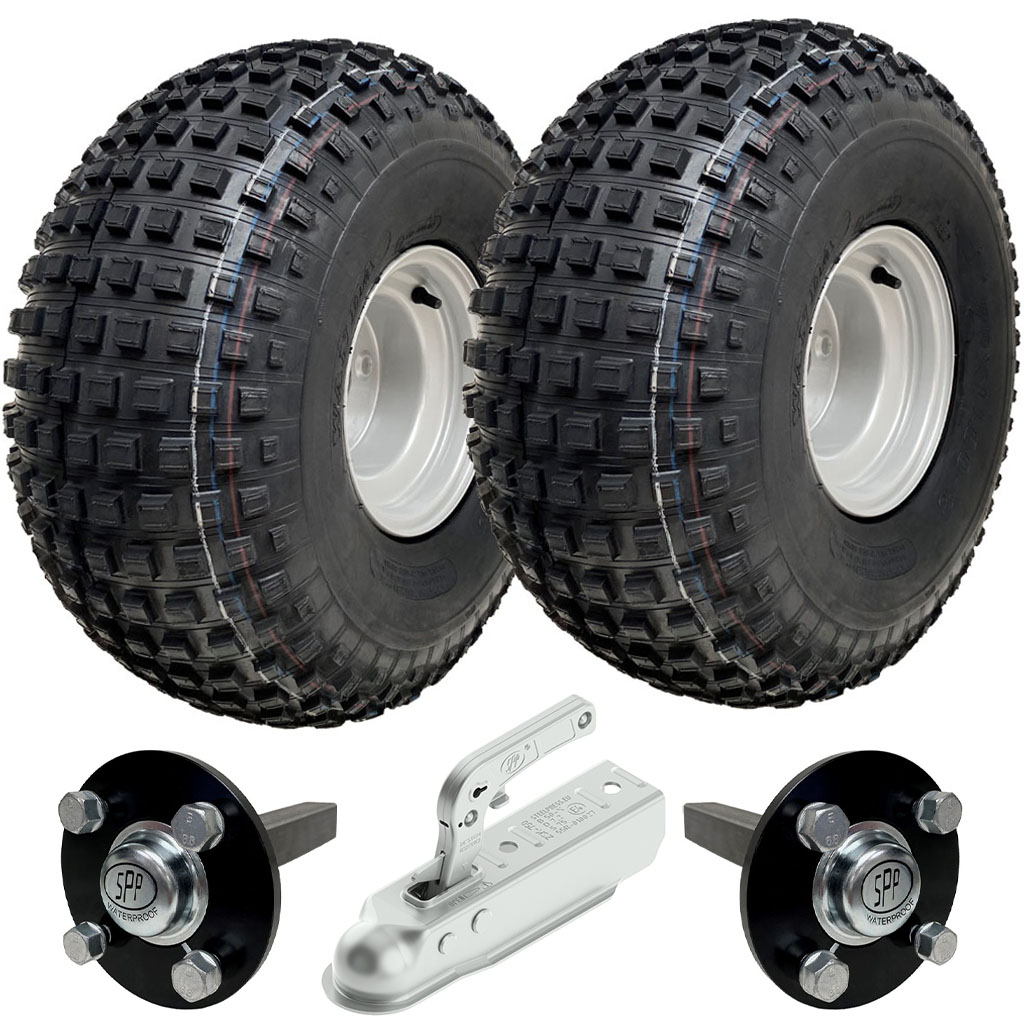

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
1 x Pressed steel hitch for 50x50mm box section.
Wheel Specifications.

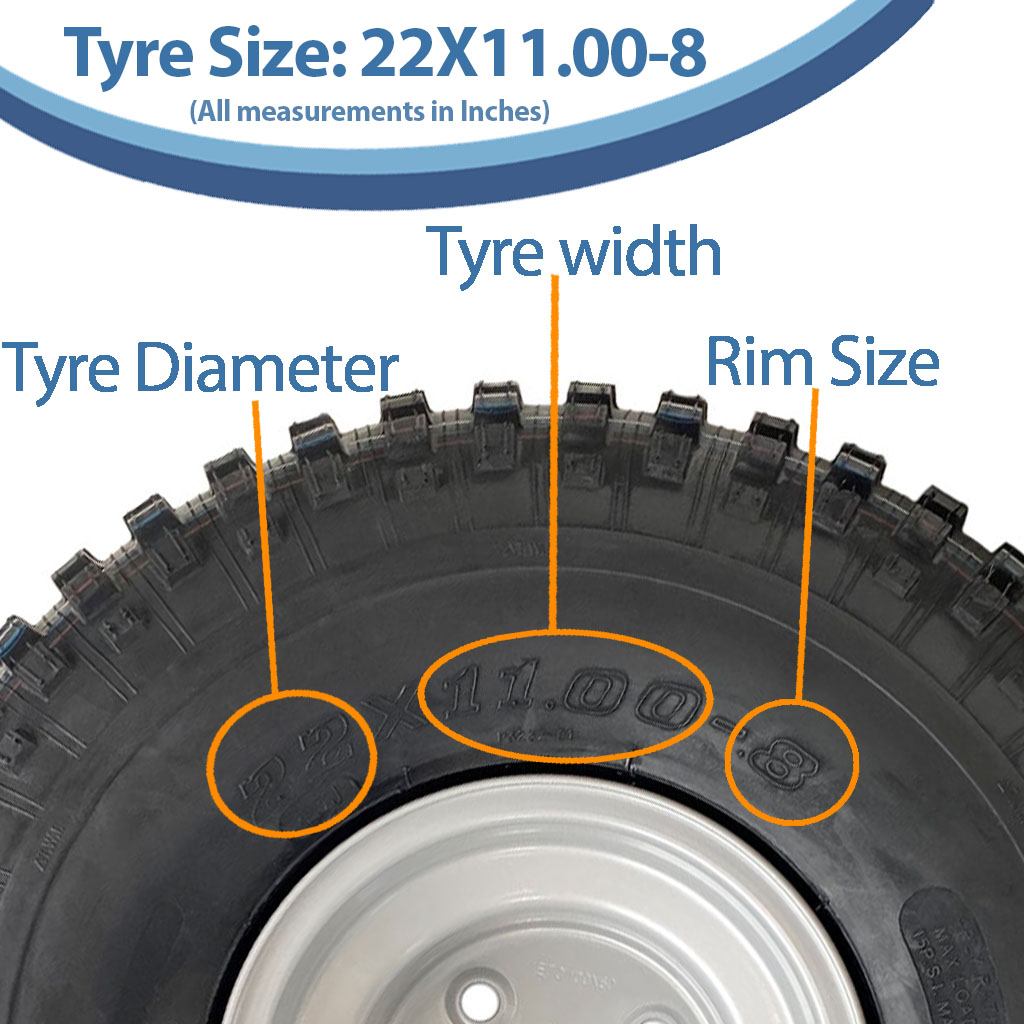

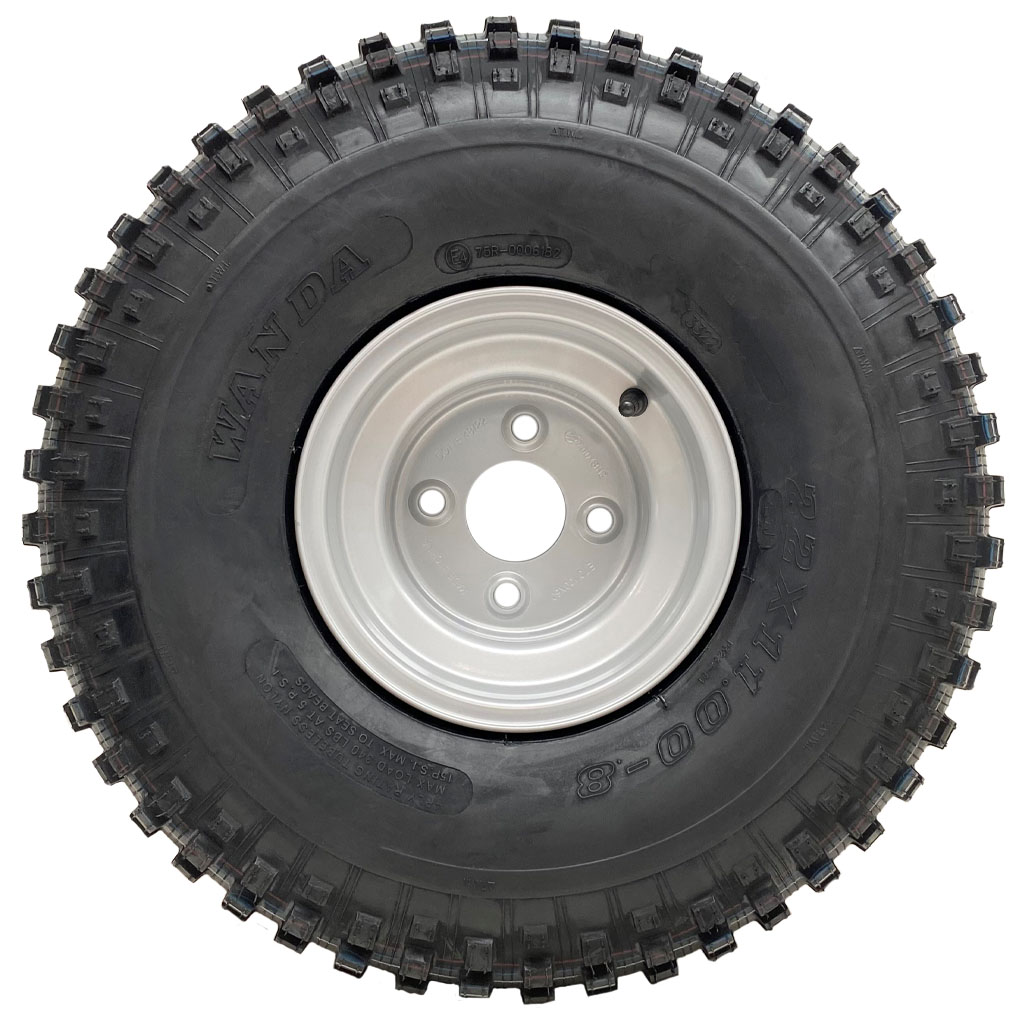

22x11.00-8 4ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,

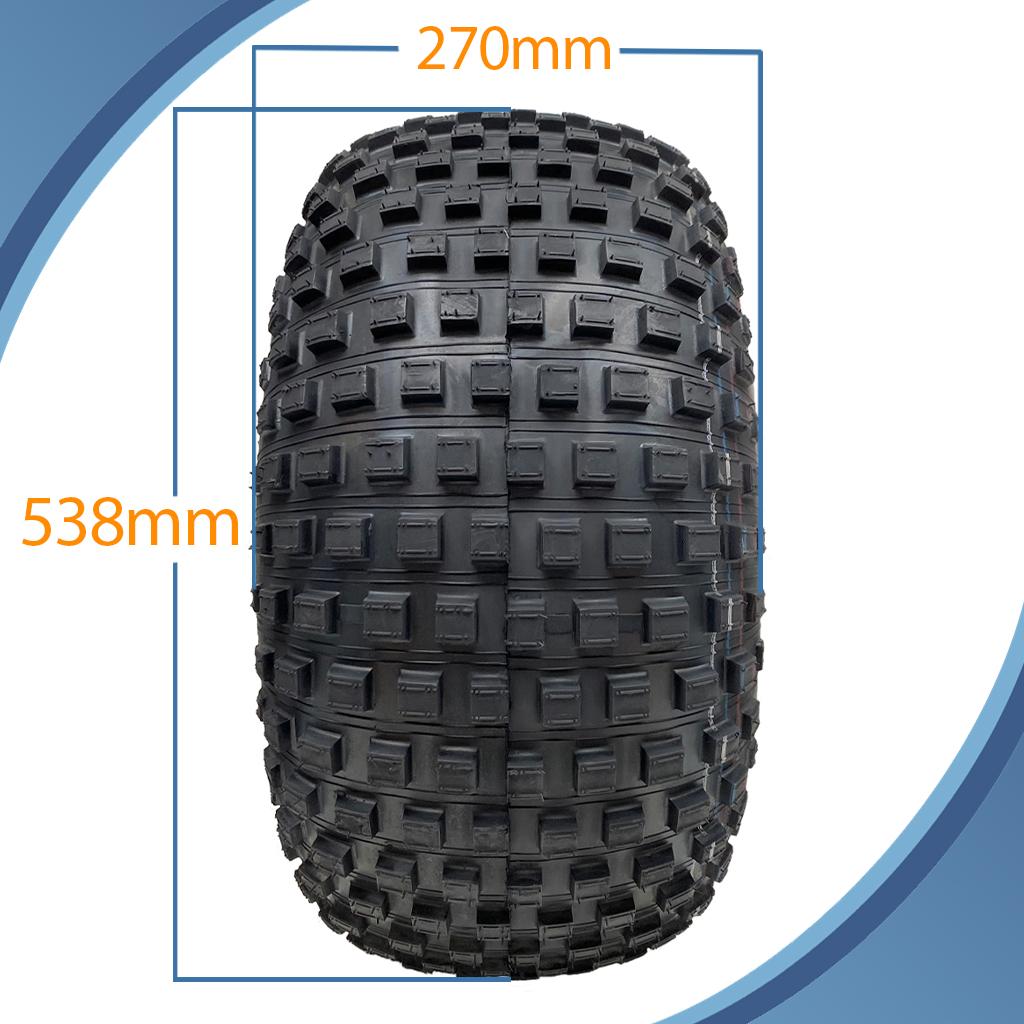

Overall diameter: 538mm,
Max width of tyre: 270mm,
Tread depth: 9.5mm,
Inflation: 5psi,
Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

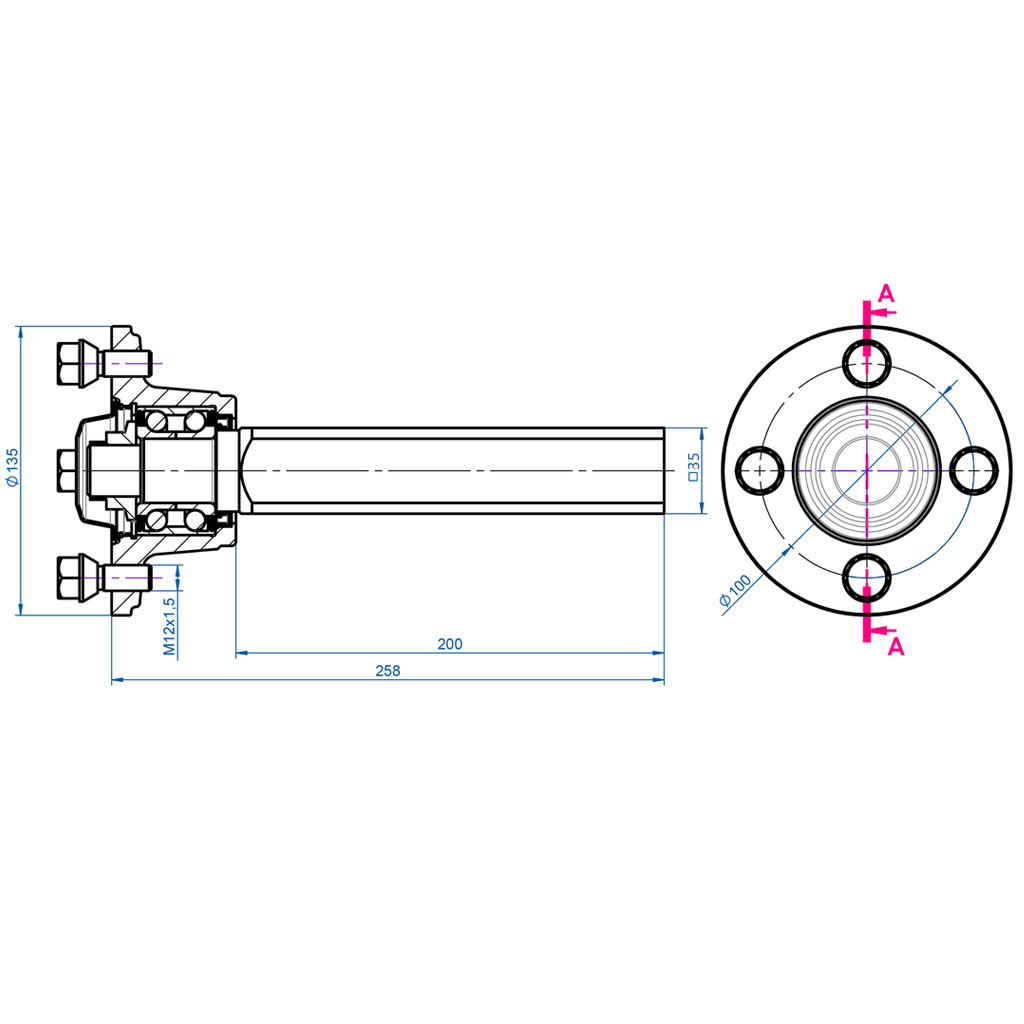

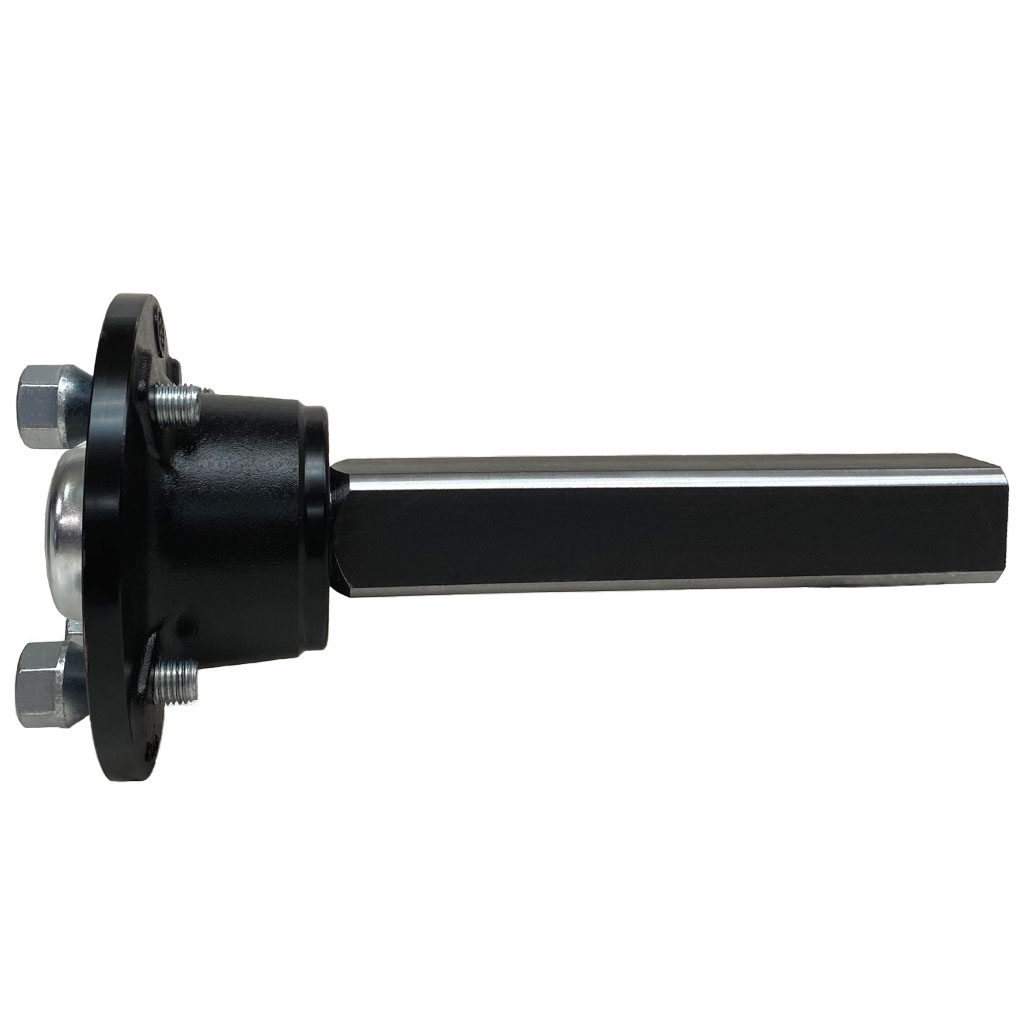

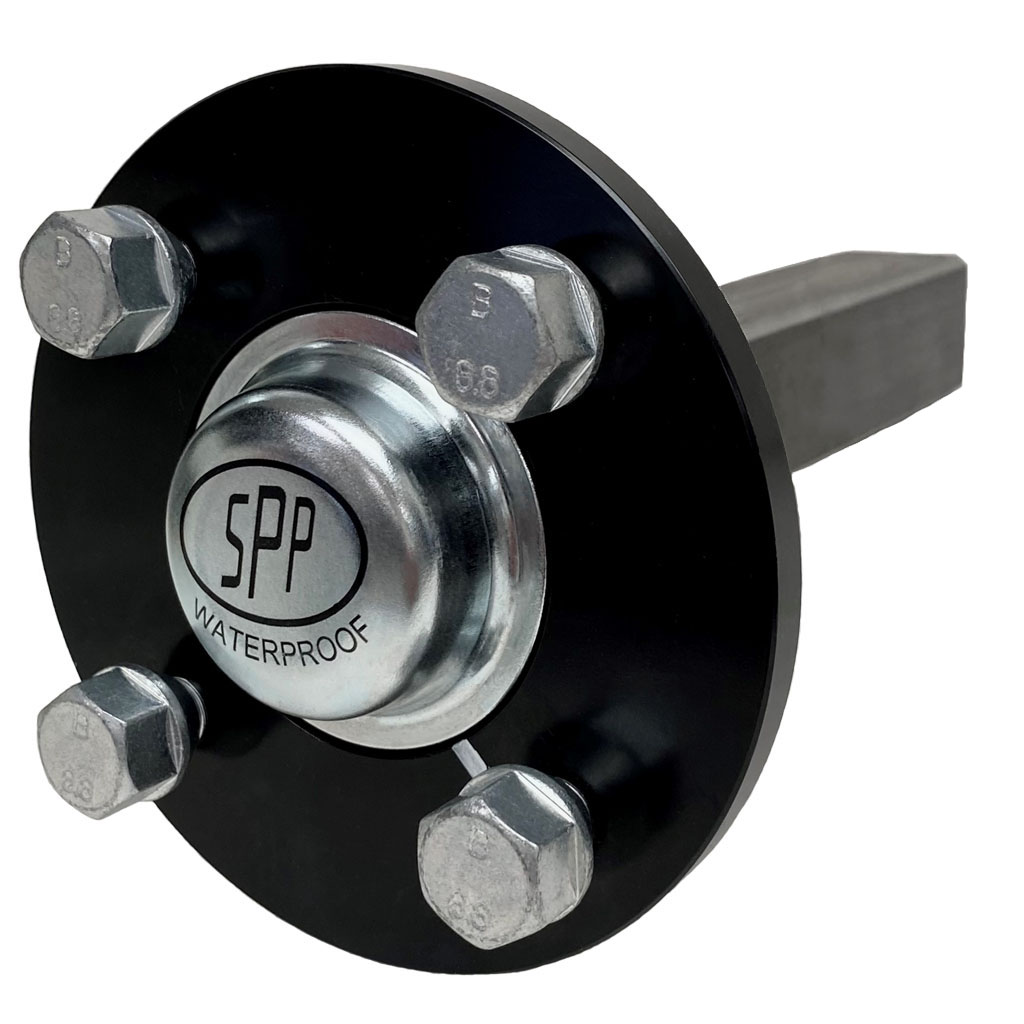

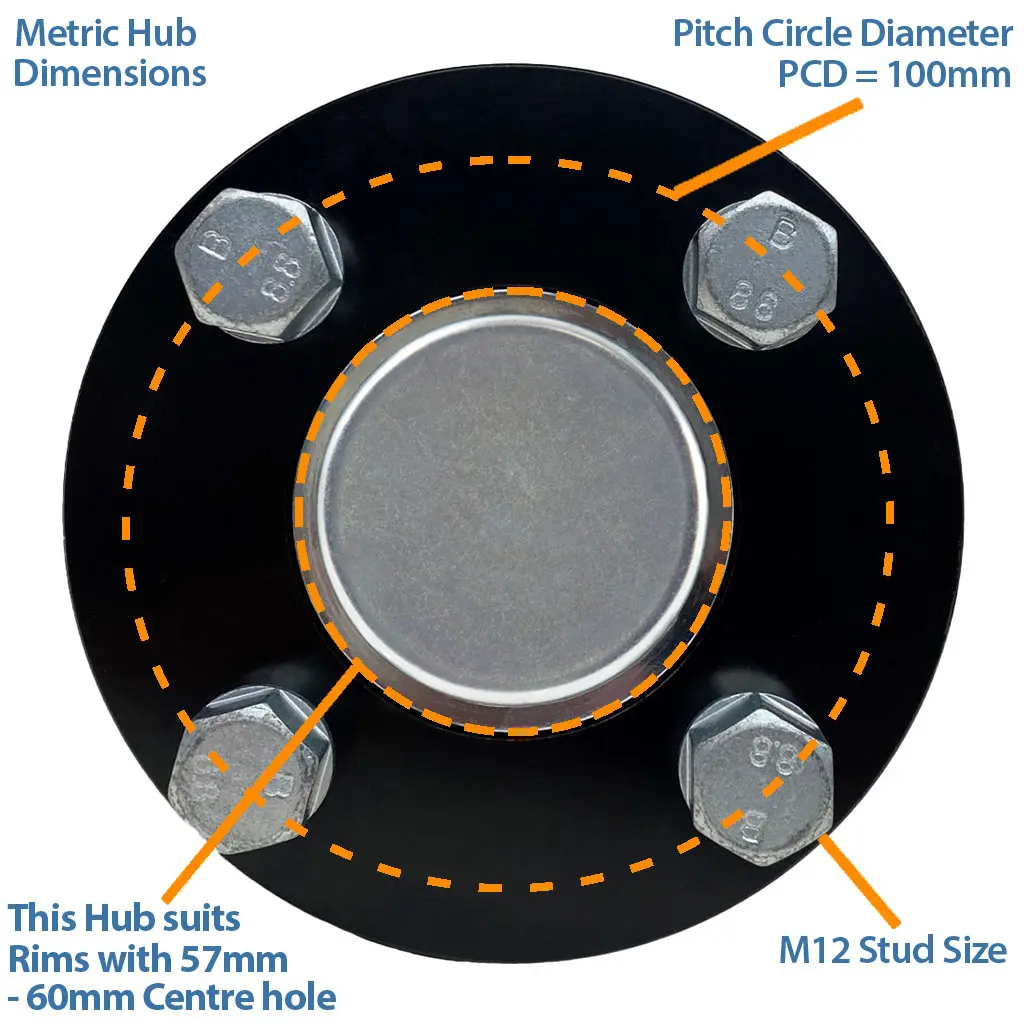

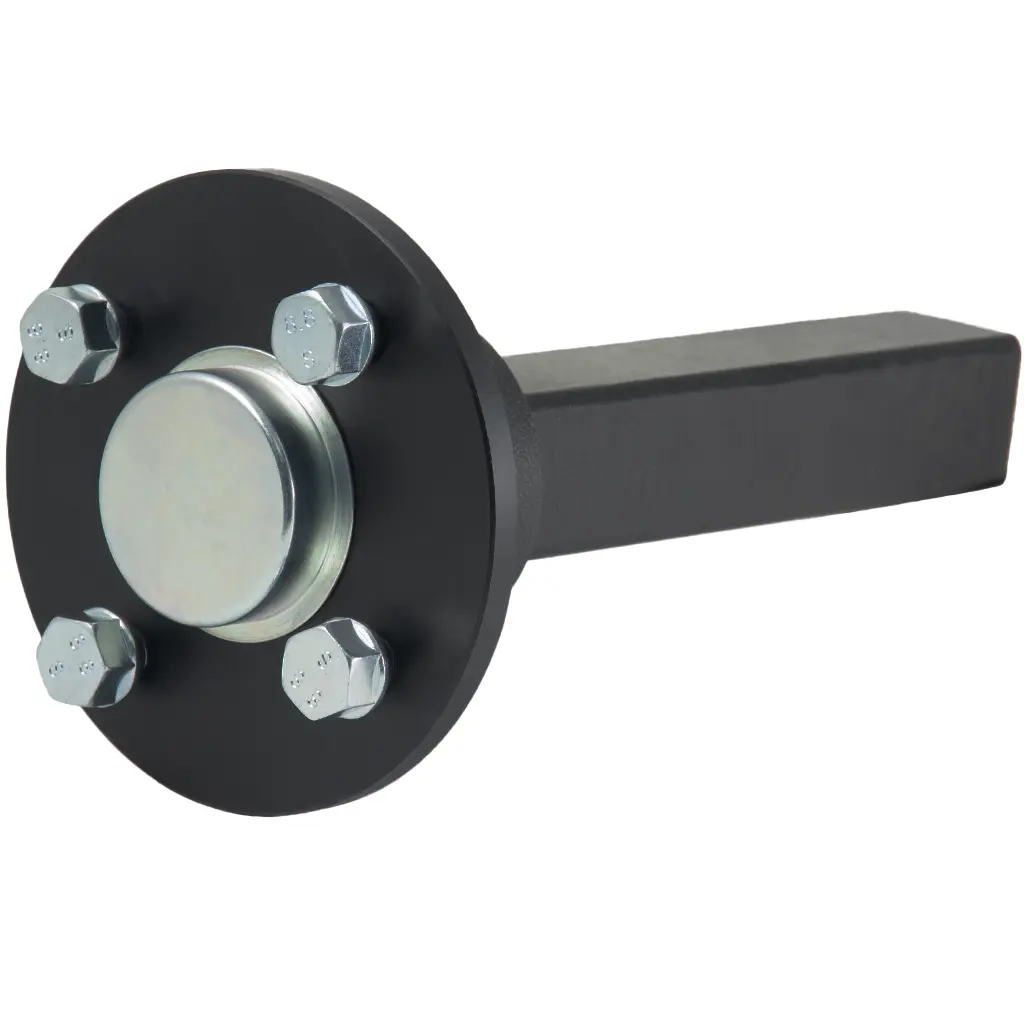

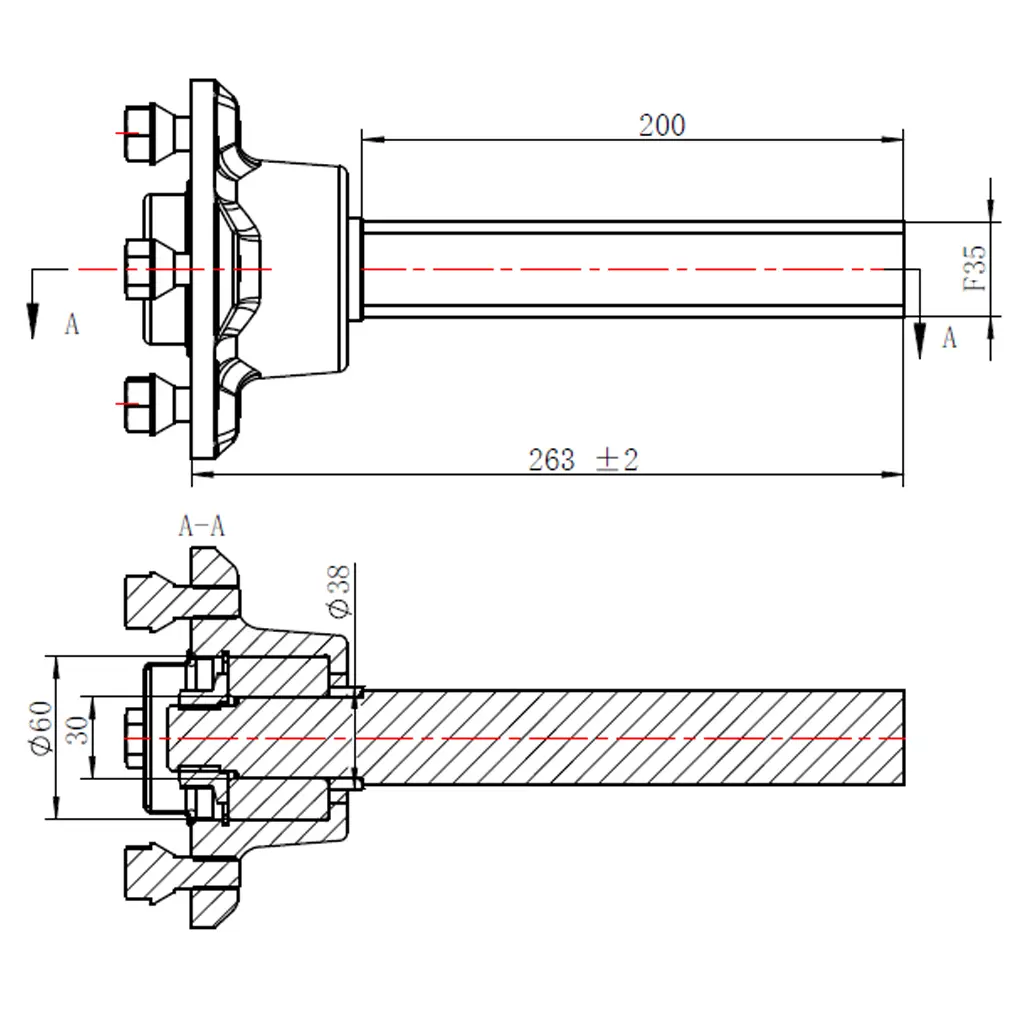

Hub & Stub Axle Specifications.
Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel.

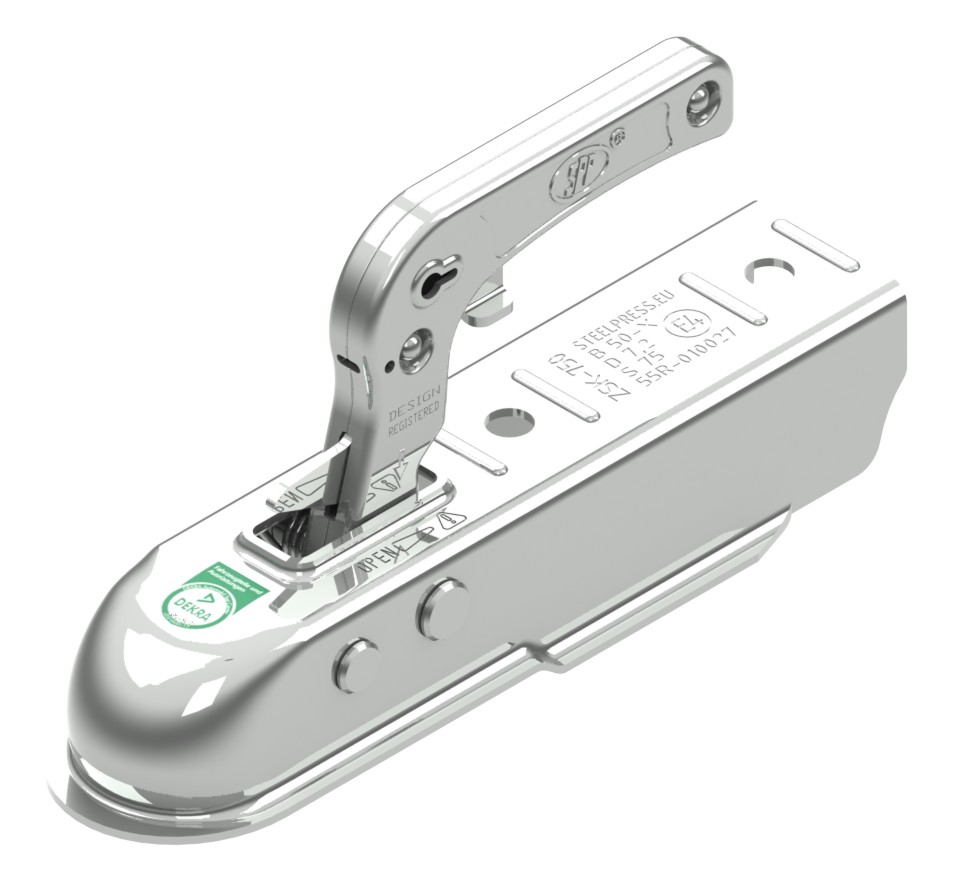

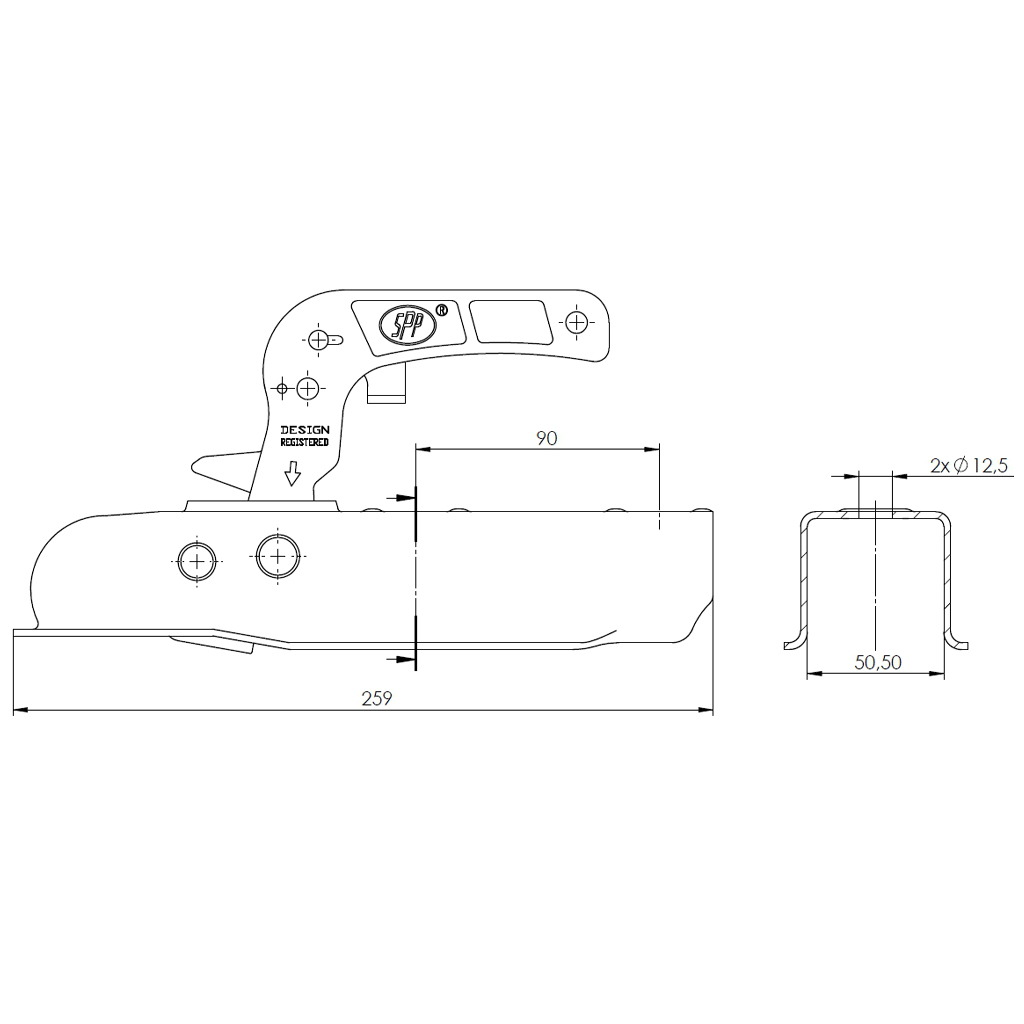

Hitch Specifications.
750kg pressed steel hitch, high quality zinc plated finish,
Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts
(bolts & lock nuts are provided with this kit).
These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.
Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Maximum Kit Load Capacity 310kgs.
| Part Number | KIT1000 |
| Brand | Parnells |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P323 |
| Tread Depth (mm) | 9.5 |
| SW (mm) | 270 |
| OD (mm) | 538 |
| PSI | 5 |
| Load/Speed Index | 43J |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 155 |
| Wheel & Tyres (2pcs) | (30771, '[AS7012] 22x11.00-8 4pr Wanda P323 Knobby tyre E-marked TL 43J on silver steel rim 4/100/60, 155kg load capacity') |
| Hub & Stub Axle (2pcs) | (31628, '[HU1002] Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed') |
| Hitch (1pcs) | (31997, '[TR1000] SPP 750kg Pressed hitch') |
