ATV quad trailer kit 390kg capacity, 25x12.00-9 knobby wheels (no hitch)
14 sold in last 24 hours
Part Number: KIT1026
Tyre Size: 25x12.00-9
Tyre Pattern: P318
Load Capacity: 390kgs
Tyre Size: 25x12.00-9
Tyre Pattern: P318
Load Capacity: 390kgs

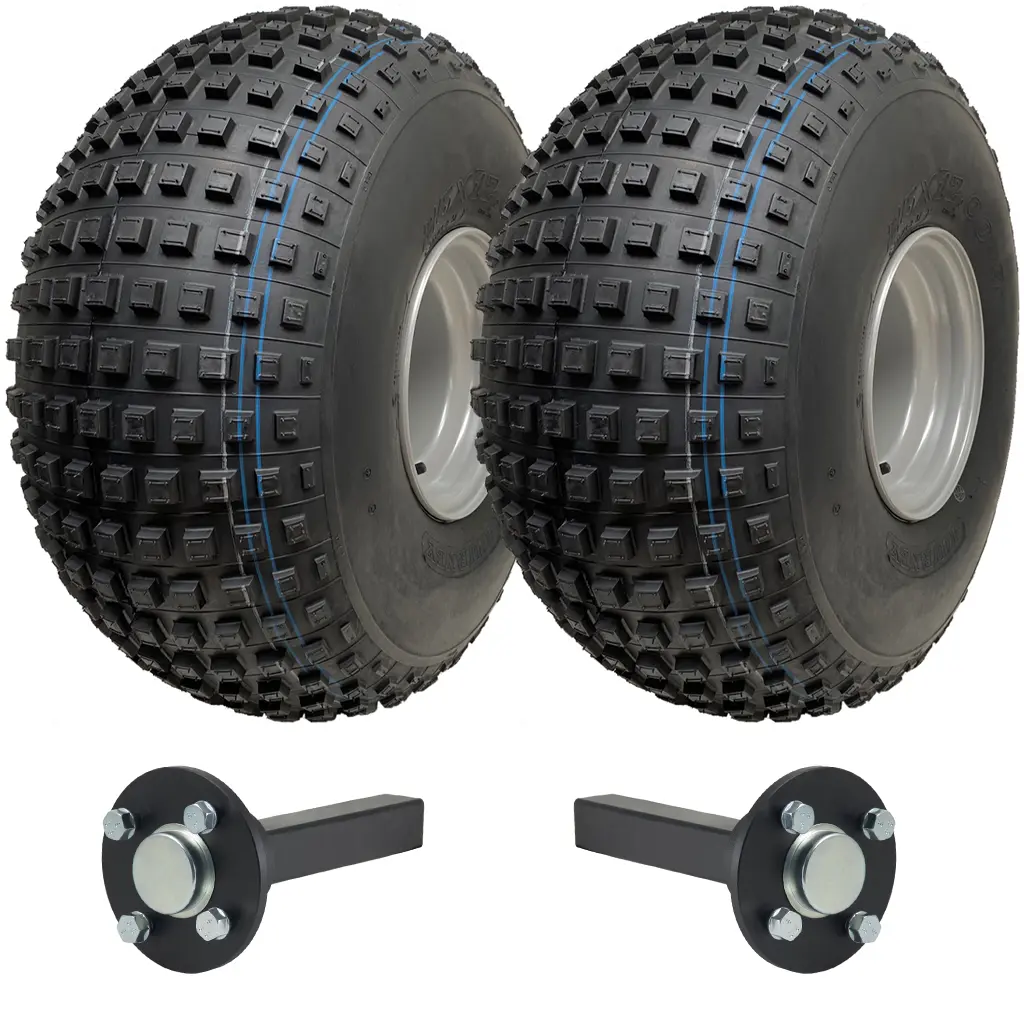

ATV trailer kit.
Contents of this kit include:
2 x Wheels, 25x12.00-9.
2 x Stub axles, 35x35x200mm solid stub.

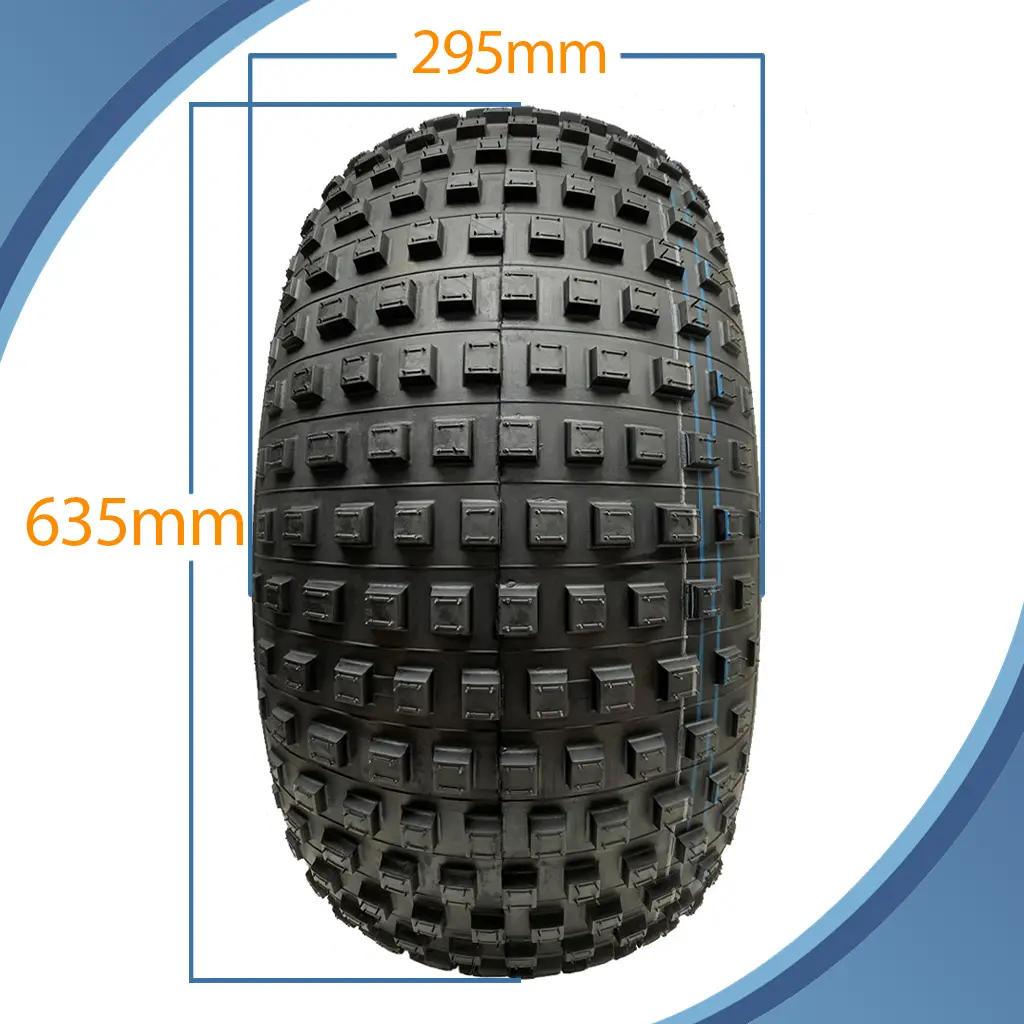

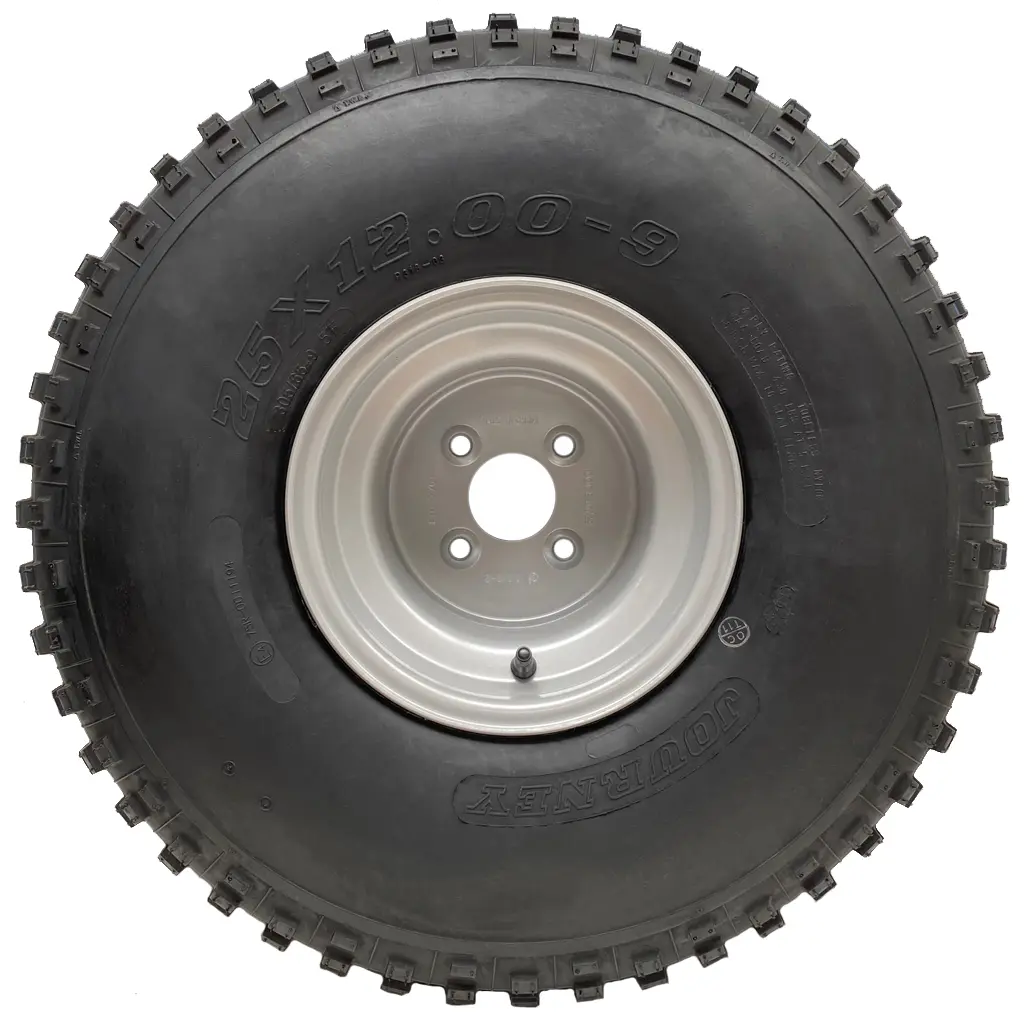

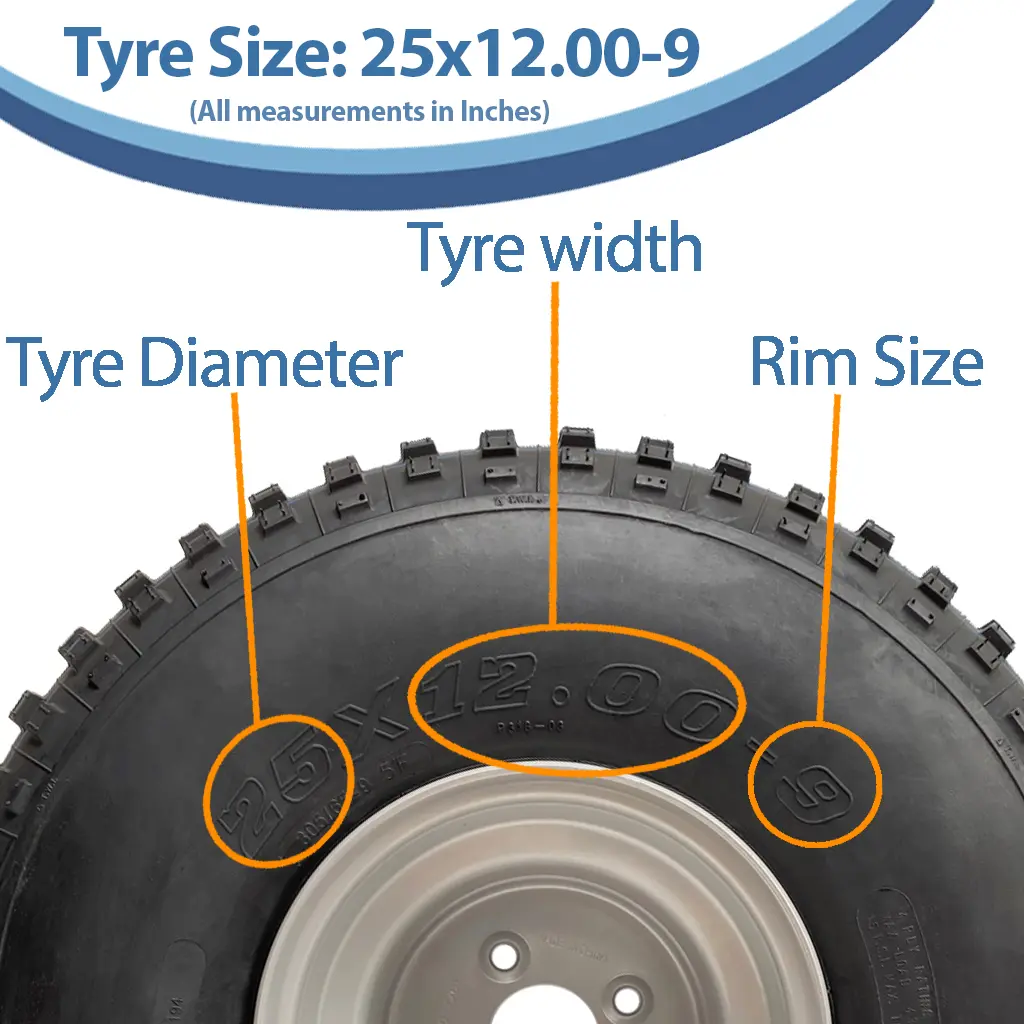

Wheel Specifications.
25x12.00-9 4ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,
Overall diameter: 635mm,
Max width of tyre: 295mm,
Tread depth: 10.5mm,
Inflation: 5psi,
Max load per wheel: 195kg @ 80km/h (load/speed index: 51F),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.

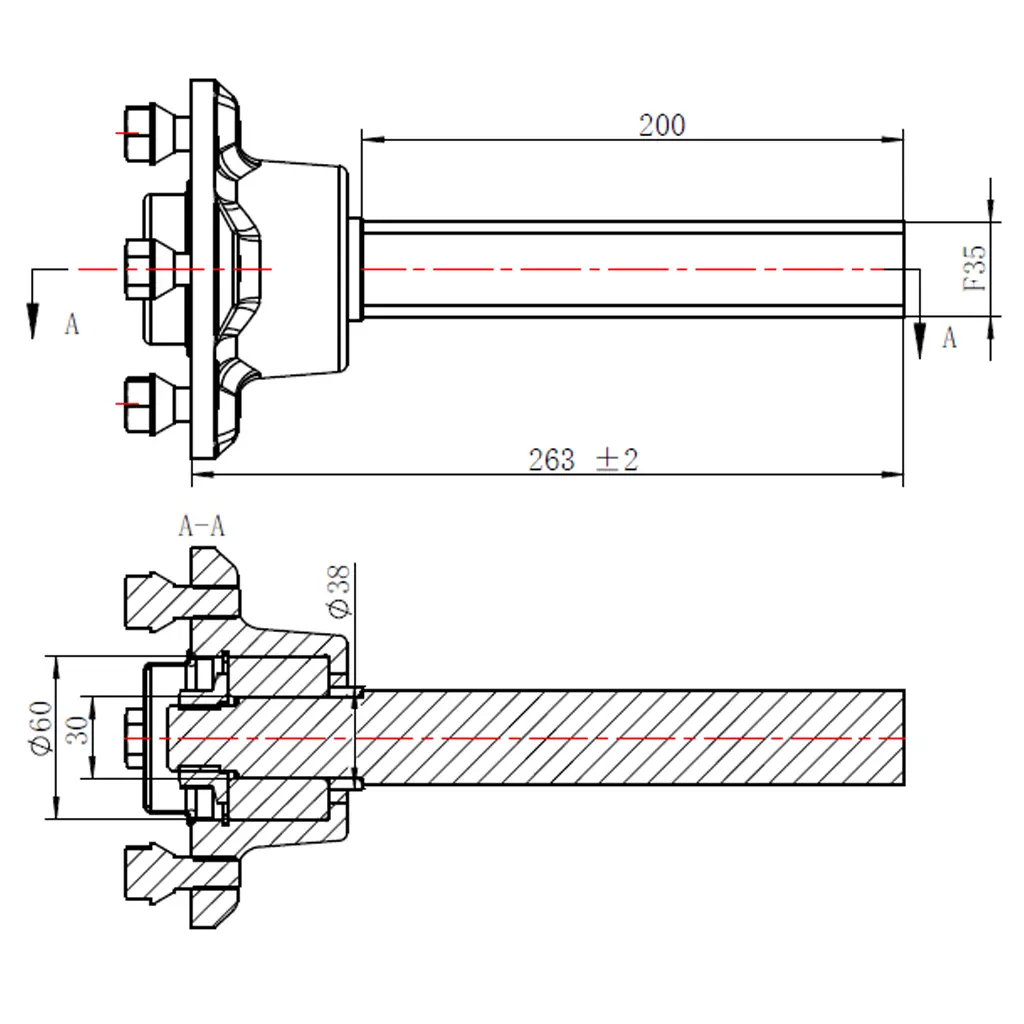

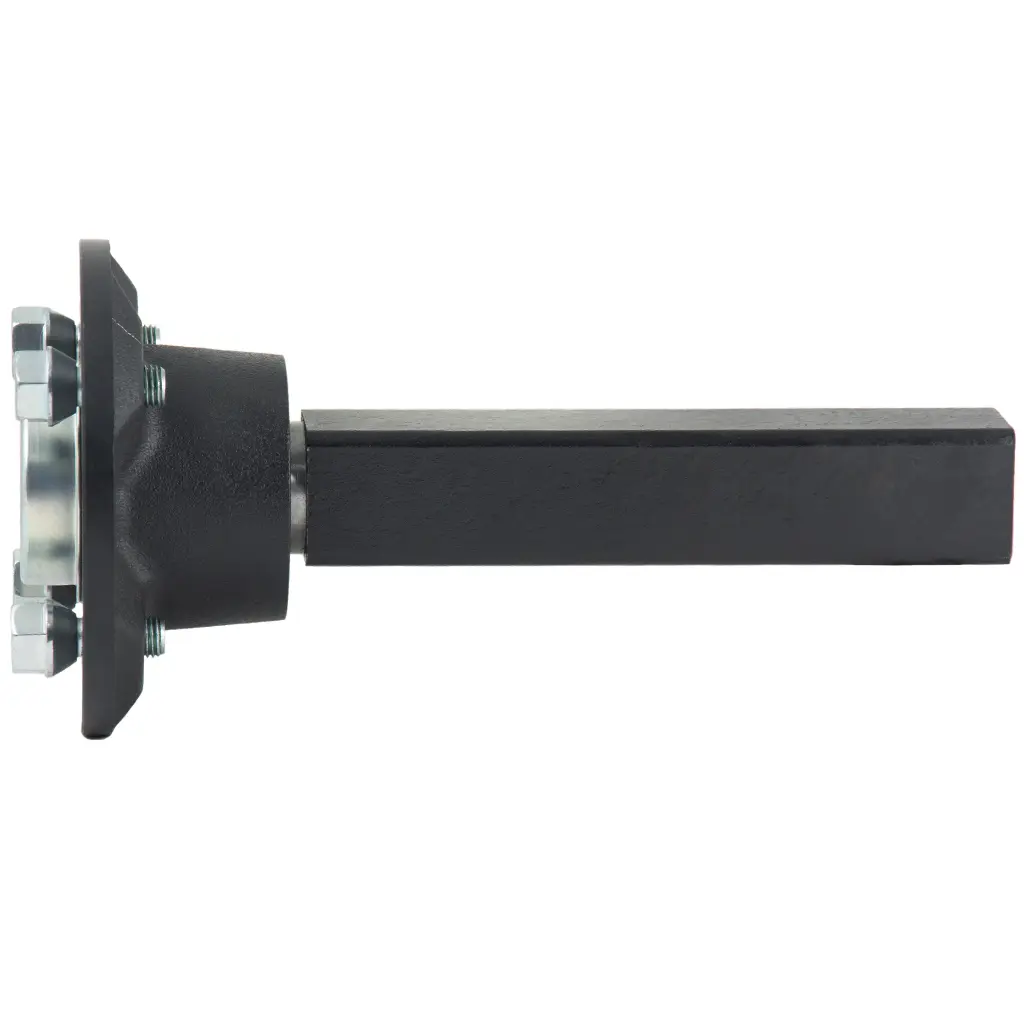

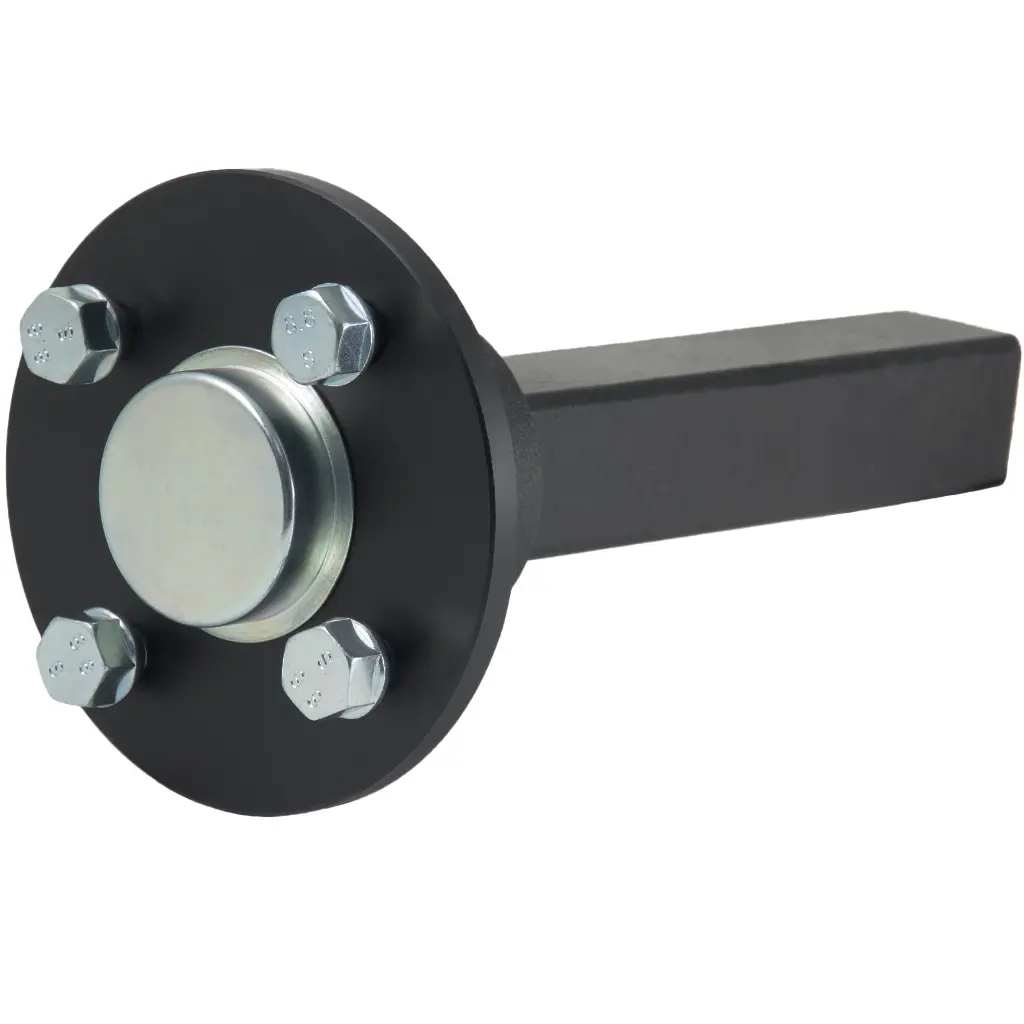

Hub & Stub Axle Specifications.

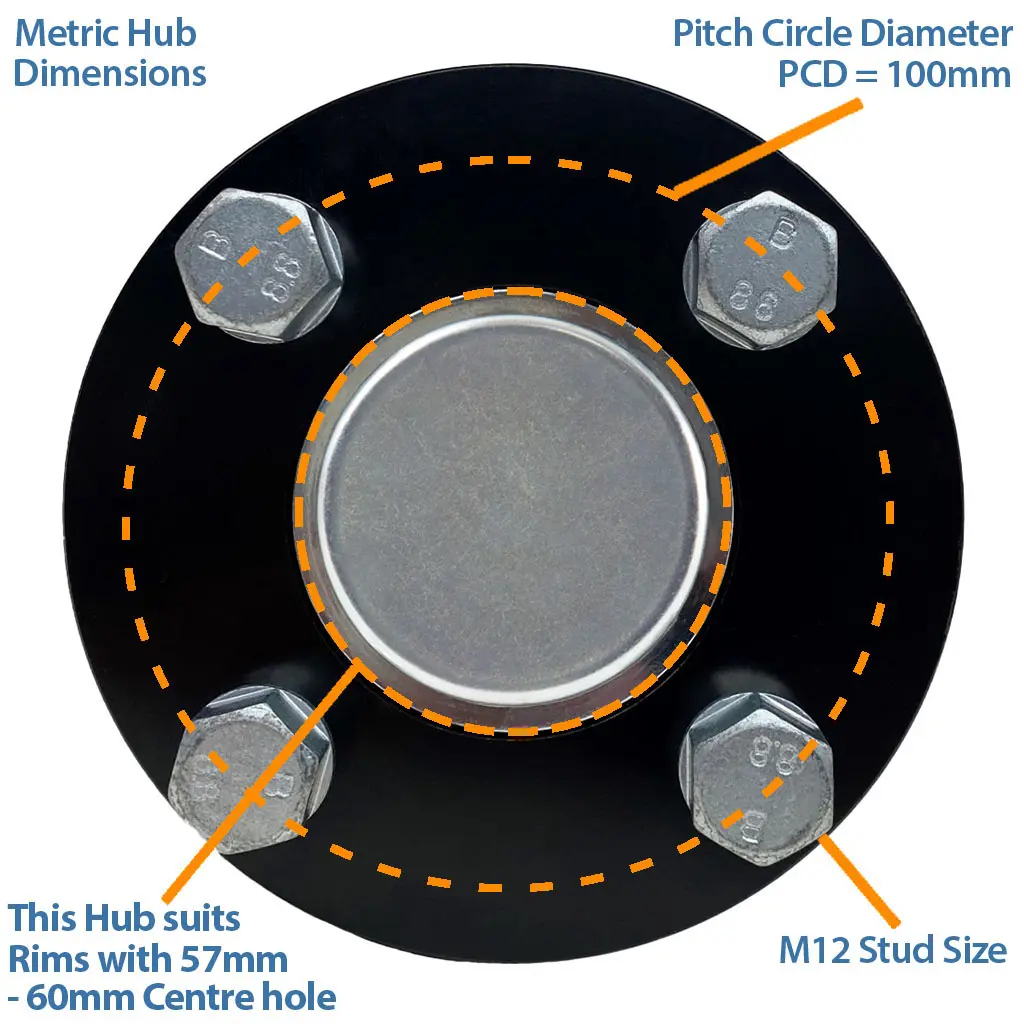

Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel.
Maximum Kit Load Capacity 390kgs.
| Part Number | KIT1026 |
| Ply | 4 |
| Pattern | P318 |
| OD (mm) | 635 |
| PSI | 5 |
| Tyre Size | 25x12.00-9 |
| TT/TL | TL |
| Tread Depth (mm) | 10.5 |
| Rim Colour | Silver |
| SW (mm) | 295 |
| Load/Speed Index | 51F |
| Stud / PCD | 4x100mm |
| E-Mark | E4-75R-0011194 |
| Max Load Each (Kg) | 195 |
| Hub & Stub Axle (2pcs) | (31628, '[HU1002] Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed') |
