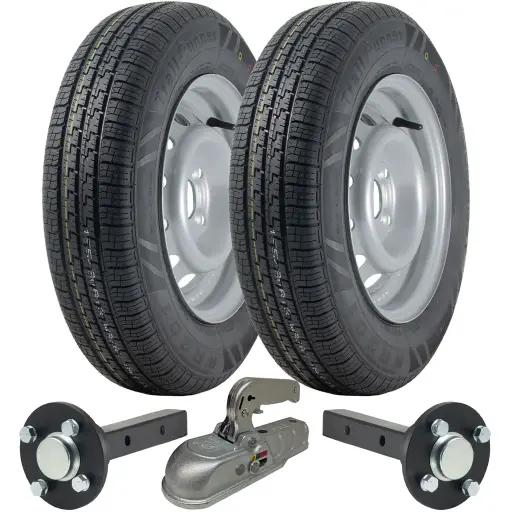

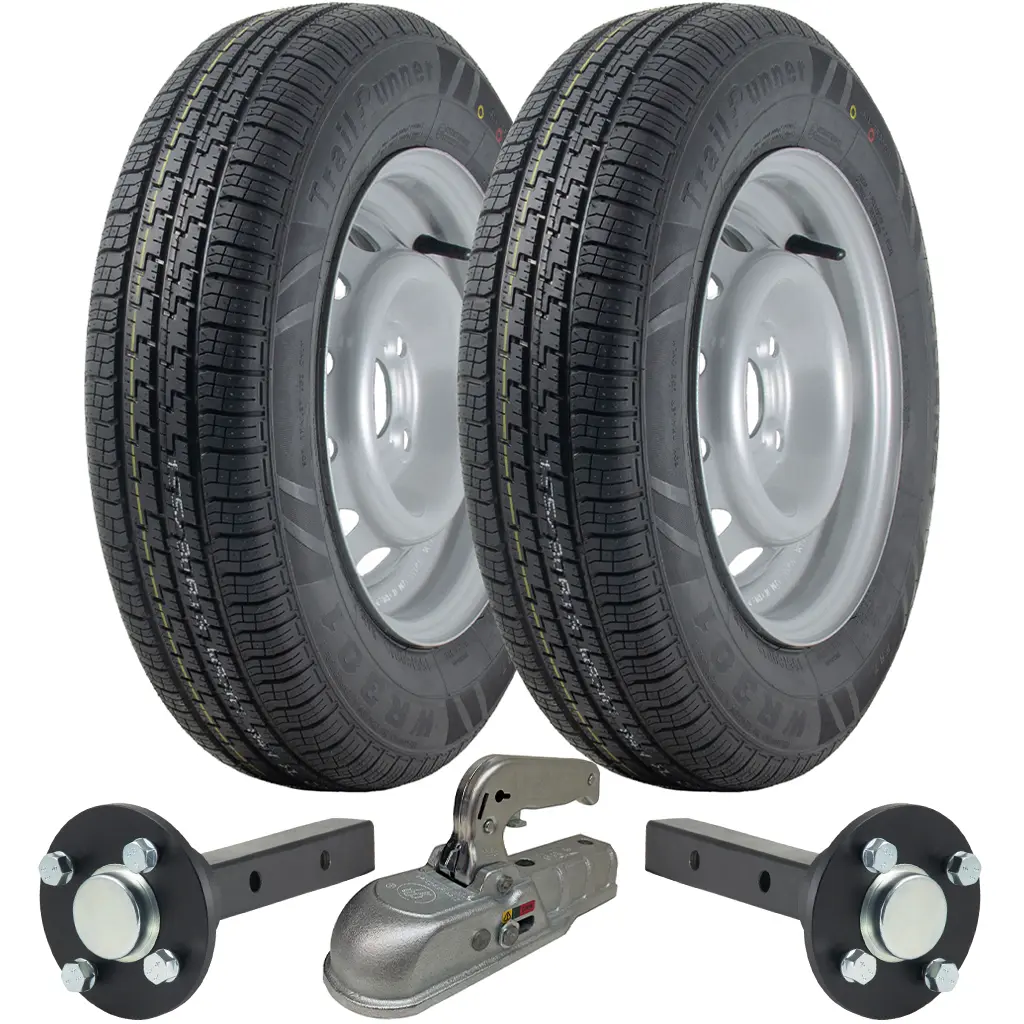

155R13C Trailer Kit, wheels 4/100 / 40x40 stub / cast hitch
7 sold in last 24 hours
Tyre Size: 155/80R13
Tyre Pattern: WR301
Load Capacity: 900kgs
155/80R13 Trailer Kit.
High Speed road legal Radial trailer Wheel (Journey WR301 TrailRunner),

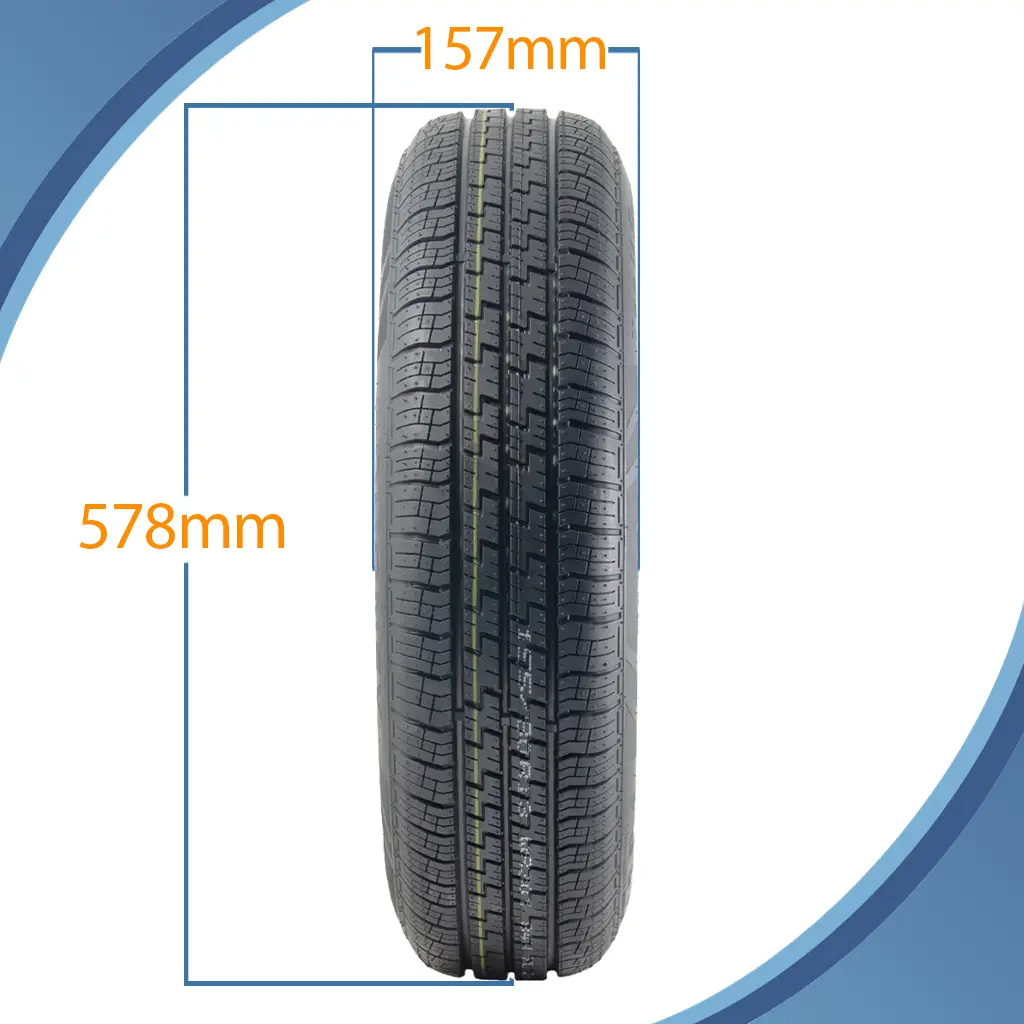

Tyre dimensions:
Overall diameter: 578mm,
Section width: 157mm,
Max Load: 500kg (1102lbs),
PSI Rating: 49 PSI,
Max speed: 140km/h (86mp/h),
Tread depth: 6mm,
Tyre Pattern: WR301 (Trail runner),
E-mark number: E4-02132277,
Load Index: 84, (500kgs),
Speed Index: N (140km/h).

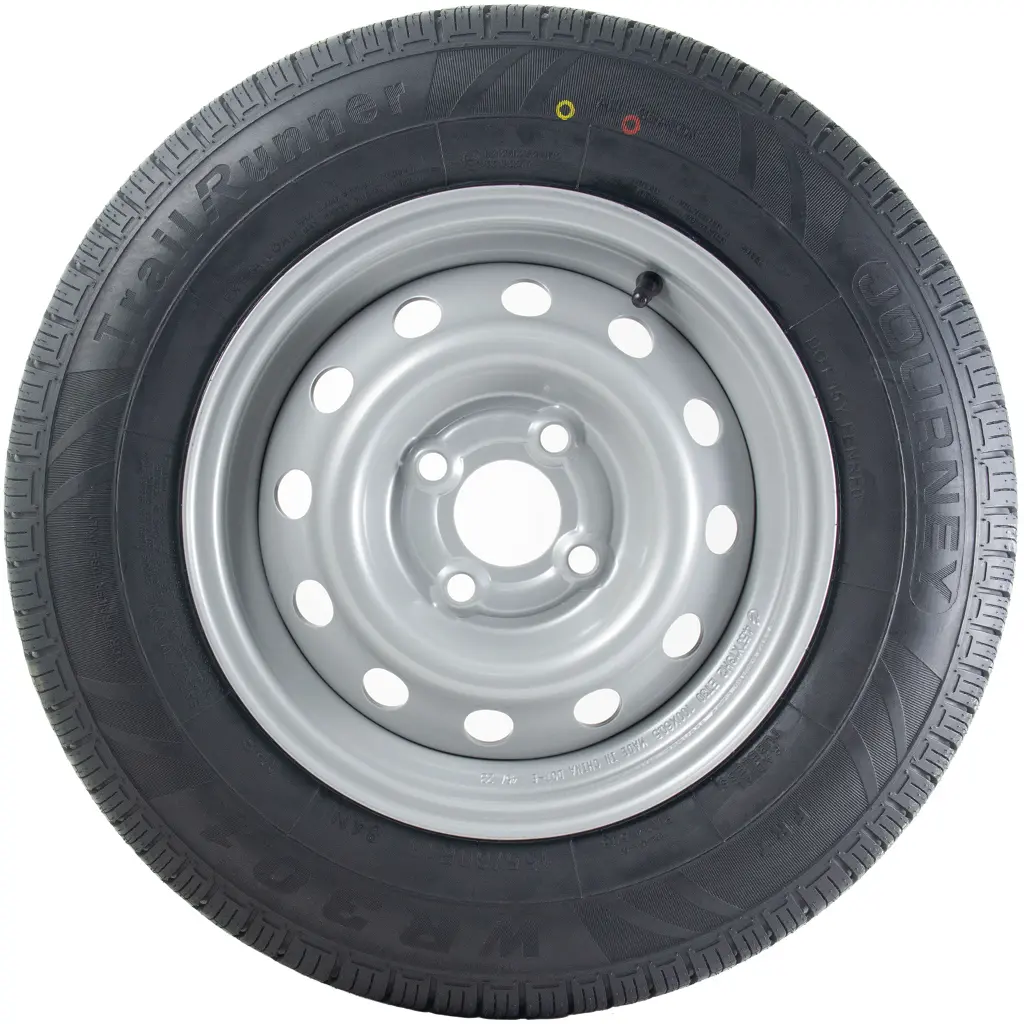

Rim Specification:
4.50x13 Silver steel powder coated rim,
Centre hole size: 60.5mm,
PCD: 100mm Pitch circle diameter,
Stud hole size: 15.5mm,
Offset: ET30 (+30mm towards the valve side of the wheel).

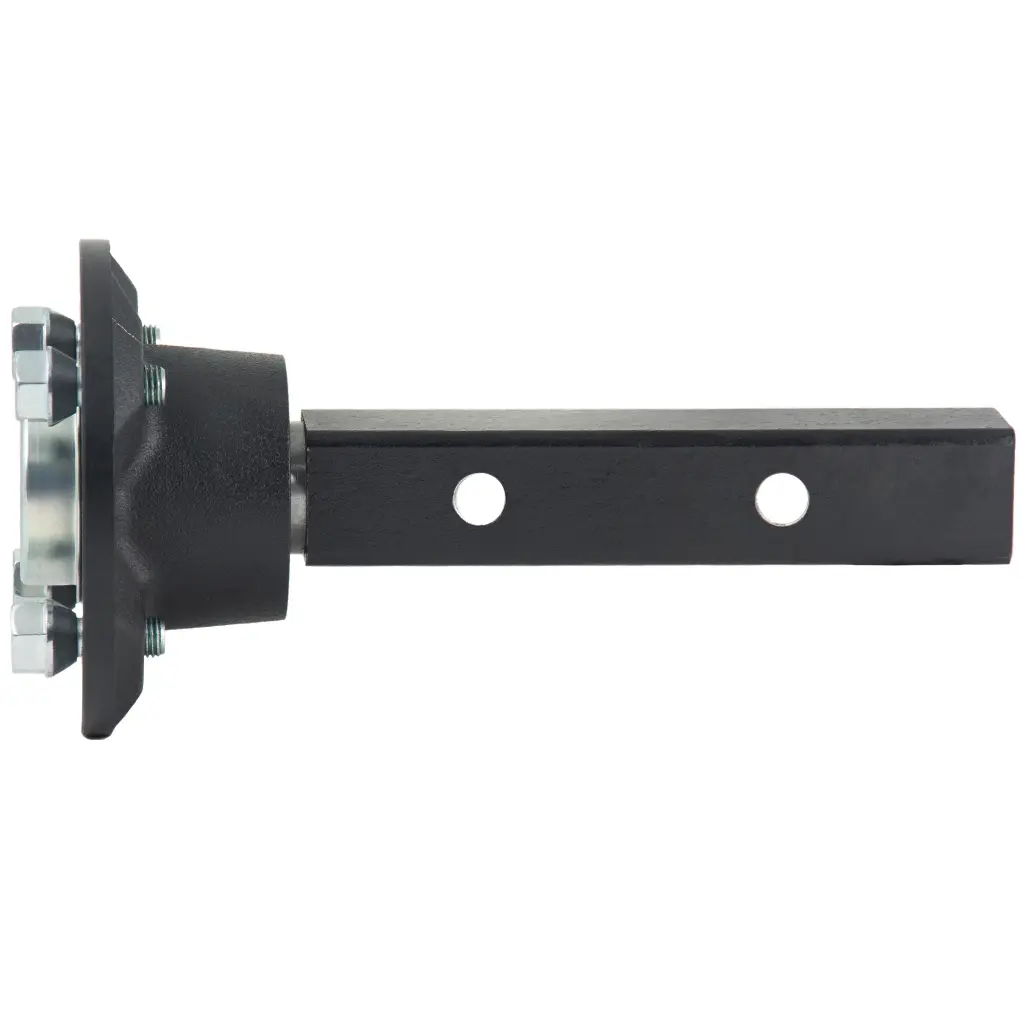

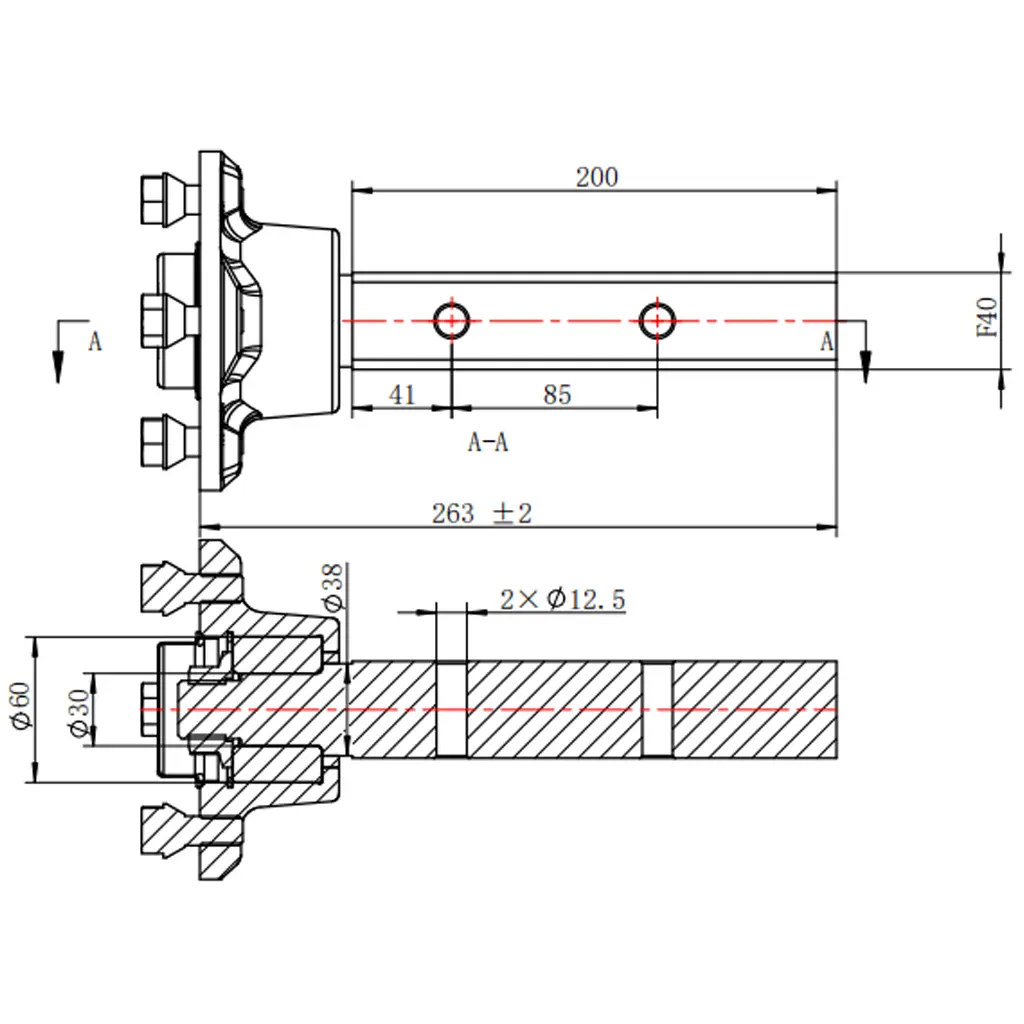

Item specifications: Stub axles.
Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 40x40mm x 200mm long, solid steel,
The stub bar has two pre-drilled mounting holes.

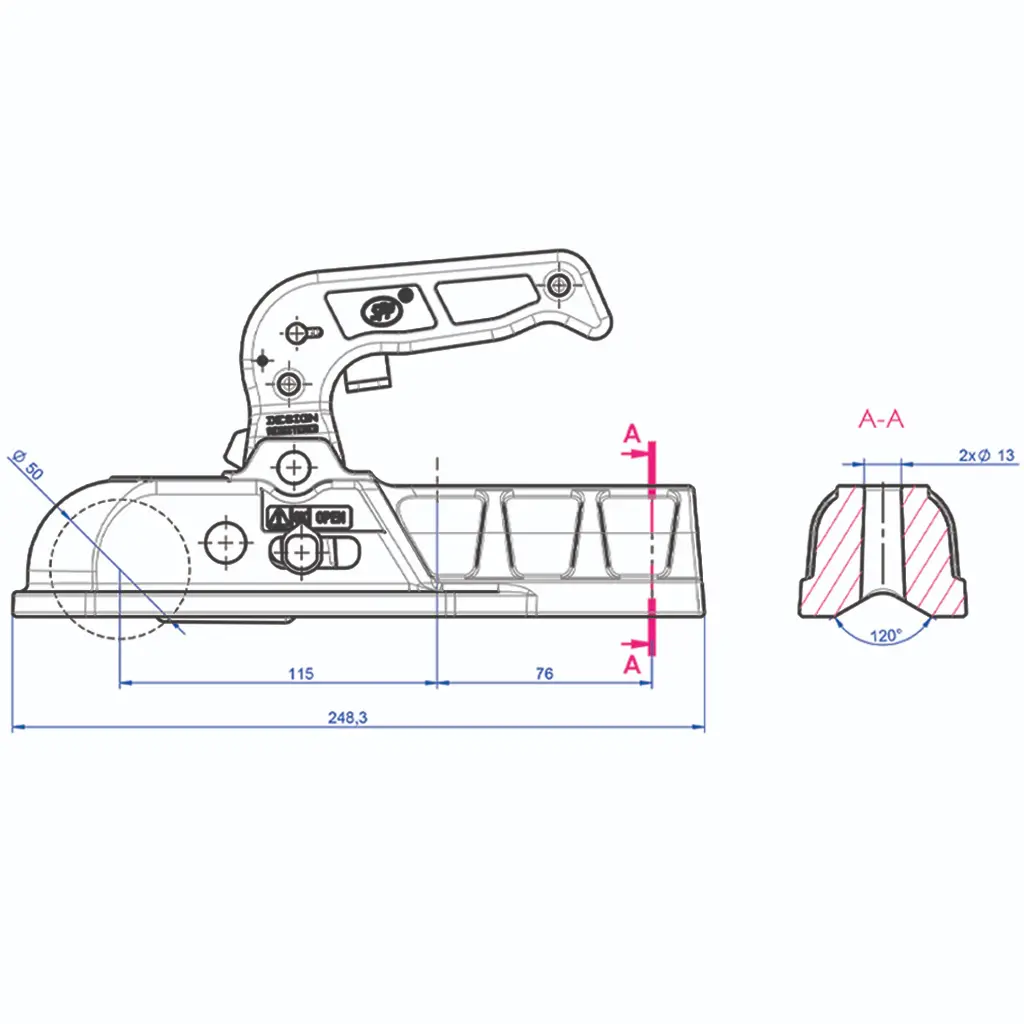

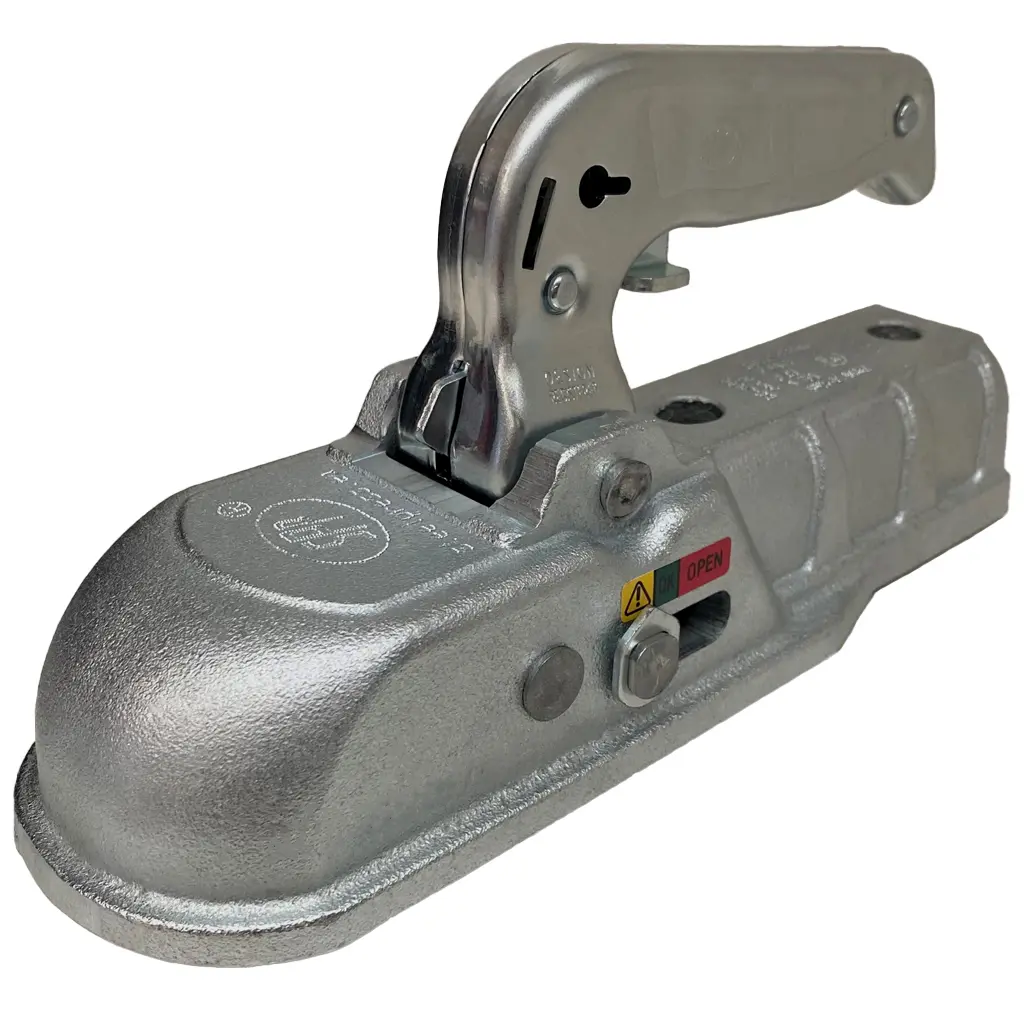

Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle.
Double movement opening.
To fit on round or square bar.
Maximum Kit Load Capacity 900kgs.

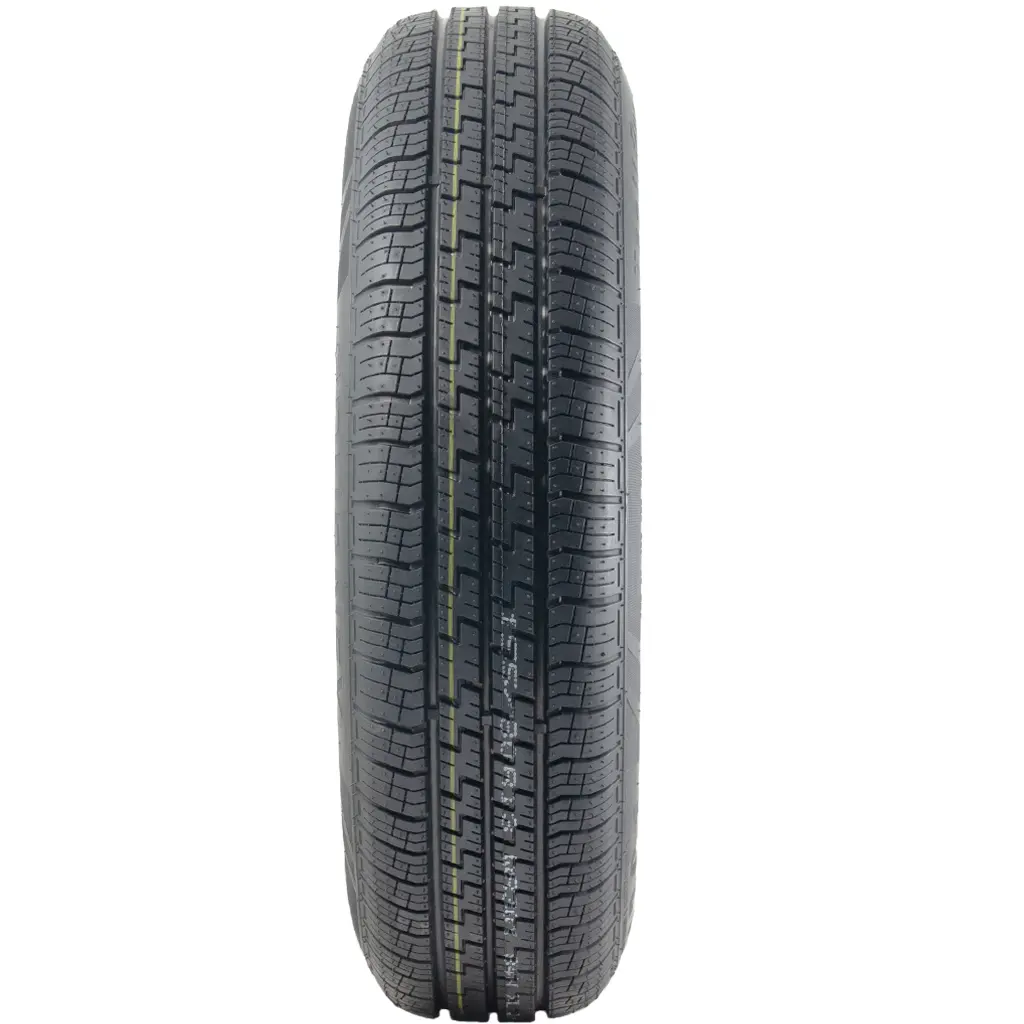

3 wide main grooves combined with through Lateral grooves designed to improve hydroplaning and wet grip performance.
Independent block combined with Lateral groove and angled sipes make the tyre easily cope with rain, snow, muddy road conditions, and even on non-paved roads.
Multi-edged tread block design with reinforced shoulder ribs which ensure dry and wet performance. Tread pattern rigidity overall is reduced for less vibration and noise with enhanced comfort.
Low rolling resistance compound provides excellent fuel economy.
| Part Number | KIT1030 |
| Brand | Parnells |
| Tyre Size | 155/80R13 |
| Pattern | WR301 |
| Section Width (mm) | 155 |
| Max Load (Kg) (25-90km/h) | 900 |
| Load/Speed Index | 84N |
| Stud / PCD | 4x100mm |
| PSI | 49 |
| OD (mm) | 578 |
| Tread Depth (mm) | 6.0 |
| E-Mark | E4-02132277 |
| Max Speed | 140 km/h |
| Hitch (1 piece) | SPP 3000kg Cast Hitch |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
