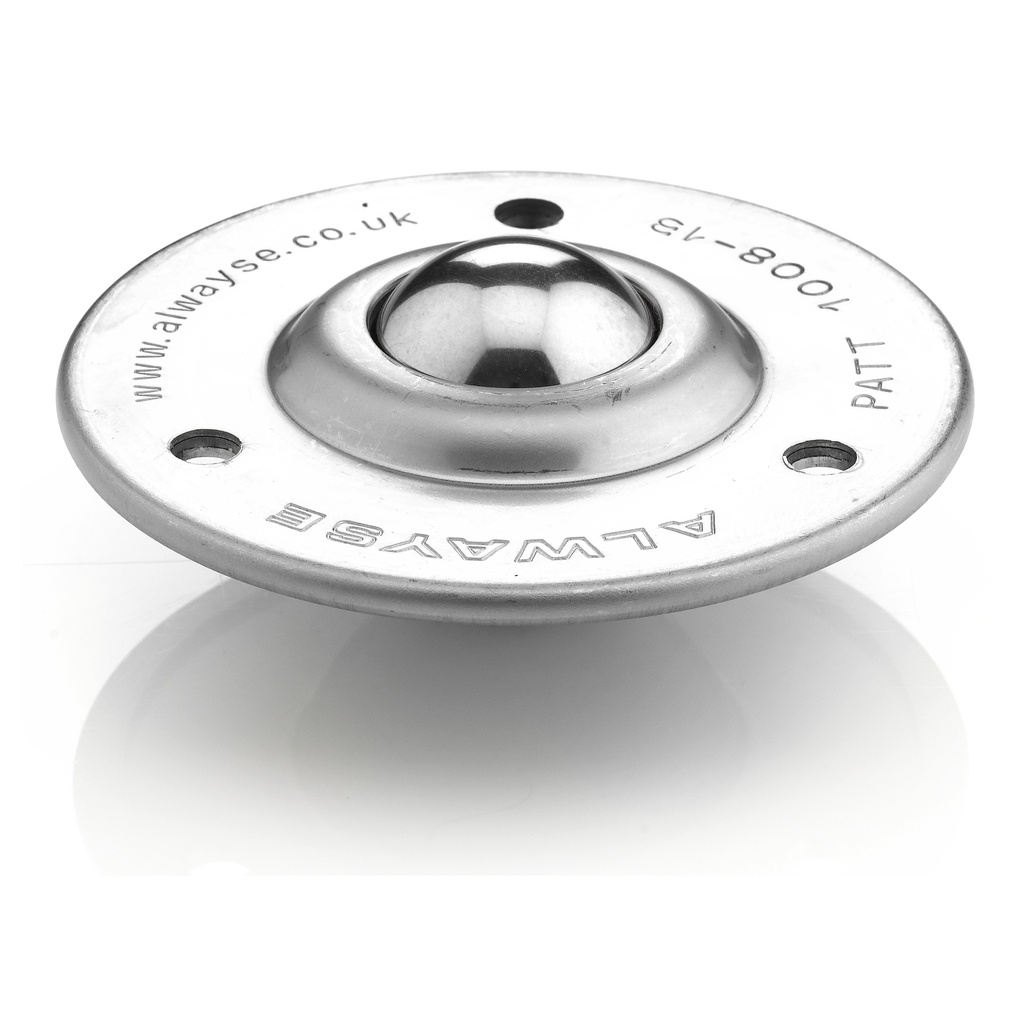

Flange Fixing Unit - 25.4mm Carbon Steel Ball
Part Number: 10081300
Load Ball Material: Carbon Steel
Load Ball Diameter: 25.4mm
Load Capacity: 100kg
Flange Fixing Unit - 25.4mm Carbon Steel Ball
- General purpose pressed steel unit.
- Low profile.
- Dirt exit hole.
- Integral seal to minimize debris ingress.
- General tolerance unless stated ±0.3mm
| Part Number | 10081300 |
| Brand | ALWAYSE |
| Load Ball Diameter (mm) | 25.4 |
| Load Ball Material | Carbon Steel |
| Working Height of Ball (mm) | 14.2 |
| Body Material | Zinc Plated Steel |
| Max Diameter (mm) | 73 |
| Flange Thickness (mm) | 3.5 |
| Fixing Holes (pcs) | 3 |
| Under Flange to Base (mm) | 15.8 |
| Seating Hole Diameter (mm) | 38.1 |
| Fixing Hole Spacing (mm) | 55.6 ±0.2 |
| Fixing Hole Size (mm) | 5.1 |
| Load Capacity (kg) | 100 |
