M20 Blackened steel Cam plunger (10mm plunger diameter)

https://www.parnells.eu/web/image/product.template/84797/image_1920?unique=49fa744
(0 review)

36.75 € 36.75 EUR 36.75 €

42.68 €

Login for trade prices

Not Available For Sale


  • Thread Size
  • Rest Position
  • Diameter (mm)
  • Type
  • Material
  • Dimension 'A' (mm)
  • Dimension 'B' (mm)
  • Dimension 'C' (mm)
  • Dimension 'D' (mm)
  • Dimension 'E' (mm)
  • Colour
  • Material / Finish
  • Plunger Type

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

M20 Cam plunger

Body Material: Blackened steel

Plunger Diameter: 10mm

Supplied with an M20x1.5 locking nut

Turn the cam lever by 180° to allow the plunger pin to be fully retracted and locked in place.
Twisting the lever again disengages the lock and a spring mechanism automatically returns the pin to the extended position.

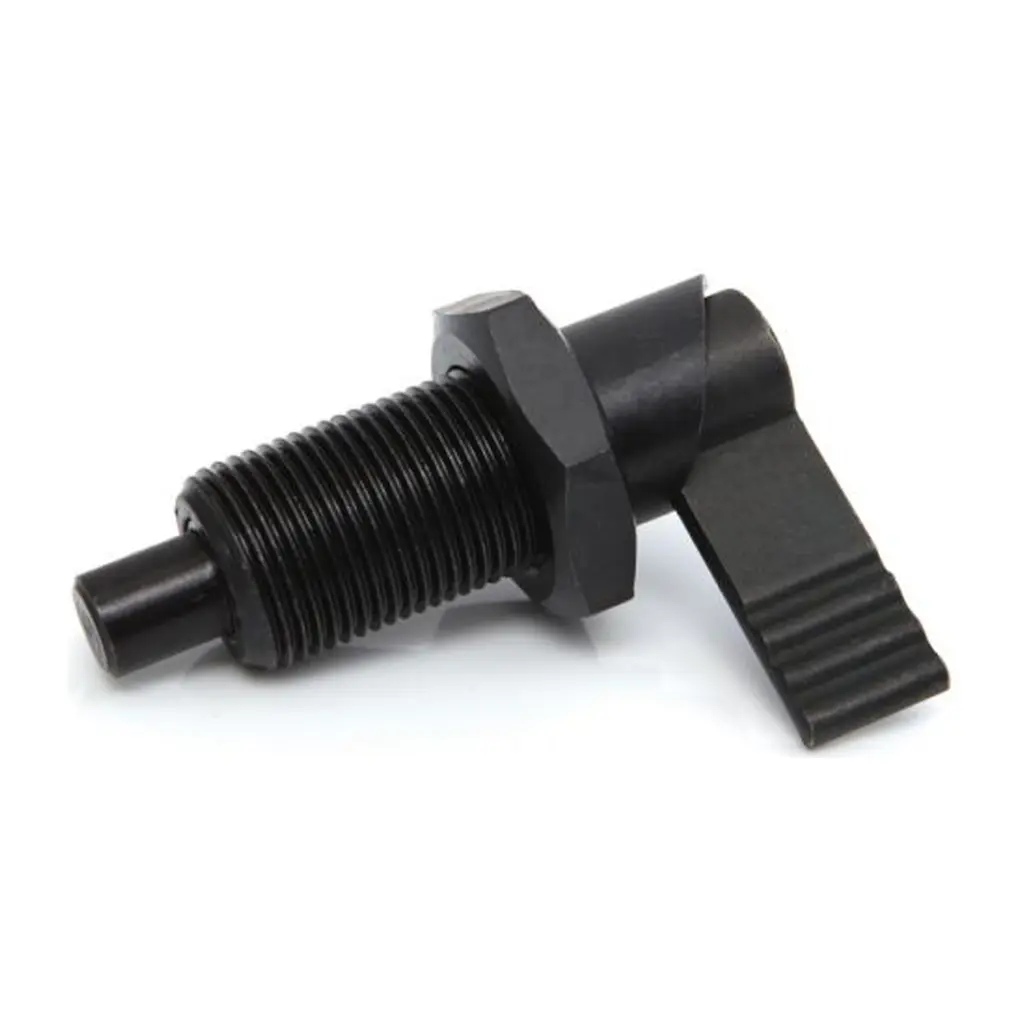

M20 Blackened steel Cam plunger (10mm plunger diameter)

Add to cart

Sign in

Pay

Get Delivered

Part Number 11786R
Thread Size M20
Rest Position Yes
Diameter (mm) 10
Type Cam Plunger
Material Blackened Steel

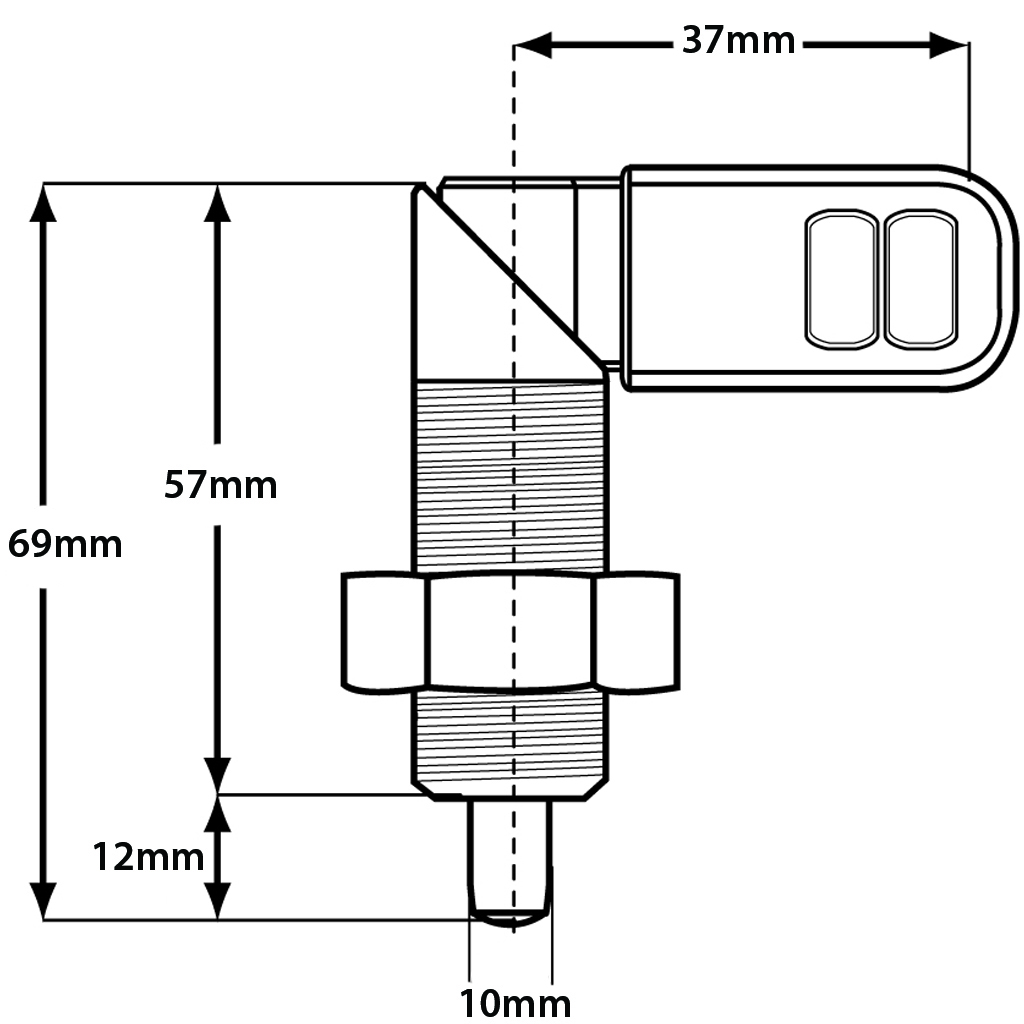

Dimension 'A' (mm) 69
Dimension 'B' (mm) 37.0
Dimension 'C' (mm) 57.0
Dimension 'D' (mm) 12.0
Dimension 'E' (mm) 10.0
Colour Black
Material / Finish Blackened Steel
Plunger Type Cam type
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
[11786R] M20 Blackened steel Cam plunger (10mm plunger diameter).jpg
Download
11786R 37mm M20 x 1.5 20mm 10mm pin.iges
Download
11786R 37mm M20 x 1.5 10mm pin.stp
Download
Cam plunger data.jpg
Download

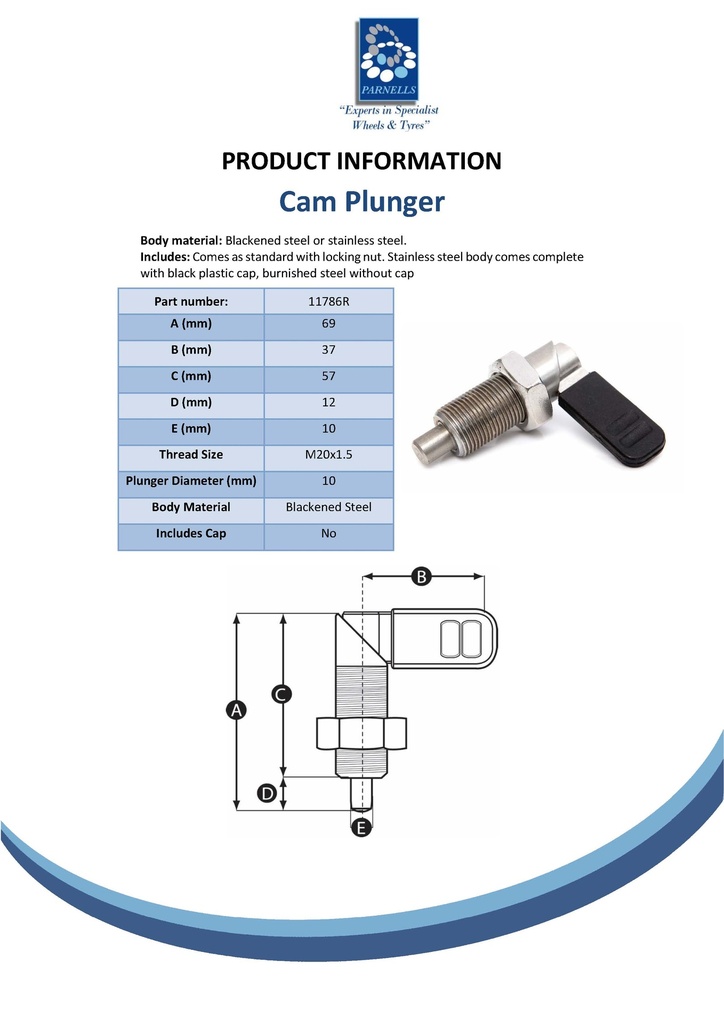

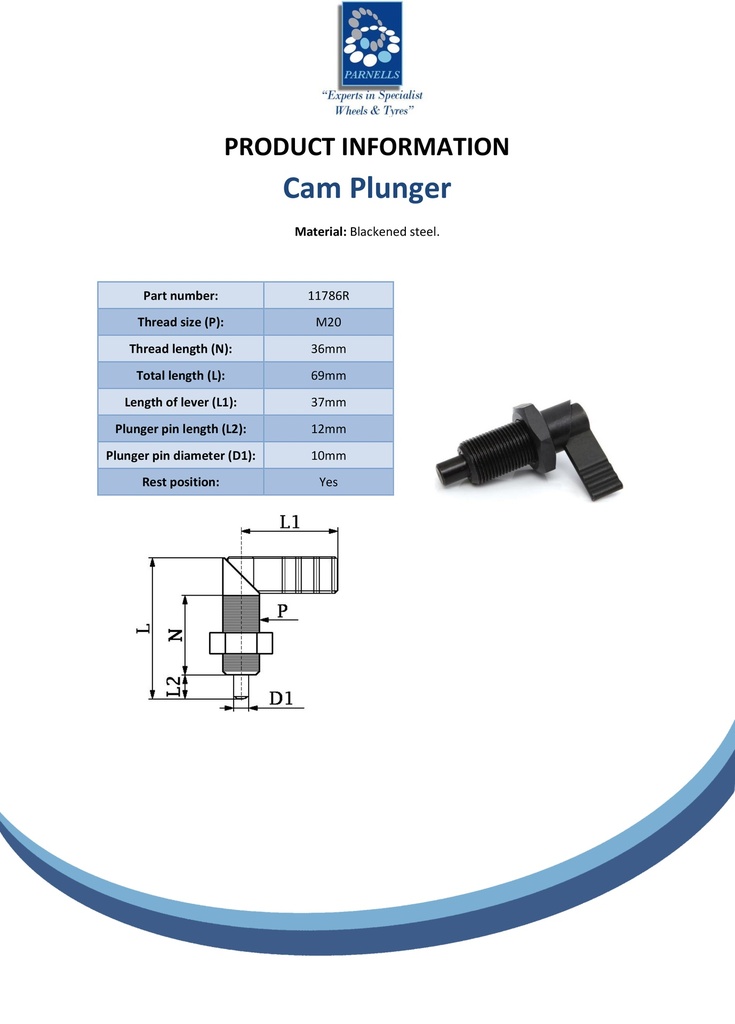

Parnells Plunger Spec Sheet - 11786R.pdf
Download
