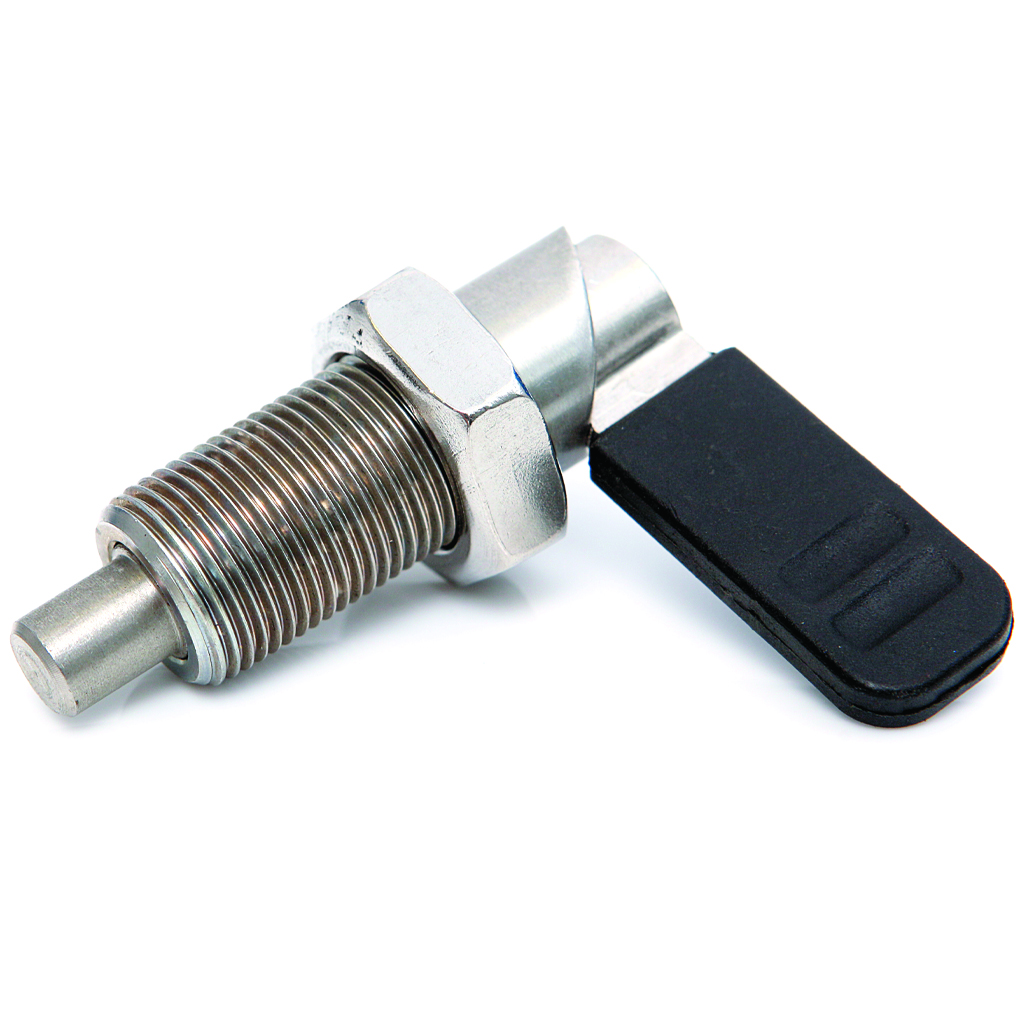

M20 stainless steel Cam plunger (10mm plunger diameter)
12 sold in last 24 hours
M20 Cam plunger
Body Material: Stainless Steel - fitted with black plastic grip
Plunger Diameter: 10mm
Supplied with an M20x1.5 locking nut
Turn the cam lever by 180° to allow the plunger pin to be fully retracted and locked in place.
Twisting the lever again disengages the lock and a spring mechanism automatically returns the pin to the extended position.
| Part Number | 11795Z |
| Thread Size | M20 |
| Brand | Rencol |
| Rest Position | Yes |
| Diameter (mm) | 10 |
| Type | Cam Plunger |
| Material | Stainless Steel |

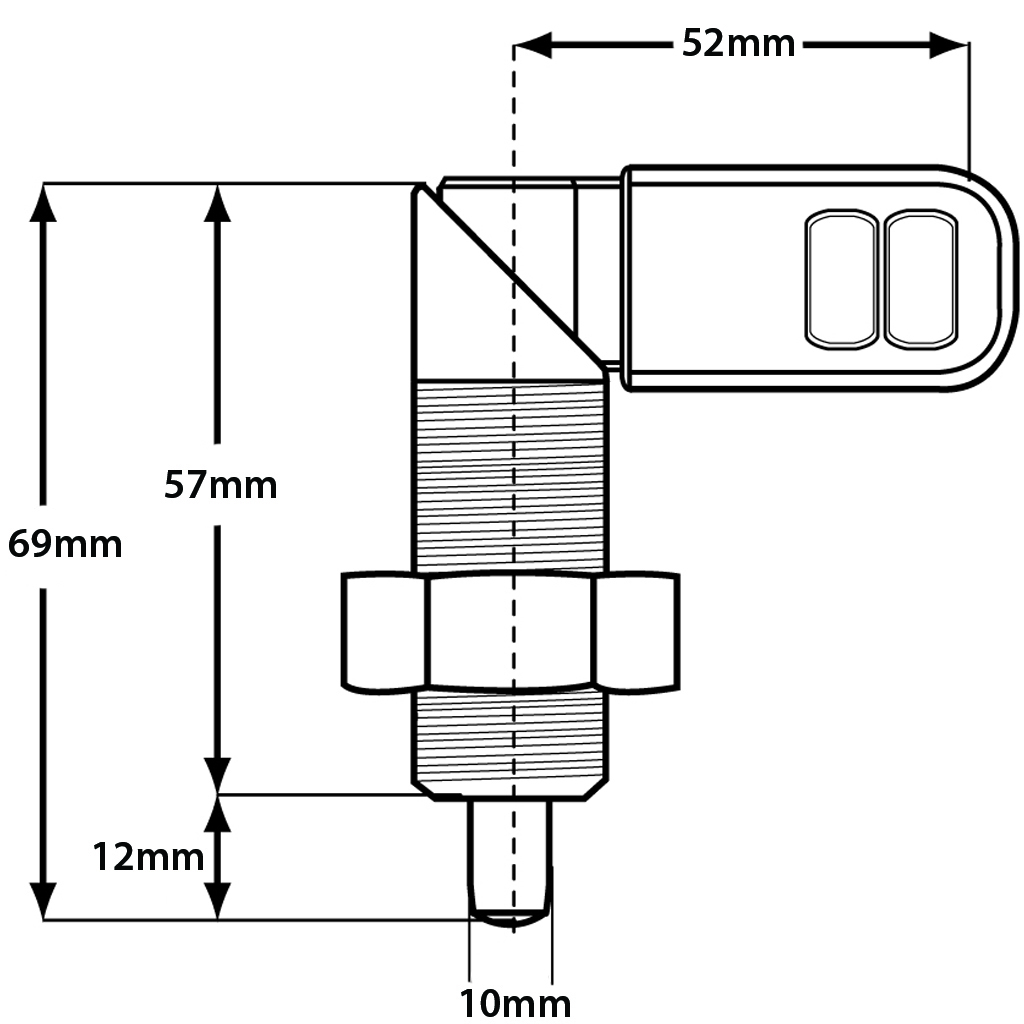

| Dimension 'A' (mm) | 69 |
| Dimension 'B' (mm) | 52.0 |
| Dimension 'C' (mm) | 57.0 |
| Dimension 'D' (mm) | 12.0 |
| Dimension 'E' (mm) | 10.0 |
| Colour | Stainless |
| Material / Finish | Stainless Steel |
| Plunger Type | Cam type |
