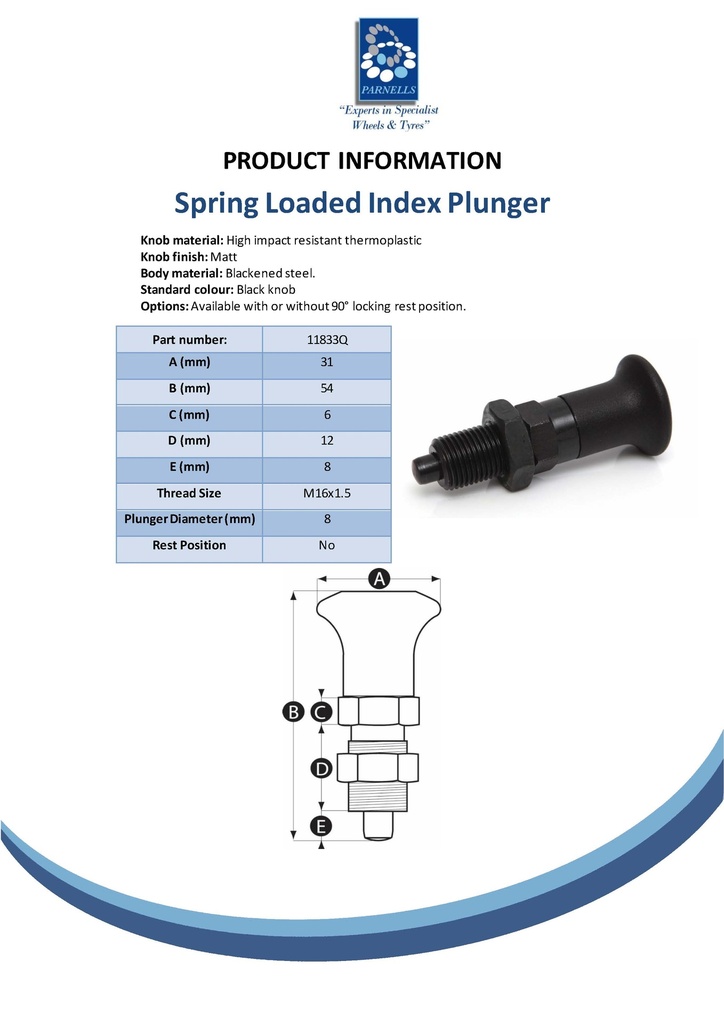

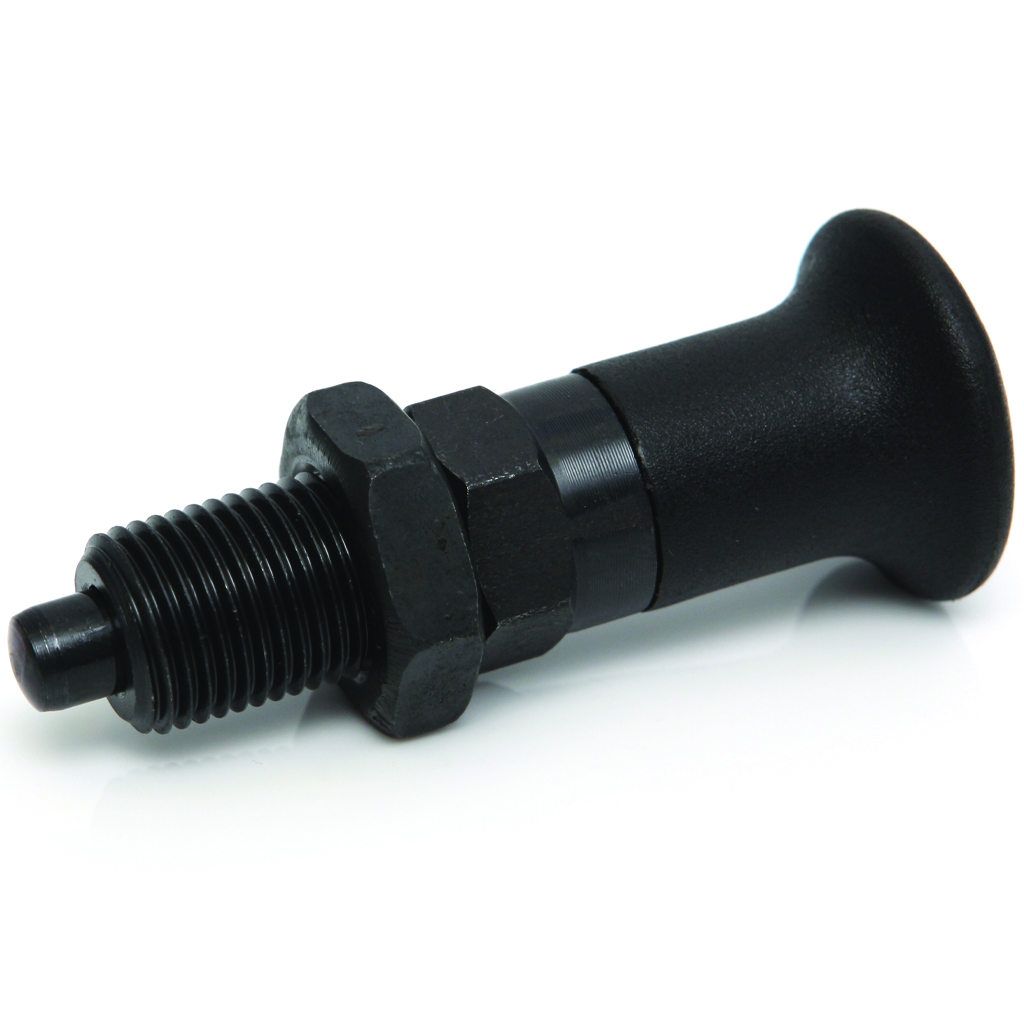

M16 Spring loaded index plunger (8mm plunger diameter)

M16 Spring loaded index plunger

Knob material: High impact resistant thermoplastic

Body Material: Blackened steel

Plunger Diameter: 8mm

Supplied with an M16x1.5 nut

Part Number 11833Q
Material Thermoplastic or Blackened Steel
Thread Size M16
Brand Rencol
Rest Position No
Diameter (mm) 8
Type Spring Loaded Index

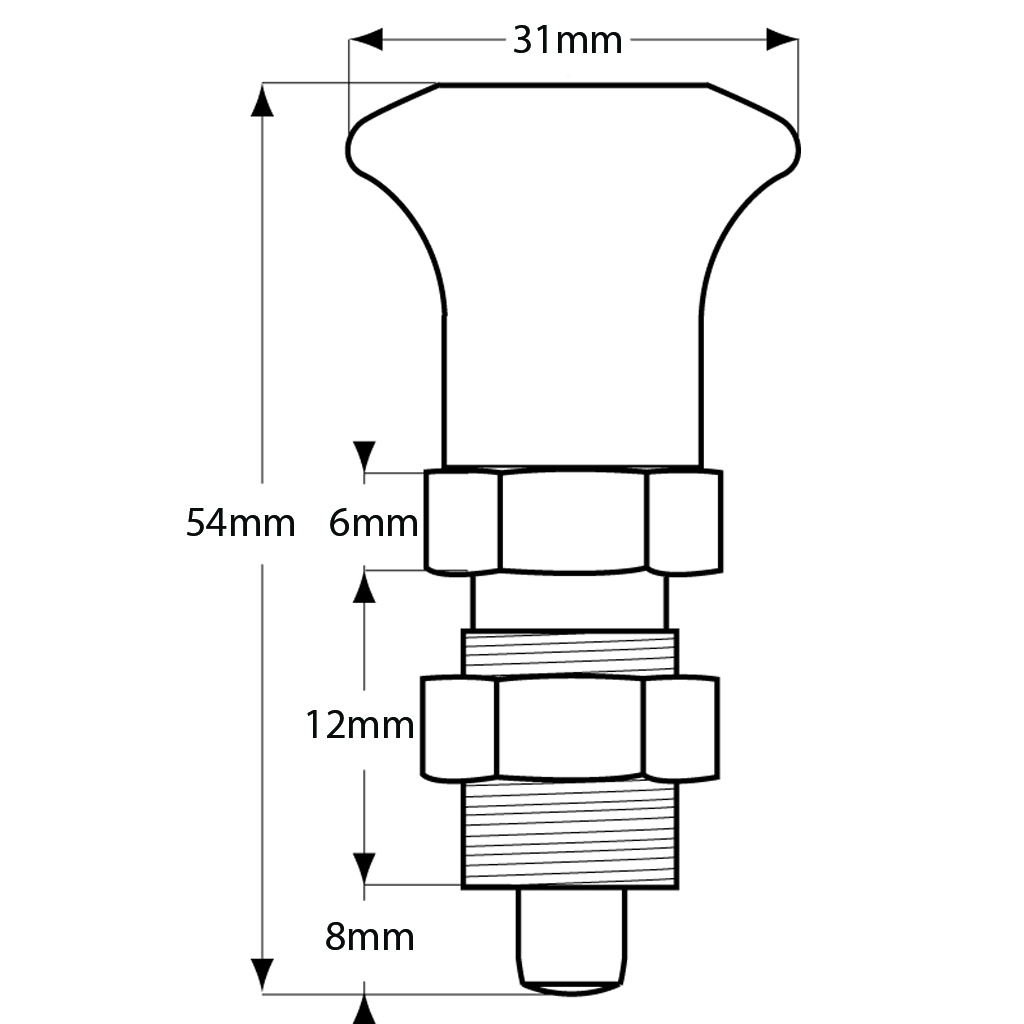

Dimension 'A' (mm) 31
Dimension 'B' (mm) 54.0
Dimension 'C' (mm) 6.0
Dimension 'D' (mm) 12.0
Dimension 'E' (mm) 8.0
Colour Black.
Material / Finish High Impact Resistant Thermoplastic. Black.
Plunger Type Spring Loaded Index
