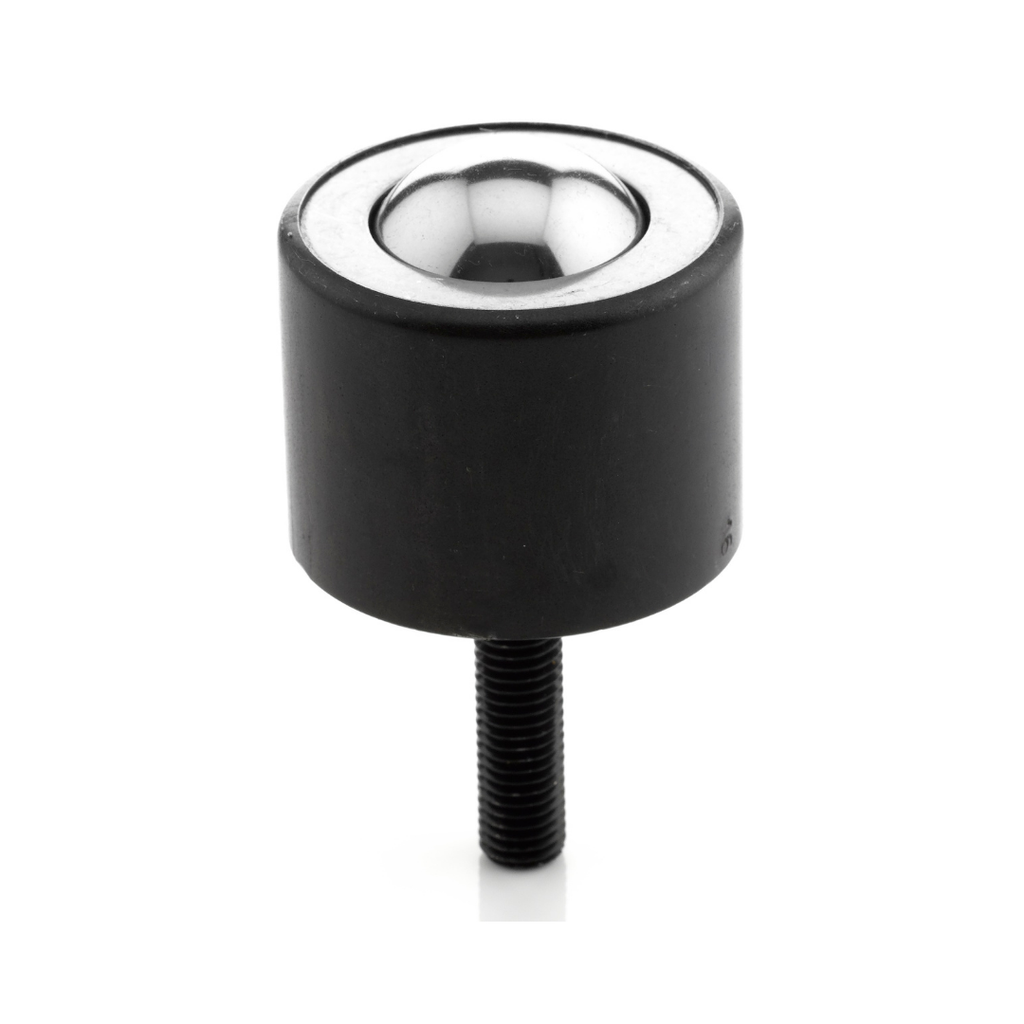

Tuff Heavy Duty Series - Load Ball Diameter 39.7mm
Part Number: 201923
Load Ball Material: Carbon Chrome
Load Ball Diameter: 39.7mm
Load Capacity: 600kg
Tuff Heavy Duty Series - Load Ball Diameter 39.7mm
- Built to provide a long working life and to withstand harsh conditions.
- Solid CNC machined body from one piece of steel, therefore threads are integral.
- Feature integral seal and dirt exit hole.
- Maximum tightening torques from 10Nm for M6 to 20Nm for M12.
- General tolerance unless stated ±0.3mm.

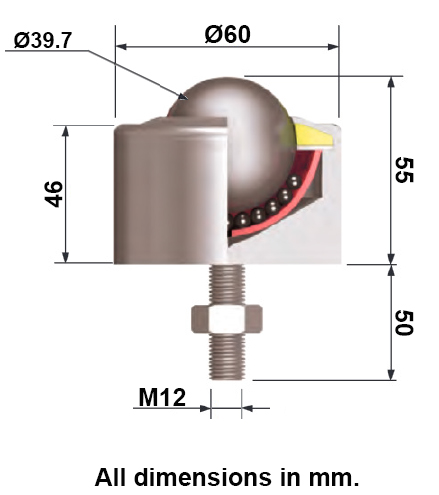

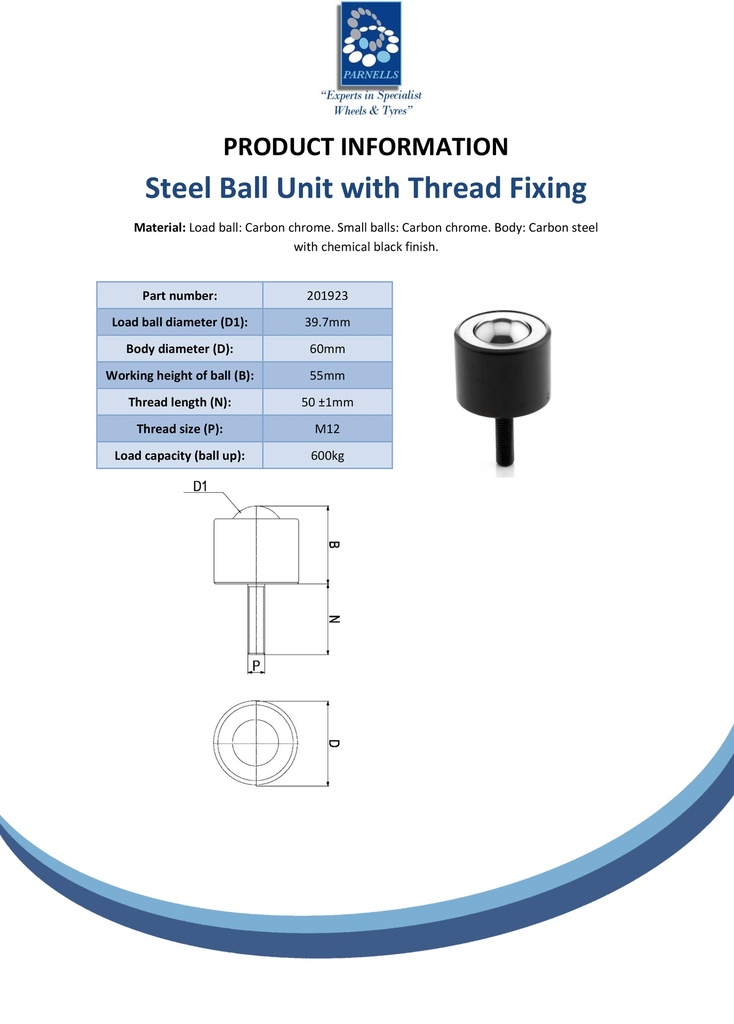

| Part Number | 201923 |
| Thread Size | M12 |
| Brand | ALWAYSE |
| Load Ball Diameter (mm) | 39.7 |
| Load Ball Material | Carbon Chrome |
| Body Diameter (mm) | 60 |
| Working Height of Ball (mm) | 55 |
| Body Material | Carbon Steel with Chemical Black Finish |
| Base to Top of Body (mm) | 46 |
| Thread Length (mm) | 50 ±1 |
| Load Capacity (kg) | 600 |
