20x10.00-8 ATV Grass Trailer Kit, 4ply P332 GRASS on 4/100 Rims & Hub & Stub axle 4/100 M12stud 40x40
9 sold in last 24 hours
Part Number: EC1288
Tyre Size: 20x10.00-8
Stub axle: 40mm Square, 200mm Long
Load Capacity: 900kg
Tyre Size: 20x10.00-8
Stub axle: 40mm Square, 200mm Long
Load Capacity: 900kg

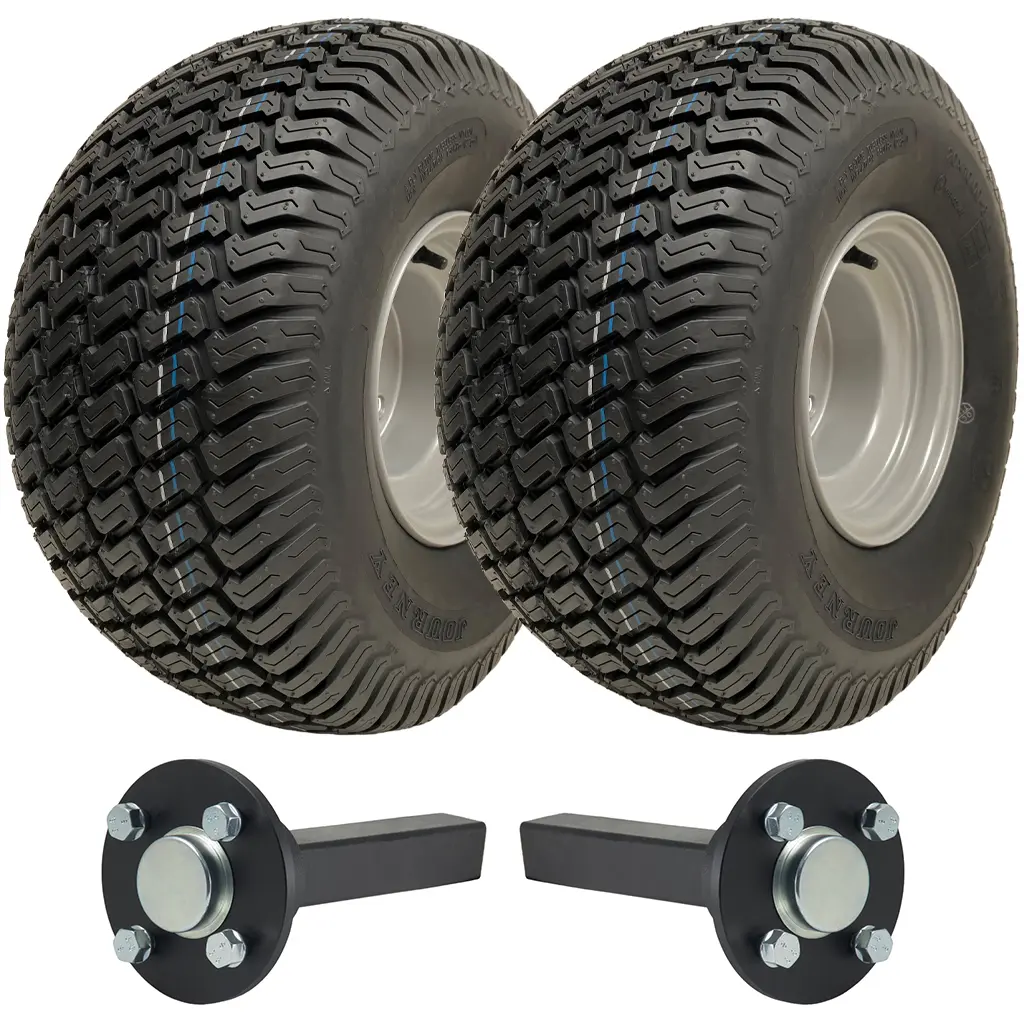

20x10.00-8 ATV trailer kit.
This kit contains:
Two – 20x10.00-8 wheels
&
Two - 40mm x 40mm hub and stub axles.
Wheel Specification:
Size: 20x10.00-8,
Brand: Wanda (Journey),
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 545kgs at 22 PSI,
Tyre height: 500mm,
Tyre width: 240mm,
Tread Depth: 7.1mm,
Speed rating A4: 20km/h,
E Marked road legal: E4-106R-003460.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

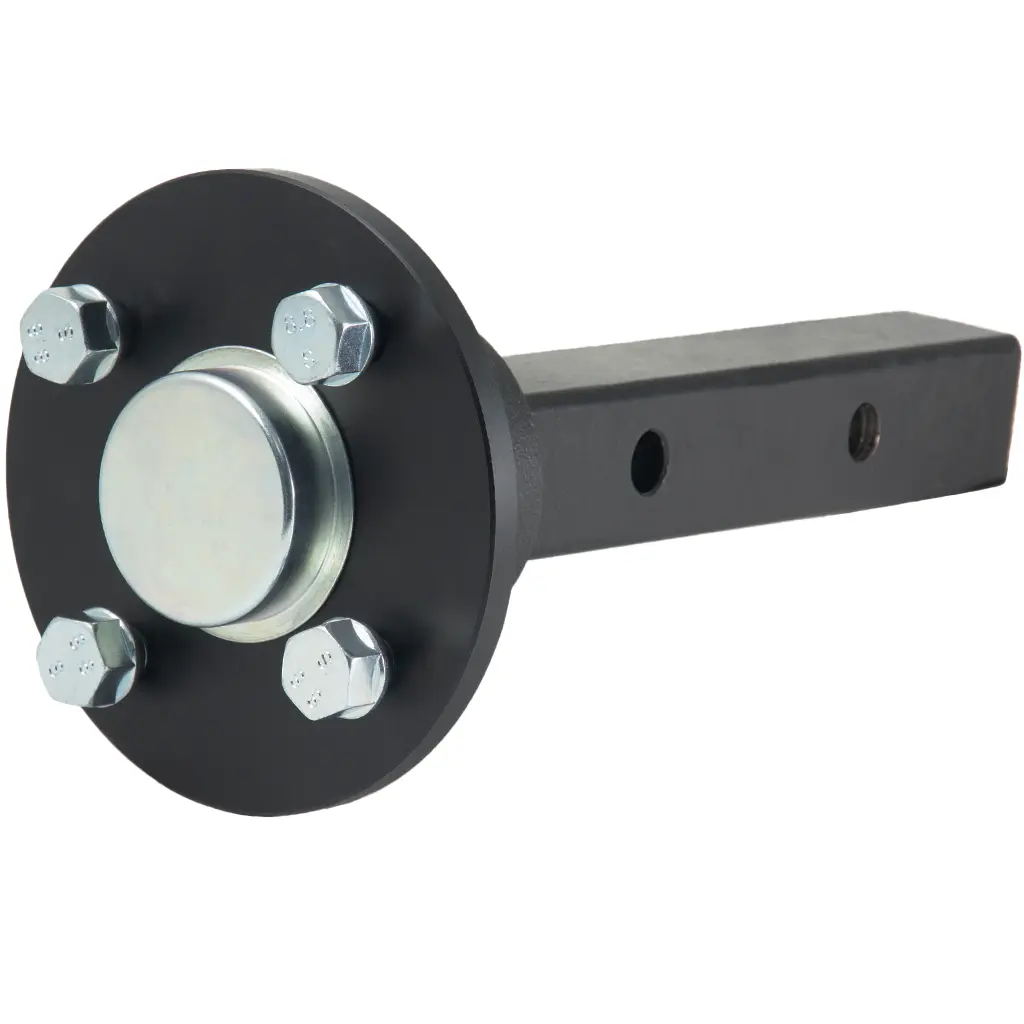

Hub & Stub Specification:
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.

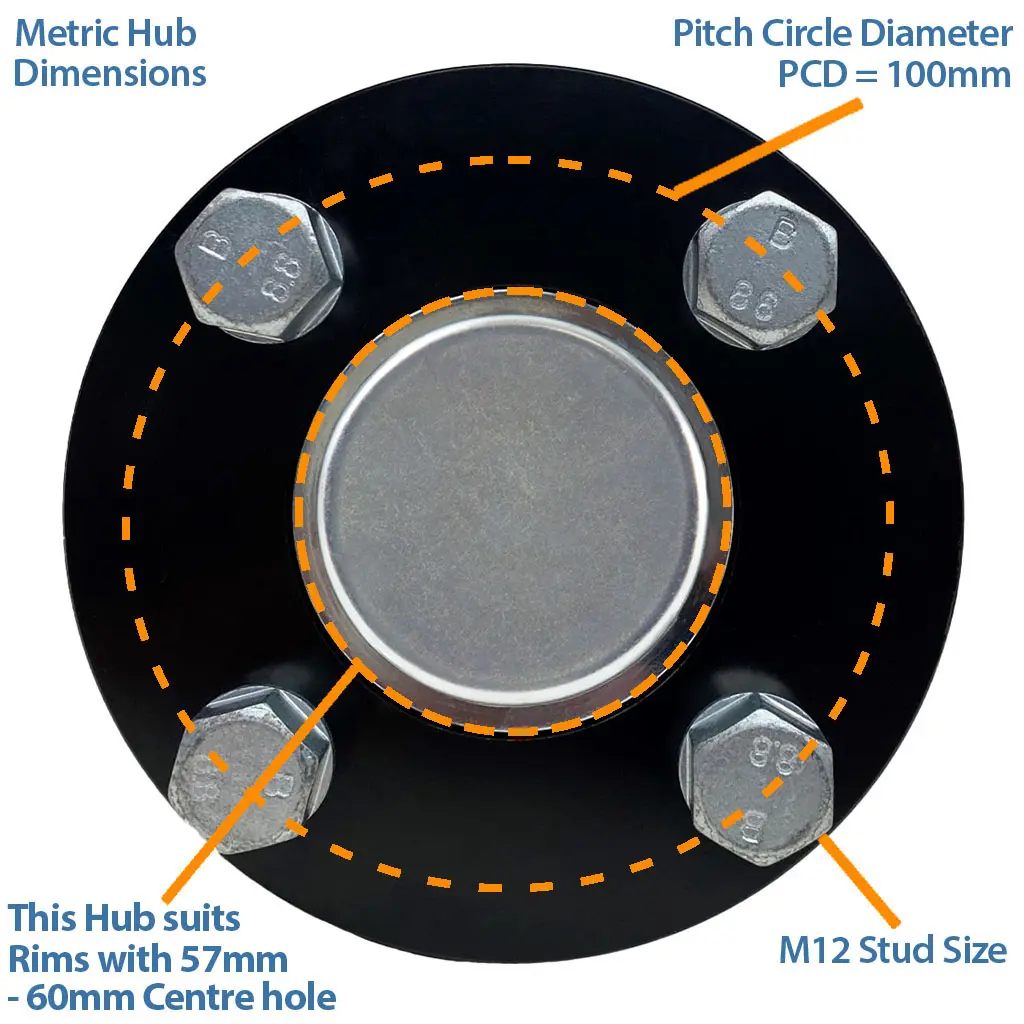

The hub has 4 x M12 studs, the PCD is 100mm.

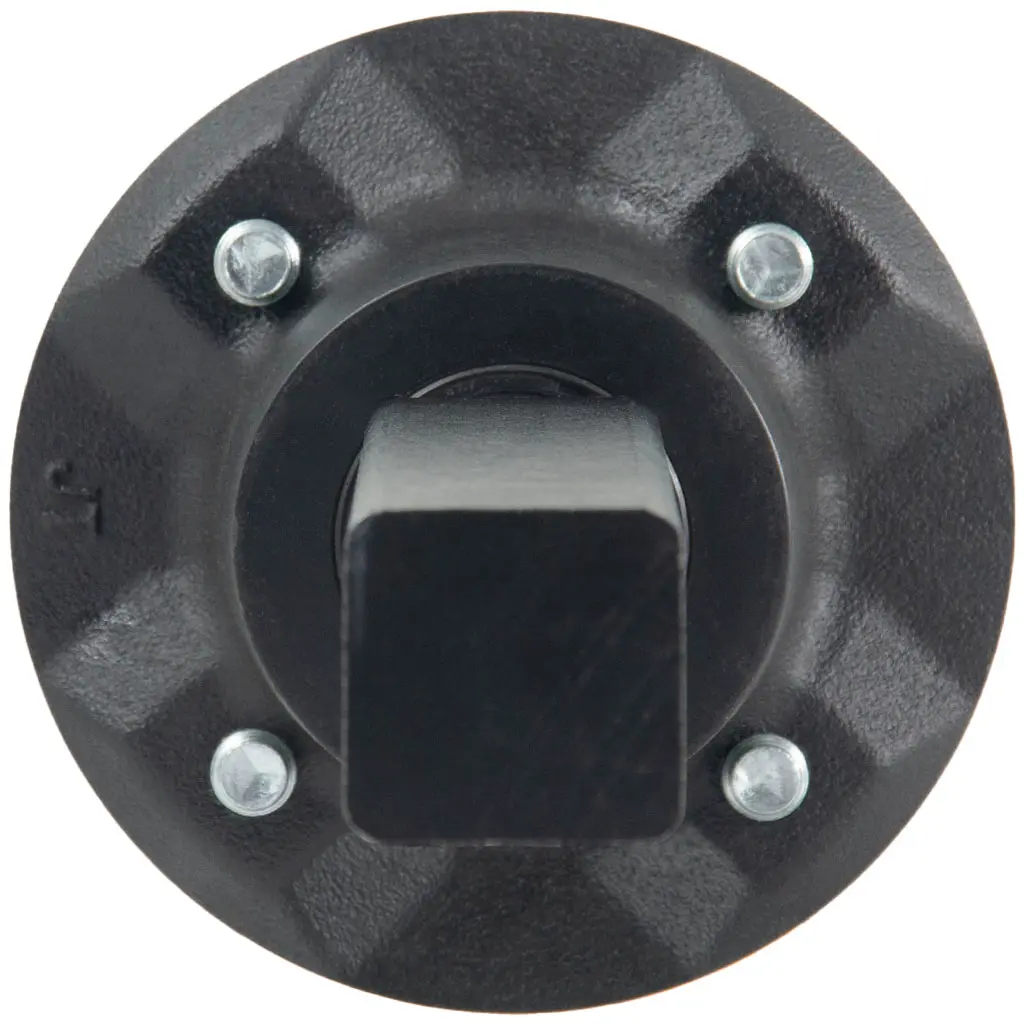

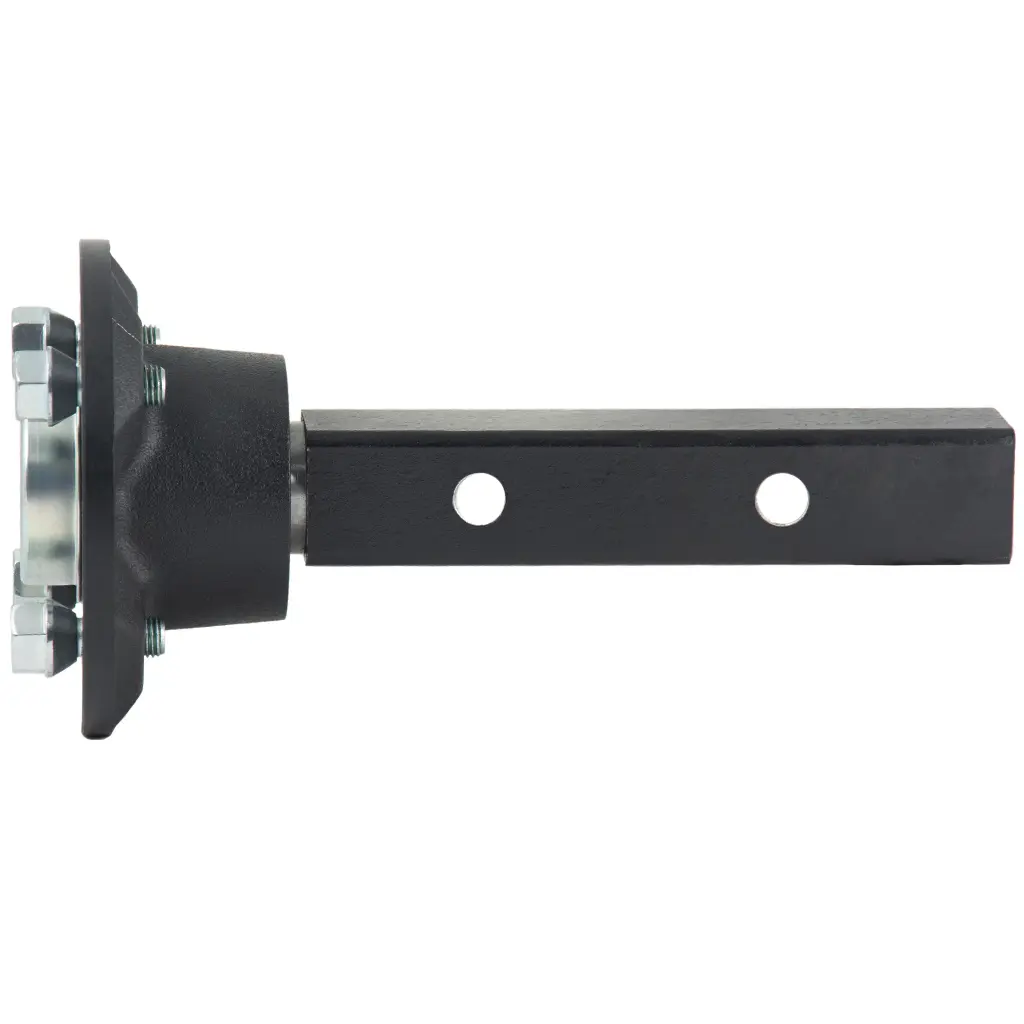

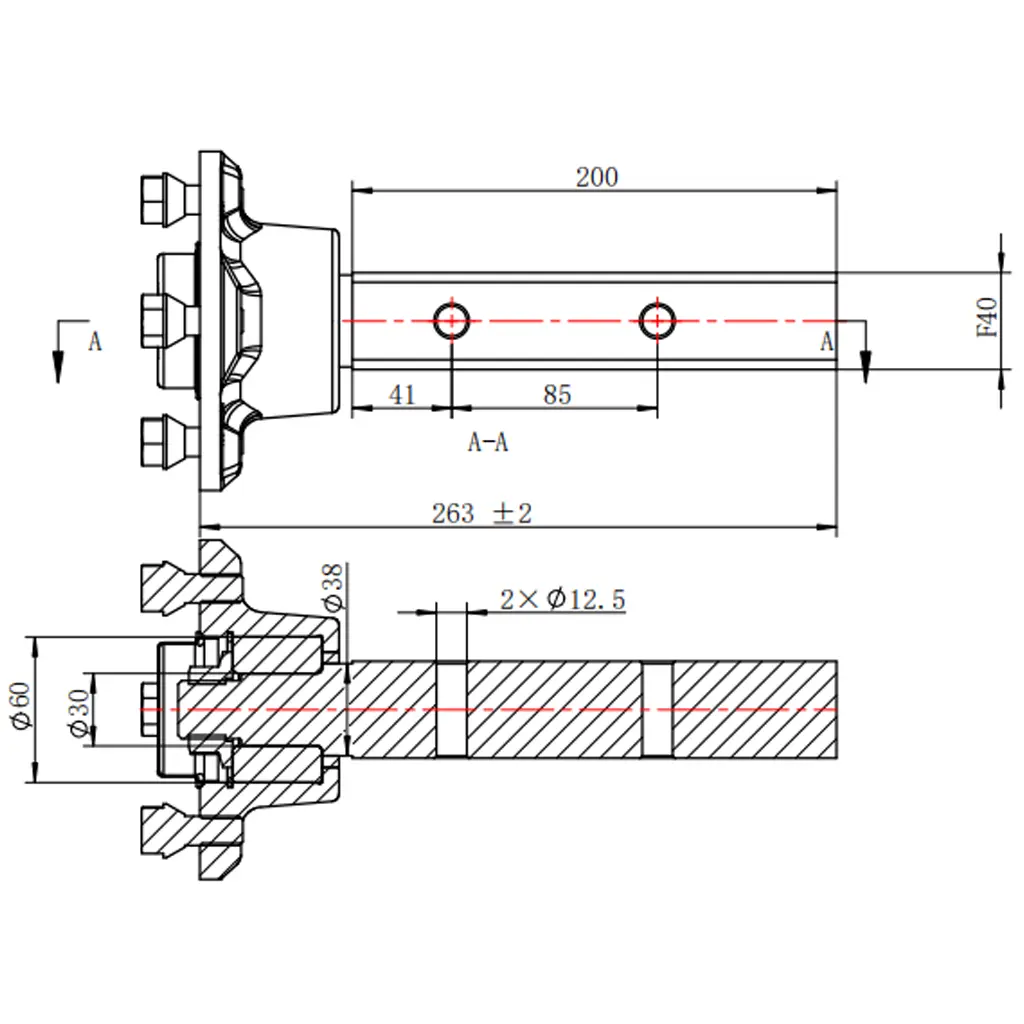

The shaft is 40x40mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
The stub bar has two pre-drilled mounting holes.
This kit is for on and off road use, up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 900kgs.
| Part Number | EC1288 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| Tube Tyre (TT/TL) | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7 |
| Section Width (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| Stud / PCD | 4x100 |
| E-Mark | E4-106R-003460 |
| Item dimensions (mm) | 500x500x240 |
| Max Load (Kg) | 545 |
