22x11.00-8 Wanda P308 ATV trailer kit
11 sold in last 24 hours
Wheel Size: 22x11.00-8
Axle Size: 35mm Square, 200mm Long
Load Capacity: 310kgs
ATV trailer kit.

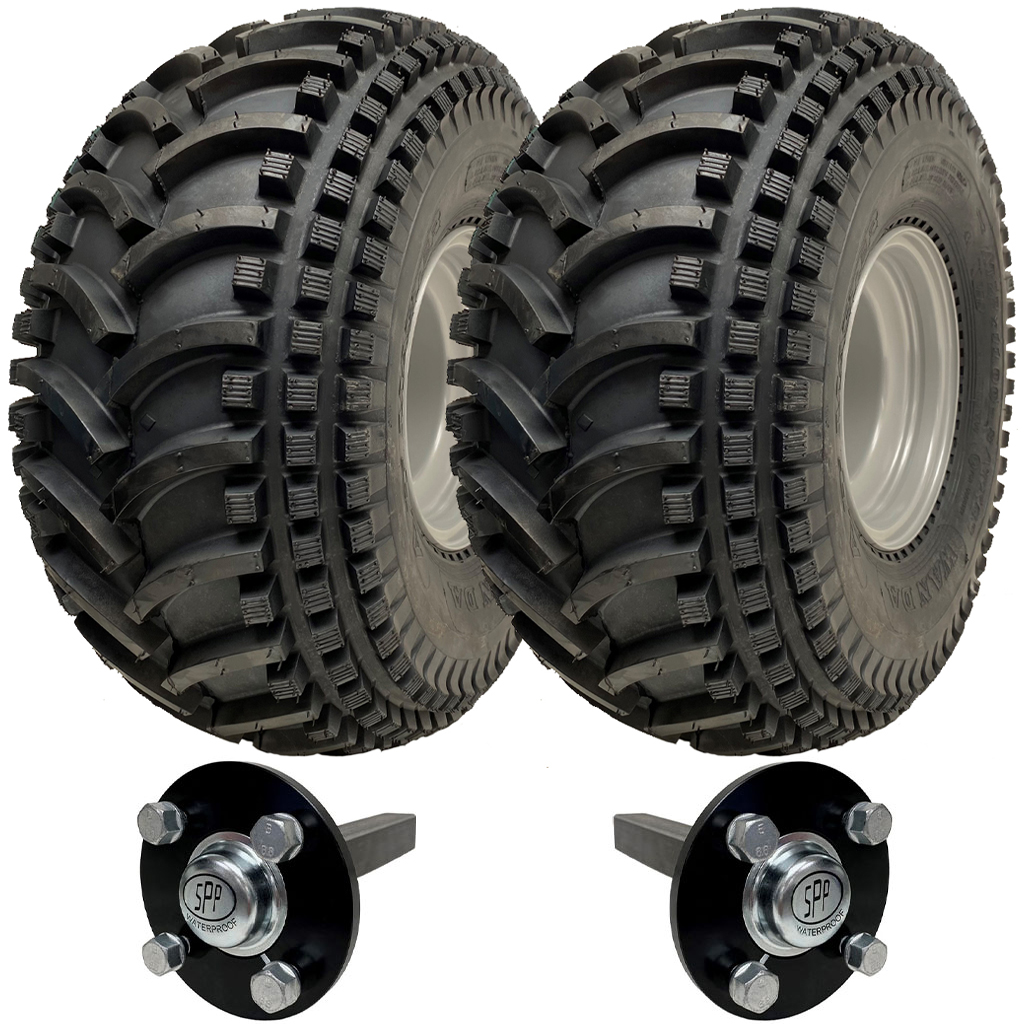

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
Wheel Specifications:
22x11.00-8 4ply Wanda P308 knobby open centre tyres on steel rim 4x100mm PCD,
Overall diameter: 535mm,
Max width of tyre: 260mm,
Tread depth: 16mm,
Inflation: 5psi,
Max load per wheel: 155kg @ 100km/h (load/speed index: 43J),
E-marked road legal tyres,
Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.
Hub & Stub Axle Specifications:
Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by SPP (Steelpress, Poland).
Maximum Kit load capacity 310kgs.
| Part Number | EC1337 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P308 |
| Tread Depth (mm) | 16.0 |
| SW (mm) | 260 |
| OD (mm) | 535 |
| PSI | 5 |
| Load/Speed Index | 43J |
| Stud / PCD | 4x100mm |
| E-Mark | E4-75R-0006182 |
| Max Load (Kg) | 310 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
