20x10.00-8 Grass tyre trailer kit, 40 x 40 hub stub axles, cast tow hitch
11 sold in last 24 hours
Wheel Size: 20x10.00-8
Axles: 40x40 square, 125mm long
Load Capacity: 900kgs

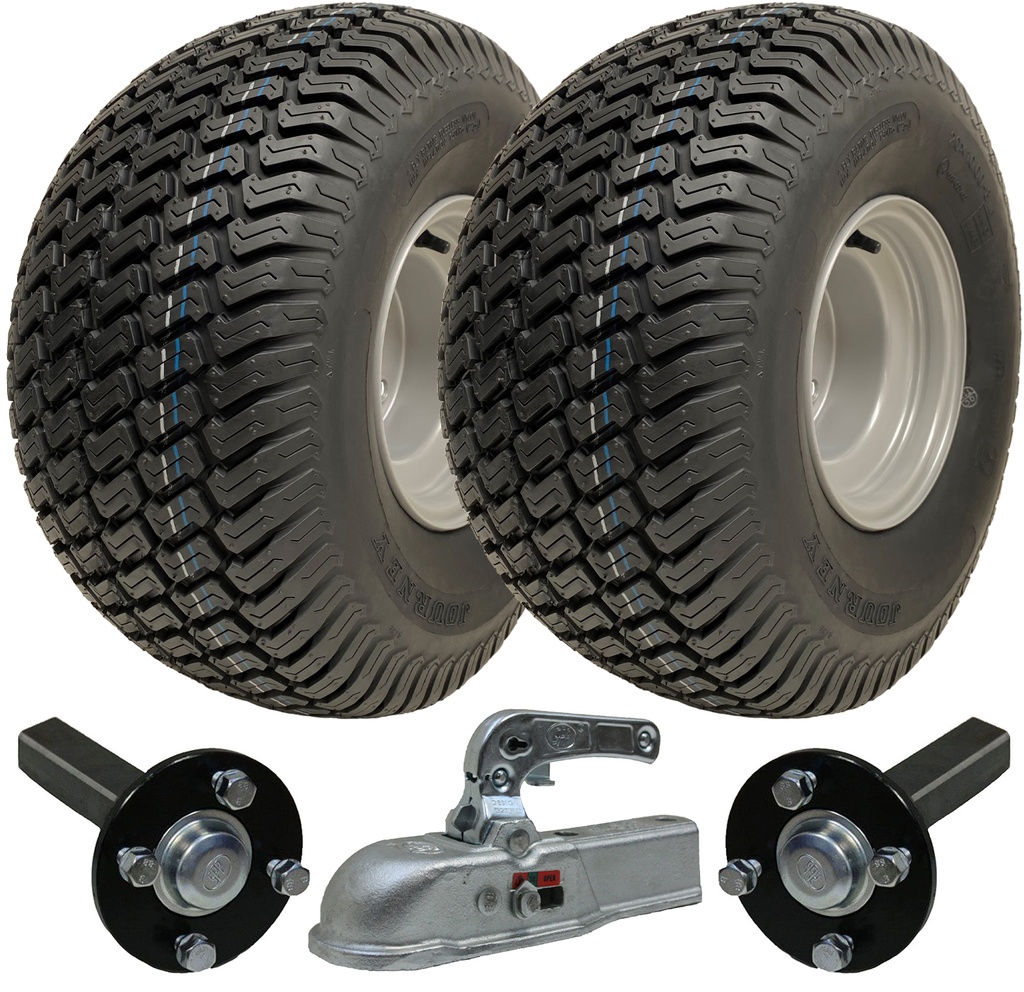

This kit contains:
Two – 20x10.00-8 wheels
&
Two - 40mm x 40mm hub and stub axles.
1 - Cast tow hitch.
Wheel Specification:
Size: 20x10.00-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 545kgs at 22PSI,
Tyre height: 500mm,
Tyre width: 240mm,
Tread Depth: 7.1mm,
Speed rating A4: 20km/h,
E Marked road legal: E4-106R-003460.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

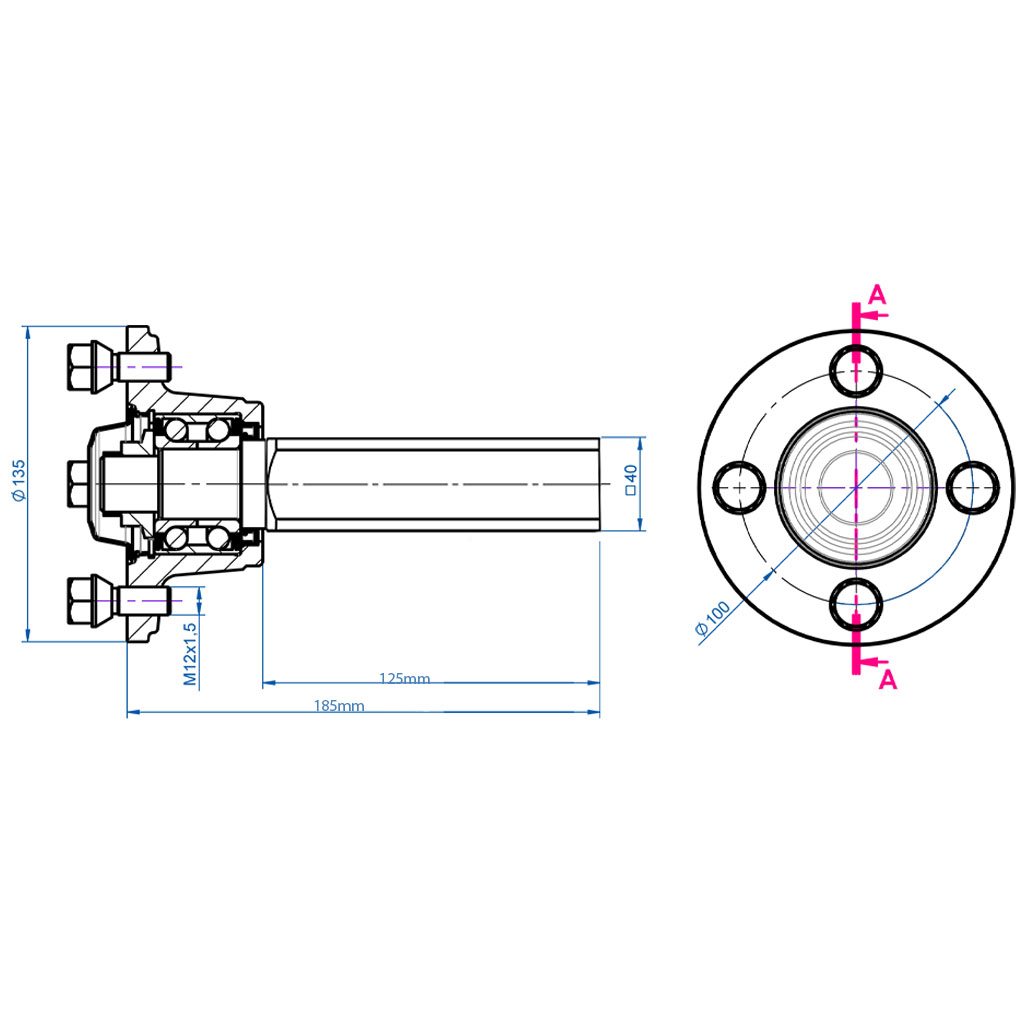

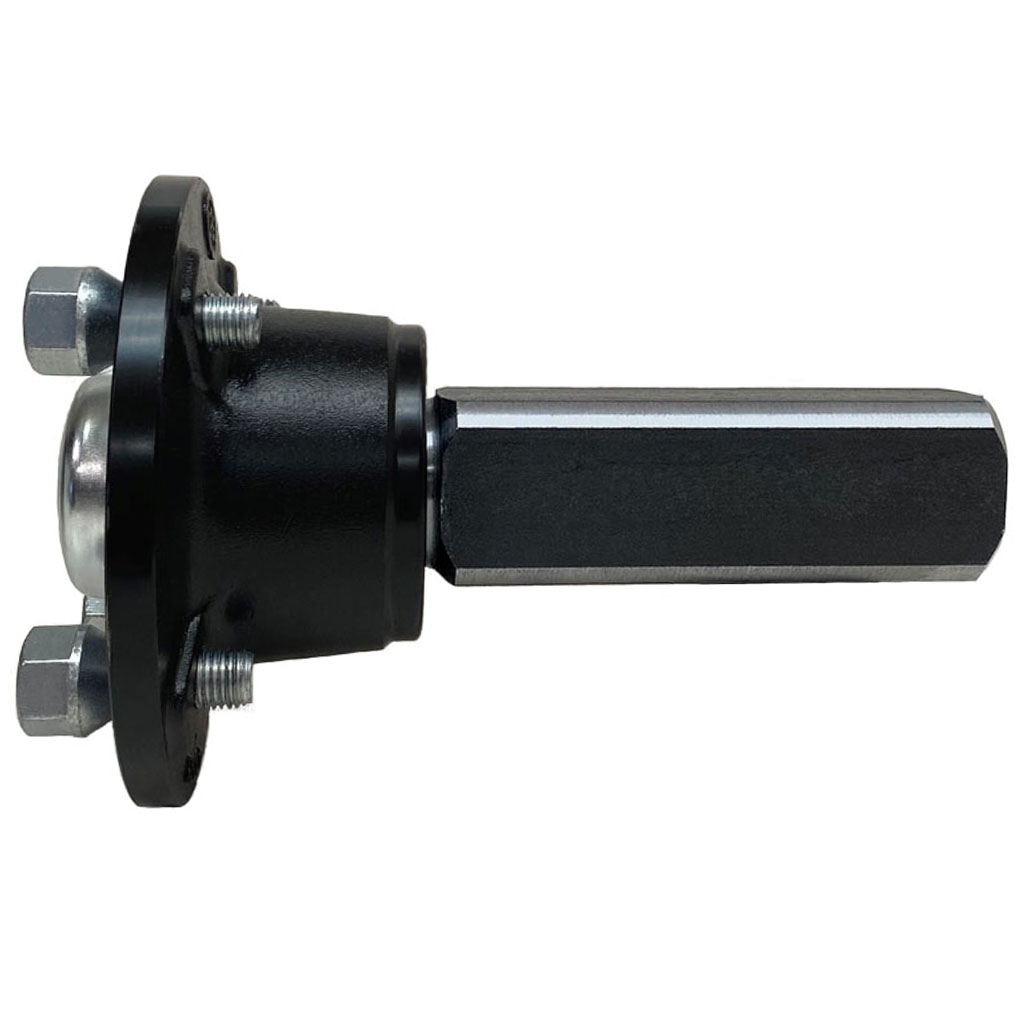

Hub & Stub Specification:
These are genuine 'Steelpress Production' parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 40x40mm square, 125mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 900kg per pair.
Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle. Double movement opening.
To fit on round or square bar.
This kit is for on and off road use, up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 900kgs.
| Part Number | EC1460 |
| Brand | Parnells |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P334 |
| Tread Depth (mm) | 7.1 |
| SW (mm) | 236 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| Stud / PCD | 4x100mm |
| E-Mark | E4-106R-003460 |
| Max Load (Kg) | 540 |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| Hitch (1pcs) | SPP 3000kg Cast Hitch |
