18x9.50-8 Grass care trailer kit, 35mmx35mm SPP axles, Cast steel hitch 750kgs
Part number: EC1536
Tyre Size: 18x9.50-8
Stub Axle: 35x35mm square, 200mm long
Load Capacity: 750kgs
ATV Grass trailer kit 18x9.50-8.

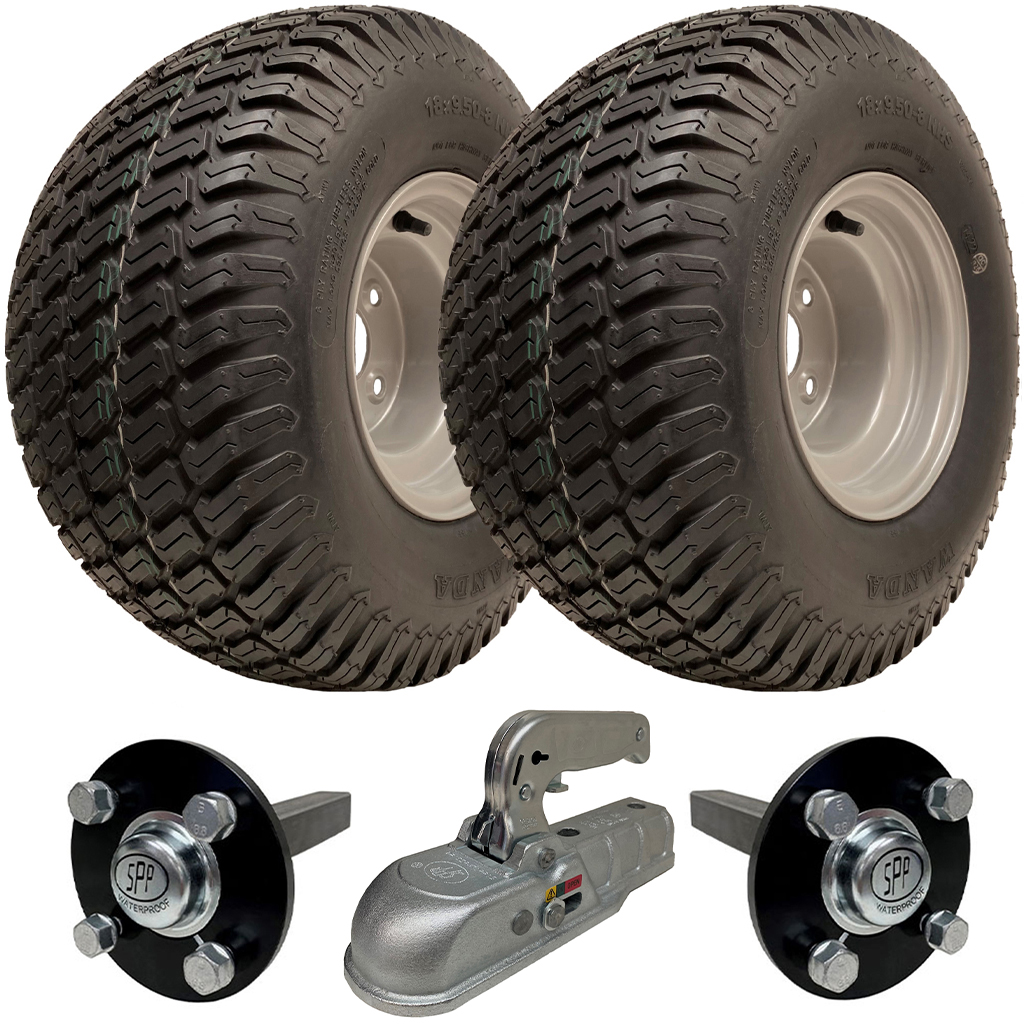

This kit contains:
2 - 18x9.50-8 wheels
2 - 35mm x 35mm hub and stub axles.
&
1 - Cast Steel tow hitch.

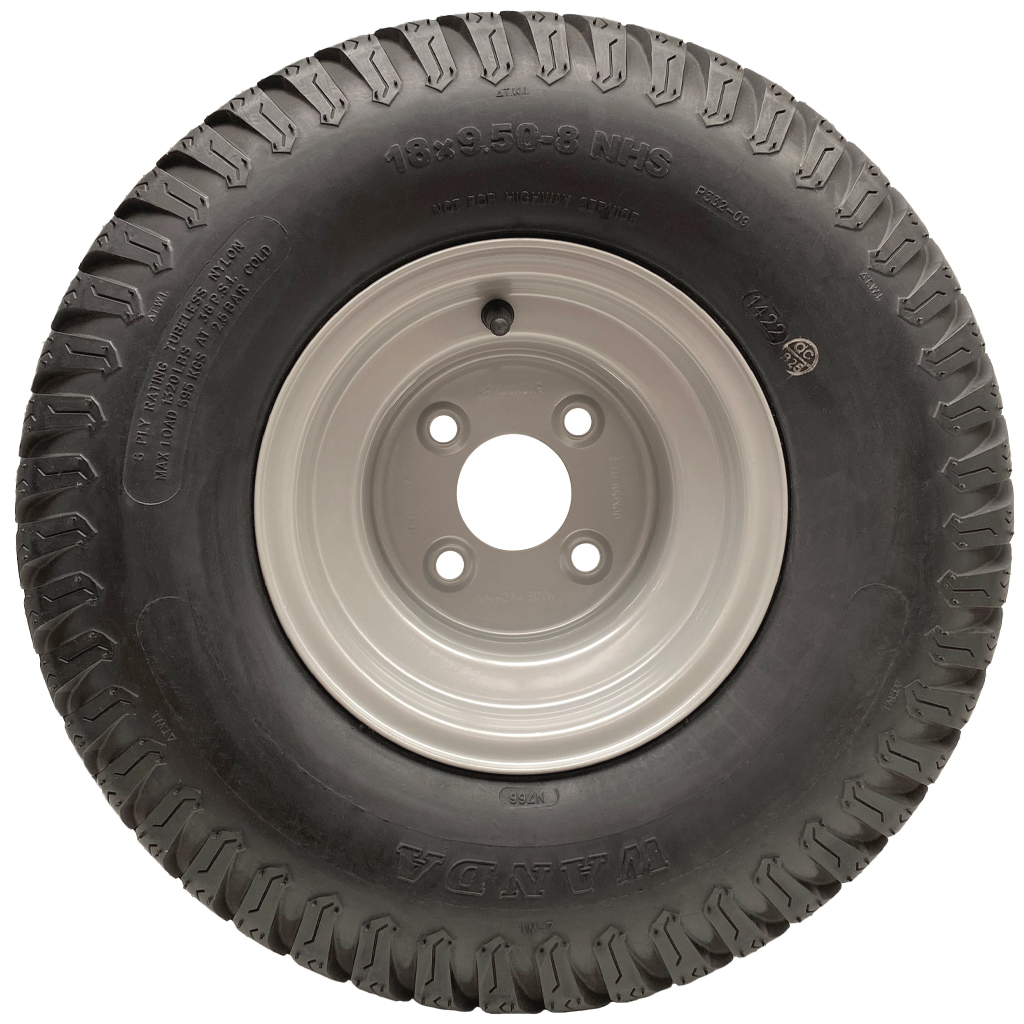

Wheel Specification:

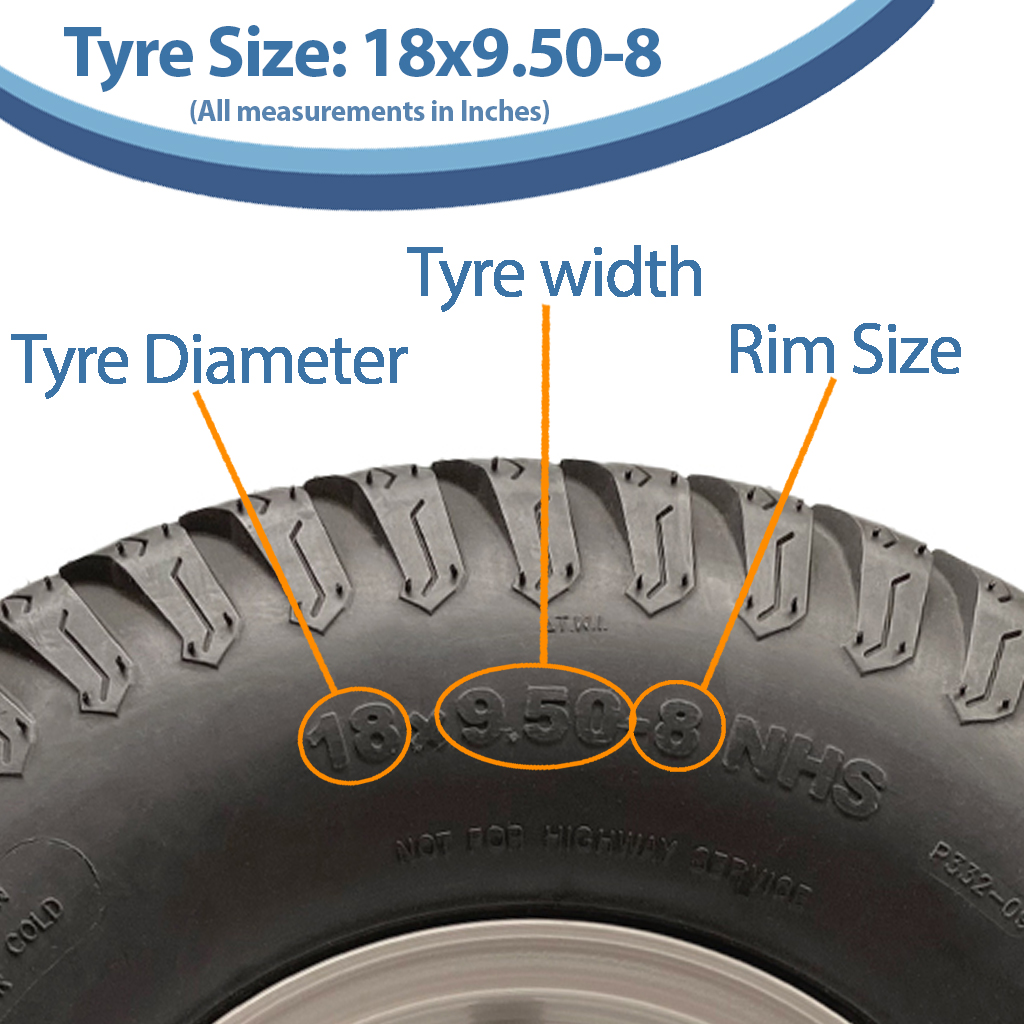

Size:18x9.50-8,
Brand: Wanda,
Tyre pattern: P332,
Ply rating: 6ply,
Load capacity: 595kgs at 36PSI,

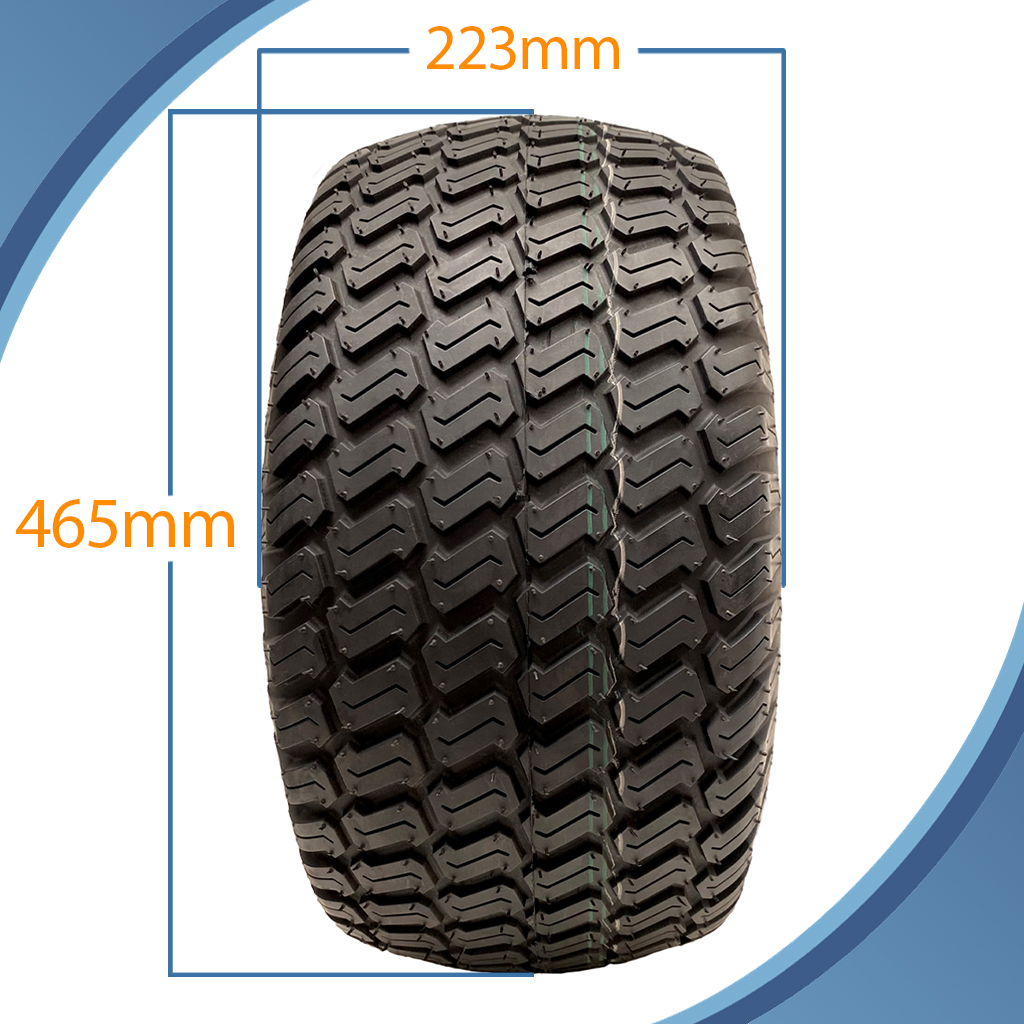

Tyre height: 465mm,
Tyre width: 223mm,
Tread Depth: 5mm,
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.

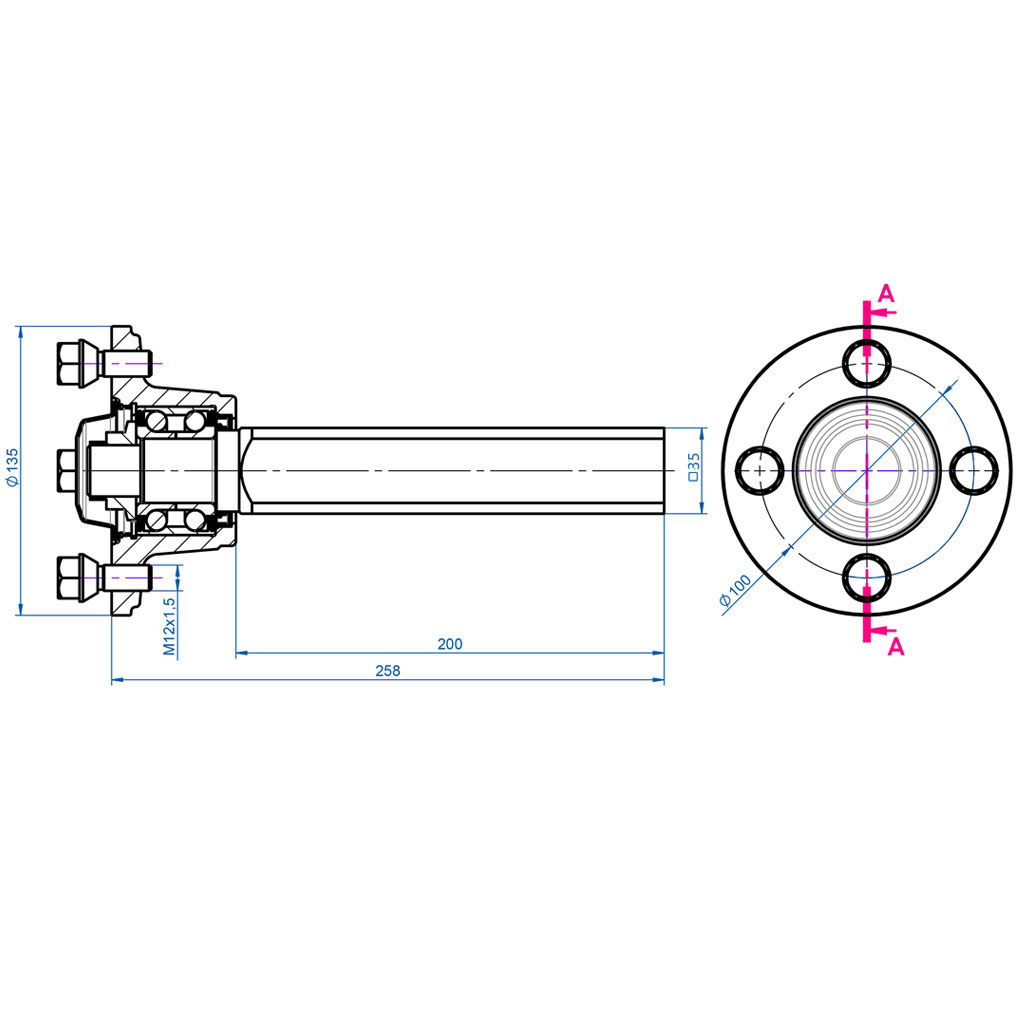

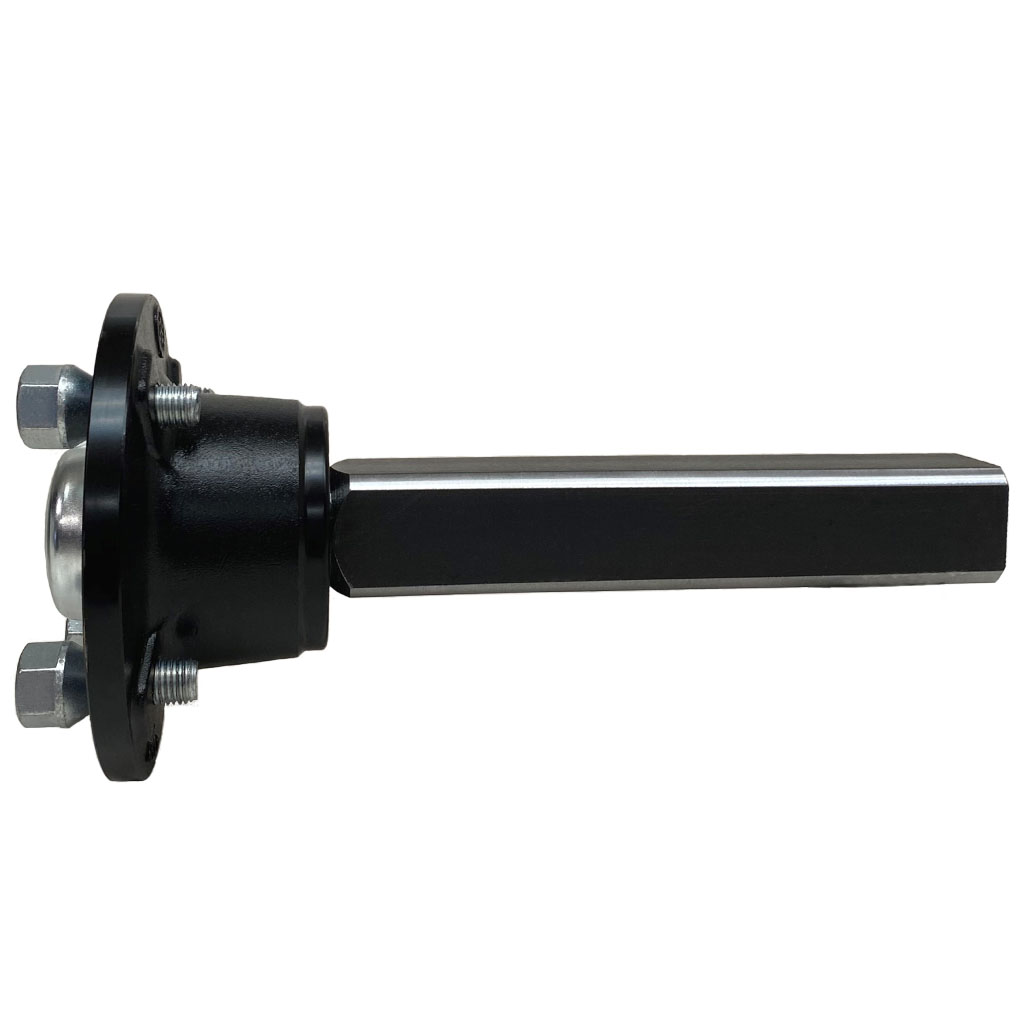

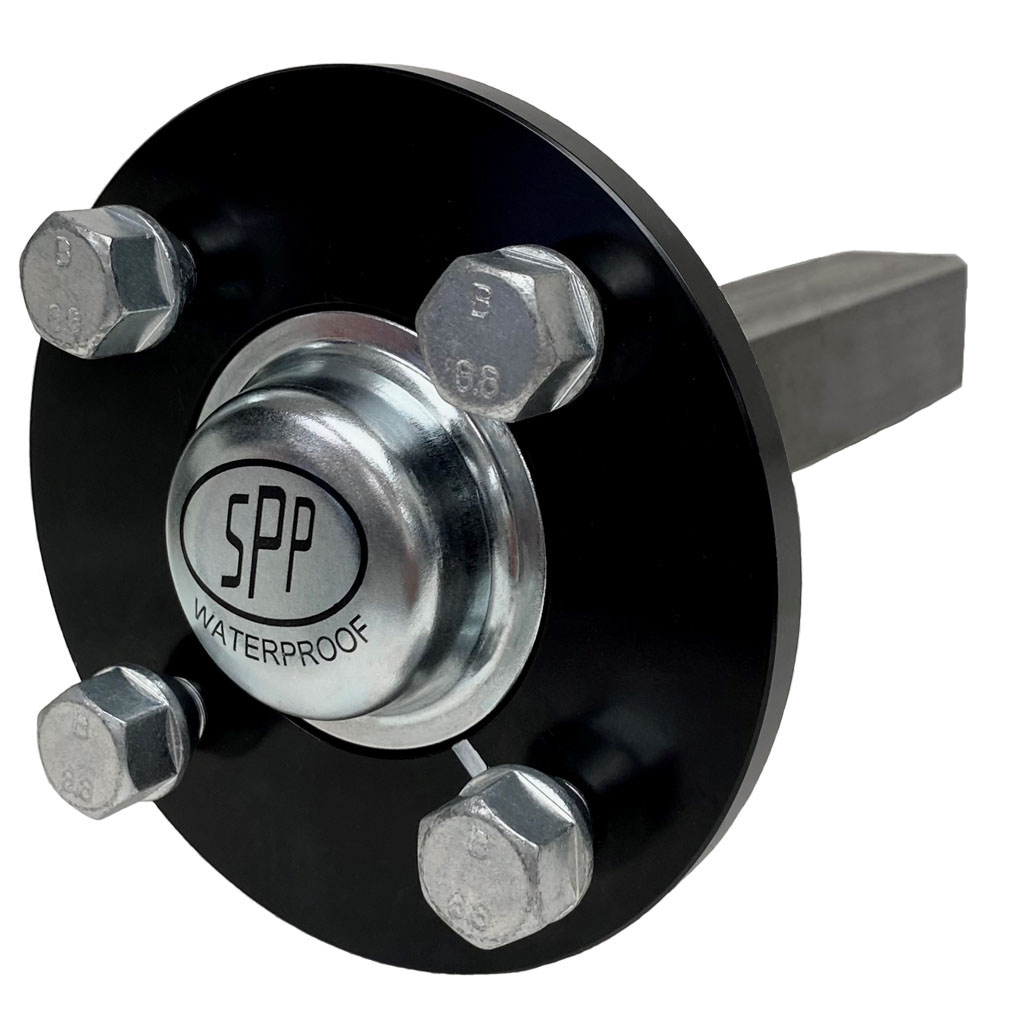

Hub & Stub Specification:
These are genuine 'Steelpress Production' parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 35x35mm square, 200mm long (solid steel) with rounded edges for ease of fitment.
Weight capacity is 750kg per pair.

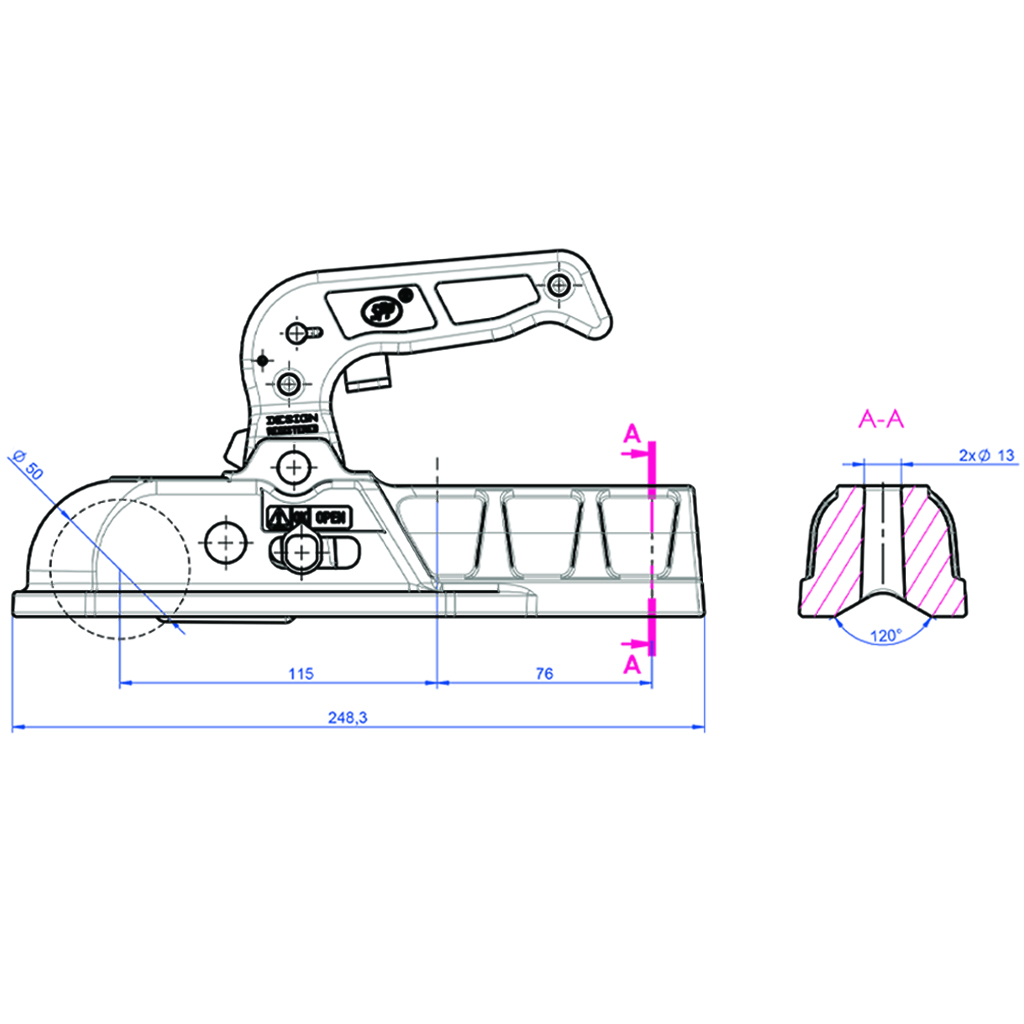

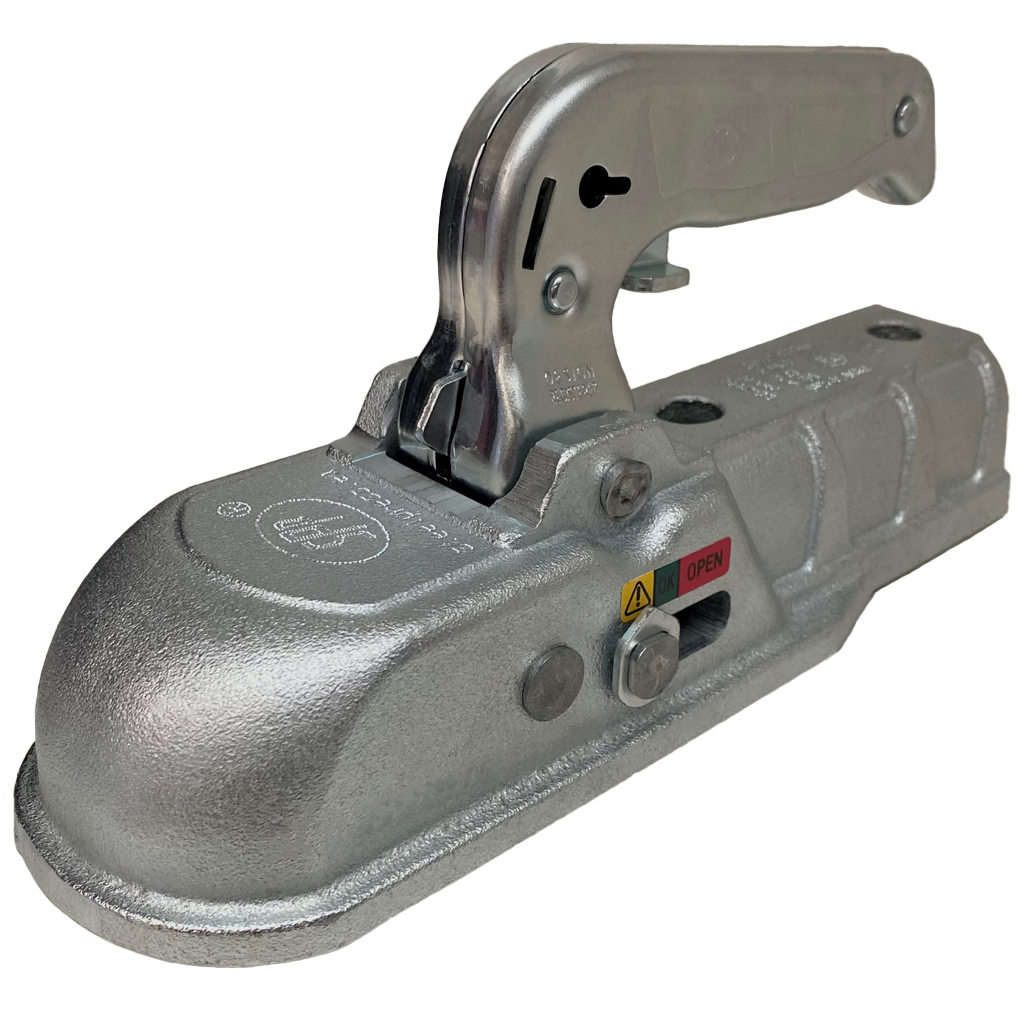

Hitch Specifications:
SteelPress Production Cast tow Hitch.
Manufactured in the EU.
This hitch sits on 50x50mm box section.
Fixed in place with 2 mounting holes 76mm Apart (hole centres).
The bolt holes are for an M12 bolts.
Security Lock Facility (keys are sold separately).
They are manufactured in the EU.
'E' marked for road legal high speed use in Europe and the UK.
Suits 50mm tow ball.
Cast Steel body, pressed steel handle.
3000kgs load capacity.
This kit is for off road use only.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces .
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 750kgs.
| Part Number | EC1536 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 18x9.50-8 |
| Ply | 6 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 5.0 |
| Rim Width (in) | 7.0 |
| SW (mm) | 223 |
| OD (mm) | 465 |
| PSI | 36 |
| Stud / PCD | 4x100mm |
| E-Mark | No |
| Max Load (Kg) | 750 |
| Hub & Stub Axle (2pcs) | (31628, '[HU1002] Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed') |
| Hitch (1pcs) | SPP 3000kg Cast Hitch |
