20.5x8.00-10 Twin Axle Trailer kit 4ply Wheels & Hub & Stub axle 35mm x 35mm
4 sold in last 24 hours
Wheel Size: 20.5x8.00-10
Hub & Stub Axle Size: 35mm Square, 200mm long
Load Capacity: 750kg

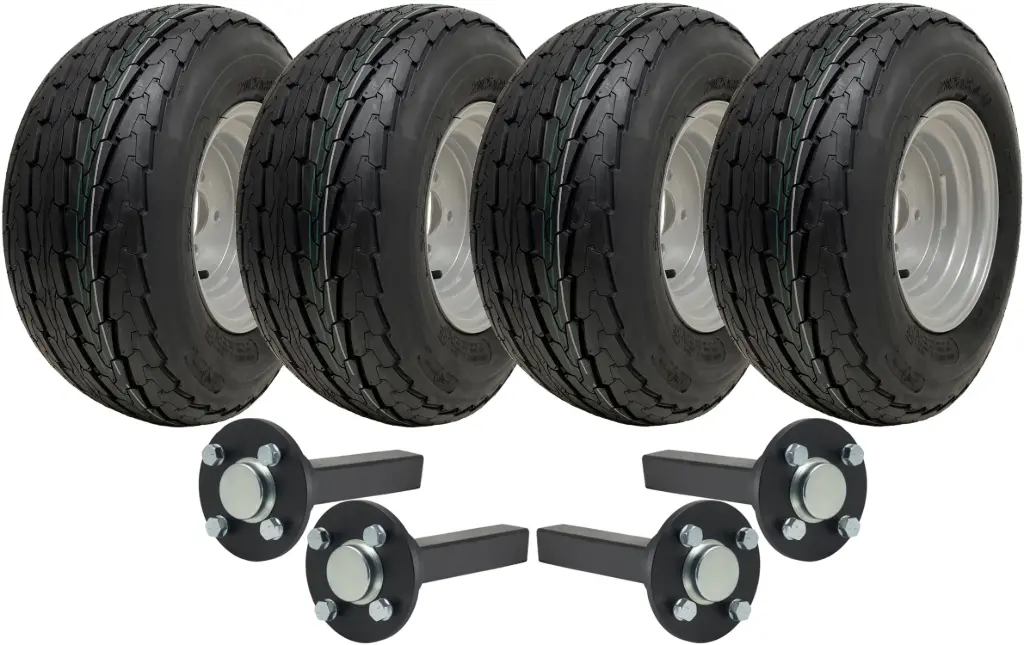

This Kit contains:
Four: High Speed Wheels (tyres fitted on rims)
&
Four: High Speed Hub & Stub Axles.
Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim. These are tubeless tyres.
They are E marked for road legal use in Europe and the UK.
They are hard wearing 4ply tyres with a tread depth of 7mm.
The wheels are heavy duty steel rims with 4 studs 100mm PCD,
(the centre hole is 60mm).
Wheel Specifications:
Overall diameter: 520mm,
Max section width: 205mm,
Max load: 910lbs (412kg),
tread Depth: 7mm,
Brand: Wanda,
Tyre pattern: P815,
PSI: 35,
Max speed: 130km/h (81mp/h).
Rim Specifications:
Rim Size: 6.00x10,
Pitch Circle Diameter: 100mm PCD,
Centre Hole Size: 60mm,
Stud Hole Size: 14.5mm,
Rim Offset: ET-4 (offset 4mm towards the inside edge),
Silver powder coated finish with electro coating.

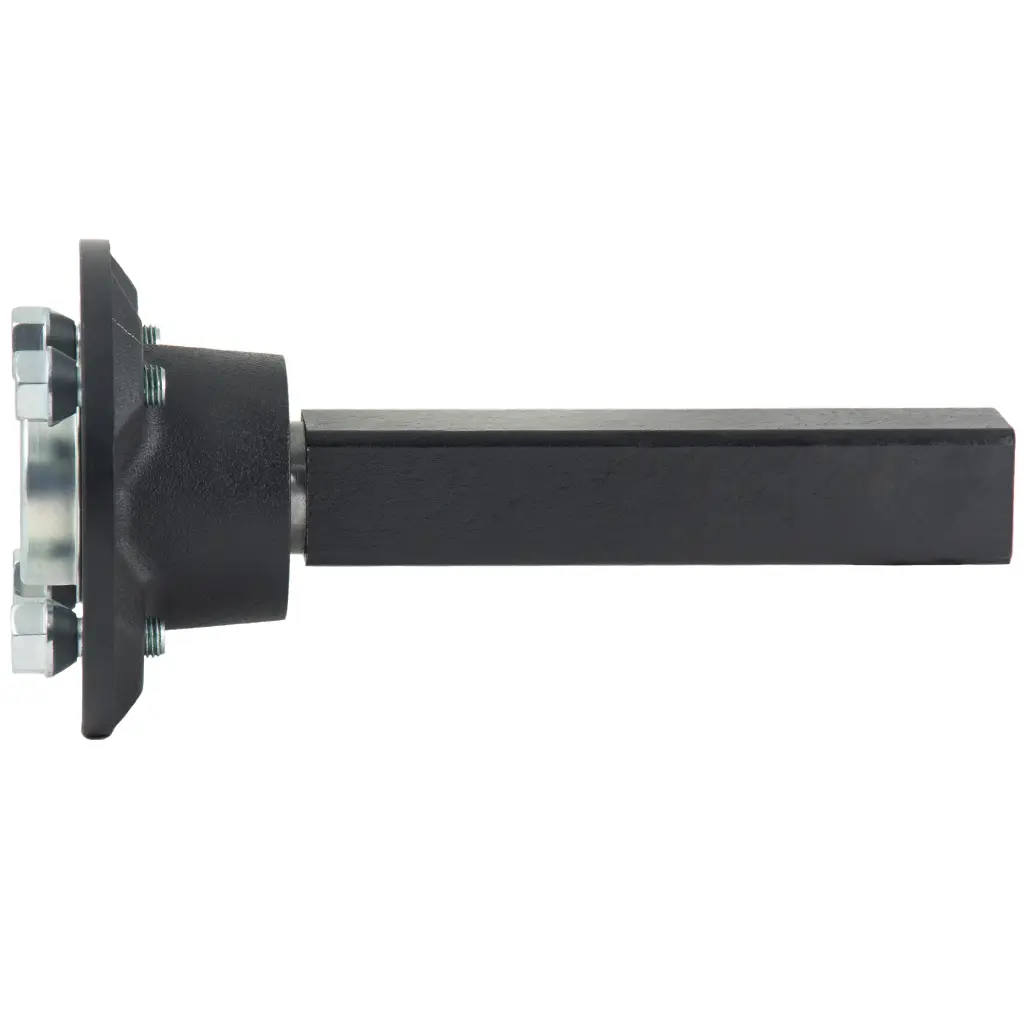

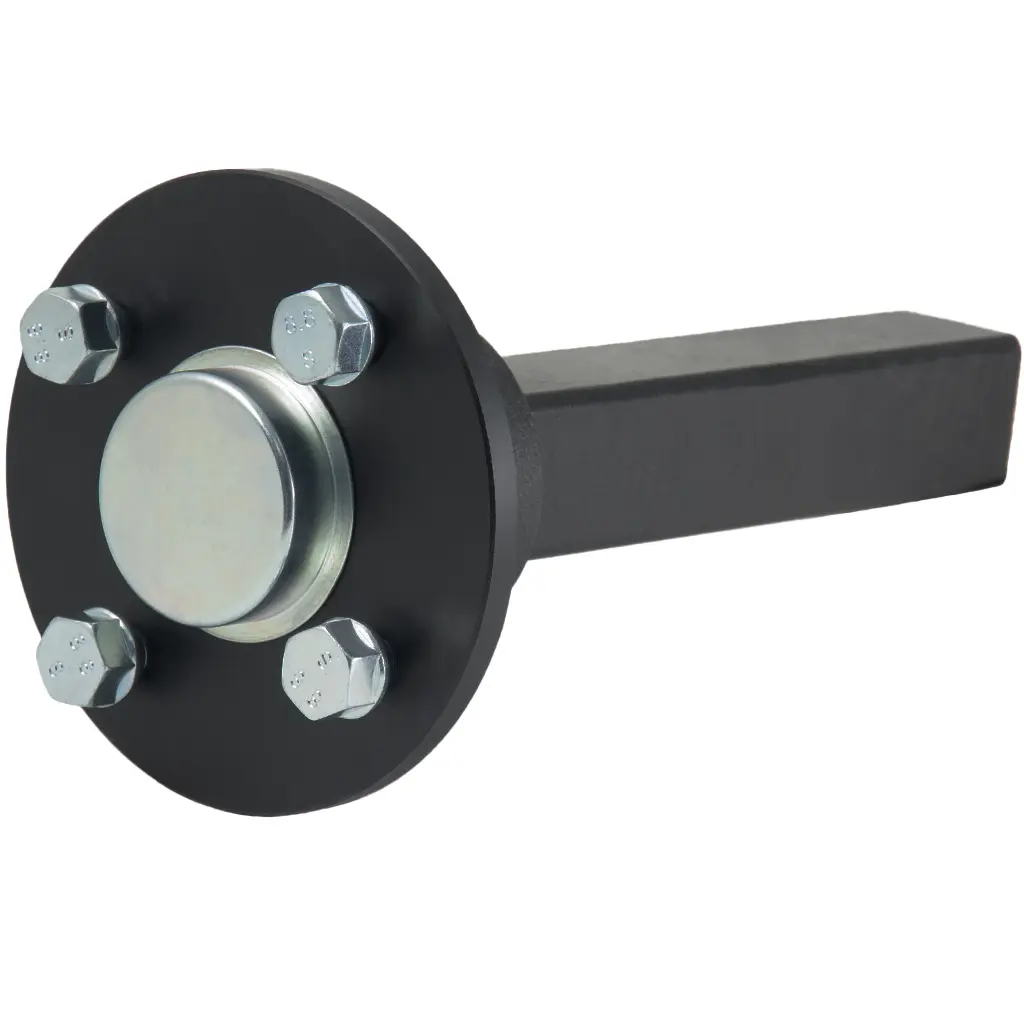

Hub & Stub Axle Specifications:
These hubs are rated to 80mph, they are fully legal to use on the road.
They have sealed precision ball bearings, they never need to be greased.

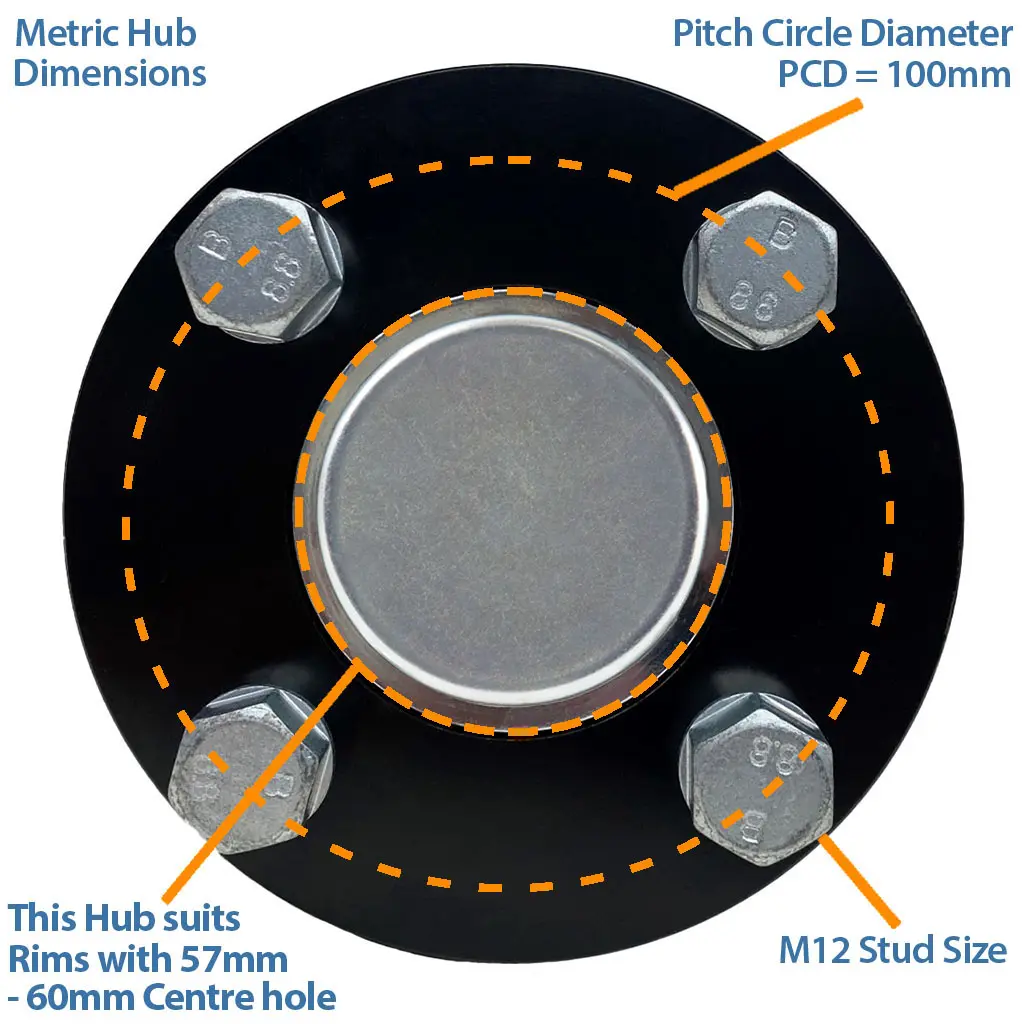

The hub has 4 x M12 studs, the PCD is 100mm.

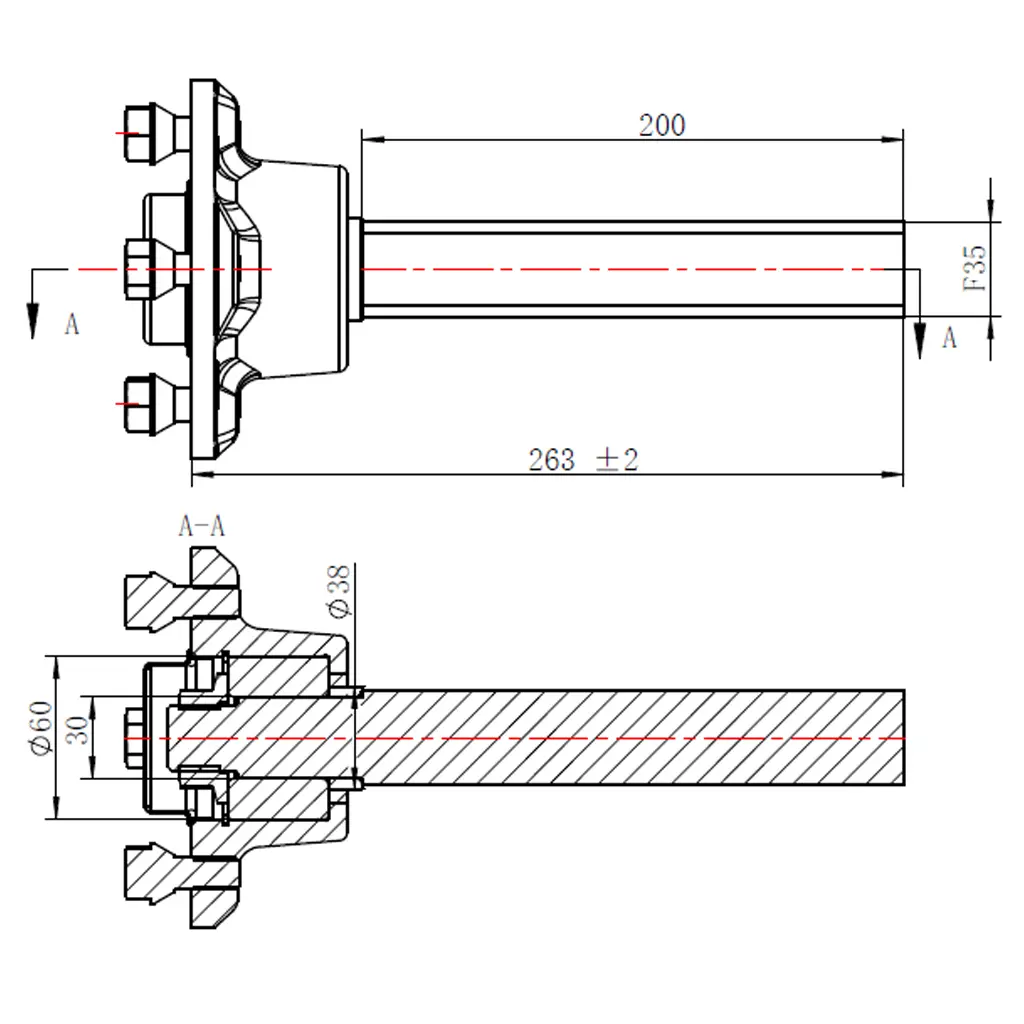

The shaft is 35mmx35mm square - 200mm long (solid steel) with rounded edges for ease of fitment.
Maximum Kit Load Capacity 750kgs.
(Road Legal maximum weight for a trailer without brakes in 750kgs).
| Part Number | EC1630 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20.5x8.00-10 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P815 |
| Tread Depth (mm) | 7 |
| SW (mm) | 205 |
| OD (mm) | 520 |
| PSI | 35 |
| Stud / PCD | 4x100 |
| Max Load (Kg) | 1500 |
| Hub & Stub Axle (4pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
