M20x150 stainless steel levelling foot with 100mm plastic base and fixing holes 1500kg AISI 304/A2

https://www.parnells.eu/web/image/product.template/35897/image_1920?unique=7875724

Part Number: HPA101-20-150
Base Diameter: 100mm
Tread Length: M20x140mm
Thread Material: Stainless Steel
Base Material: Plastic
Load Capacity: 1500kg

29.78 € 29.78 EUR 29.78 €

34.59 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Brand
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M20x150 Stainless levelling foot 100mm plastic base with holes 1500kg AISI 304/A2

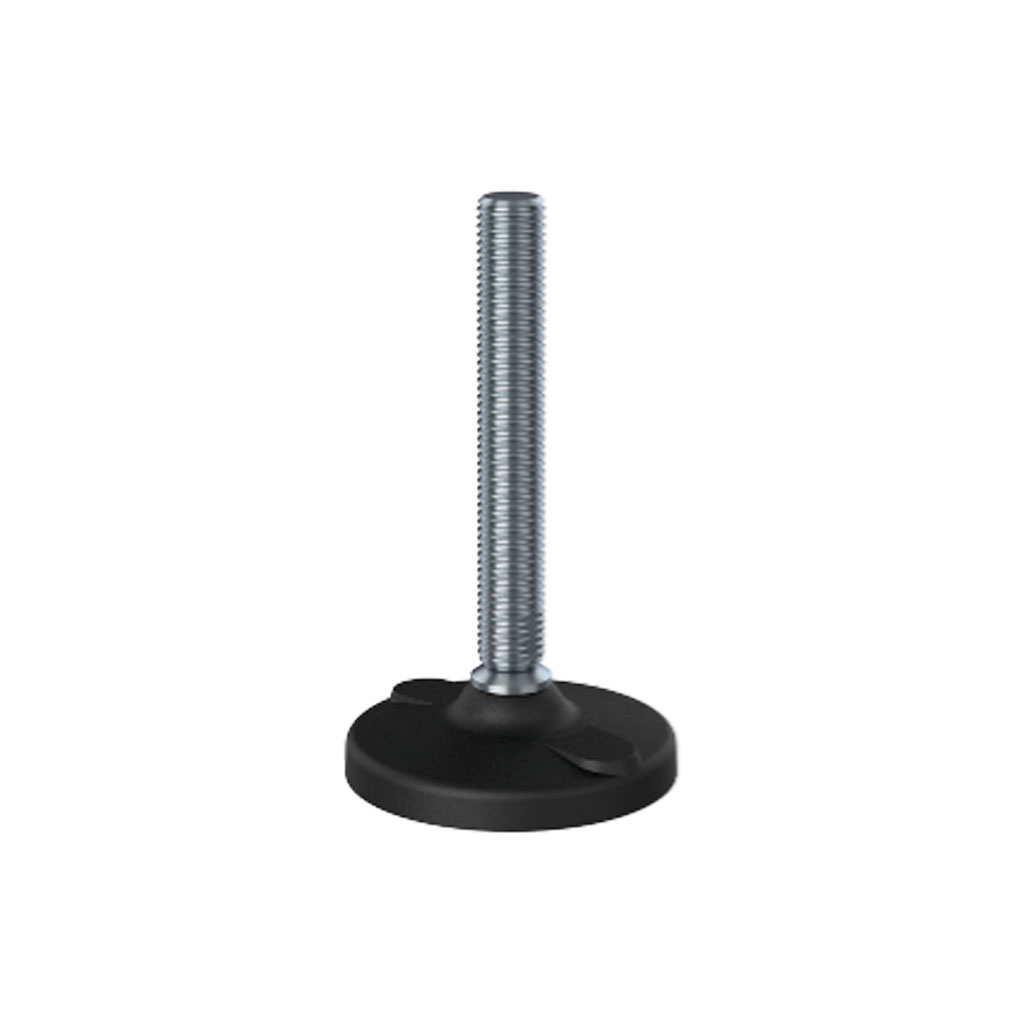

M20x150 stainless steel levelling foot with 100mm plastic base and fixing holes 1500kg AISI 304/A2

  • Fully threaded levelling foot made of stainless steel thread (material no.  AISI304/A2) and plastic base.
  • 10° articulation for uneven floors.
  • Hygienic-oriented design due to self-draining surfaces.
  • It is possible to fasten the base to the floor by the two pre-pressed fixing holes, which are easily pressed out using a screwdriver.
Part Number HPA101-20-150
Hole Diameter (mm) 12
Thread Size M20
Brand NGI
Thread Length (mm) 140
Base Height (mm) 34
Base Diameter (mm) 100
Hole Position (mm) 37.1
Max Load (Kg) 1500
