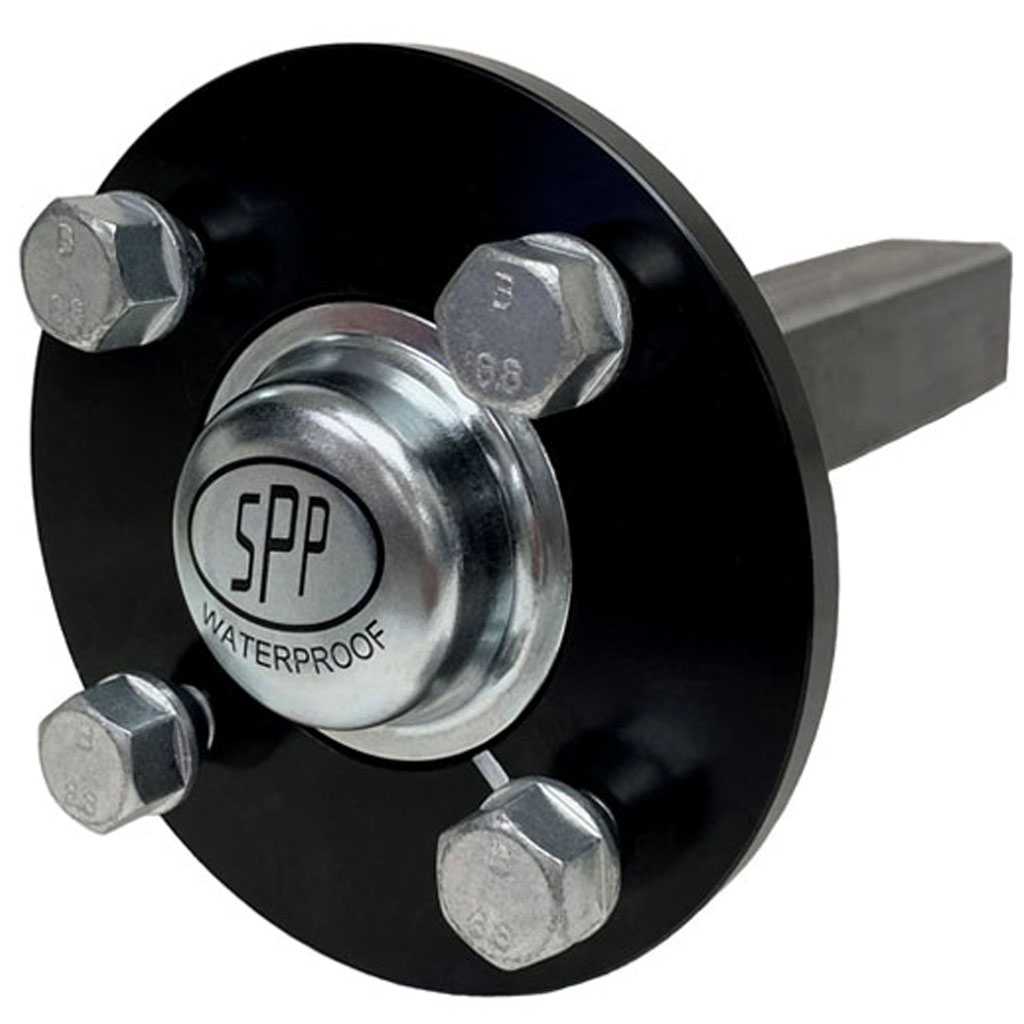

40x40mm Hub & Stub axle 4/100 M12 wheel bolt High speed
12 sold in last 24 hours
Stub Thickness: 40mm x 40mm
Stub Length: 125mm
Max Capacity: 450kg (900kg per pair)
SPP high quality hub & stub axle set.
40x40mm solid square stub axle for welding or drilling and bolting.
High-speed bearing fitted.

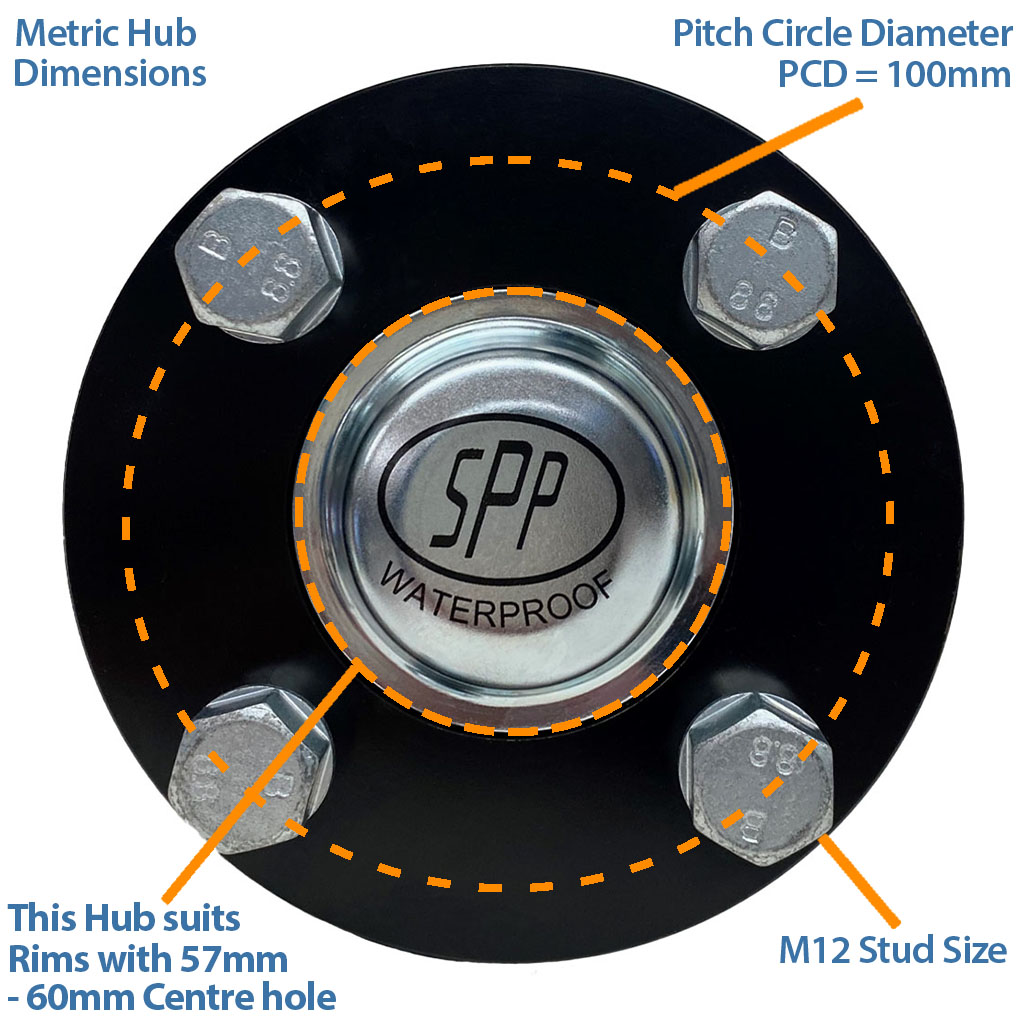

4x12mm studs @ 100mm P.C.D
| Part Number | HU1004 |
| Max Load per Hub & Stub (< 25km/h) | 750.0 |
| Brand | SPP |
| Max Load per Hub & Stub (25-90km/h) | 500.0 |
| Max Load per Hub & Stub (>90km/h) | 350.0 |

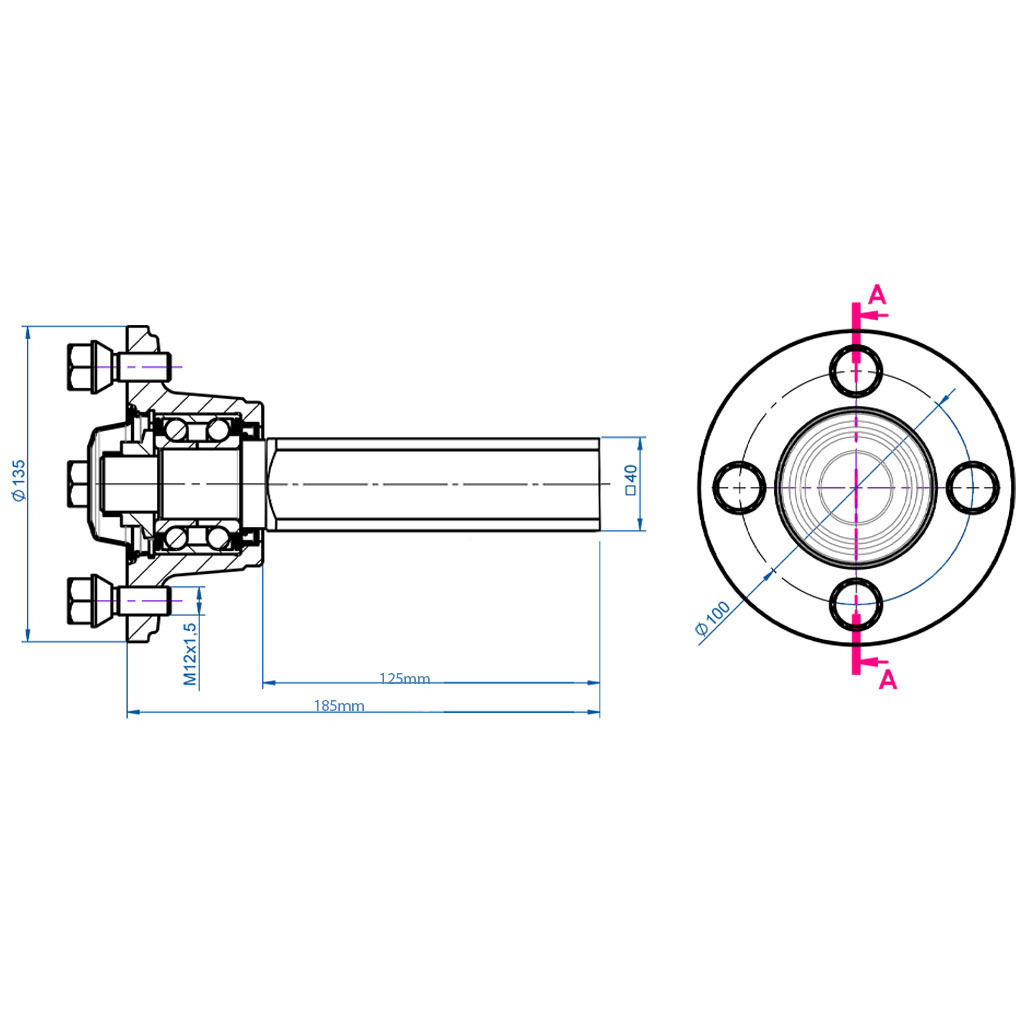

| Dimension 'A' (mm) | 126 |
| Dimension 'B' (mm) | 184.0 |
| Dimension 'C' (mm) | 40.0 |
| Hub | 4x100 |
| Max Load (Kg) (< 25km/h) | 750.0 |
| Max Load (Kg) (25-90km/h) | 500.0 |
| Max Load (Kg) (> 90km/h) | 350.0 |
