22x11.00-8 ATV Trailer Kit 6ply, Knobby Pattern, Load Capacity 612kgs
Part number: KIT1027
Wheel Size: 22x11.00-8
Stub axles: 35mm square, 200mm long
Load Capacity: 612kg

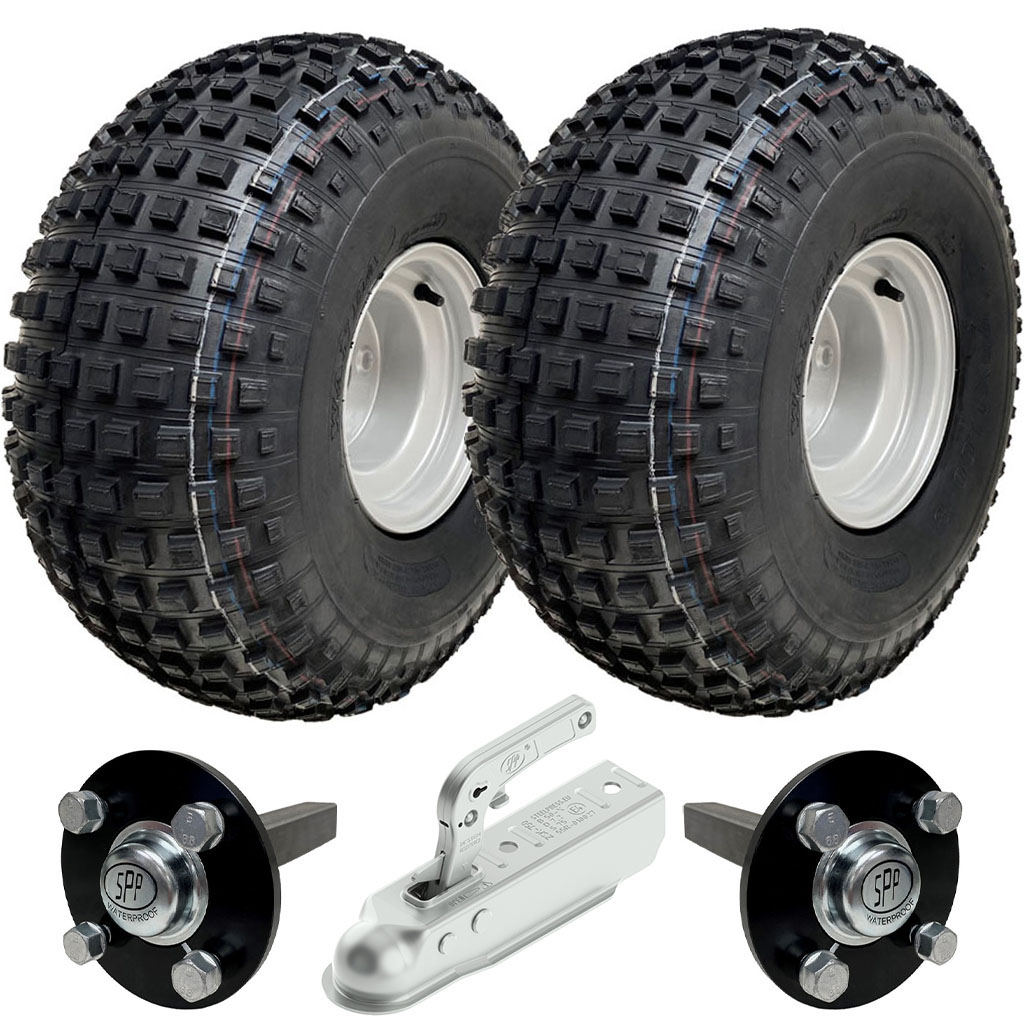

Contents of this kit include:
2 x Wheels, 22x11.00-8.
2 x Stub axles, 35x35x200mm solid stub.
1 x Pressed steel hitch for 50x50mm box section.
Item specifications: Wheels.
• 22x11.00-8 6ply Wanda P323 knobby tyres on steel rim 4x100mm PCD,
• Overall diameter: 551mm,
• Max width of tyre: 267mm,
• Tread depth: 9.5mm,
• Inflation: 14psi,
• Max load per wheel: 306kg @ 80km/h (load/speed index: 67F),
• E-marked road legal tyres,
• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.
Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts,
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
• The hubs are waterproof,
• The shaft is 35x35mm x 200mm long, solid steel,
• Manufactured by SPP (Steelpress, Poland).
Item specifications: Hitch.
• 750kg pressed steel hitch, high quality zinc plated finish,
• Sits over 50x50mm box section, fixing is by 2x M12x70mm bolts
(bolts & lock nuts are provided with this kit).
• These hitches are made according to the guidelines of Regulation 55 of the United Nations Economic Commission for Europe (UNECE).
These hitches may be coupled only with class A ball hitch couplings (Ø50). The reliability of the coupling heads has been confirmed by renowned and independent institution: DEKRA Automobil GmbH in Germany.
• In order to ensure even greater safety, each coupling head is equipped with a lock to prevent the mechanism from opening.
• Steelpress hitches ensure free head tilting up to 20° below and above the horizontal plane and by 25° in each direction from the vertical plane.
Maximum Kit Load Capacity 612kgs.
| Rim Colour | Silver |
| Load Capacity | 612 |
| Tyre Size | 22X11.00-8 |
| Ply | 6 |
| TT/TL | TL |
| Pattern | P323 |
| Tread Depth (mm) | 9.5 |
| Rim Width (in) | 7.0 |
| SW (mm) | 267 |
| OD (mm) | 551 |
| PSI | 14 |
| Load/Speed Index | 67F |
| Stud / PCD | 4x100mm |
| E-Mark | E4-75R-0010566 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | SPP 750kg Pressed Hitch |
