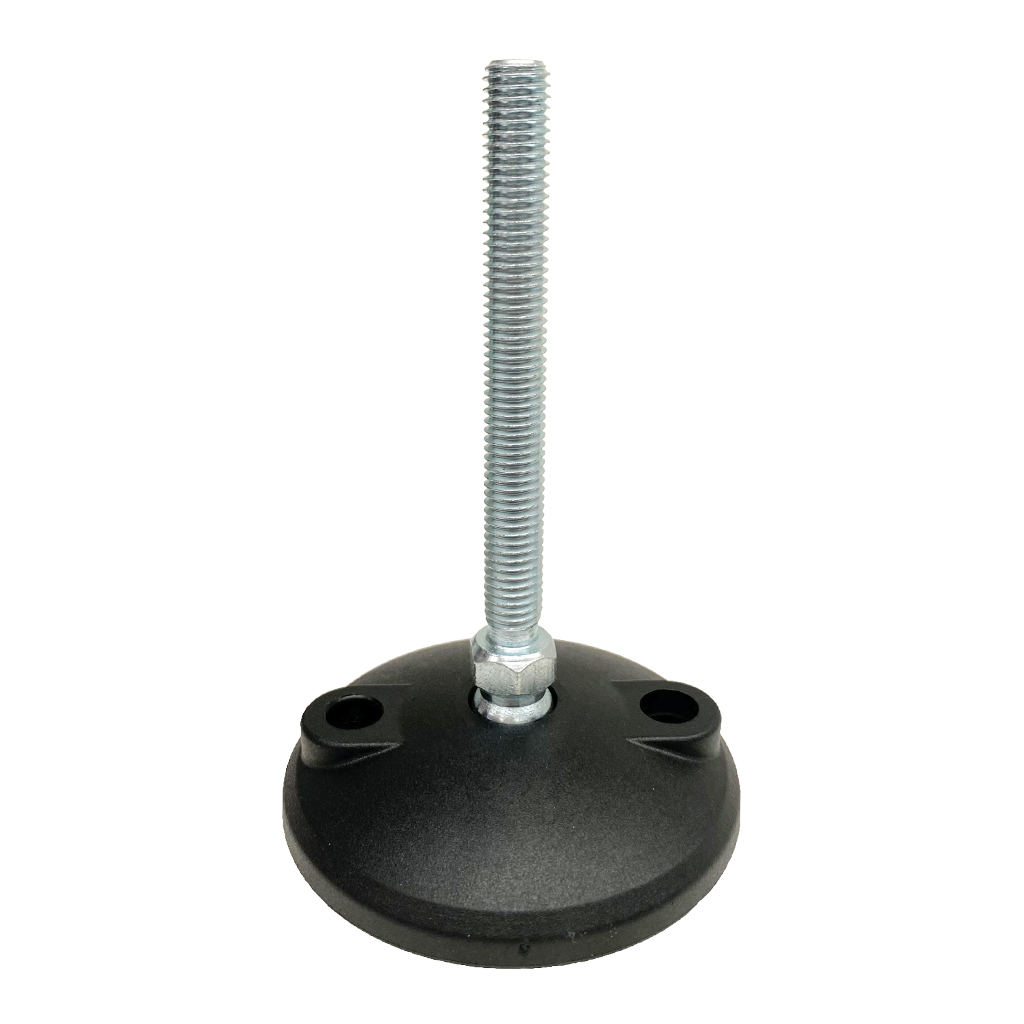

M10x90 Zinc plated tilting levelling foot, 80mm plastic base with holes 470kg

https://www.parnells.eu/web/image/product.template/37665/image_1920?unique=5f061bb

Part Number: R81-10-90
Base Diameter: 80mm
Tread size: M10x90mm
Thread Material: Zinc Plated Steel
Base Material: Plastic
Load Capacity: 470kg

9.32 € 9.32 EUR 9.32 €

10.83 €

Login for trade prices

Not Available For Sale


  • Hole Diameter (mm)
  • Thread Size
  • Thread Length (mm)
  • Base Height (mm)
  • Base Diameter (mm)
  • Hole Position (mm)
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
M10x90 Zinc plated tilting levelling foot, 80mm plastic base with holes 470kg

M10x90 Zinc plated tilting levelling foot, 80mm plastic base with holes 470kg

  • Levelling foot with zinc plated threads.
  • Base made of glass reinforced nylon.
  • Base with integrated bolt-down holes suitable for when a secure fitting on a flat surface is required.
  • The stem tilt up to 20° from perpendicular. Enables adjustment for items with angled legs.
  • Stainless steel available on request (MOQs apply).
  • Standard base colour black. Other RAL colours available (MOQs apply).
Hole Diameter (mm) 9
Thread Size M10
Thread Length (mm) 90
Base Height (mm) 29
Base Diameter (mm) 80
Hole Position (mm) 54
Max Load (Kg) 470

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Image for R81-10-90.jpg
Download

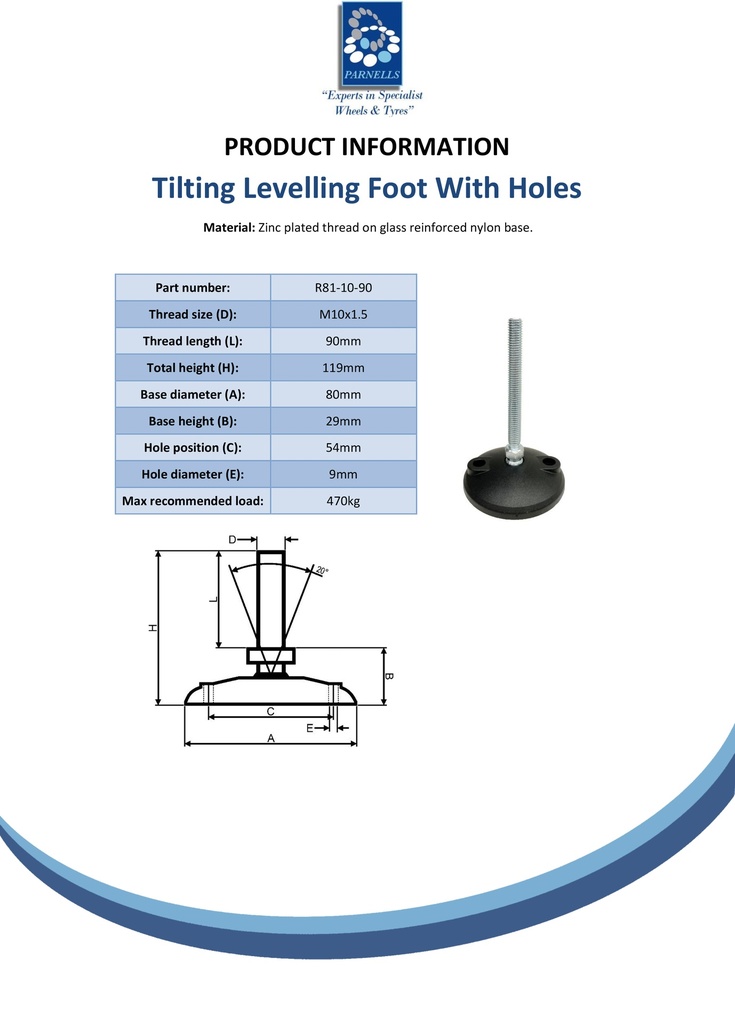

Spec Sheet for R81-10-90.pdf
Download

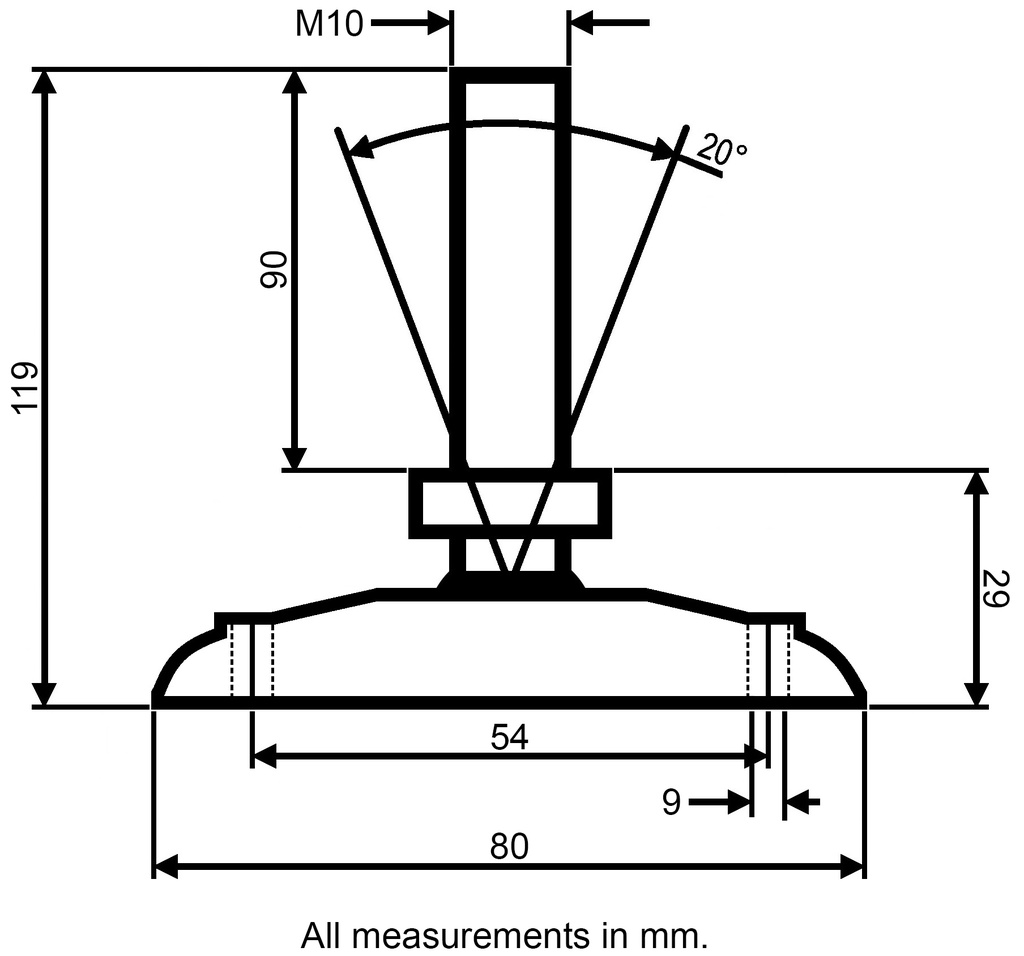

Dimensions for R81-10-90.jpg
