Hygienic Adaptor

Parnells can offer certified hygienic thread adaptor is an add-on for the
XHFV & ZHFVJ system.

It converts the size and type of the thread and extends the sleeve. Furthermore, it is equipped with blue sealings detectable by scanning systems. Available in customized sizes.

Hygienic Adaptor Features

• The adaptor converts the size and type of the thread and extends the sleeve.
• Accessories for XHFV & ZHFVJ system
• It has blue sealings detectable by scanning systems.

Contact Us

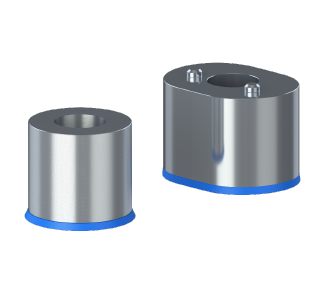

Bearing House

A certified hygienic spacers with blue NBR rubber seals. The NBR rubber seal blocks out water and bacteria and prevents a non-hygienic metal-to-metal assembly.

A hygienic design ensures that the bearing house can be cleaned behind and around the shaft to increase the distance to machines and equipment to over an inch as recommended by USDA and are USDA certified.

Hygienic Spacers Features

• Minimum cleaning effort due to self-draining design
• Available in standard and customized measurements
• Ensures distance to the machine as recommended by USDA

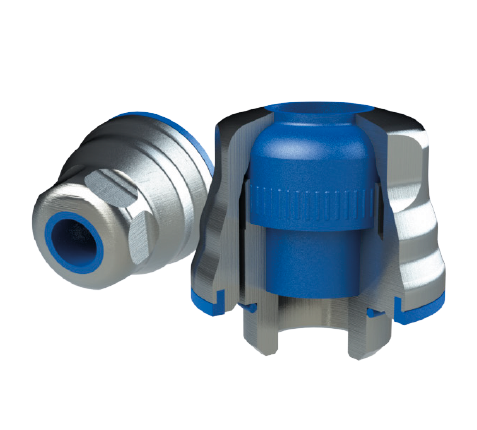

Cable Glands

The HSK Hygienic cable gland is suitable for use in all areas in which the adherence of microorganisms and dirt must be prevented, for example in the pharmaceutical, food and chemical industries as well as in biotechnology and clean room technology.

Material: Stainless steel EN 1.4404 with sealing in WMQ (silicone).

Hygienic cable glands

• Minimizes cleaning time and water consumption

• Enhanced food safety

• Available in sizes M12-M32
• Surfaces with a maximal roughness of 0,8 μm Ra


Contact Us

Hygienic Bolts

Certified Hygienic Bolts with blue NBR rubber sealings. These accessories are the optimal choice for equipment that has to comply with strict hygiene requirements.

The NBR rubber seal blocks out water and bacteria and also prevents a non-hygienic metal-to-metal assembly.

Hygienic Bolt Features

• Certified in accordance with 3-A (RPSCQC)
• Certified in accordance with EHEDG hygienic standard TYPE EL - CLASS I AUX
• Minimizes cleaning time and water consumption
• Self-draining Surfaces with a maximal roughness of 0,8 μm Ra

Hygienic Nuts

EHEDG and 3-A (RPSCQC) certified nuts with blue NBR rubber sealings. These accessories are the optimal choice for equipment that has to comply with strict hygiene requirements.

The NBR rubber seal blocks out water and bacteria and also prevents a non-hygienic metal-to-metal assembly.

Hygienic Nuts Features

• Certified in accordance with 3-A (RPSCQC)
• Certified in accordance with EHEDG hygienic standard TYPE EL - CLASS I AUX
• Minimizes cleaning time and water consumption
• Self-draining Surfaces with a maximal roughness of 0,8 μm Ra


Contact Us

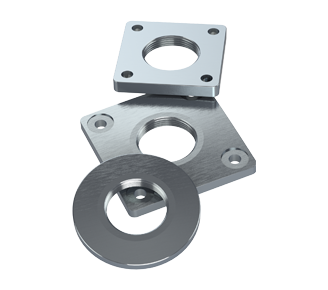

Hygienic Flanges

The flange is used when mounting the XHFV and ZHFVJ levelling feet into the machine or equipment.

Machinery and equipment requires different mounting and therefore the flange is available in several variations.

Square, Round there is a large variety of sizes available and can be installed by bolting or welding. Customized sizes or shapes can be supplied.

Hygienic Flanges Features

• Blue sealings, detectable by scanning systems
• Minimum cleaning effort due to self-draining design
• Available in standard and customized measurements
• Certified in accordance with 3A

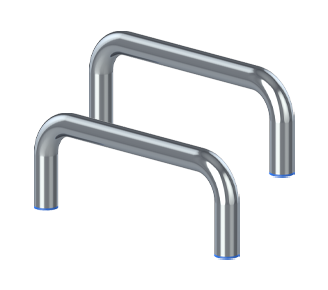

Hygienic Handles

With our hygienic handles, we provide:

• Reduced cleaning time.
• Reduced chemical and water consumption.
• Enhanced food safety
• Plug & Play installation
• Hygienic handles made of AISI 316
• Stainless steel and with blue NBR rubber sealings.
• Customer-specific sizes available with short delivery times

Hygienic Handles Features

• Minimizes cleaning time and water consumption
• Surfaces with a maximal roughness of 0,8 µm Ra
• Available in sizes M5-M6

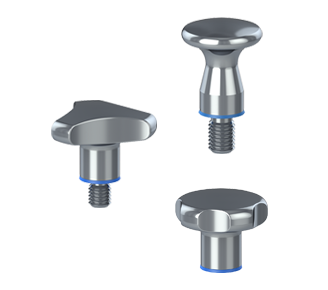

Hygienic Knobs

Parnells is now able to offer hygienic knobs with threaded pin or internal thread.

The knobs will be available in blue, black and white in the following materials: NBR, HNBR, EPDM, FKP and silicone. The seal blocks out water and bacteria and prevents a non-hygienic metal-to-metal assembly.

The knobs are made of AISI 316 stainless steel.

Hygienic Knobs Features

• Blue sealings, detectable by scanning systems
• Minimum cleaning effort due to self-draining design
• Available in standard and customized measurements
• Available in NBR, HNBR, EPDM, FKP and silicone

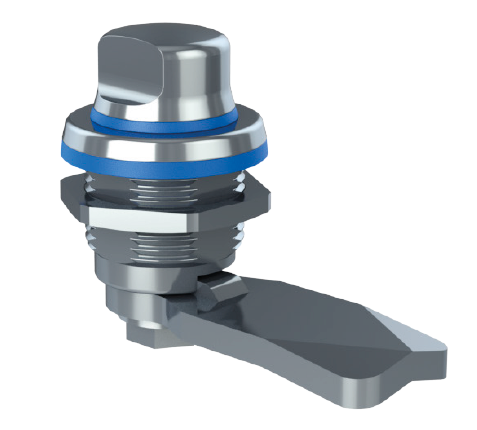

Hygienic Latches

The hygienic stainless steel SLX latch prevents bacterial attack and fulfills the strict regulations of testing principles for foodstuff machinery and hygiene.

The self-draining stainless steel surfaces with a maximal roughness of 0,8 μm Ra and the central circumferential seal reliably prevent dirt accumulation. Water, cleaning agents, etc. can drain off fully and so prevent contamination.

The latch creates a secure closure by rotating a maximum of 90°, which positions the latch in the locked position behind the frame. Material: Stainless steel AISI 316 with sealing in blue NBR.

Hygienic Latches Features

• Minimizes cleaning time and water consumption
• Enhanced food safety
• Available in latch arm distance 6 - 50
• Plug & Play installation
• Available in many sizes


Hygienic Indexing Plunger

With our hygienic Indexing Plungers, we provide:

• Reduced cleaning time.
• Reduced chemical and water consumption.
• Enhanced food safety
• Plug & Play installation
• Stainless steel and with blue NBR rubber sealings.
• Customer-specific sizes available with short delivery times

Hygienic Indexing Plunger Features

• Minimizes cleaning time and water consumption
• Surfaces with a maximal roughness of 0,8 µm Ra
• Available in the index size 6 and 8

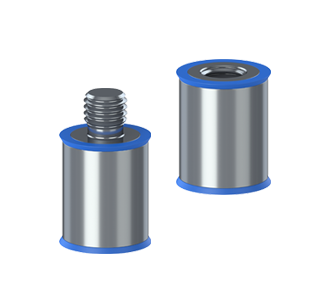

Hygienic Spacers

Parnells can offer hygienic spacers with blue NBR rubber seals. The NBR rubber seal blocks out water and bacteria and prevents a non-hygienic metal-to-metal assembly.

NGI offers hygienic spacers to increase the distance to machines and equipment to over an inch as recommended by USDA. When USDA laws are to be followed use the hygienic spacers from NGI to secure the approved distance to the support surface.

Hygienic Spacers Features

• Blue sealings, detectable by scanning systems
• Minimum cleaning effort due to self-draining design
• Available in standard and customized measurements
• Ensures distance to the machine as recommended by USDA


Contact Us

Hygienic Top Cover

The top cover is designed to be used in situations where the top of the thread is exposed, which compromises the hygienic performance and certification of the levelling foot. By applying the top cover the exposed thread is hygienically covered. The top cover can also function as counter nut.

The top cover is supplied with a blue sealing detectable by scanning systems and minimum cleaning effort is obtained due to the self-draining design.

Hygienic Top Cover Features

• Blue sealings, detectable by scanning systems
• Minimum cleaning effort due to self-draining design
• Available in standard and customized measurements
• The top cover ensures that the exposed thread is hygienically covered
