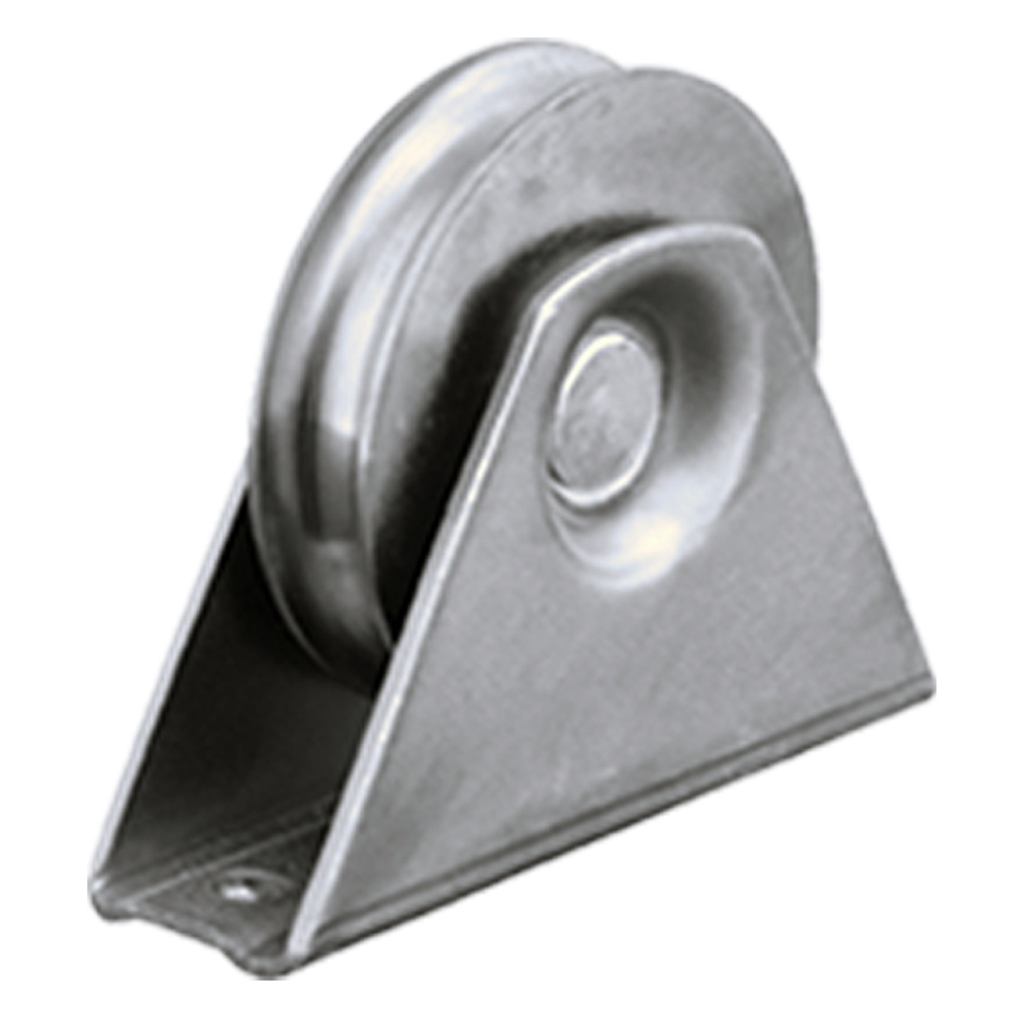

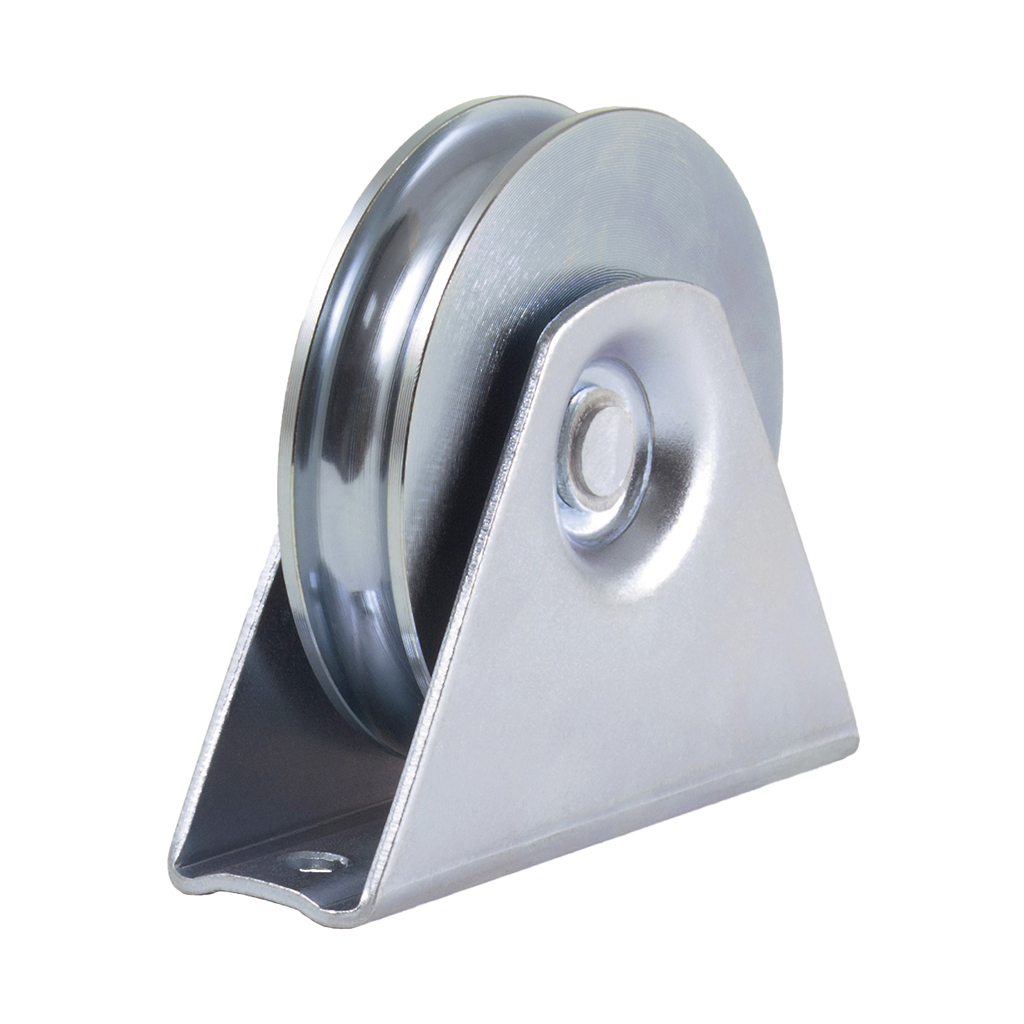

100mm Round groove wheel in fixed bracket
Round groove wheel in fixed support bracket Zinc plated steel. All steel wheels with precision ball bearings. These are to run on round shapes. See variations for running on square, angle or for 8mm cable.
| Part Number | 100-R-FX |
| Brand | ZHE JIANG |
| Diameter (mm) | 98 |
| Material | Zinc |

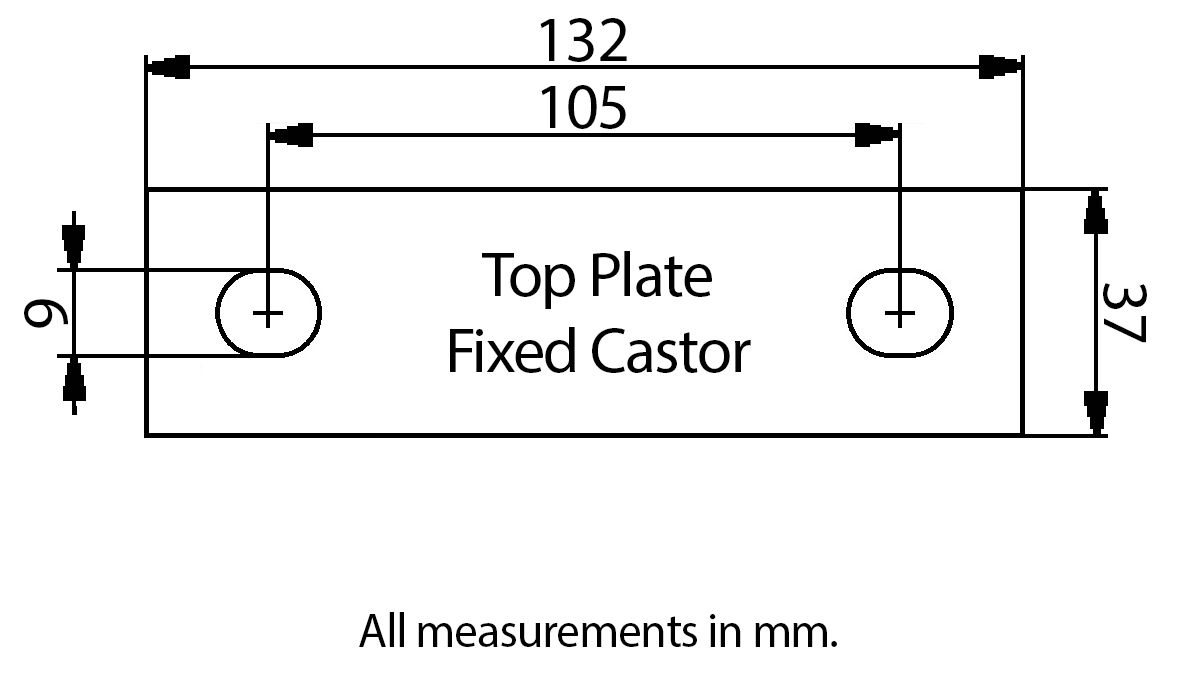

| Dimension 'A' (mm) | 22 |
| Dimension 'C' (mm) | 37.0 |
| Dimension 'D' (mm) | 16.0 |
| Dimension 'H' (mm) | 106 |
| Dimension 'L' (mm) | 132 |
| Dimension 'K' (mm) | 105 |
| Material / Finish | Zinc plated steel |
| Max Load (Kg) | 175 |
Add to cart
