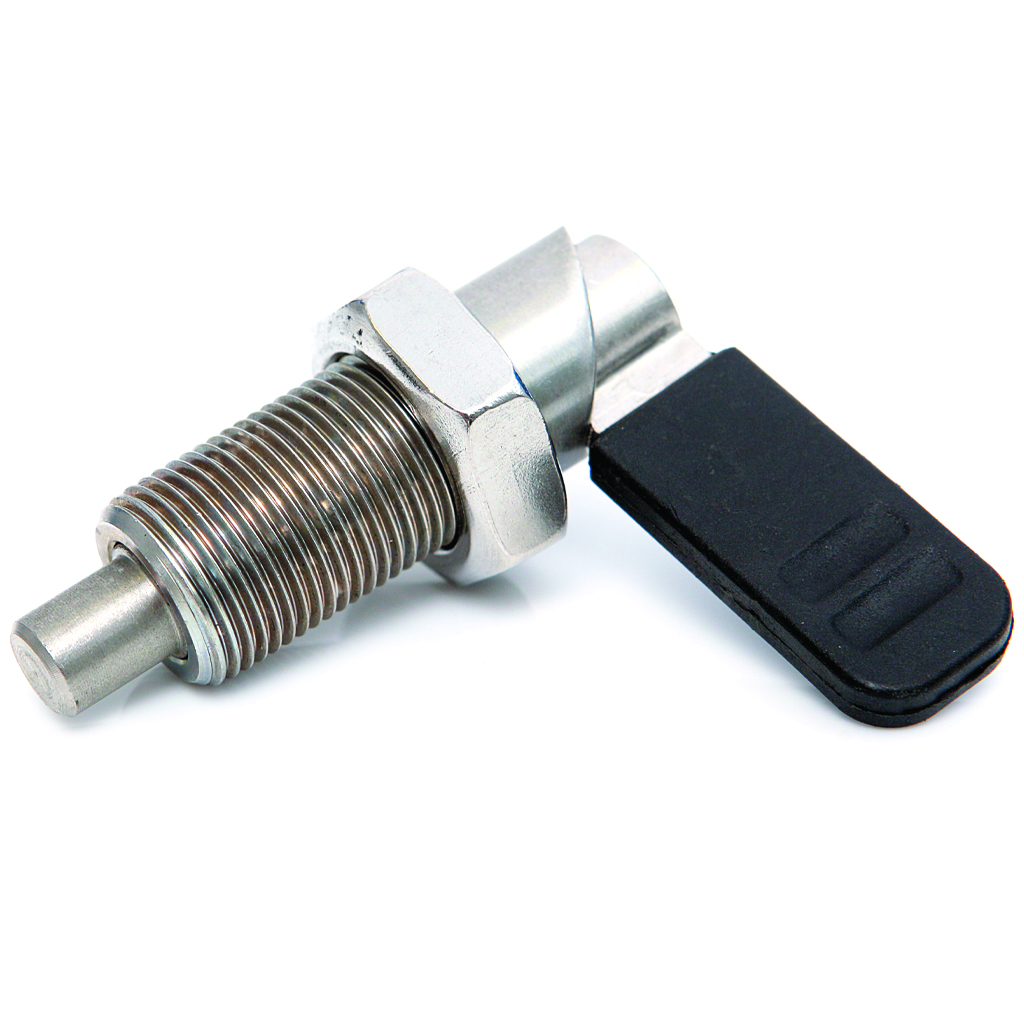

M20 Cam plunger

Body Material: Stainless Steel - fitted with black plastic grip

Plunger Diameter: 12mm

Supplied with an M20x1.5 locking nut

Turn the cam lever by 180° to allow the plunger pin to be fully retracted and locked in place.
Twisting the lever again disengages the lock and a spring mechanism automatically returns the pin to the extended position.

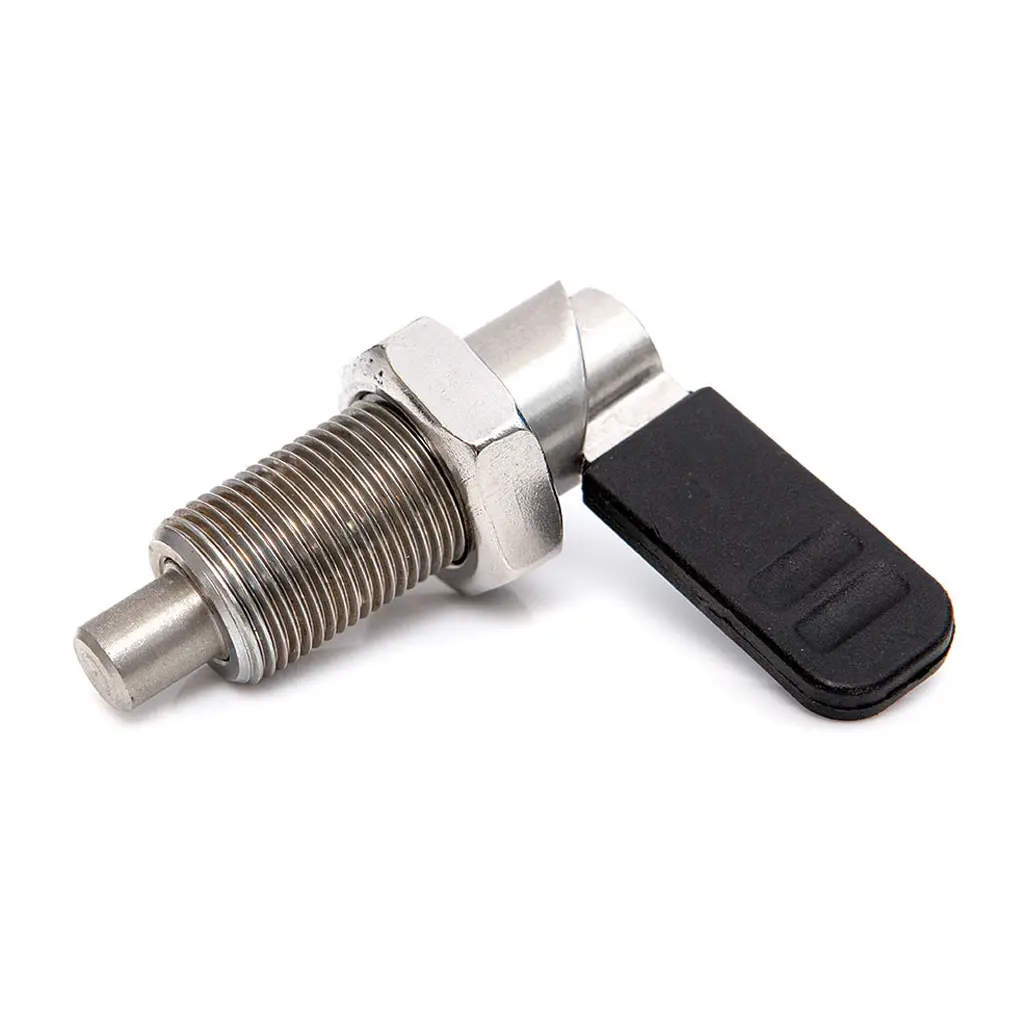

M20 stainless steel Cam plunger (12mm plunger diameter)

Add to cart

Sign in

Pay

Get Delivered

Part Number 11796V
Thread Size M20
Rest Position Yes
Diameter (mm) 12
Type Cam Plunger
Material Stainless Steel

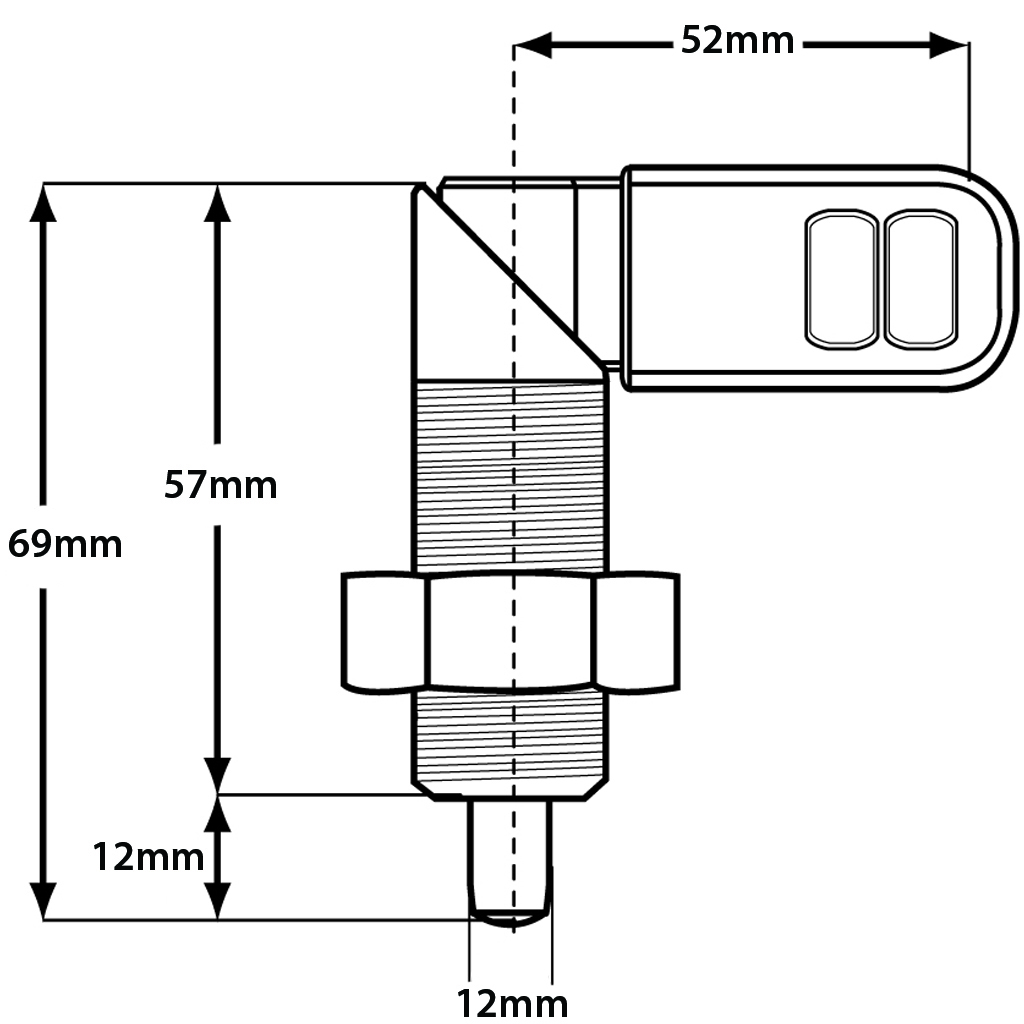

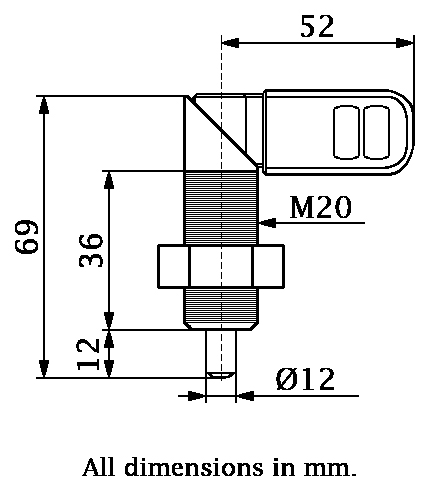

Dimension 'A' (mm) 69
Dimension 'B' (mm) 52.0
Dimension 'C' (mm) 57.0
Dimension 'D' (mm) 12.0
Dimension 'E' (mm) 12.0
Colour Stainless
Material / Finish Stainless Steel
Plunger Type Cam type
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
11796V 69mm M20 x 1.5 12mm pin SS.igs
Download
11796V 52mm M20 x 1.5 12mm pin SS.stp
Download
Cam plunger data.jpg
Download
Cam plunger.JPG
Download

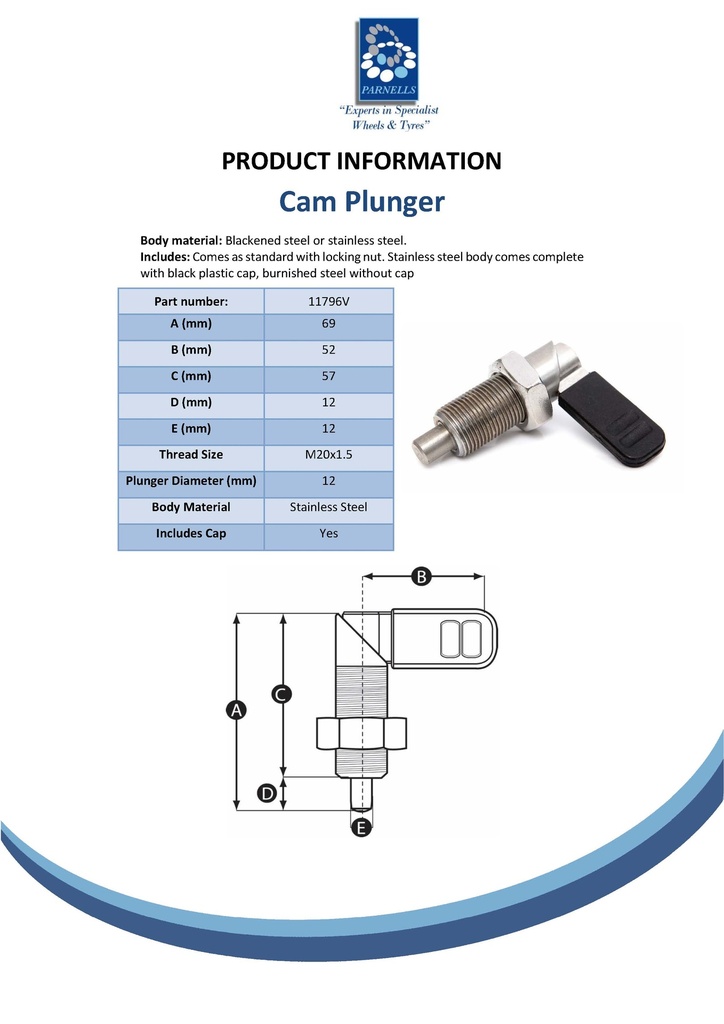

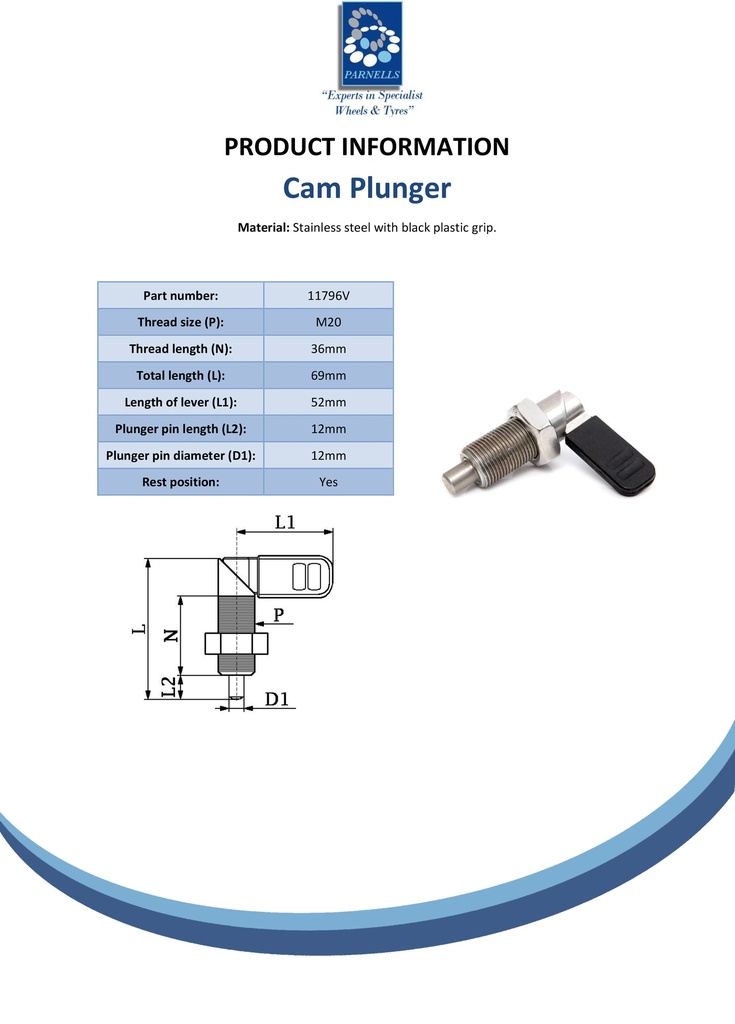

Parnells Plunger Spec Sheet - 11796V.pdf
