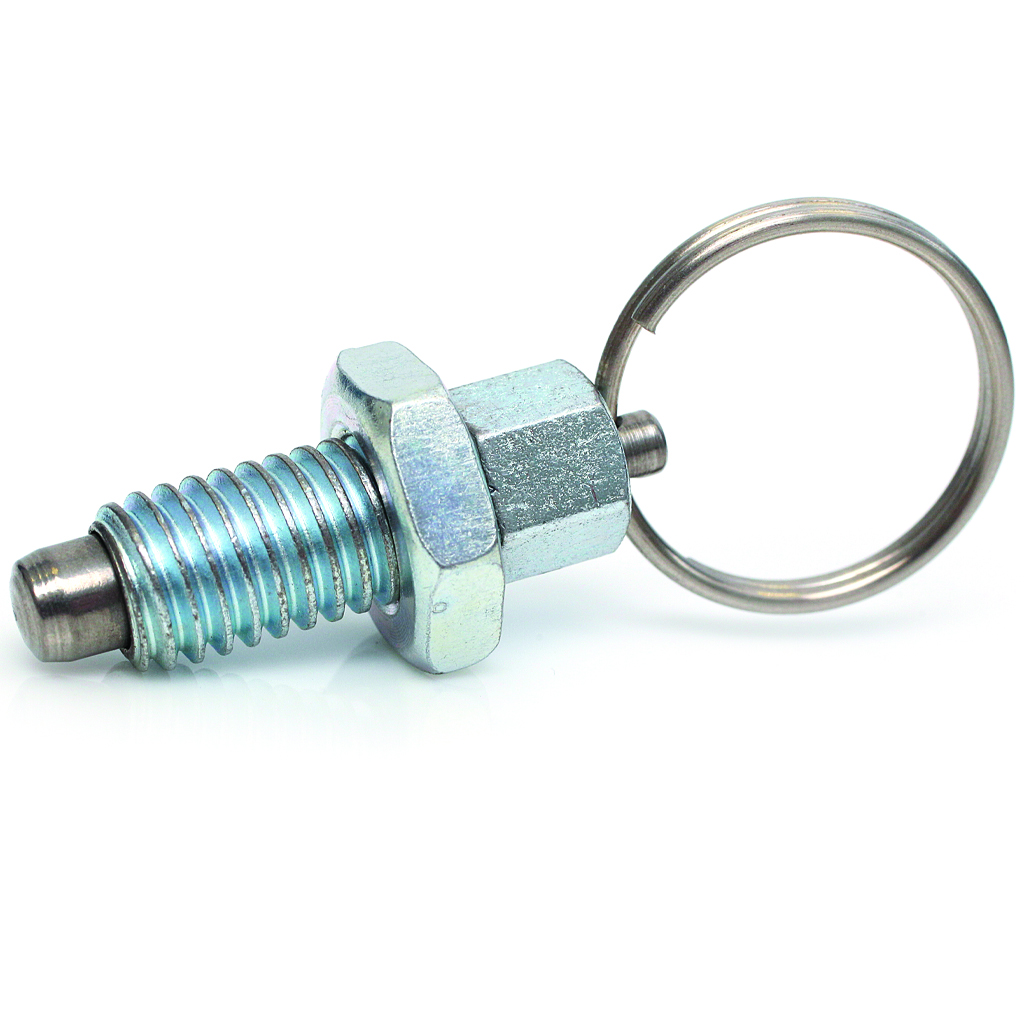

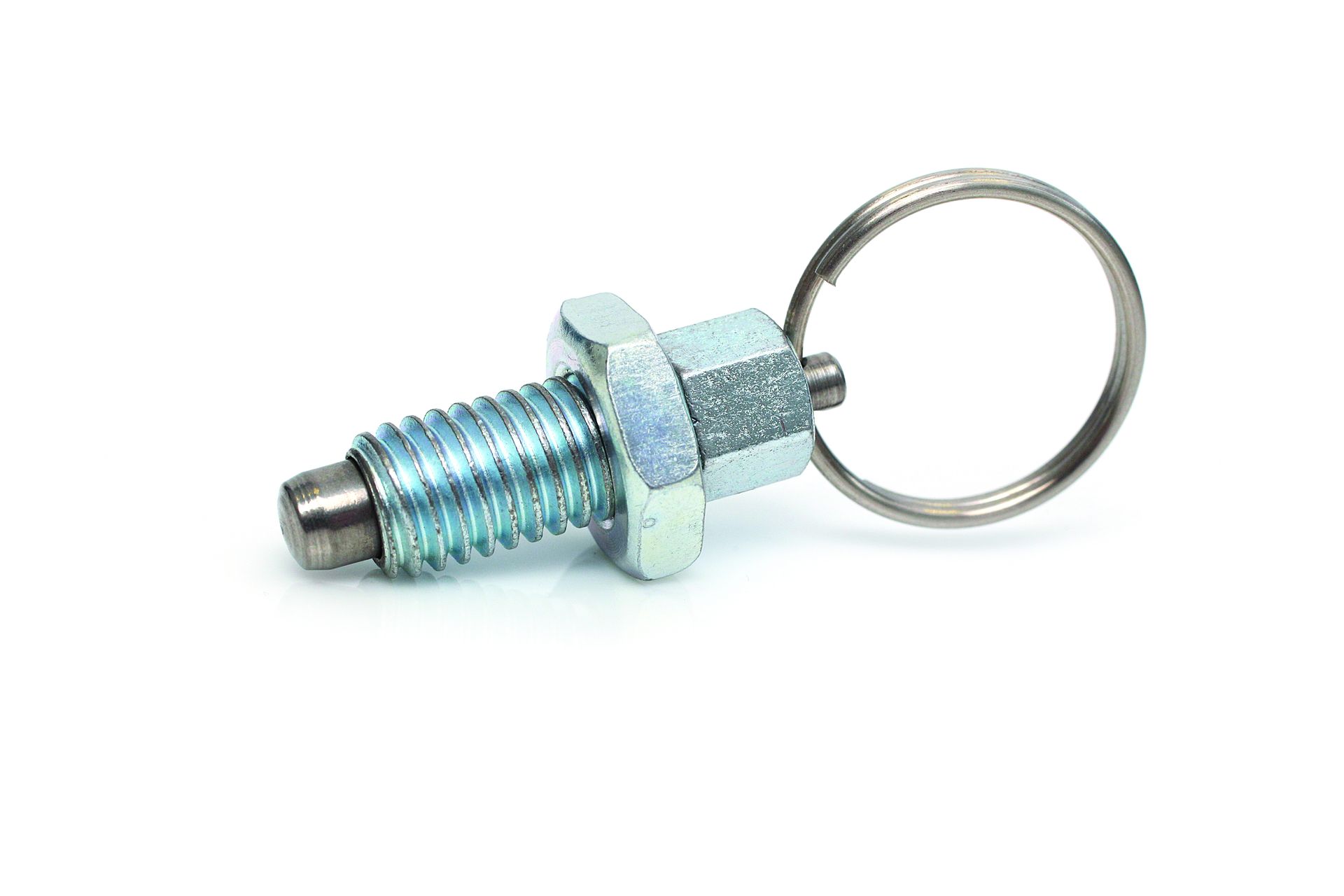

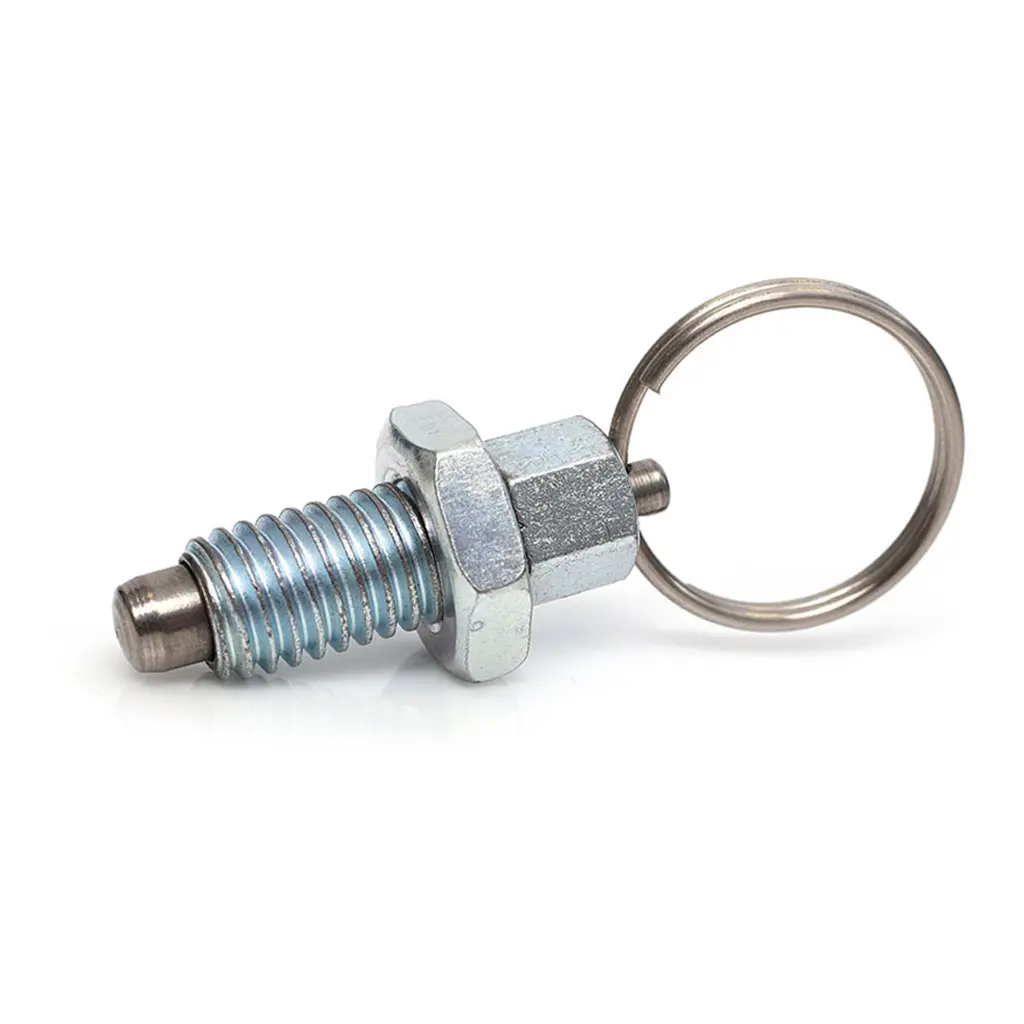

M12 Spring loaded ring pull plunger (8mm plunger diameter)

M12 Spring loaded ring pull plunger

Material: Zinc plated housing - Stainless steel pin

Plunger pin Diameter: 8mm

Supplied with lift ring & locking nut

Thread Size M12
Rest Position No
Diameter (mm) 8
Type Spring Loaded Ring Pull
Material Zinc

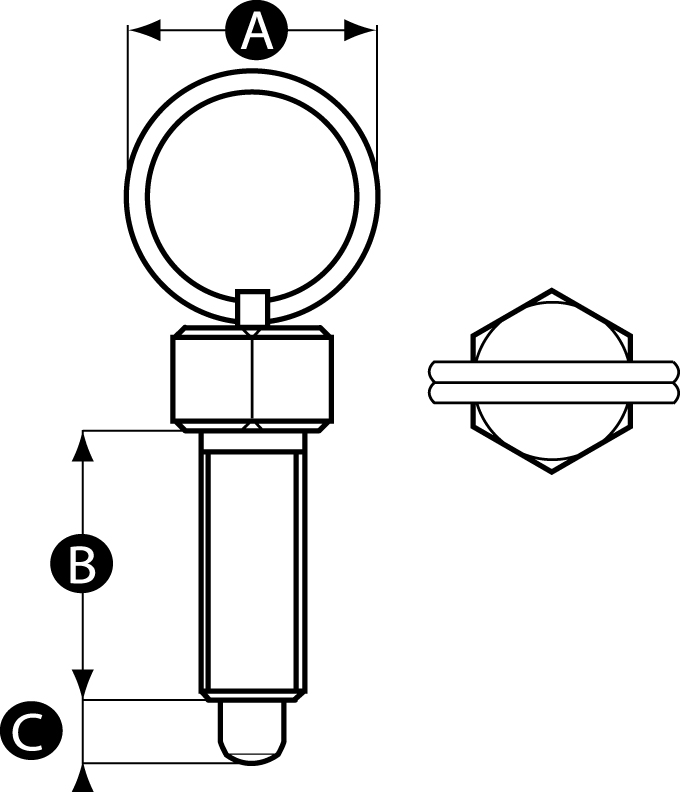

Dimension 'A' (mm) 30
Dimension 'B' (mm) 24.0
Dimension 'C' (mm) 8.0
Colour Bright Zinc
Material / Finish Zinc Plated Housing with Stainless Steel Pin.
Plunger Type Spring Loaded Ring Pull
