M12 Spring loaded index plunger - with rest position (6mm plunger diameter)

https://www.parnells.eu/web/image/product.template/31822/image_1920?unique=c8e6542
(0 review)

14.50 € 14.5 EUR 14.50 €

16.84 €

Login for trade prices

Not Available For Sale


  • Thread Size
  • Rest Position
  • Diameter (mm)
  • Type
  • Material
  • Dimension 'A' (mm)
  • Dimension 'B' (mm)
  • Dimension 'C' (mm)
  • Dimension 'D' (mm)
  • Dimension 'E' (mm)
  • Colour
  • Material / Finish
  • Plunger Type

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

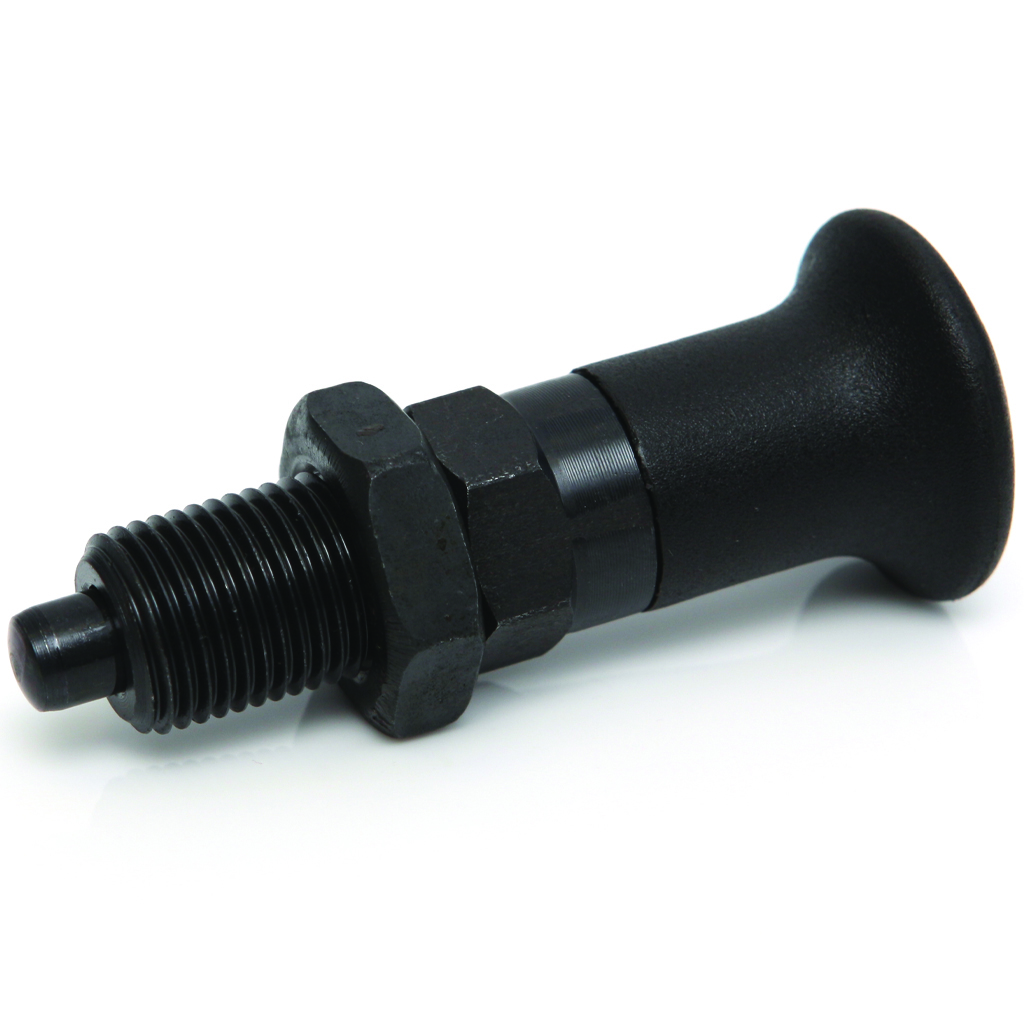

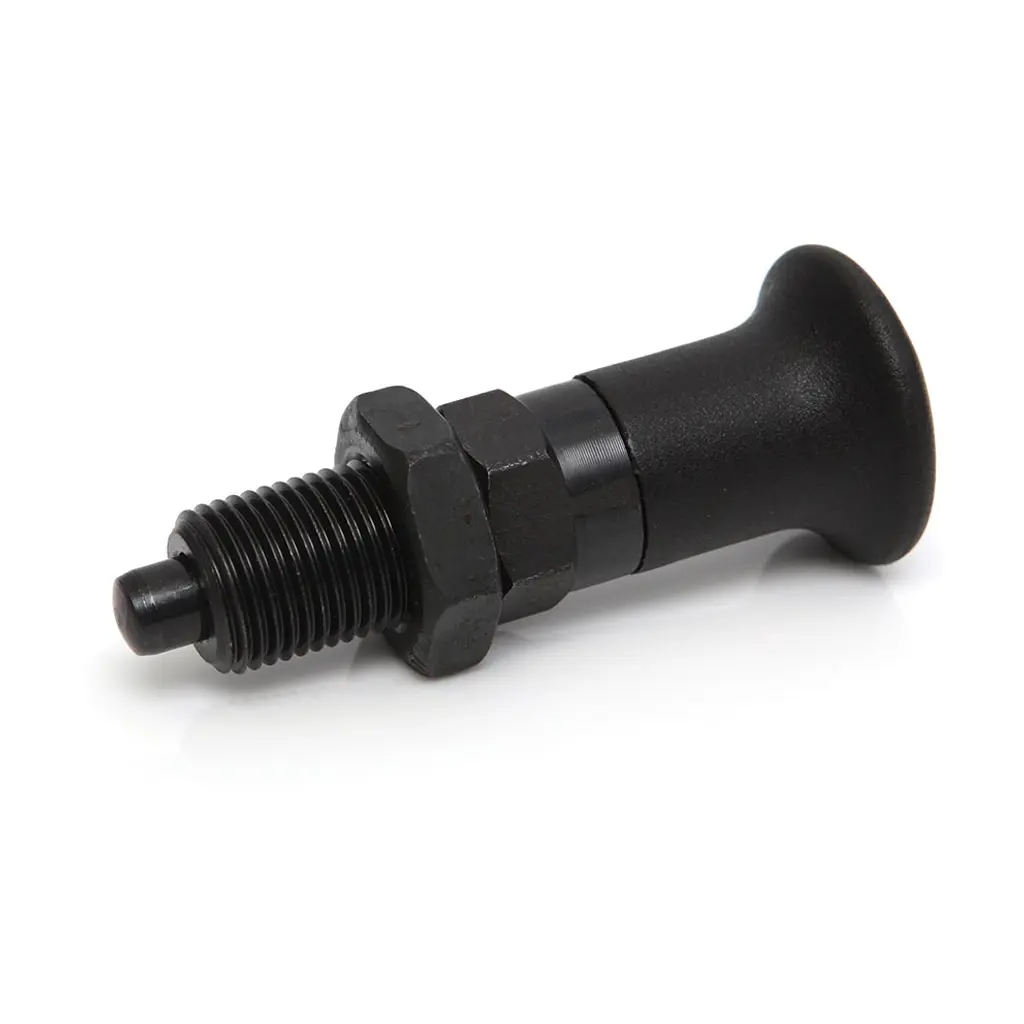

M12 Spring loaded index plunger - with rest position (6mm plunger diameter)

M12 Spring loaded index plunger - with rest position

Knob material: High impact resistant thermoplastic

Body Material: Blackened steel

Plunger Diameter: 6mm

Supplied with an M12x1.5 nut

Add to cart

Sign in

Pay

Get Delivered

Part Number 11832U
Material Thermoplastic or Blackened Steel
Thread Size M12
Rest Position Yes
Diameter (mm) 6
Type Spring Loaded Index

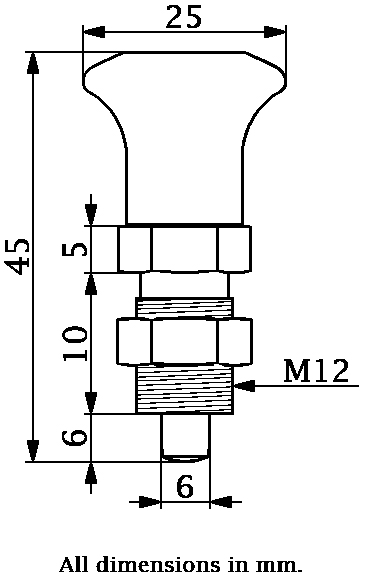

Dimension 'A' (mm) 25
Dimension 'B' (mm) 45.0
Dimension 'C' (mm) 5.0
Dimension 'D' (mm) 10.0
Dimension 'E' (mm) 6.0
Colour Black.
Material / Finish High Impact Resistant Thermoplastic. Black
Plunger Type Spring Loaded Index.
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
11832U 25mm M12 x 1.5 R.igs
Download
11832U 25mm M12 x 1.5 R.stp
Download
Spring loaded index plunger data.jpg
Download
Spring loaded index plunger.JPG
Download

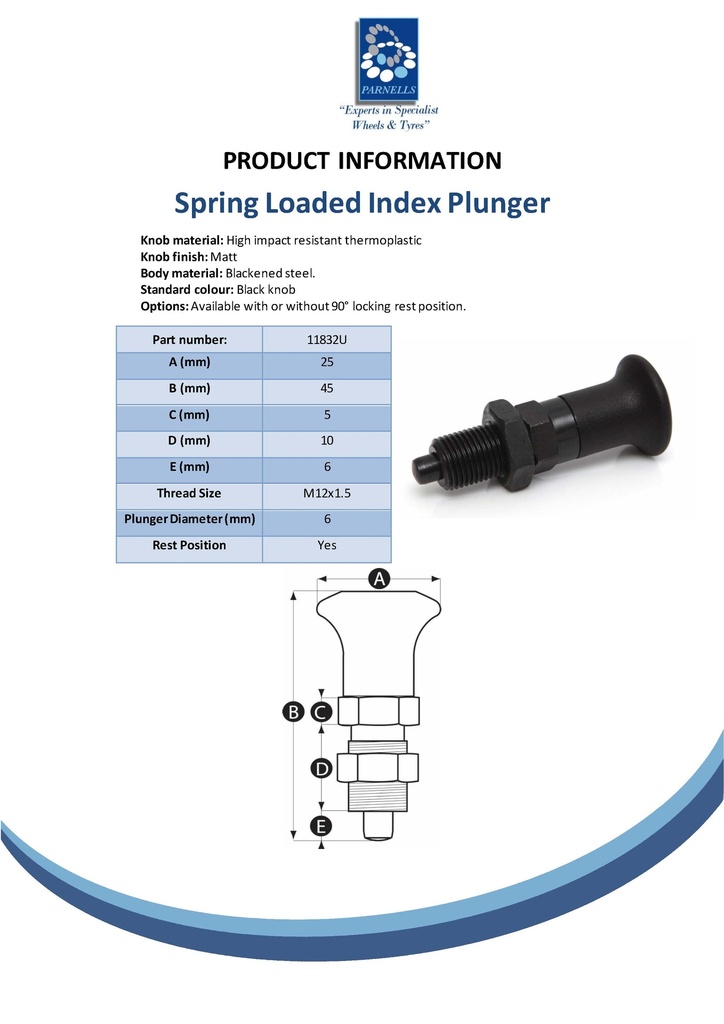

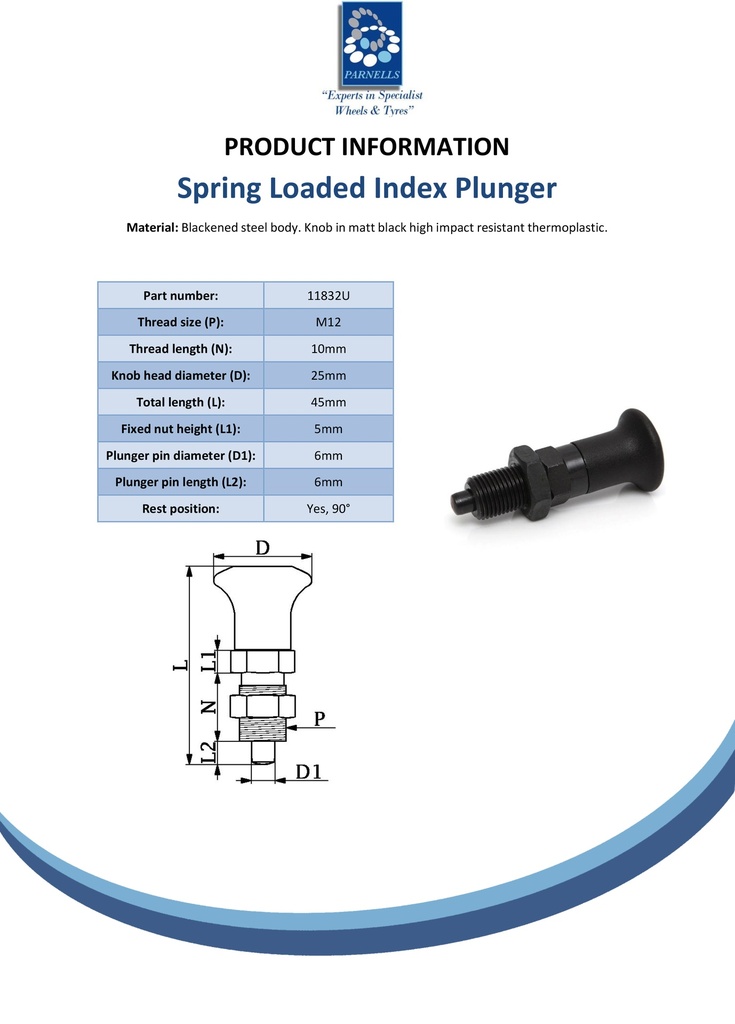

Parnells Plunger Spec Sheet - 11832U.pdf
