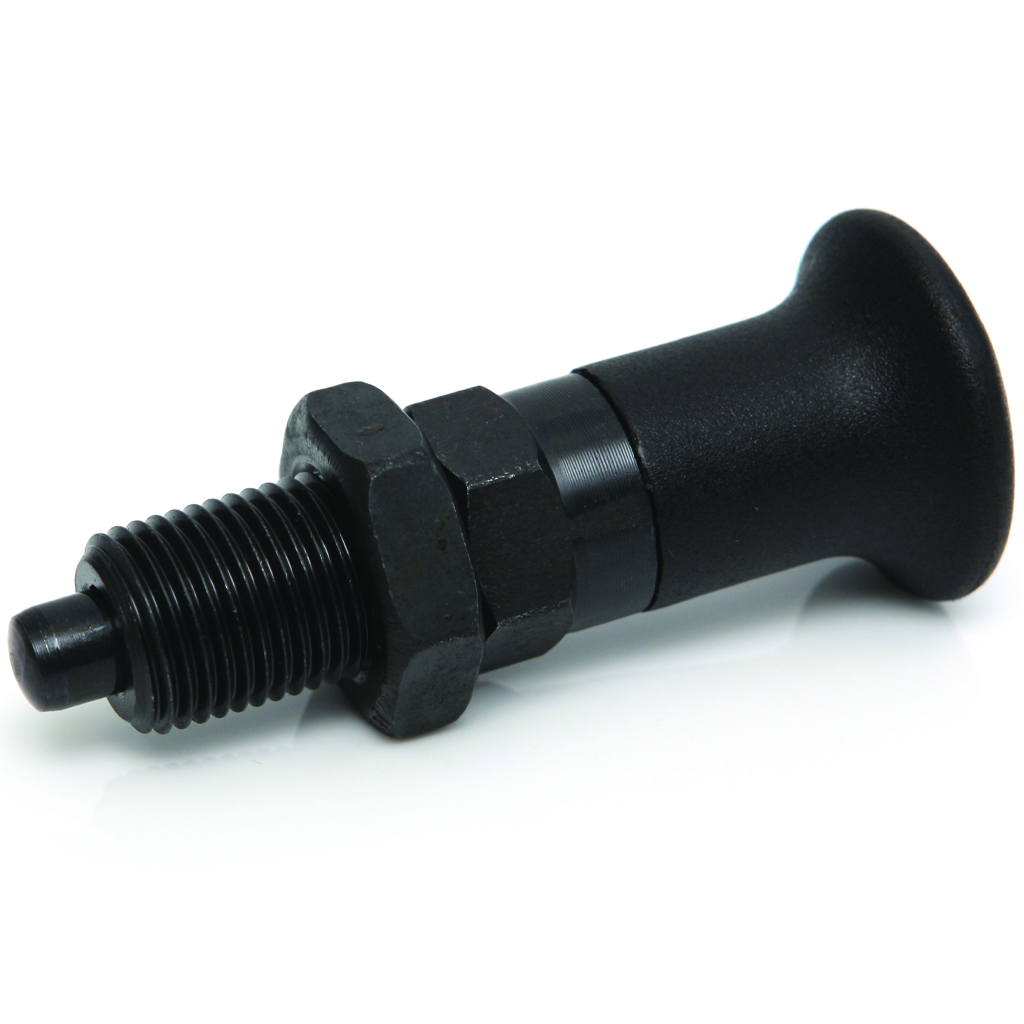

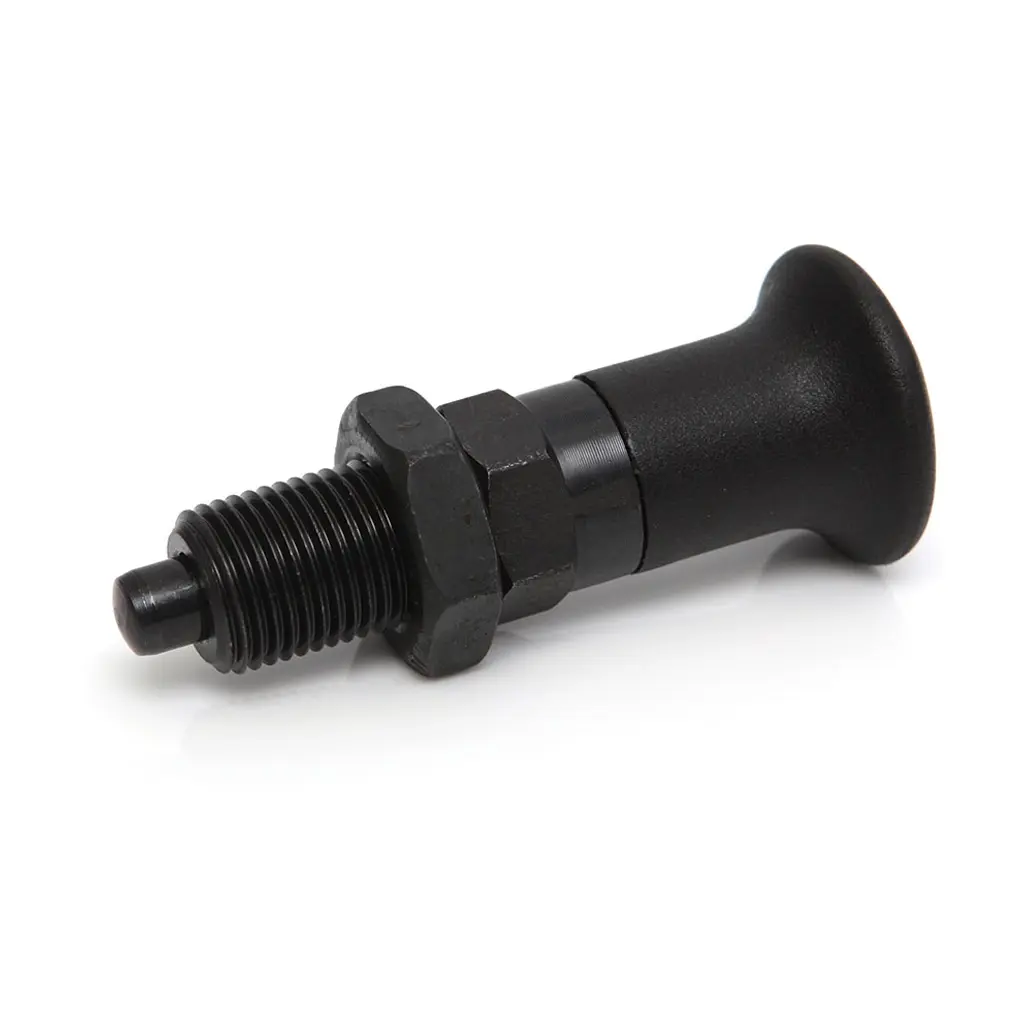

M16 Spring loaded index plunger (8mm plunger diameter)

M16 Spring loaded index plunger

Knob material: High impact resistant thermoplastic

Body Material: Blackened steel

Plunger Diameter: 8mm

Supplied with an M16x1.5 nut

Add to cart

Sign in

Pay

Get Delivered

Part Number 11833Q
Material Thermoplastic or Blackened Steel
Thread Size M16
Rest Position No
Diameter (mm) 8
Type Spring Loaded Index
Dimension 'A' (mm) 31
Dimension 'B' (mm) 54.0
Dimension 'C' (mm) 6.0
Dimension 'D' (mm) 12.0
Dimension 'E' (mm) 8.0
Colour Black.
Material / Finish High Impact Resistant Thermoplastic. Black.
Plunger Type Spring Loaded Index
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
11833Q 31mm M16 x 1.5.iges
Download
11833Q 31mm M16 x 1.5.stp
Download
Spring loaded index plunger data.jpg
Download
Spring loaded index plunger.JPG
Download

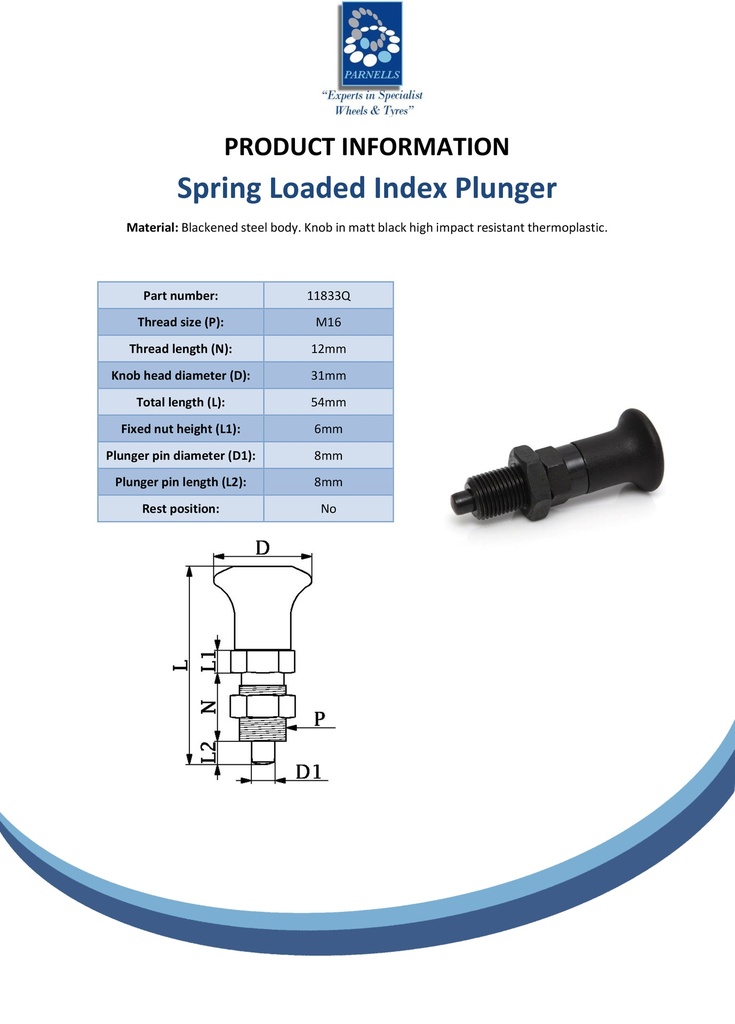

Parnells Plunger Spec Sheet - 11833Q.pdf
