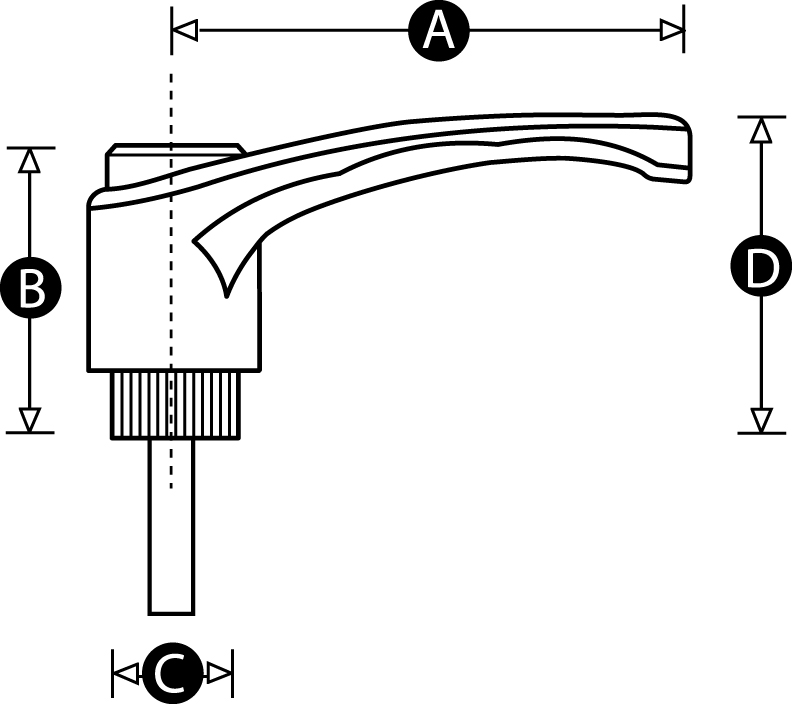

  • Dimension 'A' (mm)
  • Dimension 'B' (mm)
  • Dimension 'C' (mm)
  • Dimension 'D' (mm)
  • Colour
  • Material / Finish

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

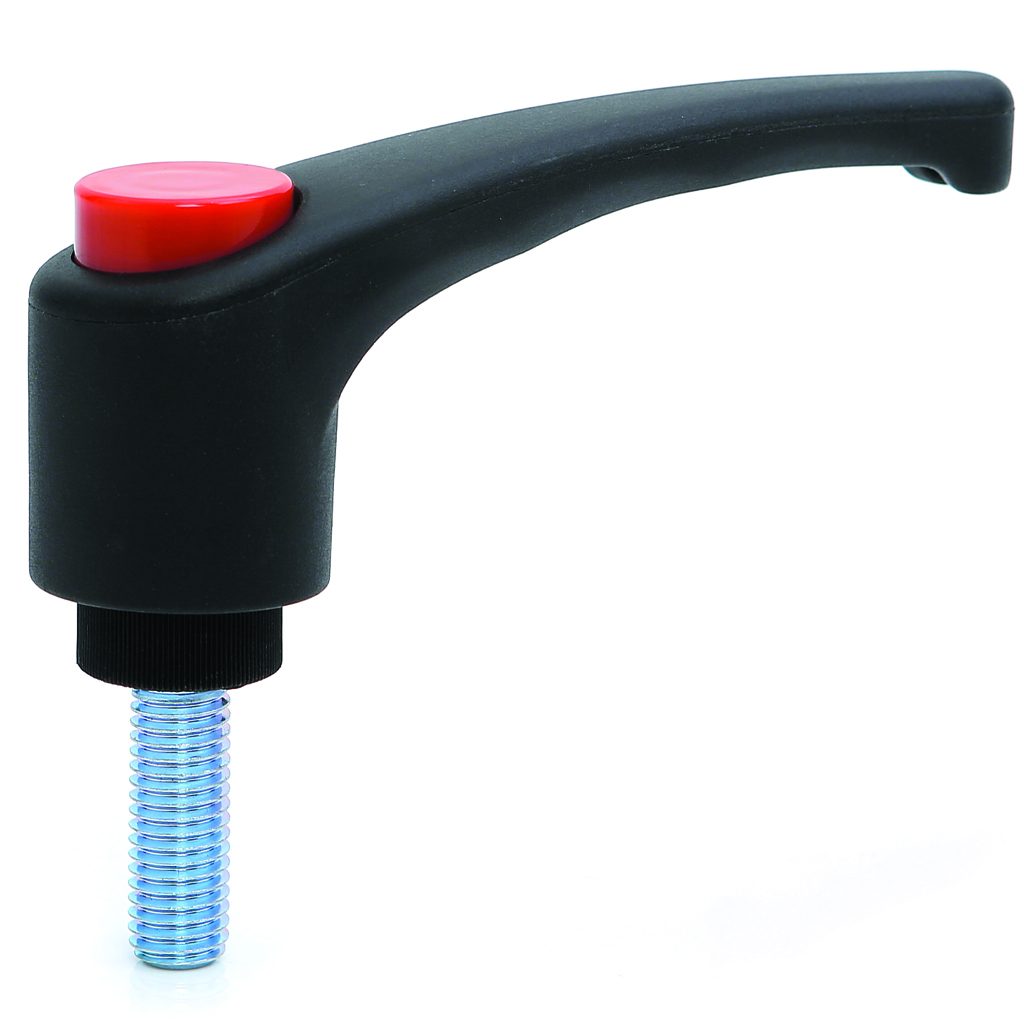

M12x30 Nylon clamping handle (zinc thread)

M12x30 Nylon clamping handle (zinc thread)

Ergonomic curved handle

Fixing Type: zinc plated steel M12x30 thread

Handle material: Reinforced nylon (15% glass filled PA6)

Standard handle colour is Black with red cap

Thread Size M12
Type Male
Material Nylon

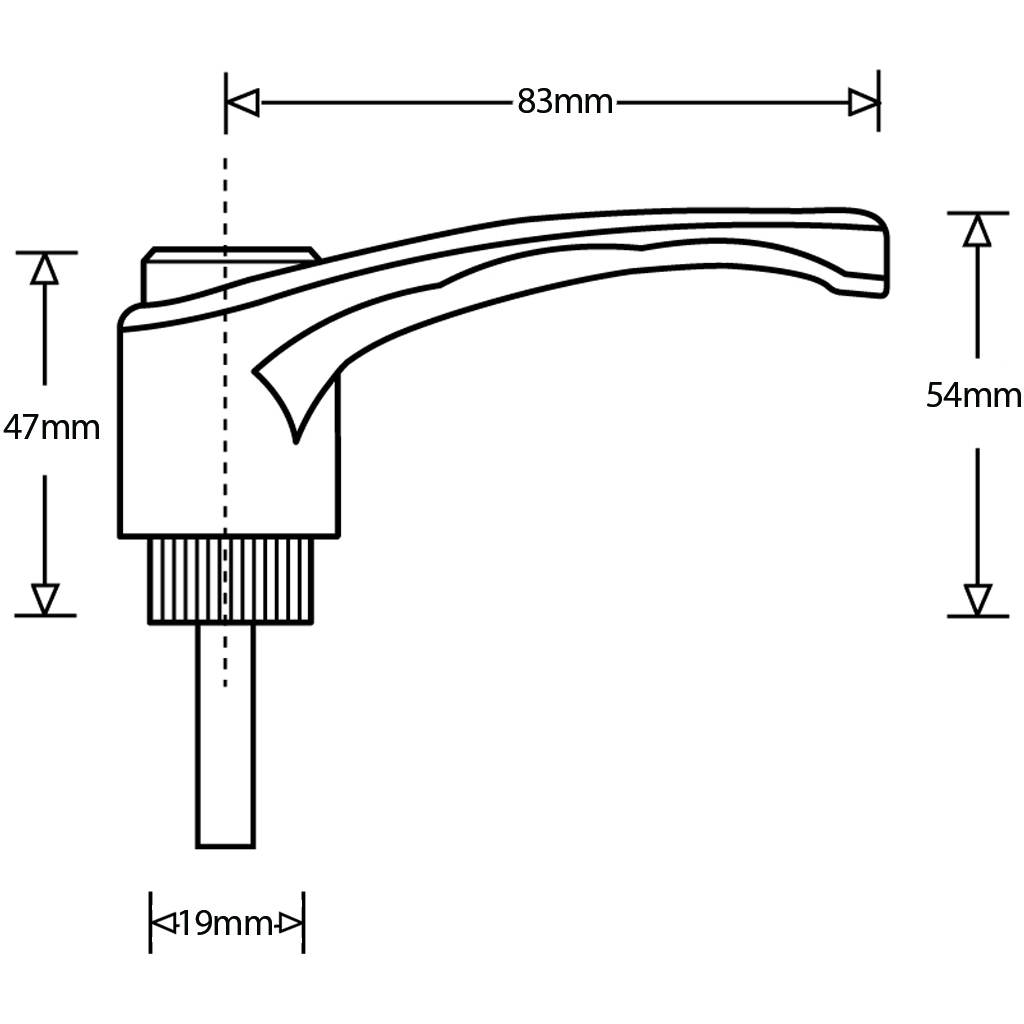

Dimension 'A' (mm) 83
Dimension 'B' (mm) 47.0
Dimension 'C' (mm) 19.0
Dimension 'D' (mm) 54.0
Colour Black
Material / Finish Reinforced nylon

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
12646U 65 mm M8 x 40.iges
Download
12646U 65 mm M8 x 40.stp
Download
Male plastic clamping handle data.jpg
Download
Male plastic clamping handle.JPG
Download
Parnells Clamping Handle Spec Sheet - 12646U.pdf
Download
