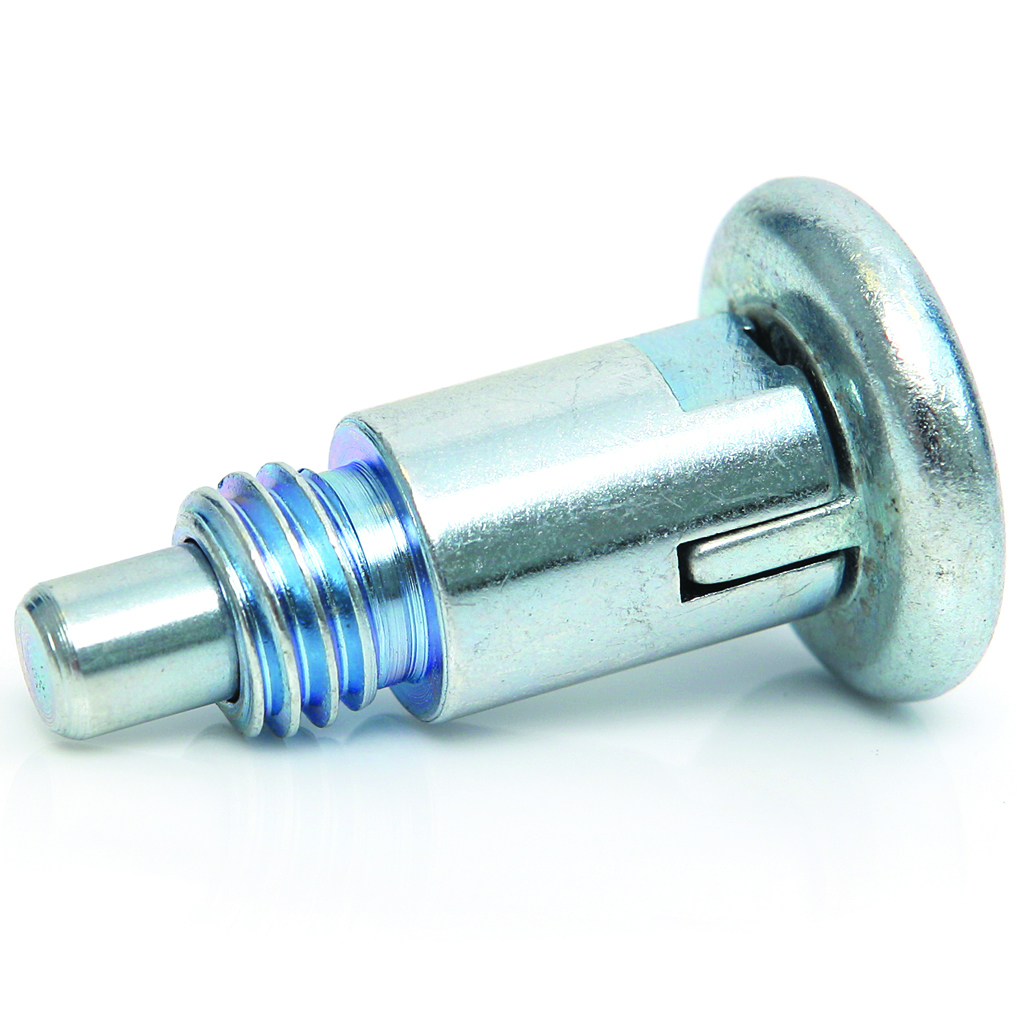

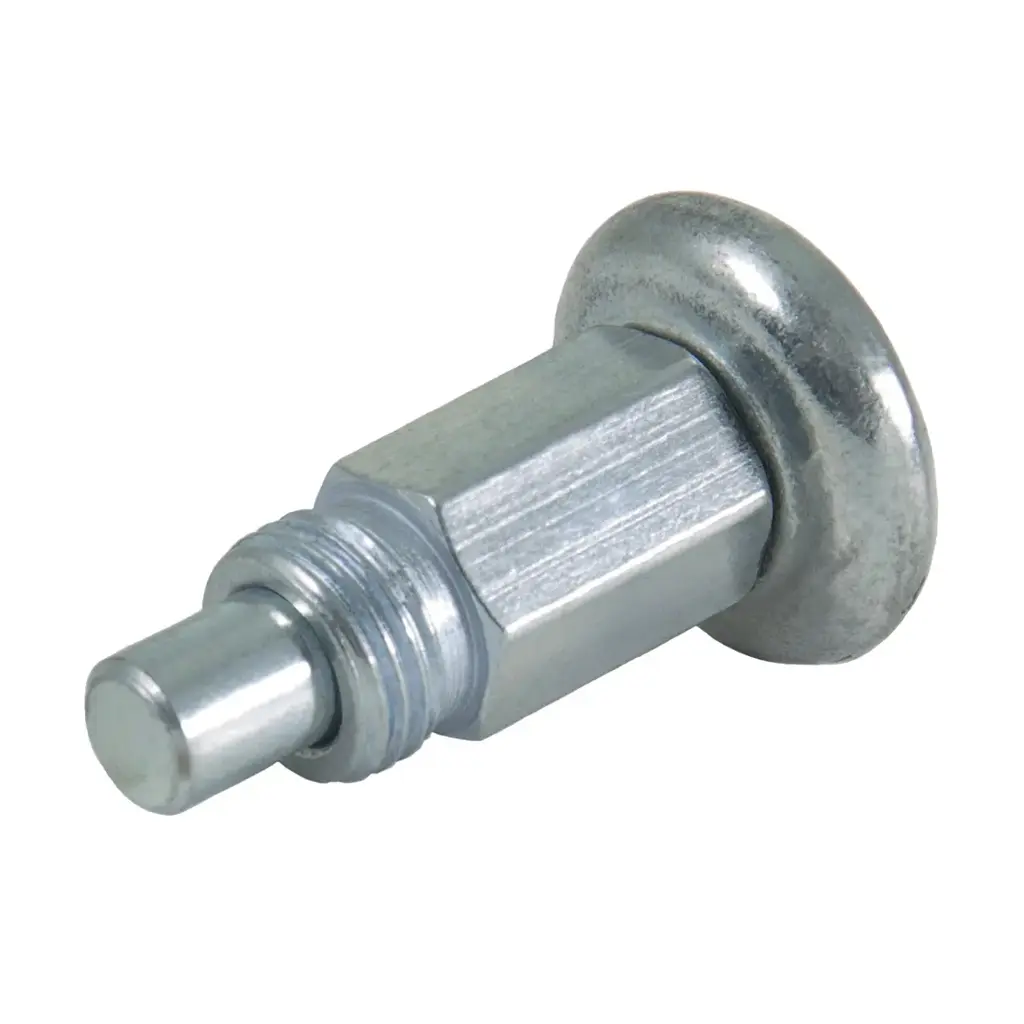

M10 Zinc plated Index plunger (6mm plunger diameter)

Zinc plated steel Spring loaded heavy duty zinc plated steel plunger body Zinc plated die cast zinc head.

Part Number 15216S
Thread Size M10
Rest Position No
Diameter (mm) 6
Type All Metal Body Index
Material Zinc

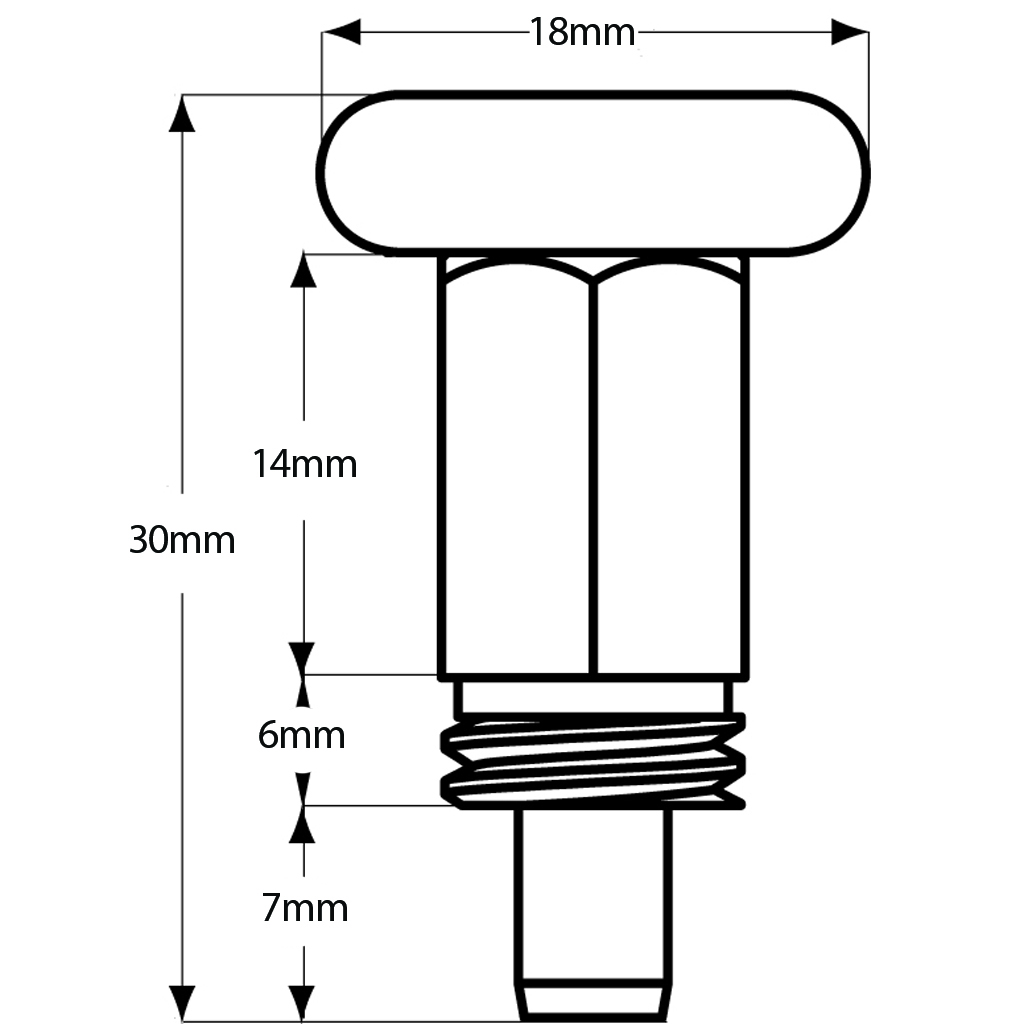

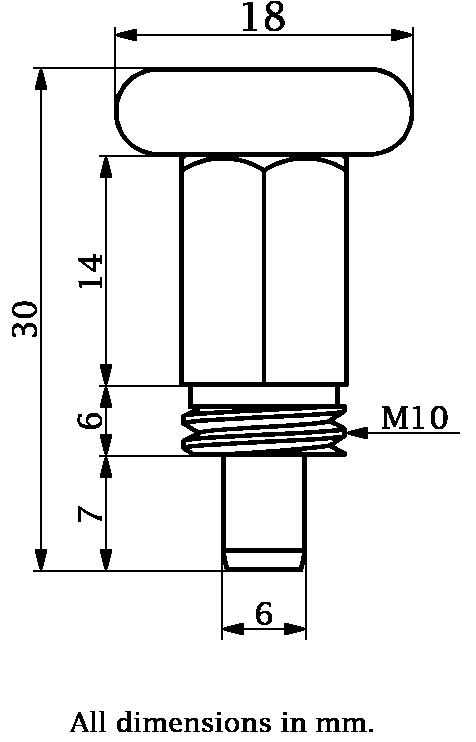

Dimension 'A' (mm) 18
Dimension 'B' (mm) 30.0
Dimension 'C' (mm) 14.0
Dimension 'D' (mm) 6.0
Dimension 'E' (mm) 7.0
Colour Bright Zinc
Material / Finish Zinc Plated Steel
Plunger Type All Metal Body Index

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
15216S 18mm M10 x 1.0 6mm pin.iges
Download
15216S M10 x 1.0 6mm pin.stp
Download
All metal index plunger data.jpg
Download
All metal index plunger.JPG
Download

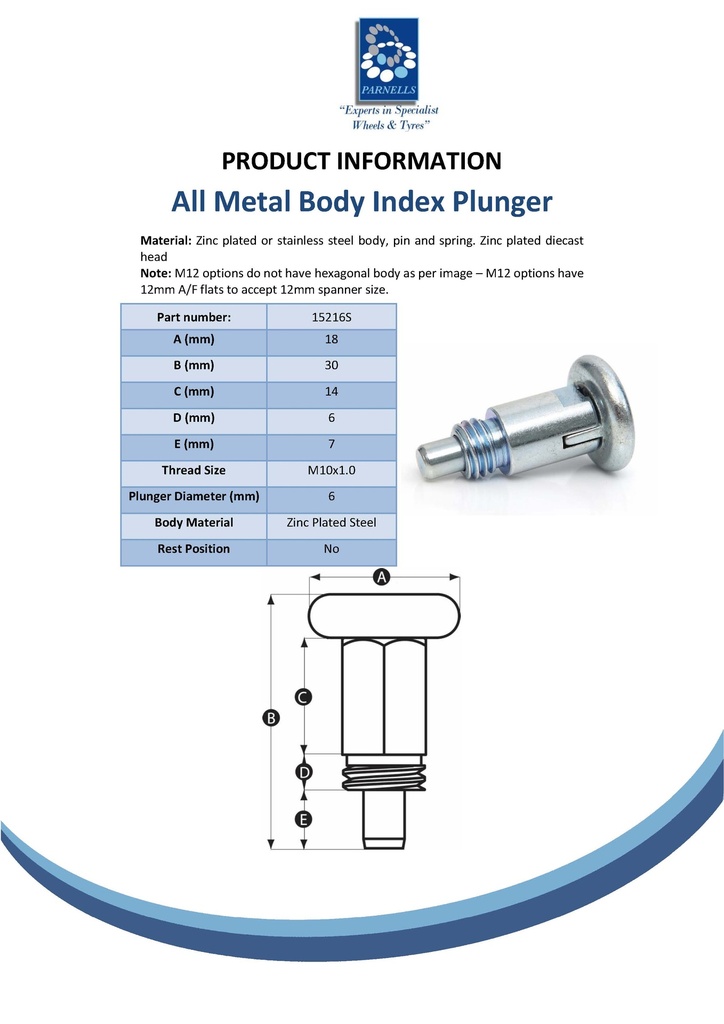

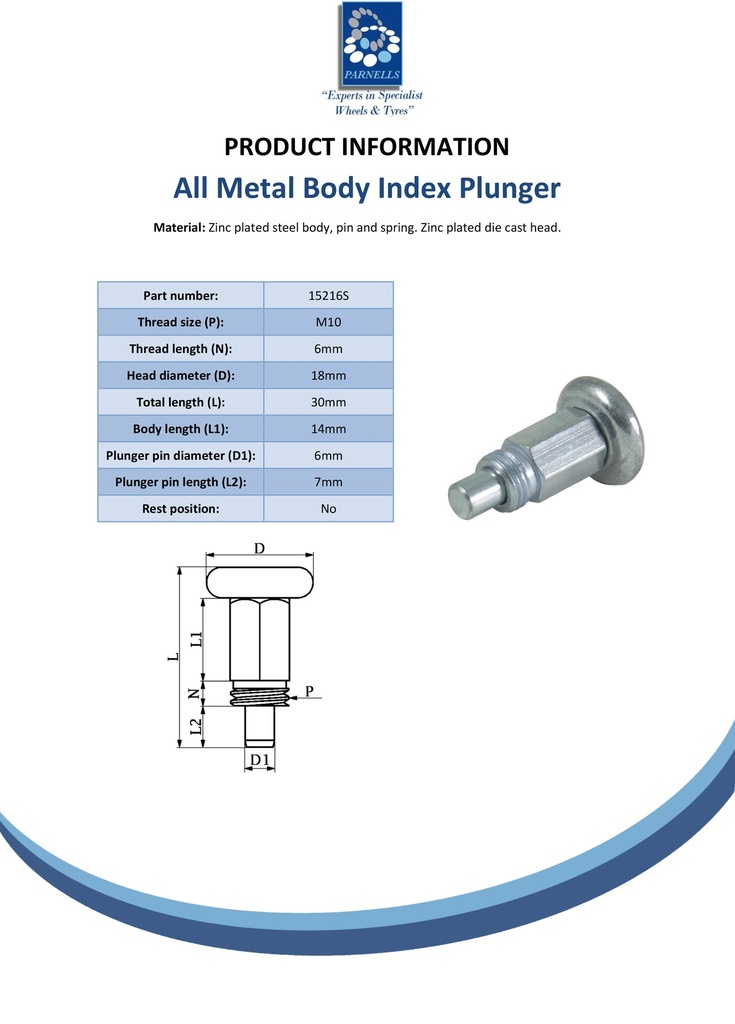

Parnells Plunger Spec Sheet - 15216S.pdf
Download
