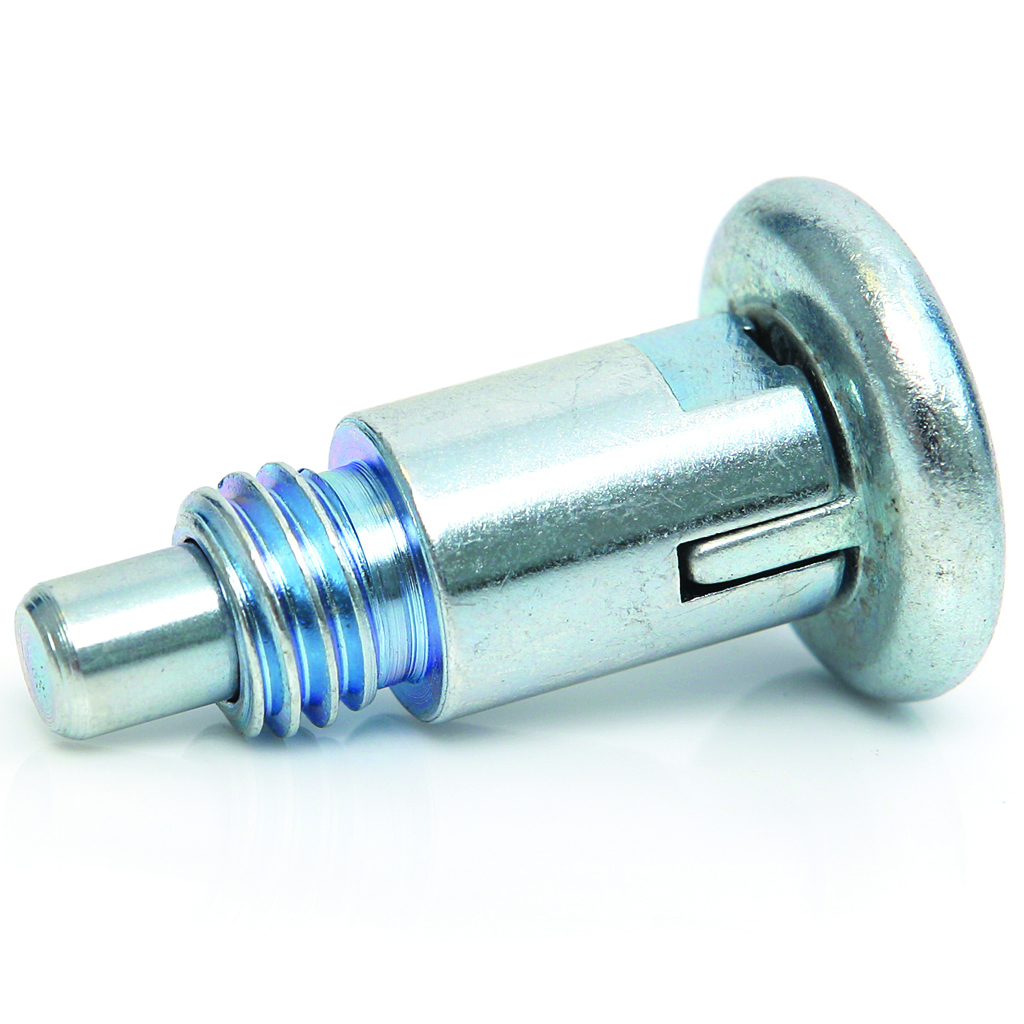

M10 Stainless steel index plunger

Material: Stainless steel body, pin & spring - Die cast zinc head

Plunger Diameter: 6mm

This style of plunger is compact and economical. It is suitable for a wide range of positioning, locking and locating applications including shop fitting, point of sale and work holding.

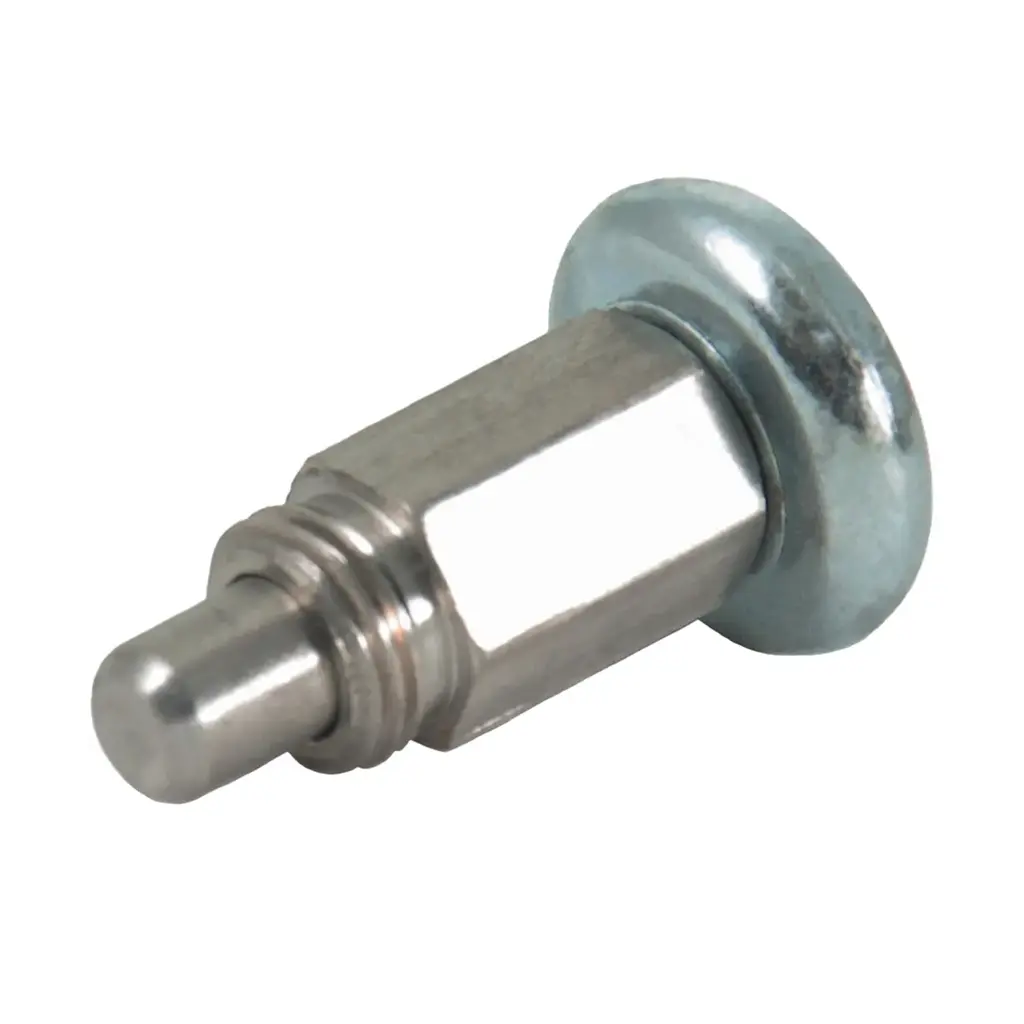

M10 Stainless steel Index plunger (6mm plunger diameter)

Add to cart

Sign in

Pay

Get Delivered

Part Number 15217Z
Thread Size M10
Rest Position No
Diameter (mm) 6
Type All Metal Body Index
Material Stainless Steel

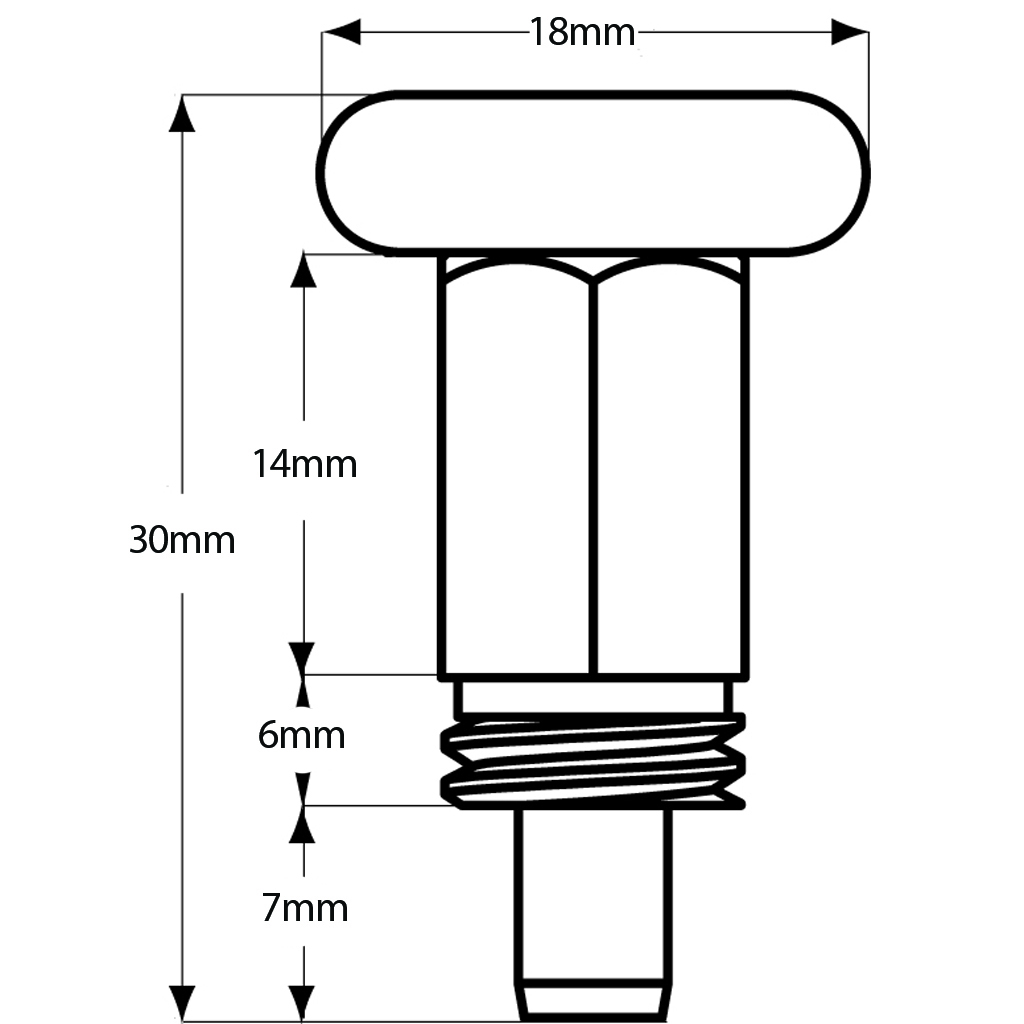

Dimension 'A' (mm) 18
Dimension 'B' (mm) 30.0
Dimension 'C' (mm) 14.0
Dimension 'D' (mm) 6.0
Dimension 'E' (mm) 7.0
Colour Stainless Steel
Material / Finish Stainless Steel
Plunger Type All Metal Body Index.
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
15217Z 18 mm M10 x 1.0 6mm pin SS.iges
Download
15217Z M10 x 1.0 SS 6mm pin.stp
Download
All metal index plunger data.jpg
Download
All metal index plunger.JPG
Download

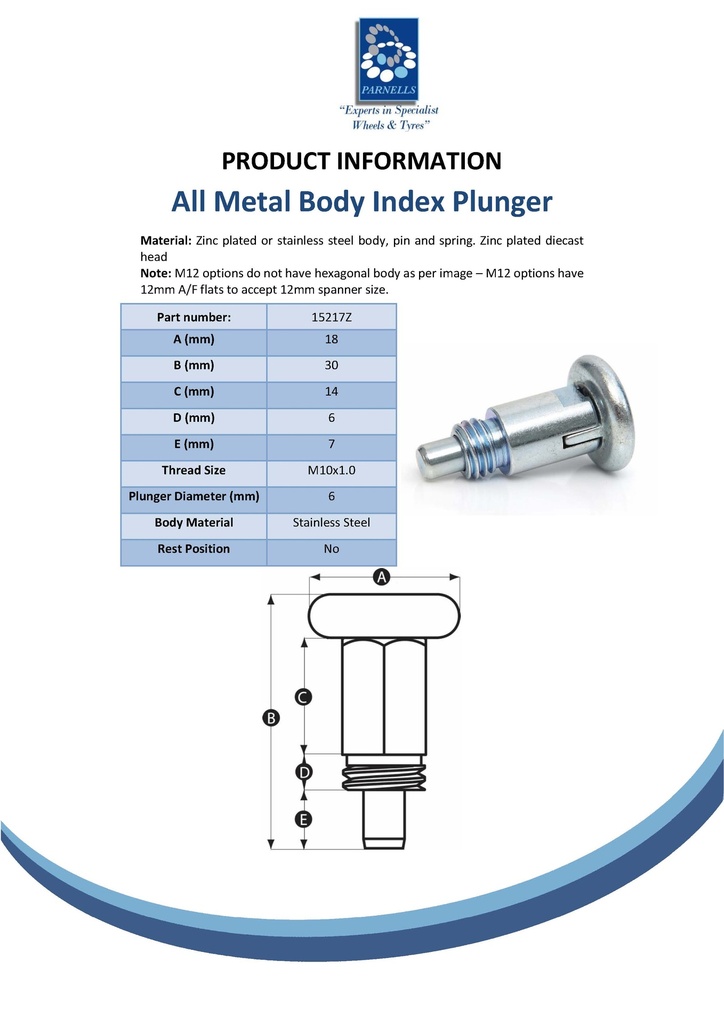

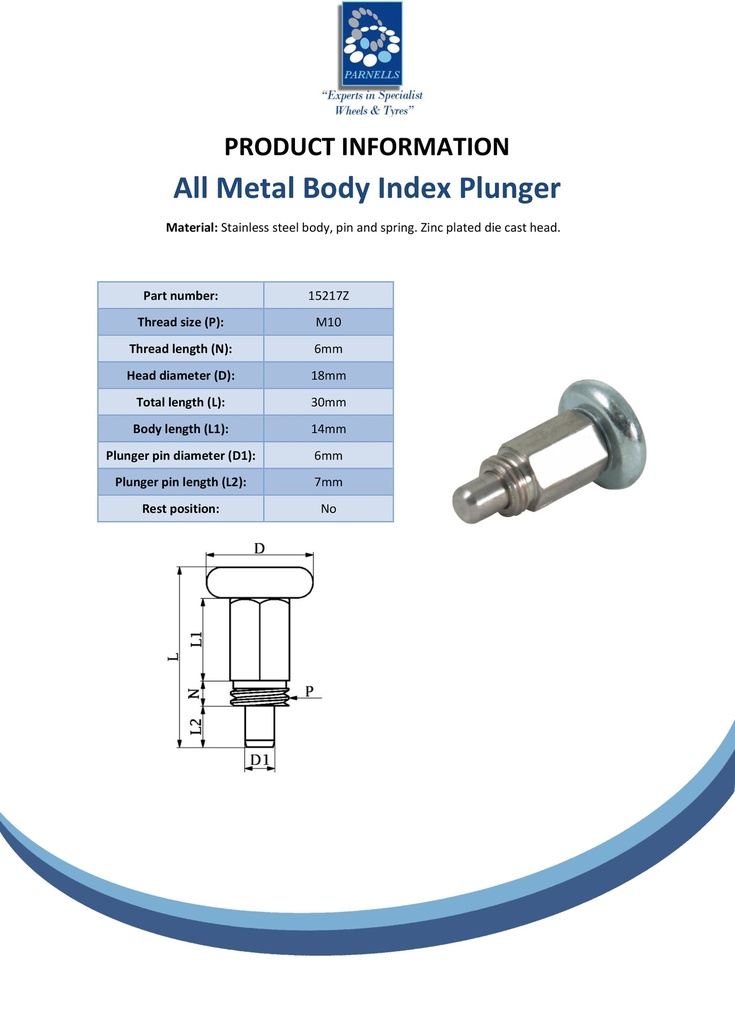

Parnells Plunger Spec Sheet - 15217Z.pdf
Download
