125mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 200kg

https://www.parnells.eu/web/image/product.template/30736/image_1920?unique=541a770
(0 review)

Part Number: 201000
Wheel Diameter: 125mm (5" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 200kg

19.98 € 19.98 EUR 19.98 €

23.21 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

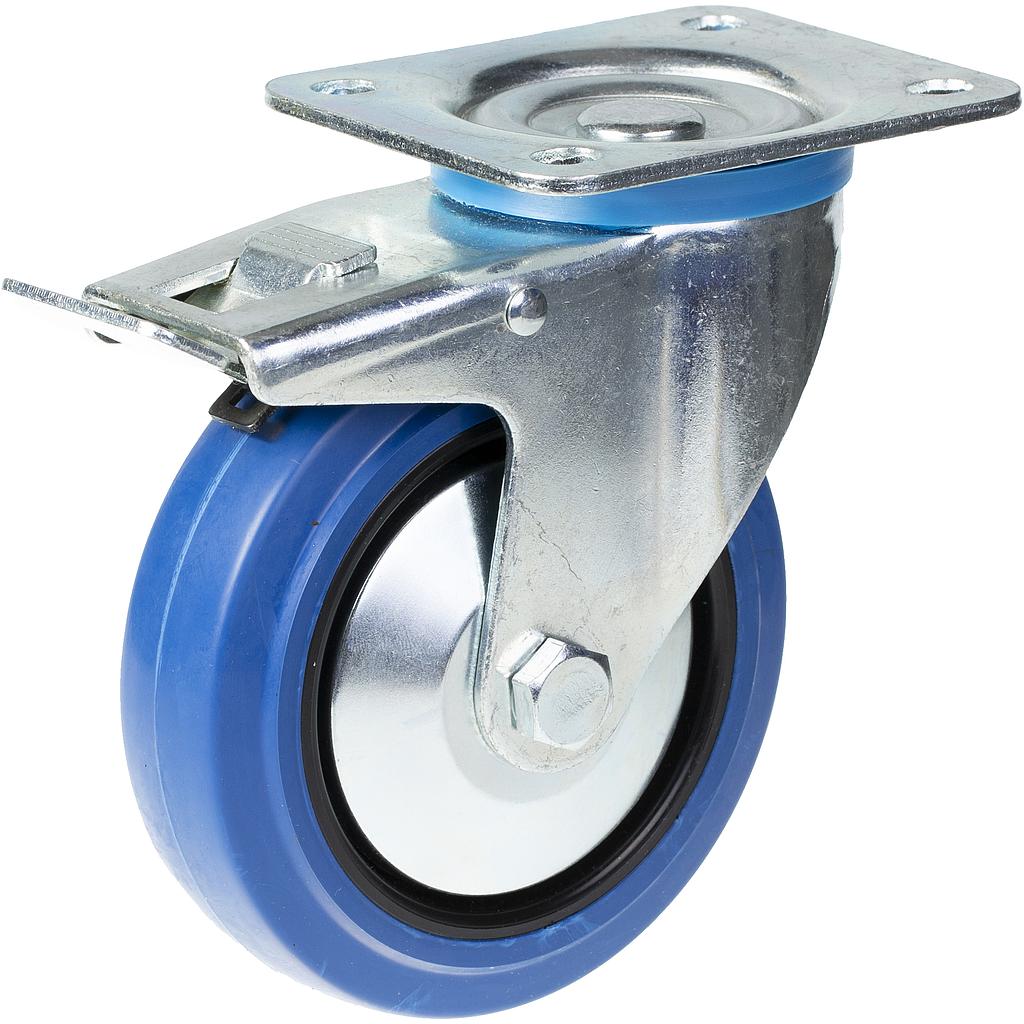

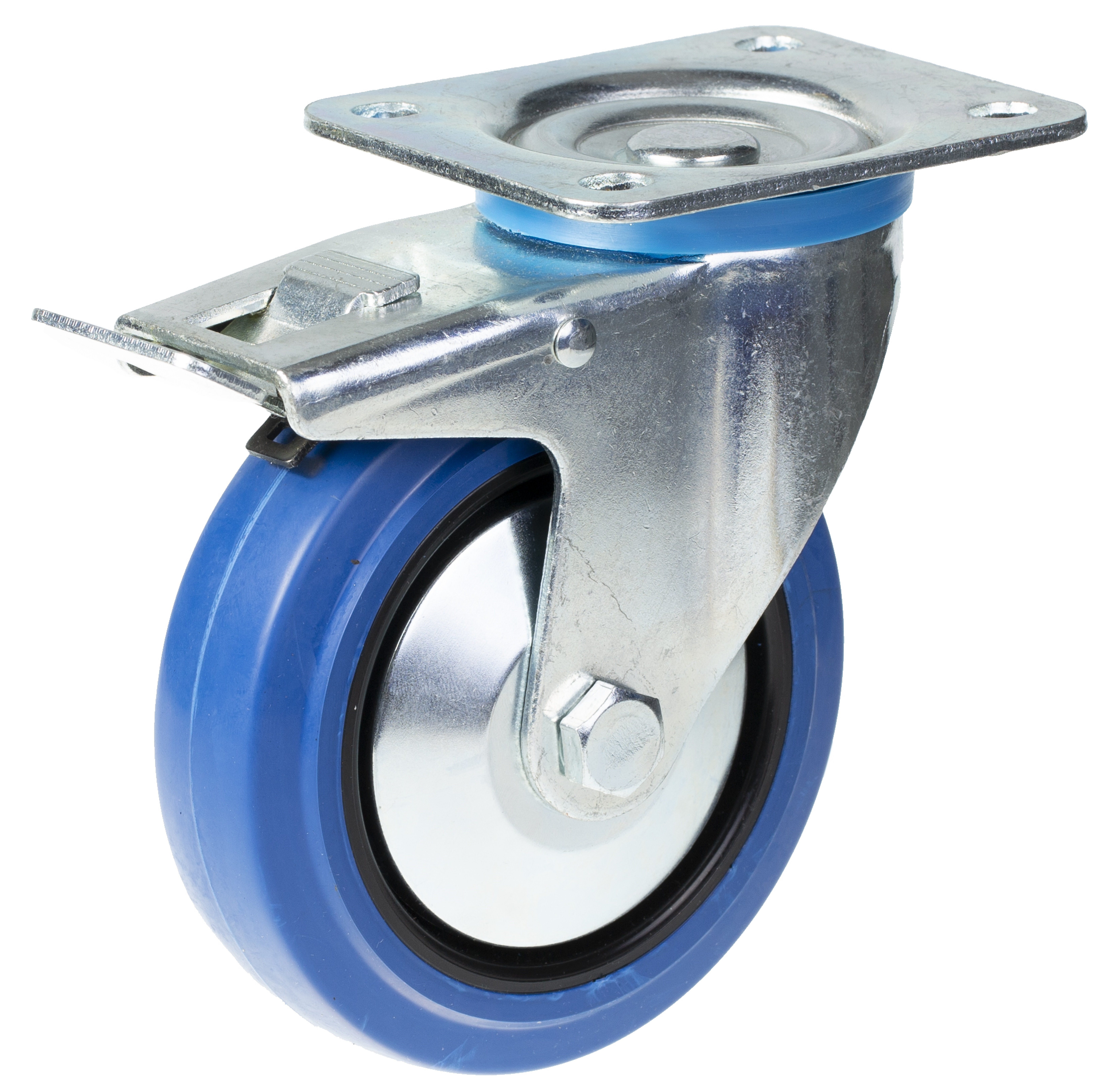

125mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 200kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Thread guards.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

322 series 125mm swivel/brake top plate 106x86mm castor with blue elastic rubber on nylon centre roller bearing wheel 200kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 201000
Wheel Diameter (mm) 125
Tread Width (mm) 36
Bearing Type Roller bearing
Top Plate Size (mm) 106x86
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 154
Load Capacity 3km/h (kg) 200
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

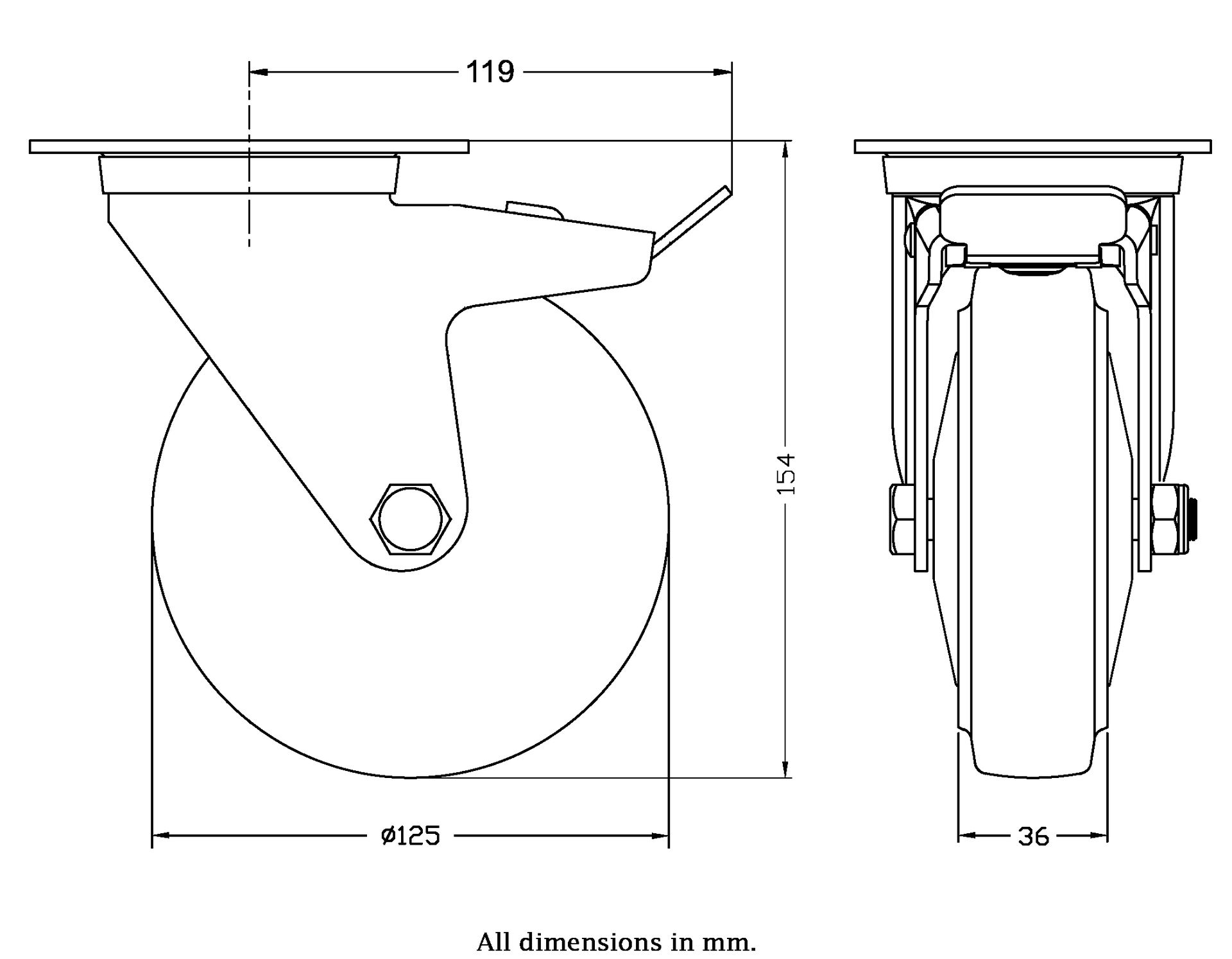

Dimensions for 201000.jpg
Download
Spec Sheet for 201000.pdf
Download

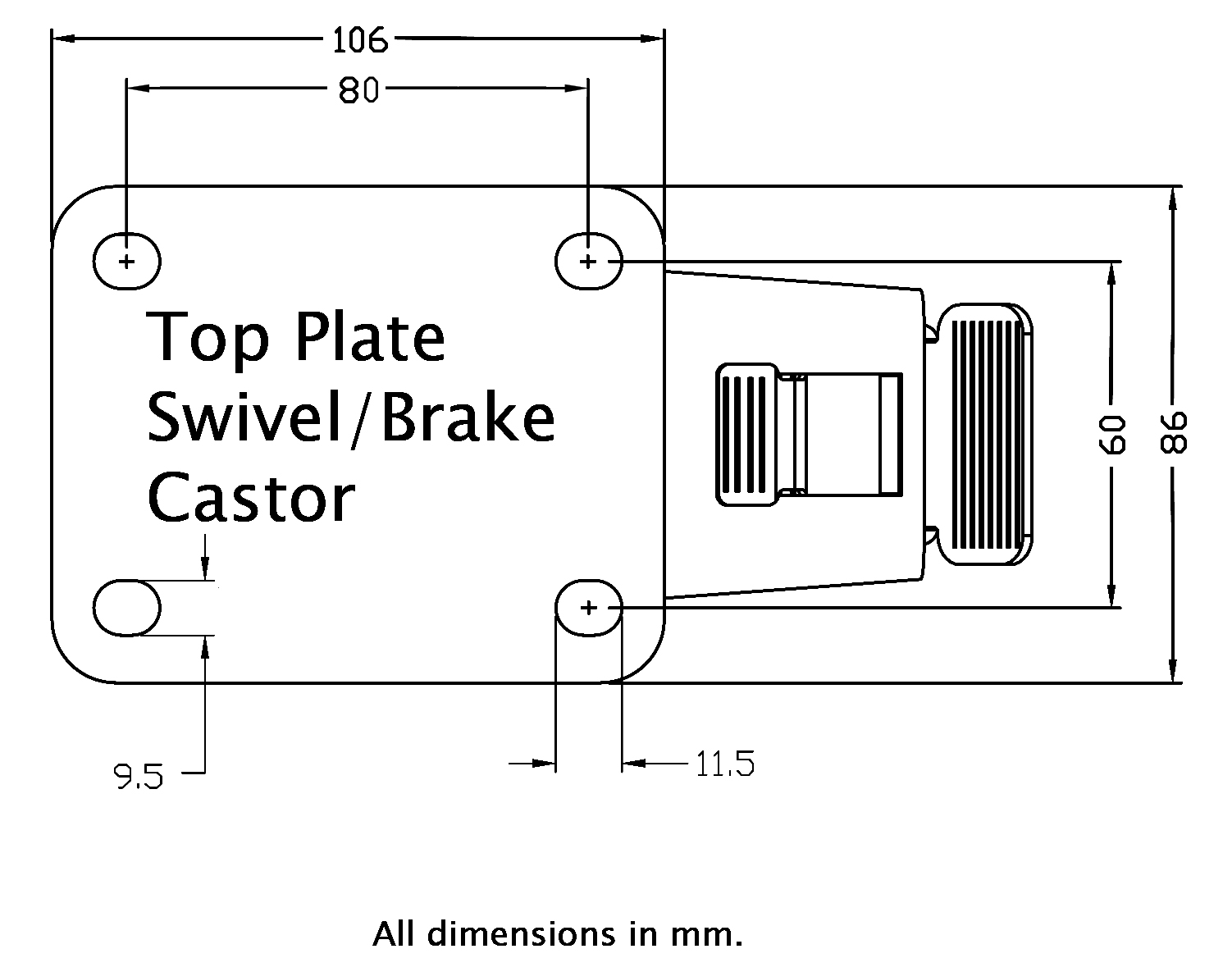

Dimensions for top plate brake, 100-125mm.jpg
Download
Image for 201000.jpg
Download
