T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
322 series 125mm swivel top plate 106x86mm castor with blue elastic rubber on nylon centre roller bearing wheel 200kg
322 series 125mm swivel top plate 106x86mm castor with blue elastic rubber on nylon centre roller bearing wheel 200kg
19.04 €
19.04 €

100mm swivel castor with grey thermoplastic polyurethane on nylon centre wheel, 200kg

https://www.parnells.eu/web/image/product.template/30734/image_1920?unique=6a81d86

Part Number: 22102S
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 200kg

19.95 € 19.95 EUR 19.95 €

23.17 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
322 series 100mm swivel top plate 106x86mm castor with polyurethane on nylon centre roller bearing wheel 200kg

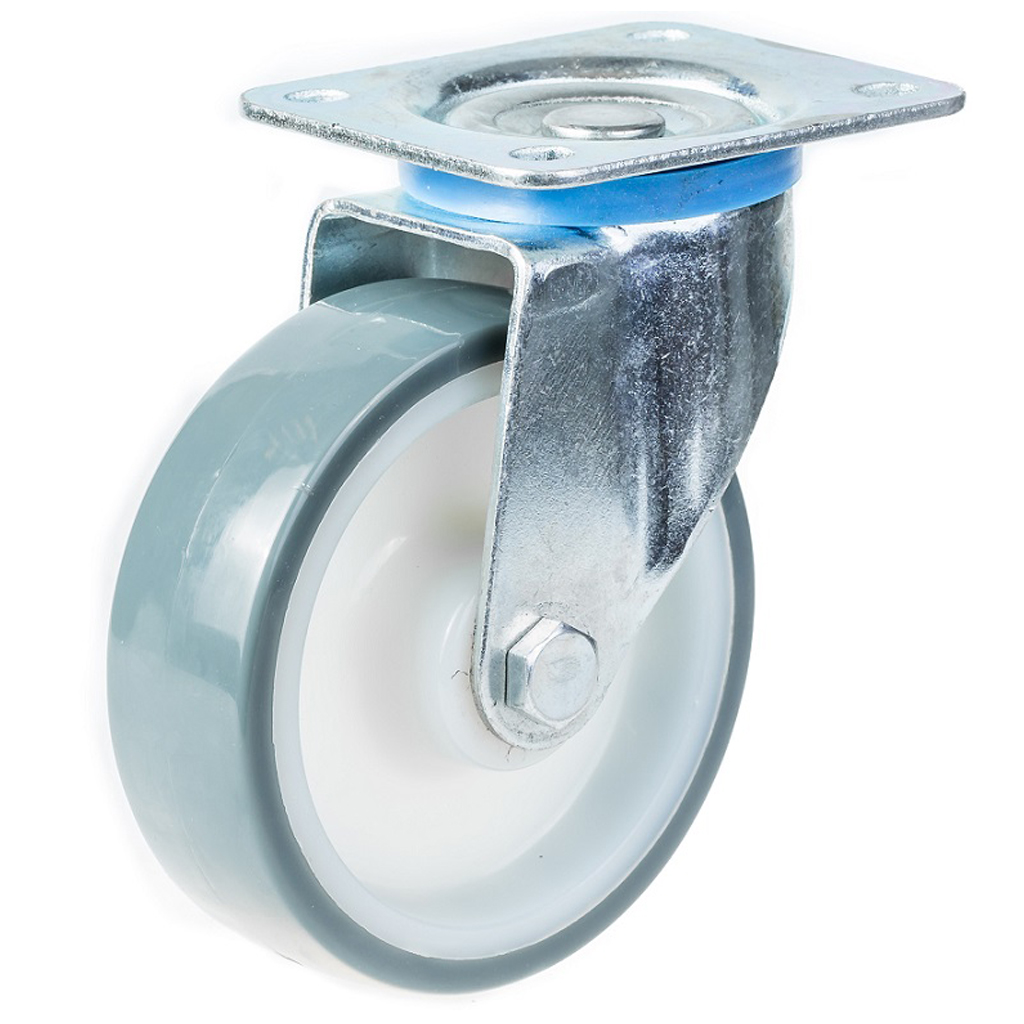

100mm swivel castor with grey thermoplastic polyurethane on nylon centre wheel, 200kg

  • Swivel castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Wheel with grey thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 98° Shore A.

  • Bolted wheel axle.

  • High wear resistance and good floor preservation, non-marking.

  • Low rolling resistance and operating noise.

  • Good chemical resistance to many aggressive substances.

Part Number 22102S
Wheel Diameter (mm) 100
Brand ZHONGSHAN
Tread Width (mm) 36
Bearing Type Roller bearing
Top Plate Size (mm) 106x86
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 129
Load Capacity 3km/h (kg) 200

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 22102S.pdf
Download

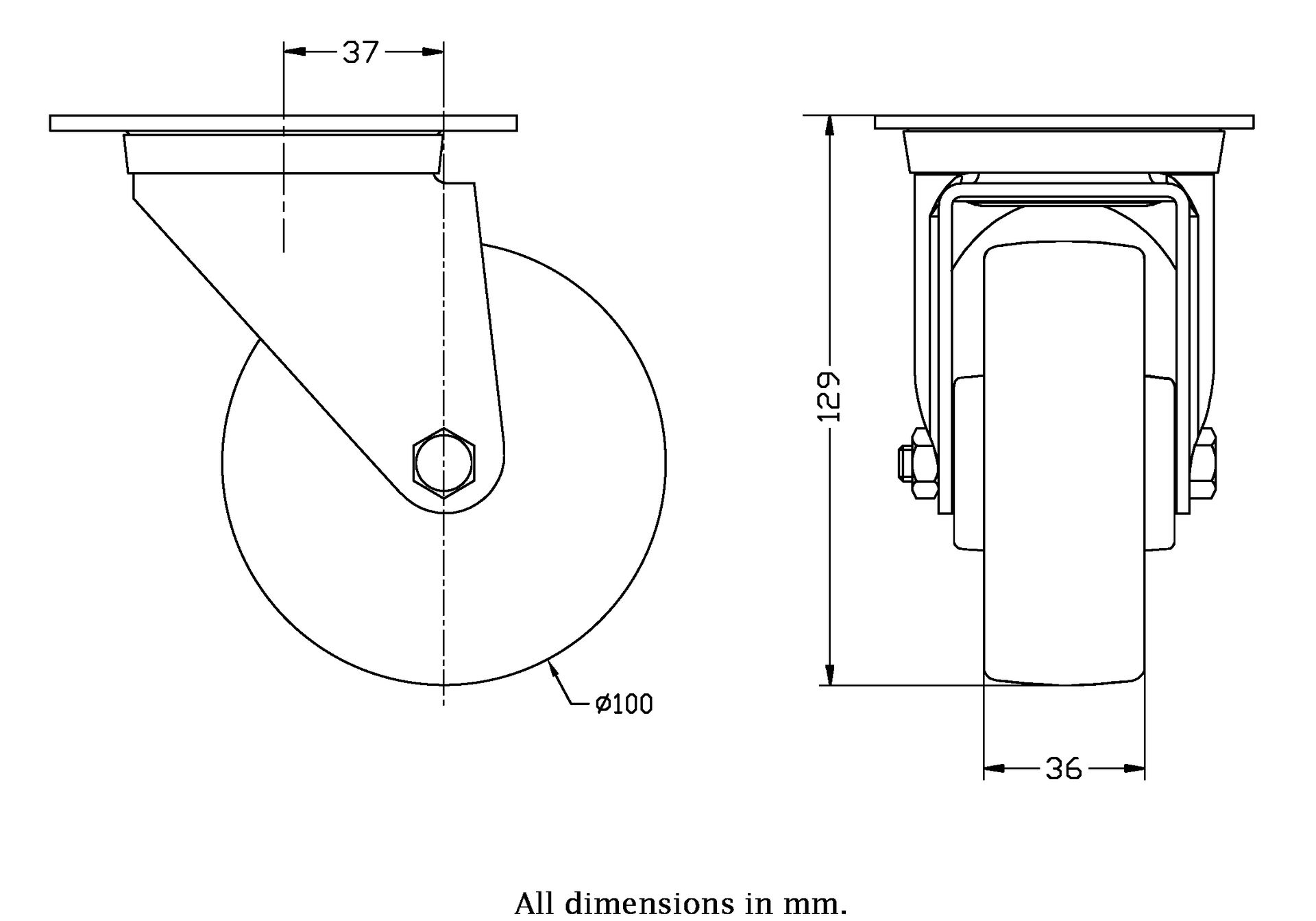

Dimensions for 22102S.jpg
Download

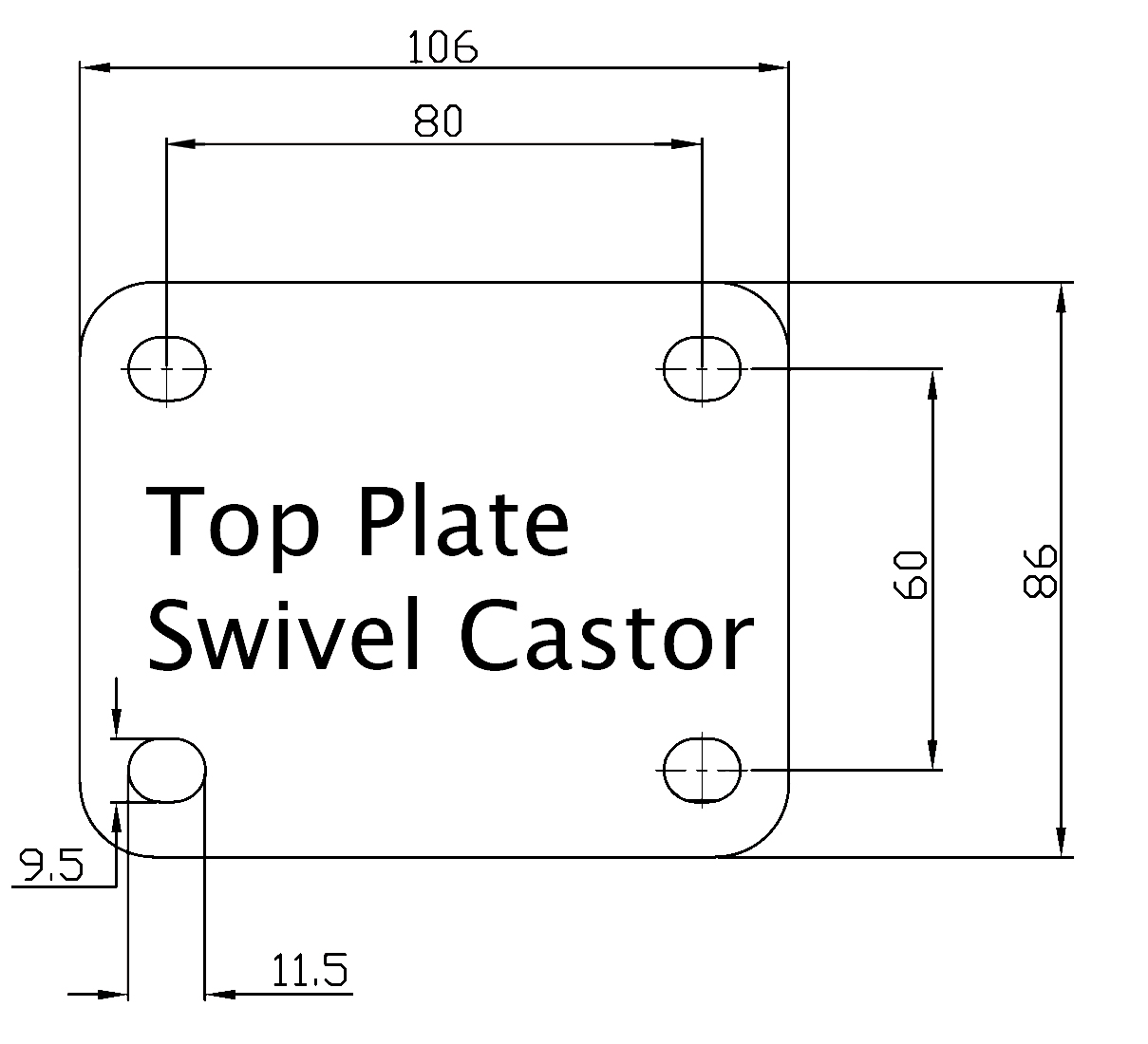

Dimensions for top plate swivel, 100-125mm.jpg
Download
