200mm swivel castor with black elastic rubber on welded steel centre wheel, 600kg

https://www.parnells.eu/web/image/product.template/86224/image_1920?unique=c13820a
(0 review)

Part Number: 230003
Wheel Diameter: 200mm (8" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 600kg

235.31 € 235.31 EUR 235.31 €

273.30 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

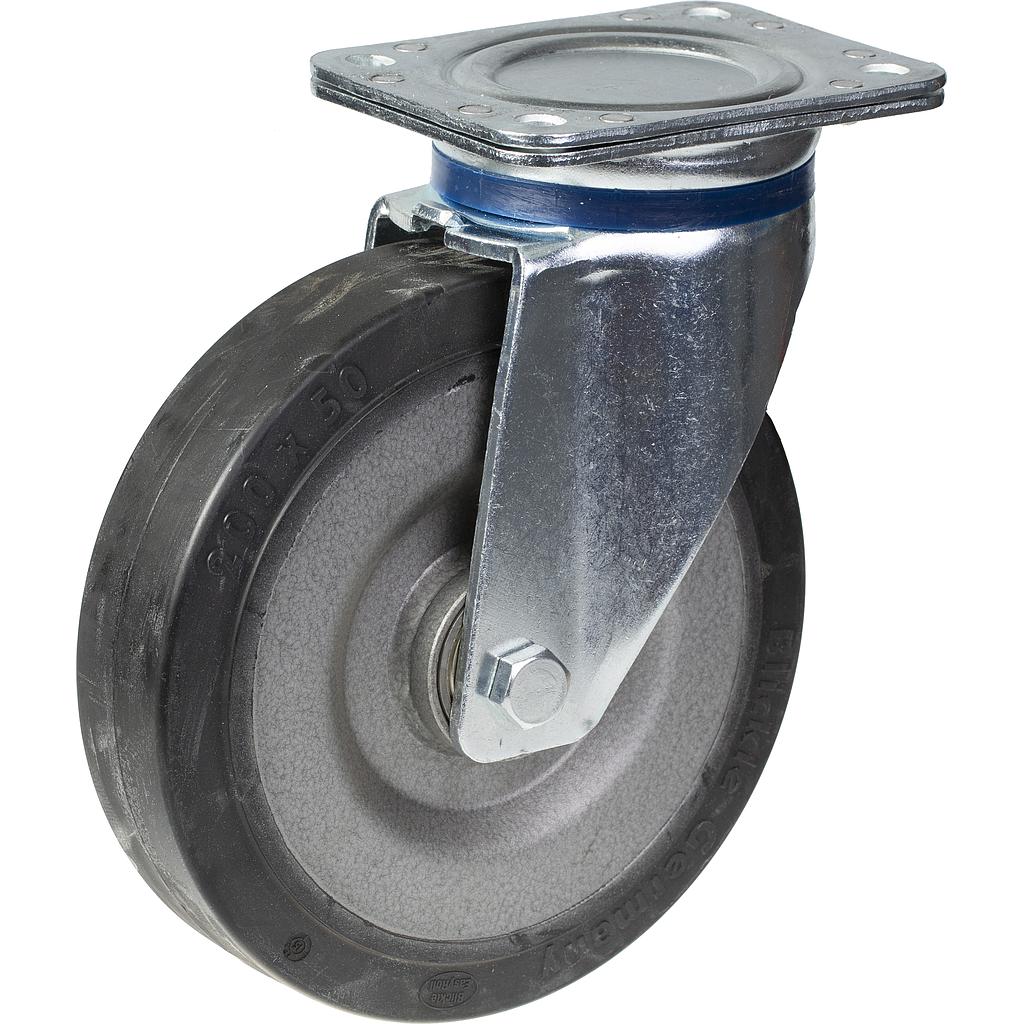

800 series 200mm swivel top plate 135x110mm castor with black elastic rubber on welded steel centre ball bearing wheel 600kg

200mm swivel castor with black elastic rubber on welded steel centre wheel, 600kg

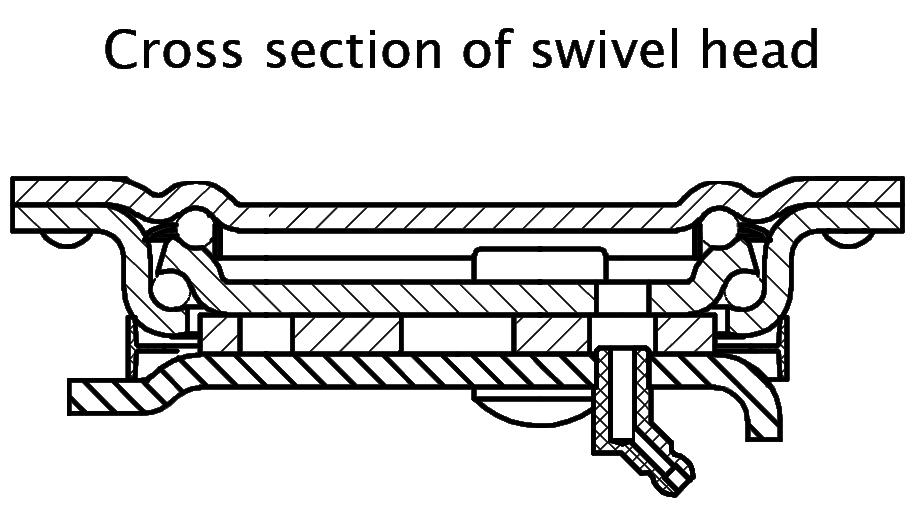

  • Swivel castor with strong top plate bracket made of zinc plated steel with sealed hardened double row ball race in swivel head, grease nipple and dust protection ring.

  • Wheel with black elastic rubber vulcanized on welded steel centre.

  • The hardness of the tread is 65° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

  • Can be equipped with a separate 1-way directional lock, part no. 920049.

Add to cart

Sign in

Pay

Get Delivered

Part Number 230003
Wheel Diameter (mm) 200
Tread Width (mm) 50
Bearing Type Ball bearings

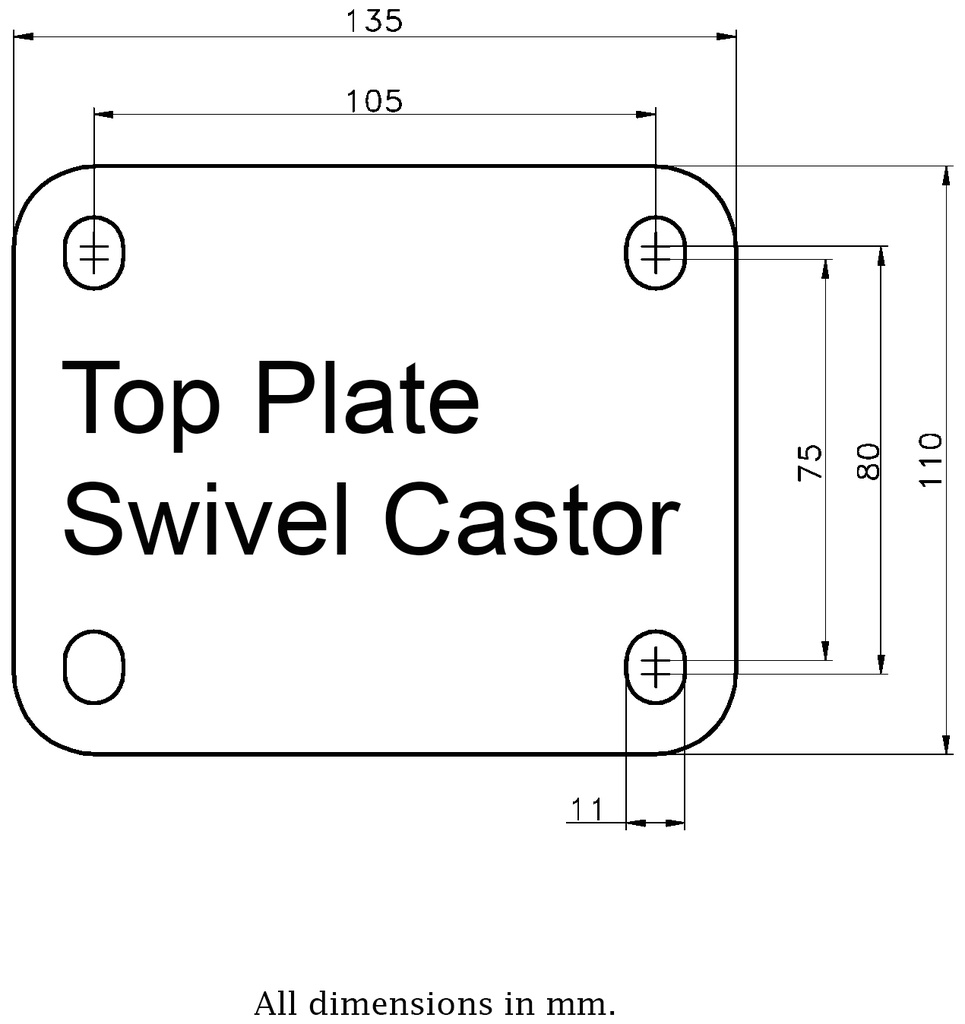

Top Plate Size (mm) 135x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 245
Load Capacity 3km/h (kg) 600
