160mm swivel/brake castor with black elastic rubber on welded steel centre wheel, 450kg

https://www.parnells.eu/web/image/product.template/86232/image_1920?unique=d7c46b2

Part Number: 230017
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 450kg

256.77 € 256.77 EUR 256.77 €

298.22 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
1500 series 160mm swivel/brake top plate 135x110mm castor with black elastic rubber on welded steel centre ball bearing wheel  450kg

160mm swivel/brake castor with black elastic rubber on welded steel centre wheel, 450kg

  • Swivel/brake castor with very strong top plate bracket made of zinc plated steel with a combination of thrust ball bearing and taper roller bearing in swivel head, with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with black elastic rubber vulcanized on welded steel centre.

  • The hardness of the tread is 65° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Wheel Diameter (mm) 160
Tread Width (mm) 50
Bearing Type Ball bearings
Top Plate Size (mm) 135x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 205
Load Capacity 3km/h (kg) 450

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 230017.pdf
Download

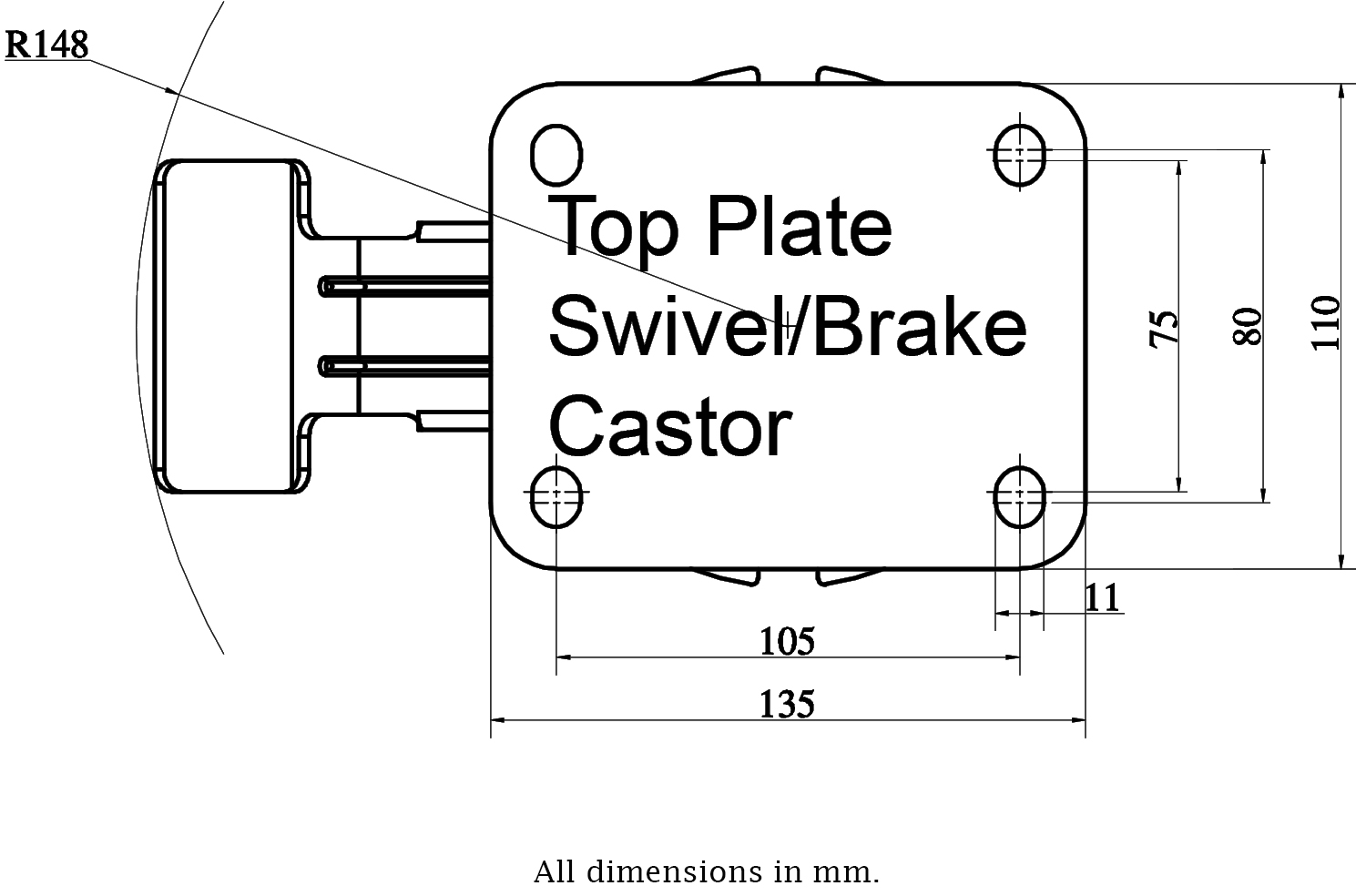

Dimensions for top plate brake, 125-250mm.jpg
Download
Dimensions for 230017.jpg
Download

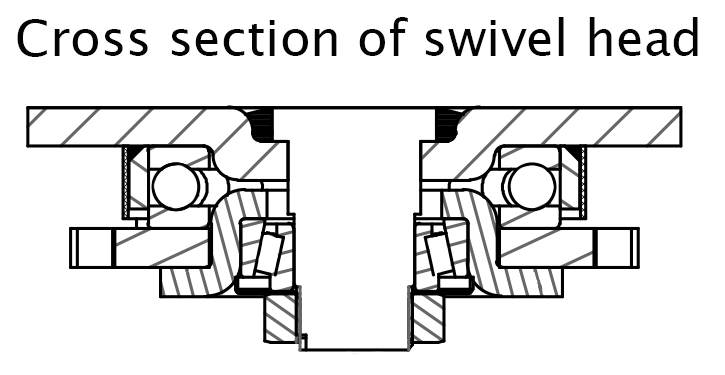

Image for cross section swivel head, 1500 series.jpg
