Plastic round insert 1 ½” (38 x 1.0/2mm)
Plastic round insert 1 ½” (38 x 1.0/2mm)
0.59 €
0.59 €
Wheel series 300x45mm YELLOW Extrathane­® polyurethane on cast iron centre 25mm bore hub length 60mm ball bearings 1300kg
Wheel series 300x45mm YELLOW Extrathane­® polyurethane on cast iron centre 25mm bore hub length 60mm ball bearings 1300kg
297.35 €
297.35 €

160mm fixed castor with blue elastic rubber on nylon centre wheel, 350kg

https://www.parnells.eu/web/image/product.template/87198/image_1920?unique=6813736
(0 review)

Part Number: 230023
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 350kg

34.73 € 34.730000000000004 EUR 34.73 €

40.34 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
300 series 160mm fixed  top plate 146x107mm castor with blue elastic rubber on nylon centre ball bearing wheel 350kg

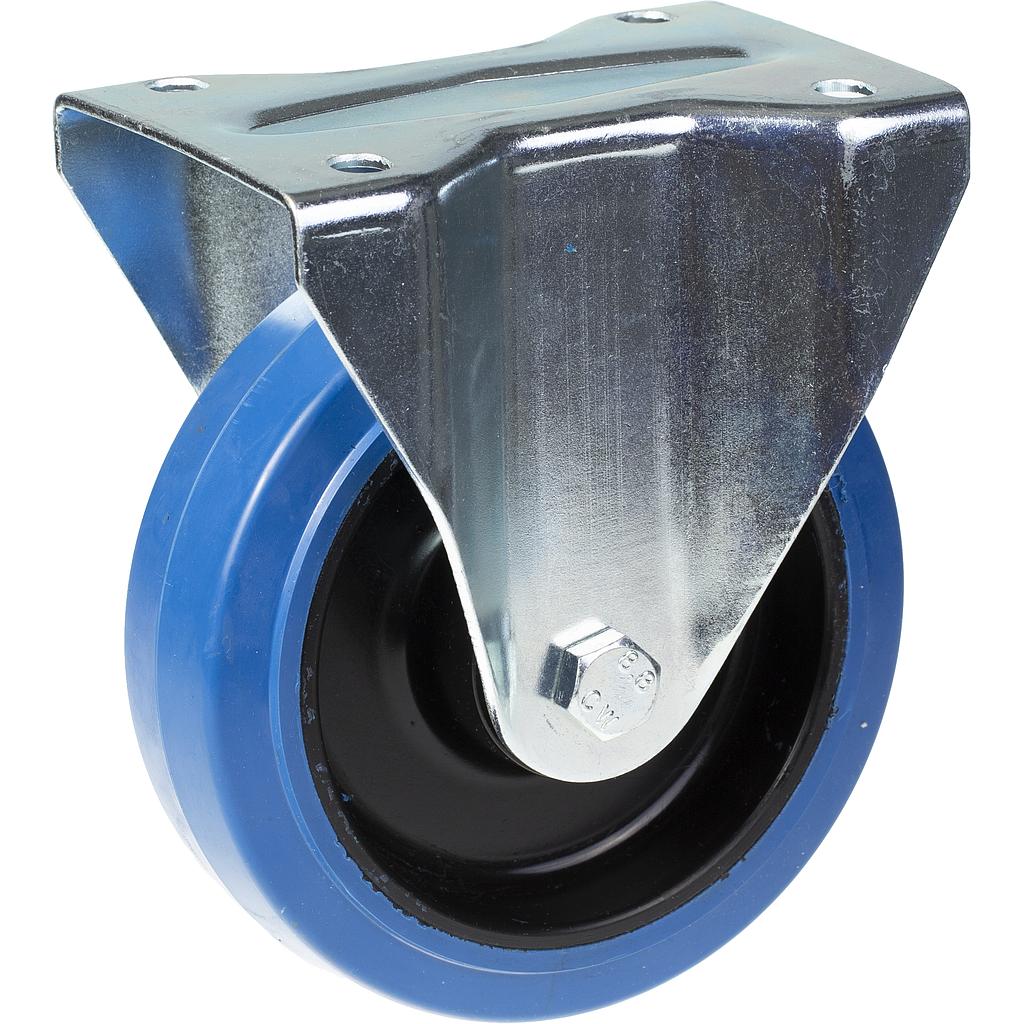

160mm fixed castor with blue elastic rubber on nylon centre wheel, 350kg

  • Fixed castor with top plate bracket made of zinc plated steel.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Add to cart

Sign in

Pay

Get Delivered

Part Number 230023
Wheel Diameter (mm) 160
Tread Width (mm) 42
Bearing Type Ball bearings
Top Plate Size (mm) 146x107
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 193
Load Capacity 3km/h (kg) 350
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Dimensions for 230023.jpg
Download

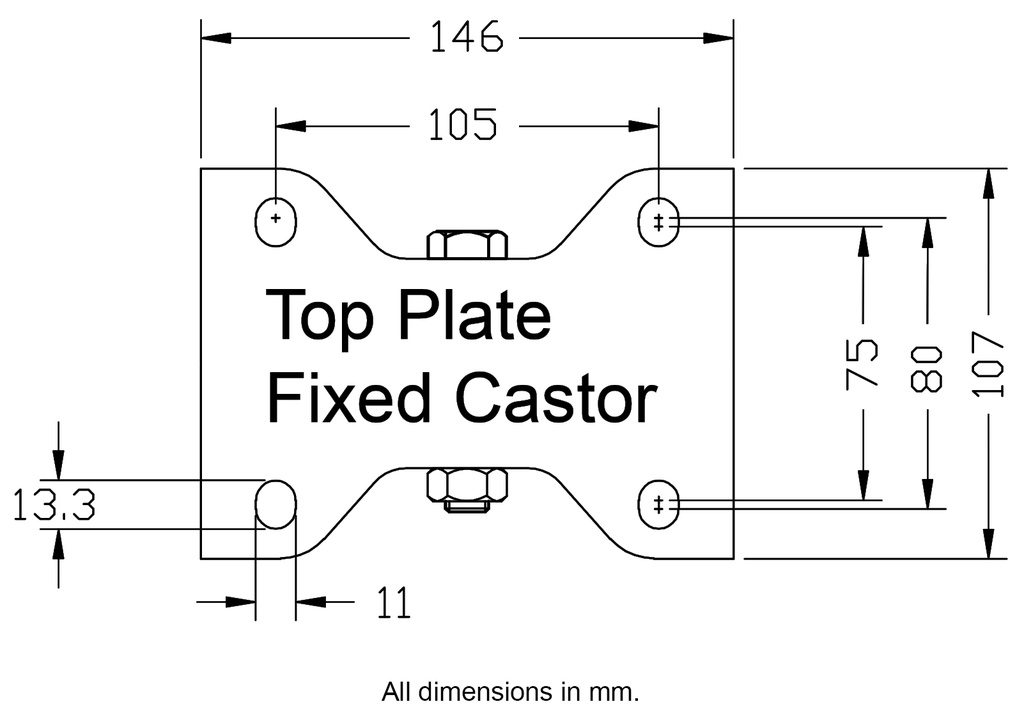

Dimensions for top plate fixed, 125-200mm.jpg
Download
Spec Sheet for 230023.pdf
Download
