160mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 350kg

(0 review)

Part Number: 230024
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 350kg

45.12 € 45.12 EUR 45.12 €

52.40 €

Login for trade prices

Not Available For Sale

  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.

Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

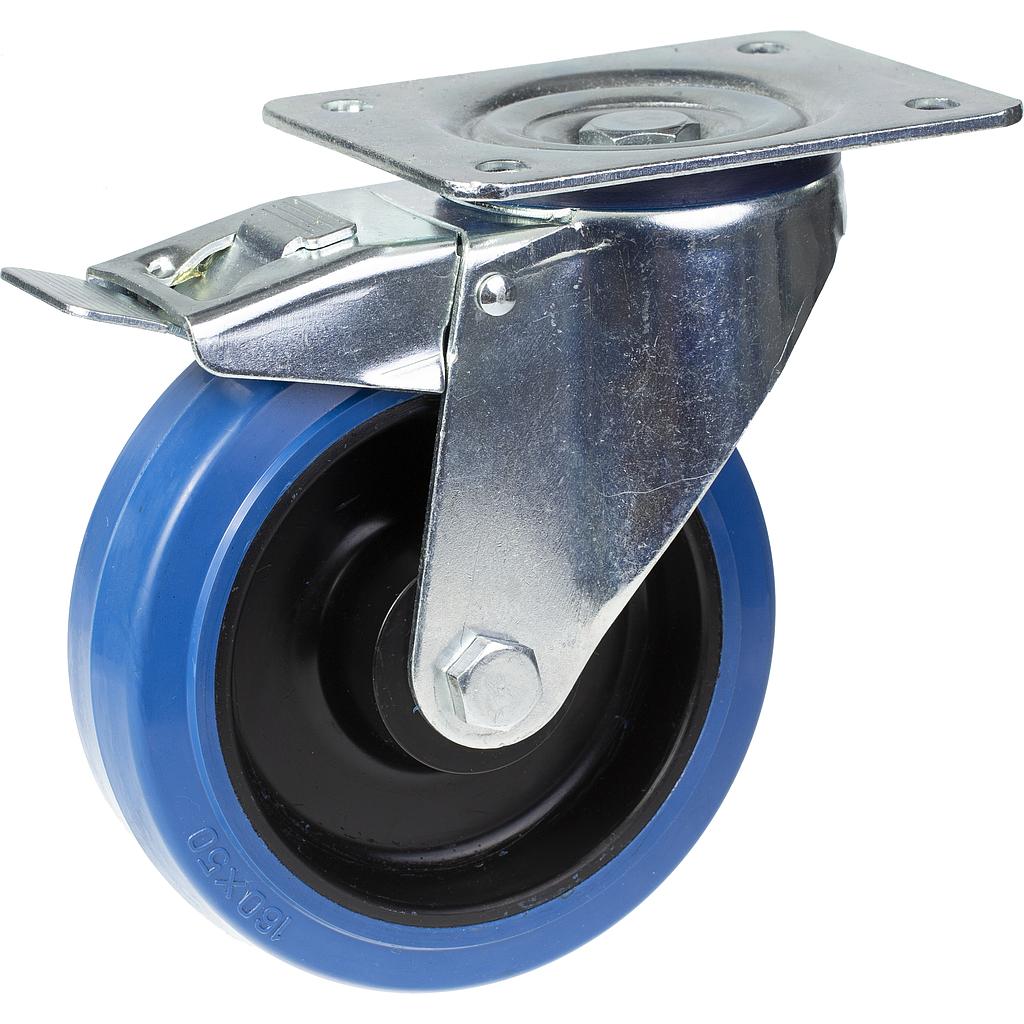

160mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 350kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

300 series 160mm swivel/brake top plate 140x110mm castor with blue elastic rubber on nylon centre ball bearing wheel 350kg

Add to cart

Sign in


Get Delivered

Part Number 230024
Wheel Diameter (mm) 160
Tread Width (mm) 42
Bearing Type Ball bearings
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 193
Load Capacity 3km/h (kg) 350
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

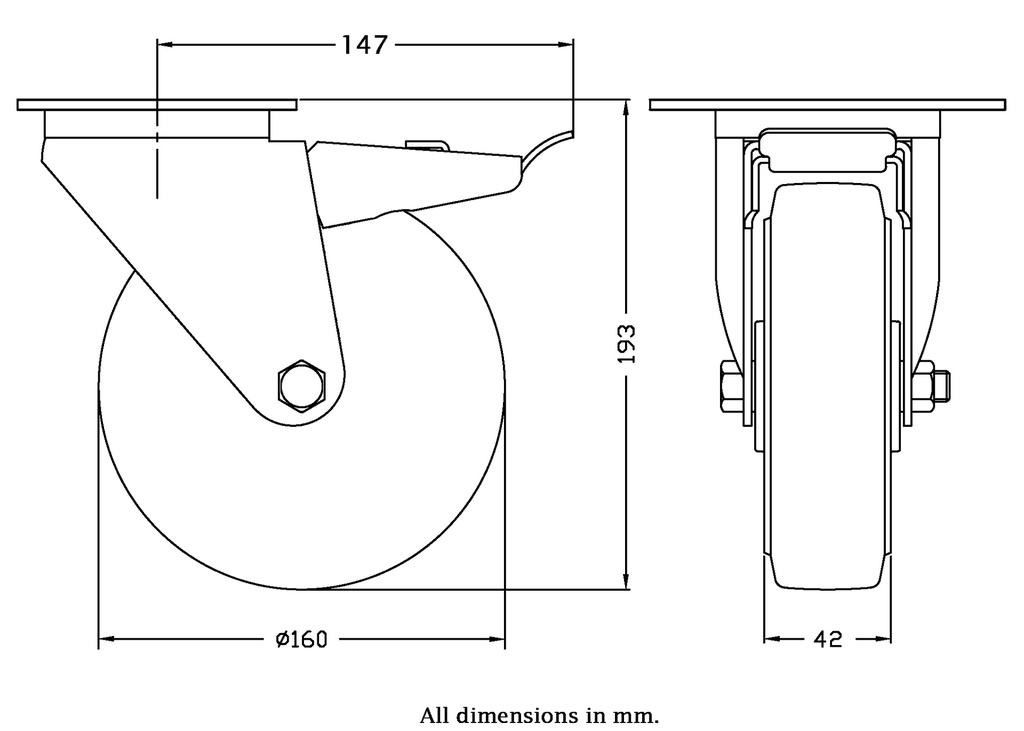

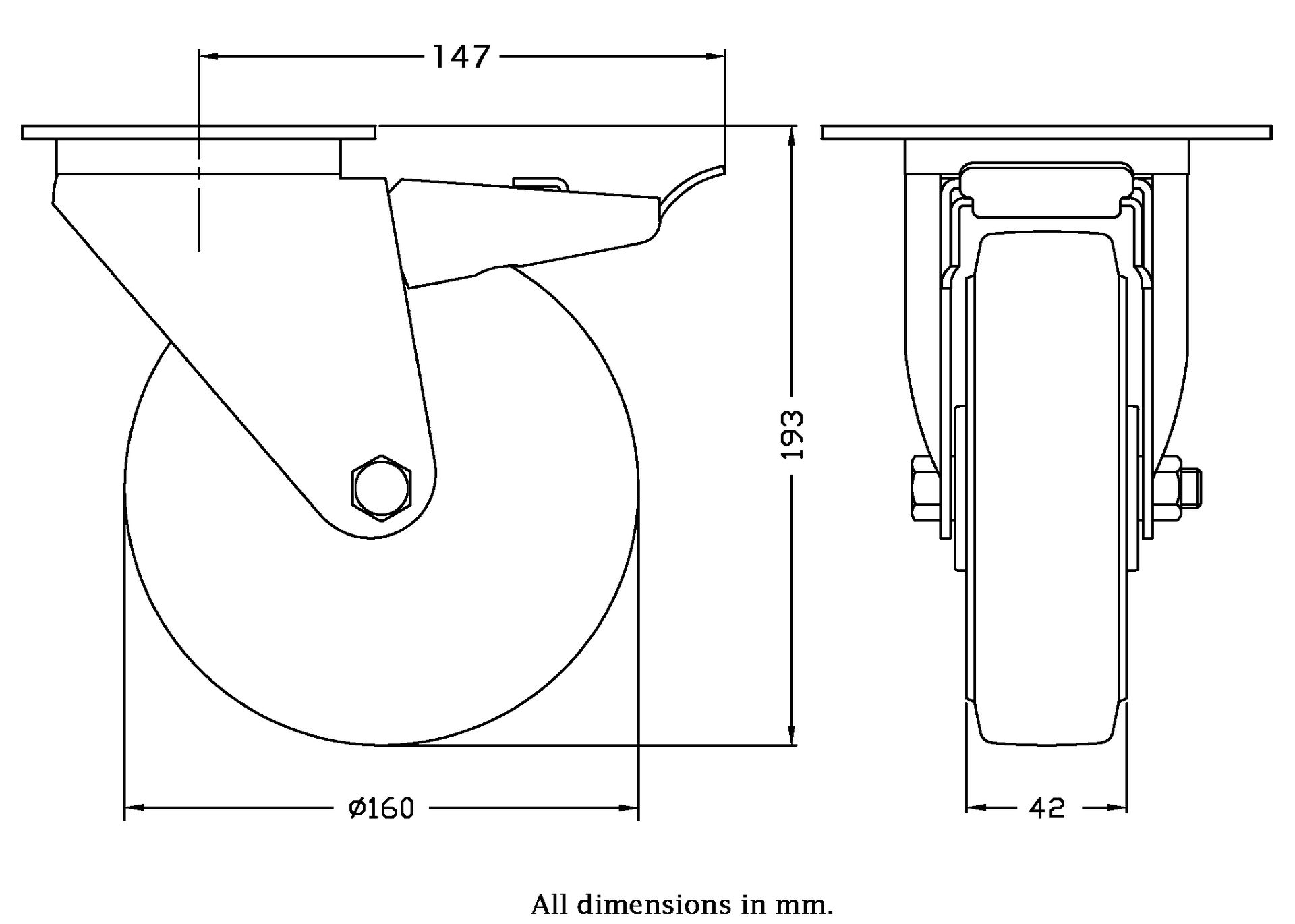

Dimensions for 230024.jpg

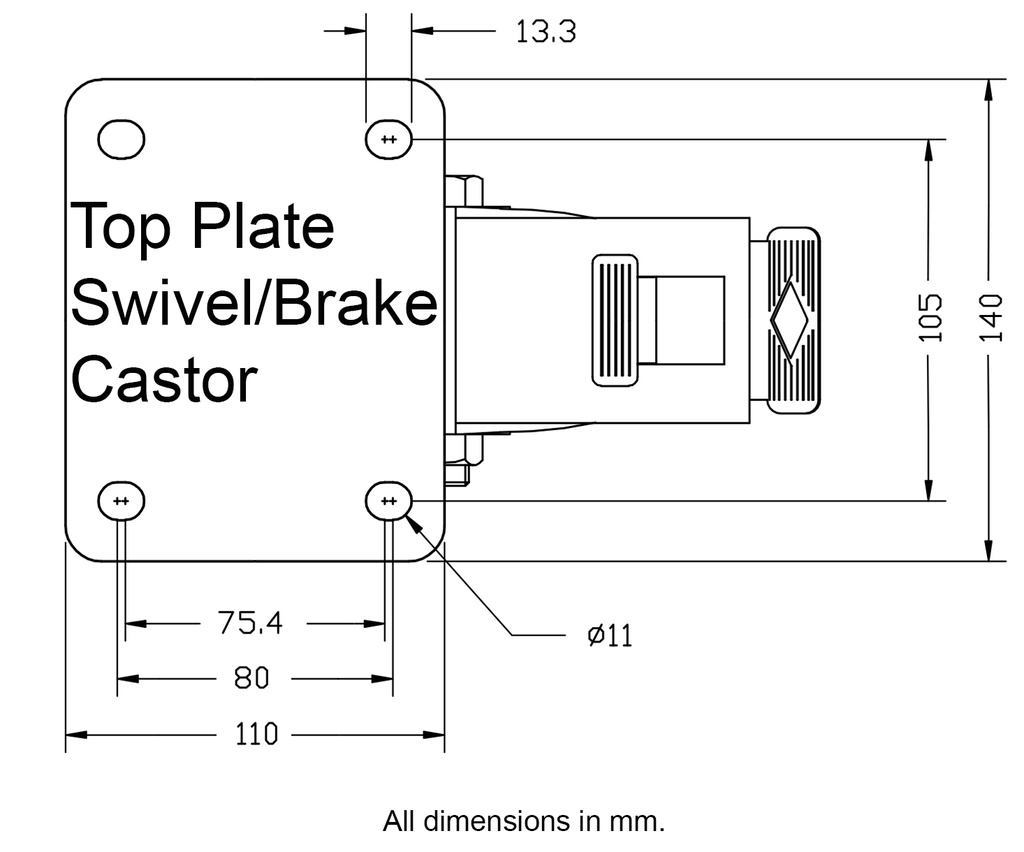

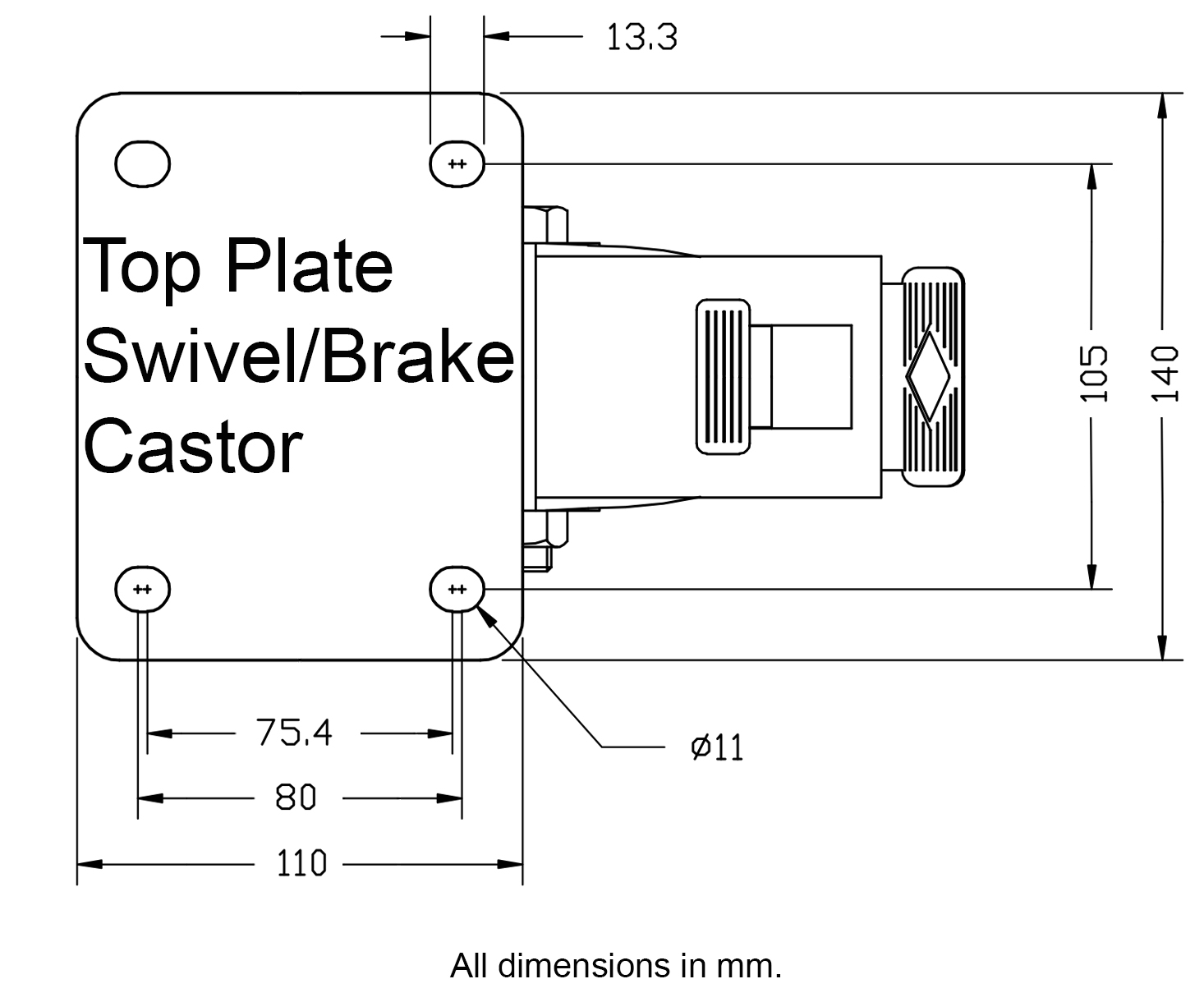

Dimensions for top plate brake, 125-200mm.jpg

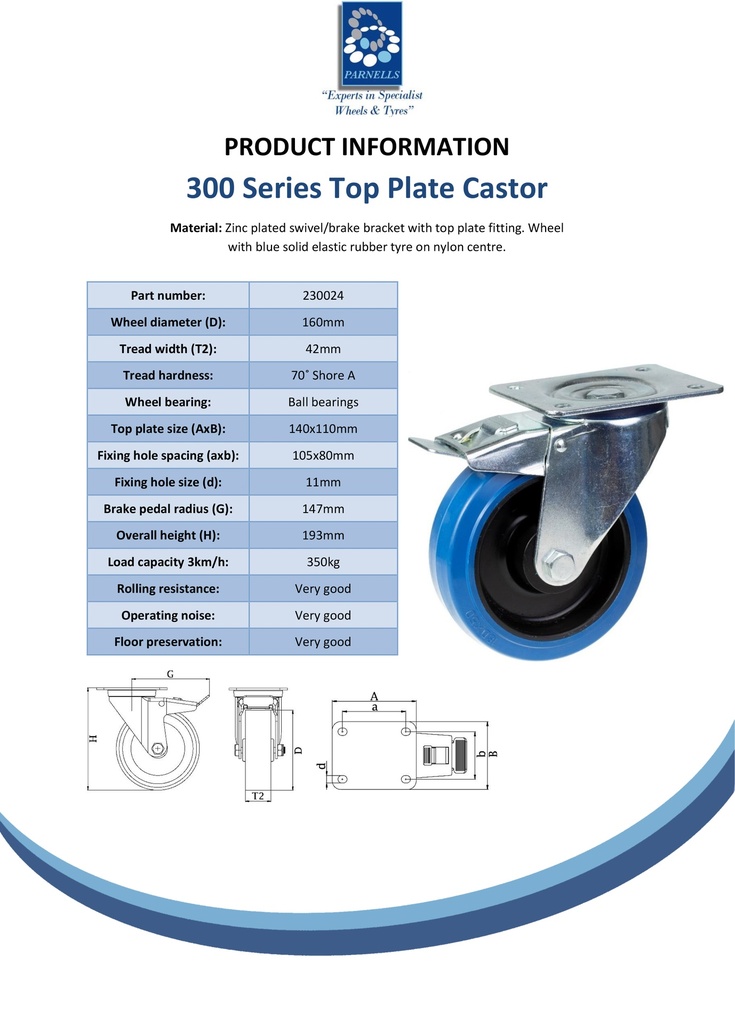

Spec Sheet for 230024.pdf
