200mm swivel castor with blue elastic rubber on nylon centre wheel, 350kg

https://www.parnells.eu/web/image/product.template/87200/image_1920?unique=6813736
(0 review)

Part Number: 230025
Wheel Diameter: 200mm (8" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 350kg

36.67 € 36.67 EUR 36.67 €

52.38 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

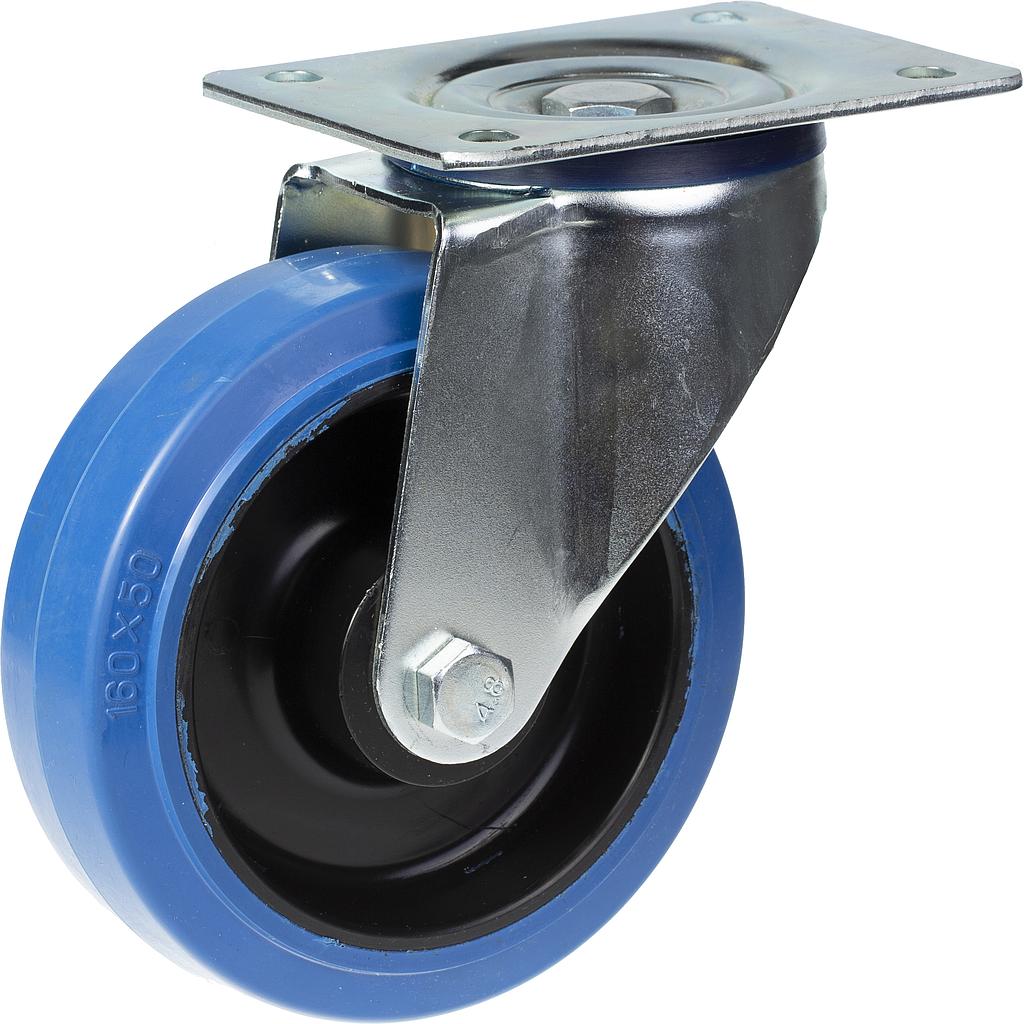

300 series 200mm swivel top plate 140x110mm castor with blue elastic rubber on nylon centre ball bearing wheel 350kg

200mm swivel castor with blue elastic rubber on nylon centre wheel, 350kg

  • Swivel castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Add to cart

Sign in

Pay

Get Delivered

Part Number 230025
Wheel Diameter (mm) 200
Tread Width (mm) 45
Bearing Type Ball bearings
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 233
Load Capacity 3km/h (kg) 350
