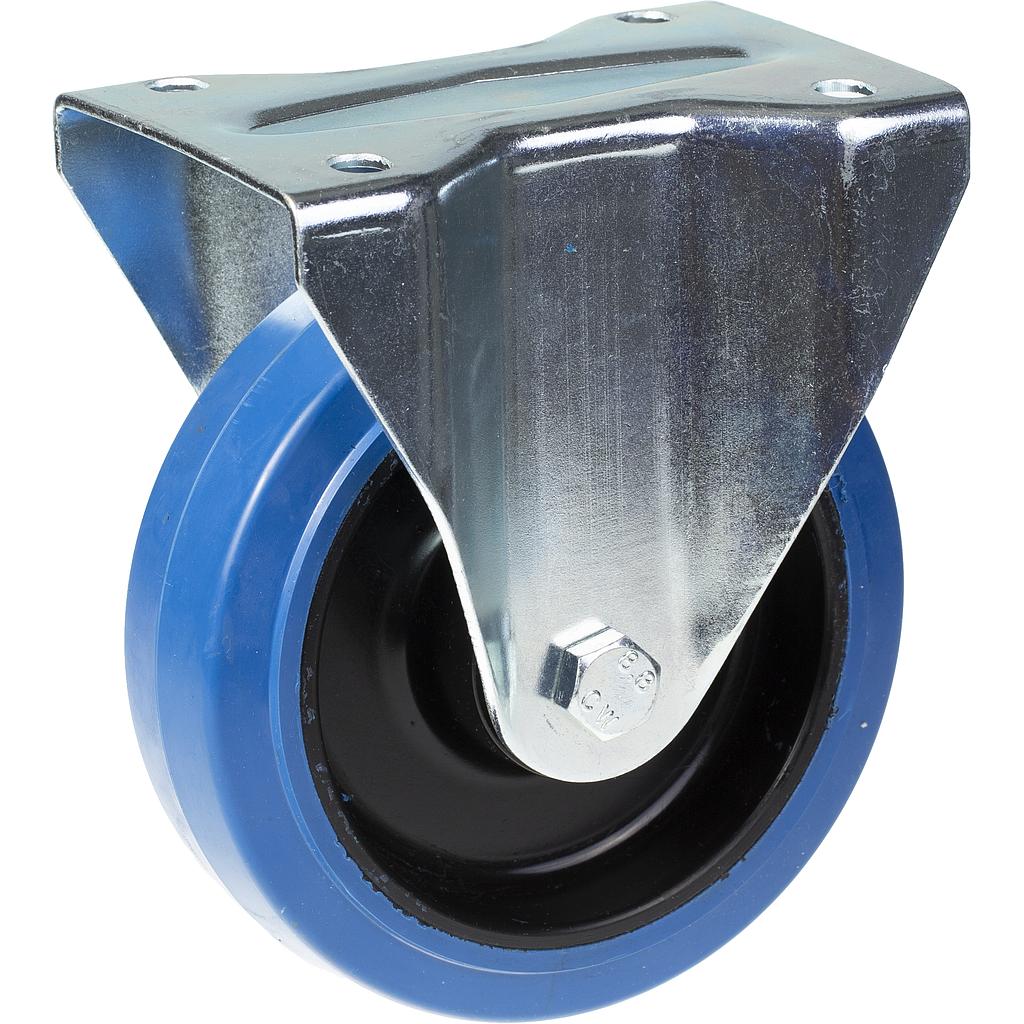

300 series 200mm fixed top plate 146x107mm castor with blue elastic rubber on nylon centre ball bearing wheel  350kg

200mm fixed castor with blue elastic rubber on nylon centre wheel, 350kg

  • Fixed castor with top plate bracket made of zinc plated steel.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Wheel Diameter (mm) 200
Tread Width (mm) 45
Bearing Type Ball bearings

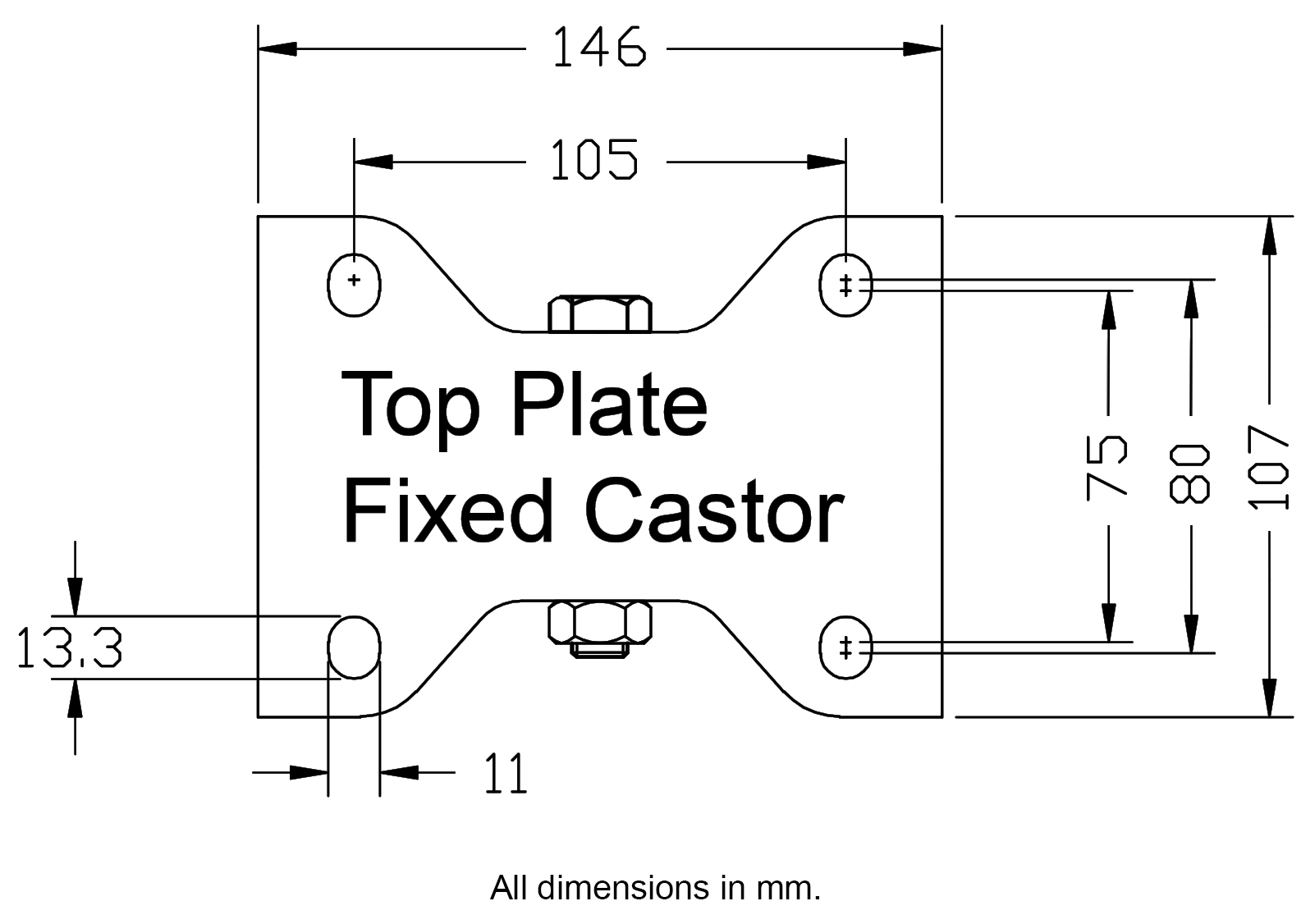

Top Plate Size (mm) 146x107
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 233
Load Capacity 3km/h (kg) 350
